Executive Summary
A 6 m artificial tree with a Q235 hot-dip galvanized core of Ø48–60 mm and a 1,800–3,200 leaves/m³ crown develops roughly 4 kN of drag and 18 kN·m of overturning moment at a 45 m/s design gust — exposure C, the coastal figure Gulf codes work to. A 9 m date palm reaches 6.6 kN and 49 kN·m. Both need a positive fixing: a bolted base plate or a cast-in embedded plate, not a heavier planter. Unfixed ballast for the 9 m palm would need about 12 t.
1. Failure Modes & Commercial Pitfalls
Wind-load failures on artificial trees are rarely collapses in the cinematic sense. They are base plates that pull out of a screed bed, planters that migrate across a terrace, and a landscape package withdrawn from the project after the first Shamal. Four specifications produce nearly all of them.
Ballast-only anchoring comes first. A planter filled with sand, water or foam is the cheapest fixing on paper and it works perfectly in a rendered section view. In service it resists overturning through its own weight and footprint alone: a 1.2 m square planter rated at 300 kg develops about 1.8 kN·m of restoring moment, and a 6 m tree in a 45 m/s gust applies roughly ten times that. The failure is not a slow lean. Once the restoring moment is lost the crown keeps the load on, and a 6 m unit carrying a 3 m crown goes over in a single gust — onto glazing, onto a pool deck, onto a guest.
Anchoring to the wrong layer comes second. Chemical anchors set into a tile bed, a screed or a raised access floor will pass a static pull test and still fail under cyclic wind. A 600 × 600 mm plate carrying 40 kN of uplift needs its anchors developed into the structural slab; 30–40 mm of screed offers perhaps 2–3 kN of pull-out per bolt and no defence against the water ingress that follows a through-screed hole on a roof terrace. The waterproofing warranty is usually the first casualty, well before the tree moves.
Treating the crown as furniture rather than a sail comes third. Porosity is the variable that decides drag. A loosely packed injection-moulded PE crown lets air through and behaves closer to a porous screen, while a dense silk crown or a tightly wired multi-trunk form with low porosity presents nearly continuous surface and can push the effective drag coefficient up sharply. A 60 kg tree is not wind-safe by virtue of being light; the load scales with projected crown area, and a two-season-old matted silk canopy can present more frontal area than it did on day one.
Corrosion of the fixing itself is the fourth and the most expensive to discover late. Gulf coastal air sits in ISO 12944 corrosivity category C5, where salt-laden humidity and a 45–50 °C ambient strip section from bright zinc-plated bolts within a few seasons. Hot-dip galvanized or A4 stainless fixings are the baseline for anything coastal or rooftop, and they have to be specified at the plate rather than improvised on site.
Above all four sits the commercial pitfall. The fixing usually belongs to nobody's scope. The landscape contractor supplies the tree and assumes the base is structural work; the structural engineer assumes a decorative planter; the wind-load calculation for a 9 m specimen never enters the submittal. Whoever holds the QHSE file at handover inherits the gap, and it is the buyer who pays for it in programme time.
2. Material Science & Structural Engineering Standards
Wind load on a tree resolves into a handful of numbers, and each one traces back to the core the tree was built on. Commercial builds above 3 m run a Q235 hot-dip galvanized steel core, Ø48–76 mm with a 2.5–3.2 mm wall, welded to AWS D1.1 and galvanized to 85–120 µm per ISO 1461 for C5 coastal exposure. The plate at the bottom is not an accessory: it is the interface that converts a 40 kN uplift into a bolt pattern the site can actually install.
Core diameter sets the second moment of area, which sets tip deflection and, over years, the creep that leaves a crown permanently off-axis. A Ø48 mm core suits a 4 m indoor olive tree; a 9 m coastal palm needs the Ø76 mm end of the range, with a machined, numbered sleeve joint between core and trunk shell. A glued or foam-packed joint transfers the wind moment into the shell instead of the steel, and the shell is where fiberglass cracks.
The trunk shell carries mass and completes the load path. Centrifugally cast fiberglass reproduces bark texture and bolts to the core at discrete marked joints, so the moment travels steel-to-plate. Synthetic foam trunks are lighter and cheaper, and they also crush locally where the core passes through them, which lets the crown rotate a degree or two further under every gust — invisible in a photograph, cumulative in a fixing detail that was sized for a rigid base.
Foliage decides the sail area, and sail area decides everything upstream of it. Injection-moulded PE at 1,800–3,200 leaves/m³ holds its shape and passes a defined share of airflow; silk flattens and mats, and matting raises effective solidity. Pin the projected crown area for the specification rather than the leaf count, because projected area is the term that enters the drag equation beside the coefficient. A typical 6 m specimen with a 3 m crown presents around 5.5 m², and a 9 m palm around 9 m² — the figures used throughout this article.
3. Life Safety, Fire Codes & Environmental Compliance
Fire documentation and structural adequacy travel in the same submittal and are routinely confused for one another. NFPA 701 (Method 1 for small-scale screening, Method 2 for large-scale assemblies) is the North American baseline for flame spread on textiles and films; EN 13501-1 Class B-s1,d0 is what EU-tendered work and most GCC hospitality packages ask for. Neither says anything about whether a base plate remains in the slab. A supplier able to produce a fire certificate and no anchor calculation has answered half of the question the authority is asking.
For closed hotel atrium and mall interiors, low-VOC declarations matter as much as flame spread, because an HVAC system recirculates whatever the foliage off-gasses. REACH-conformant PE with no added plasticiser is the normal specification, and the material declaration should name the polymer rather than assert that a product is non-toxic.
Coastal installations add a weathering file on top of the fire file. Salt-spray testing to ISO 9227 or ASTM B117 in the 480–720 h range is the usual evidence for coating and fixing durability, and UV exposure is normally run to ASTM G154 (fluorescent UVA-340) or ASTM G155 (xenon-arc). One caution belongs in the buyer's own notes: laboratory hours do not convert into outdoor years. A 1,000-hour UV report is a comparative result between two formulations under one cycle, not a ten-year warranty. The document worth requesting is the same test run on both candidate products, reported with irradiance, cycle and colour-change figure.
Restraint is a life-safety item in its own right, not an aesthetic one. Public assembly and hospitality interiors treat a tall unit as a non-structural element requiring positive restraint against lateral and uplift forces, and coastal and rooftop locations move that requirement from the seismic check to the governing wind case. Fire performance and structural performance are two separate pass-or-fail lines on the same submittal sheet, and a project can clear one and fail the other.
4. Technical Comparison Table
The figures below assume exposure C at a 45 m/s three-second gust, a drag coefficient of 0.6 for a porous PE crown, and a 1.5 factor against overturning. Uplift at the anchor is the governing column for the fixing, and it is roughly an order of magnitude larger than the drag force that generates it.
| Tree Height (m) | Min Core Steel Ø (mm) | Leaf Density (leaves/m³) | Wind Drag @ 45 m/s (kN) | Floor Live Load & Ballast (kg) | Application | Indoor/Outdoor |
|---|---|---|---|---|---|---|
| Olive 2–6 | 48–60 | 1,800–3,200 | 1.0–4.0 | 100–220 anchored | 5-star hotel atrium | Indoor |
| Coconut Palm 3–7 | 48–60 | 1,800–3,200 | 1.5–5.0 | 140–280 | seaside resort pool deck | Outdoor (UV) |
| Date Palm 4–9 | 60–76 | 1,800–3,200 | 2.5–6.6 | 150–300, or ~12,000 if unfixed | seaside resort courtyard | Outdoor (coastal) |
| King Palm 4–8 | 60–76 | 1,800–3,200 | 2.5–5.5 | 180–320 | mall atrium / airport VIP lounge | Indoor / Outdoor |
| Banyan 4–10 | 60–76 | 1,800–3,200 | 3.5–8.0 | 250–450 | corporate HQ reception | Indoor |
| Atrium Ficus 6–12 | 76 | 1,800–3,200 | indoor case only | 300–500 | mall atrium / transport hub | Indoor |
| Mixed terrace 6–9 | 60–76 | 1,800–3,200 | 4.0–6.6 | grillage plus embedded plate | rooftop terrace | Outdoor |

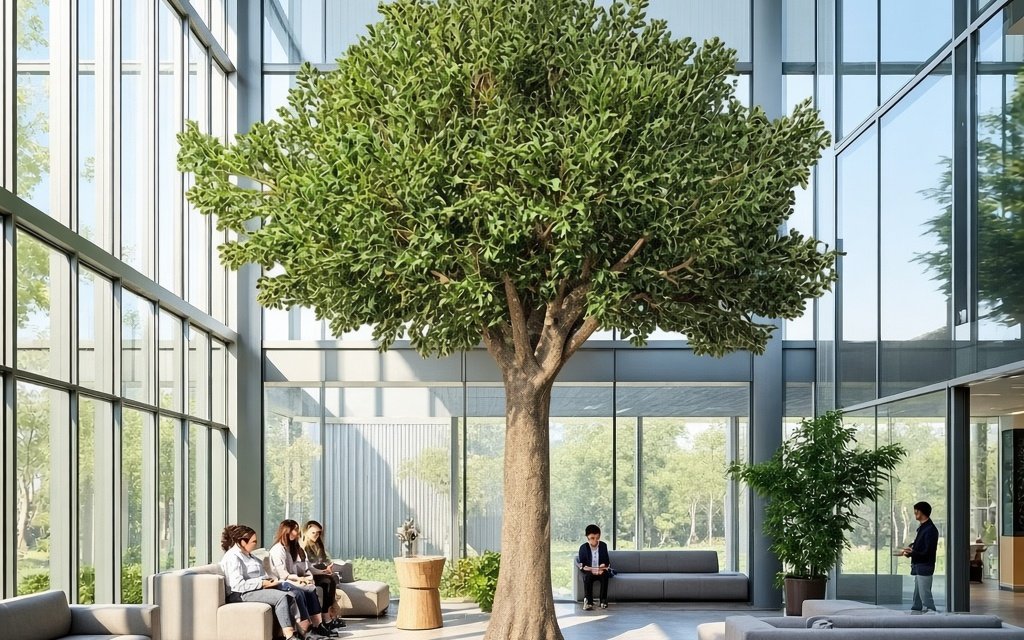

The last two columns are the ones procurement tends to skip. A commercial atrium installation is governed by the seismic and cleaning-impact case rather than wind, so a lighter plate is defensible indoors; the same tree moved to a rooftop terrace immediately becomes a wind-governed structural element, and the ballast option disappears above roughly 6 m. Height alone does not tell the buyer which column applies — the location does.
5. Structural Anchoring & MEP Coordination
Two fixing paths are legitimate, and the arithmetic decides between them. For a mechanical fixing, anchor tension equals overturning moment divided by the bolt-row spacing: a 6 m tree at 18 kN·m over a 0.45 m bolt spacing needs 40 kN of total tension across the tension row, or 20 kN per anchor on a four-bolt plate. An M16 chemical anchor at 125 mm effective embedment in C30/37 concrete sits close to that figure, so a 600 mm four-bolt plate at 45 m/s is at the edge of its capacity. Eight anchors on a 700 mm plate, or a step up to M20, restores the margin. The 9 m palm is not close: 49 kN·m over a 0.65 m spacing gives 75 kN, which requires a cast-in embed plate with welded headed studs or a stiffened 12 mm plate on a heavier bolt group.
Ballast is the other path, and its limits are worth stating plainly. Restoring moment is weight multiplied by half the planter width, so a 9 m palm needs in the order of 12 t of contained ballast to hold a 1.5 factor against a 45 m/s gust. That is a crane-lifted planter, not a landscape accessory. Ballast therefore belongs on decks where the waterproofing warranty forbids drilling and where the unit stays below about 6 m; above that height the load has to reach the slab through a custom anchor detail — embed plate, stud layout and stiffeners drawn per project.
Rooftop fixing needs one more check that coastal ground-level work does not. Anchor uplift of 40 kN spread over a 0.5 m² load-spreader plate is a local 80 kPa bearing case, far outside a typical roof live-load allowance, and it has to be resolved against the roof framing rather than the slab surface. A short steel grillage spanning two structural beams is the usual answer. On the terrace, the spreader also has to sit above the waterproofing membrane on a protected upstand, and the watertightness detail matters as much as the bolt capacity.
MEP coordination settles the geometry before any of it is built. Sprinkler deflectors need the crown held clear below the throw envelope, so a 9 m crown has to be positioned against the sprinkler layout rather than discovered beneath it. High-velocity air curtains at a hotel or mall entrance impose a repeated 2–5 m/s load on anything standing in the door line, which is a fatigue case rather than an overturning case — bracing at the trunk and a properly preloaded fixing handle it, and the same airflow is what strips loose foliage. Thermal movement closes the list: exposed steel in Gulf conditions is designed for a 25 °C differential, so slotted holes or expansion washers at the base plate prevent the plate from tearing at the bolt line or preloading the anchors as the temperature swings.
6. Commercial Contractor FAQs
Q: Who owns the wind-load calculation for a large artificial tree — the supplier or the project structural engineer?
A: The project structural engineer signs off the fixing, and the supplier supplies the input data: drag force, overturning moment, tension per anchor, base-plate size, bolt grade and effective embedment, plus steel and galvanizing certificates. For a 6 m tree at a 45 m/s gust that package reads about 4 kN of drag, 18 kN·m of moment and 40 kN of total anchor tension. A base qualified for a 30 m/s inland site should not be re-labelled for a coastal plot without re-running the figures.
Q: Should a rooftop terrace or coastal deck use ballast or a bolted base plate?
A: Ballast works while the footprint stays large relative to the moment. Holding a 9 m palm against a 45 m/s gust with a 1.5 factor needs in the order of 12 t of contained weight. Below roughly 6 m, and on decks where the waterproofing warranty forbids penetration, a ballasted collar planter with a wide footprint is workable. Above that, a bolted or cast-in base plate transfers the load into the slab and takes ballast out of the design entirely.
Q: What documentation should accompany the anchor detail in a submittal?
A: A calculation sheet with design wind speed, drag coefficient, projected crown area, overturning moment and tension per anchor; the base-plate drawing with thickness, bolt grade, spacing and effective embedment; a galvanizing certificate to ISO 1461; the steel mill certificate; fire-test reports to NFPA 701 or EN 13501-1; salt-spray and UV exposure reports; and an installation sheet giving the torque value and the inspection hold point.
Q: When must the fixing decision be made, and how does it affect lead time?
A: At slab stage on new build. A cast-in embed plate with welded studs is placed with the reinforcement, so the decision precedes the tree order by weeks; retrofit chemical anchors can be set later but only after slab thickness and edge distance are confirmed against the drawing. Standard heights ship in 25–35 days and custom builds above 6 m in 45–60 days, with the base plate travelling as a pre-drilled, galvanized assembly so no site fabrication is required.
Conclusion: Fix the Base Plate Before the Slab Is Poured
The wind-load decision on a large artificial tree is made once, early, and everything downstream inherits it. In our experience the projects that run cleanly are the ones where the base-plate detail was issued alongside the slab drawings, so the anchors, the load spreader and the waterproofing upstand were all resolved before the landscape package went to tender. Our engineering team returns a signed anchor calculation, a base-plate drawing and finish swatches with every quotation, sized to the actual height, crown spread and site wind speed rather than to a generic table. Browse the full product catalogue, send the site plan with the exposure class, and we will return the fixing detail your structural engineer can check and stamp.
