Executive Summary
An 8 m artificial banyan ships engineered knock-down as a three-segment mast stack, three to four crown bundles and a separate base plate, and books at roughly 18–20 m³ per tree against 28–34 m³ if the crown travels assembled — about four units per 40 ft HQ instead of two. Compression is the binding constraint, not length. Injection-molded polyethylene foliage held above 45 °C under stacked load for more than 72 hours takes a permanent set, and no rigging crew can steam it back on site.
What follows is the volume decision as it gets made at the loading bay: where the cubic metres actually go, which part of the tree drives them, what the container interior does to foliage across a 25–35 day transit, and which lines on the packing list decide whether the tree still stands straight when it reaches the atrium.
1. Failure Modes & Commercial Pitfalls
Quoting freight from the open-crown volume. An 8 m banyan carries a canopy spread that can reach 12 m on the widest builds. Measured in its erected state, that silhouette occupies 28–34 m³ of notional space. Booked that way, a 40 ft HQ holds two units and the per-tree freight line roughly doubles against a knocked-down shipment of four. The mistake is rarely arithmetic — it is that the first quote is built from a photograph of the finished tree rather than from a packing drawing.
Compressing the crown with no load path. Bundling a crown is not the same as crushing it. Where tiered branches are strapped flat against a pallet with no internal former, the load lands on leaf tips and secondary branch nodes. Injection-molded leaves take a crease at the fold line that survives unpacking; fiberglass secondaries crack where the armature meets the leaf spine. The visible result two weeks after installation is a bald patch on the traffic-facing side of the canopy, and the only remedy is replacement foliage shipped at air-freight rates.
Treating container heat as a non-issue. Under Gulf summer sun the roof skin of a dark container reaches 60–70 °C by early afternoon while internal air sits around 55 °C, and the top tier is the hottest place in the box. Polyethylene leaf compound creeps under sustained load from about 50 °C. A crown bundle stowed high, strapped tight, sitting 30 days on a Jebel Ali quay is a creep test nobody designed.
Lashing the mast to the container wall instead of bracing it to the floor. An 8 m mast stack weighs in the region of 180–240 kg across three segments. Side-rail lashing looks secure on the loading photo and fails in roll: the stack walks, paint abrades at every contact point, and the internal spigot at the middle joint takes a side load it was never drawn for. Ovalised spigots show up on site as a 2–4 mm runout at the top of the mast, which reads as a leaning tree to everyone except the person holding the spirit level.
Shipping the base plate in a different box. The plate, the anchor template and the tree it belongs to form one set. Split them across two containers, or bury the plate under forty crown bundles, and the installation programme stalls on day one at the most expensive phase — crane on site, floor closed, crew idle.
Piece numbering that does not survive the trip. Marker pen on a wrapped bundle is gone by the time the container is unstuffed. An unlabelled crown bundle is a two-hour search per tree in a lay-down area, repeated across a twenty-tree order.
2. Material Science & Structural Engineering Standards
The envelope decides the segmentation. A 40 ft high-cube interior measures roughly 12,032 × 2,352 × 2,698 mm with a door aperture around 2,340 × 2,585 mm. An 8 m tree cannot travel in one piece in any container, so the shipped configuration is a design decision, not a packing preference. The useful discipline is to draw the tree as it will be packed before the quotation is issued, and to keep the drawing in the same revision as the shop drawing set.
Mast segmentation and joint quality. The core for an 8 m build is typically Q235 hot-dip galvanized tube at Ø76 mm with a 3.5 mm wall, split into three segments of about 2.7 m with internal spigot joints. Spigot engagement of 250–300 mm and two through-bolts per joint is what keeps the assembled mast straight; a single-bolt joint or a welded sleeve that has to be joined on site both push tolerance problems to the last day of installation. Specify joint runout at no more than 1.5 mm per metre, and check it after reassembly, not before packing.

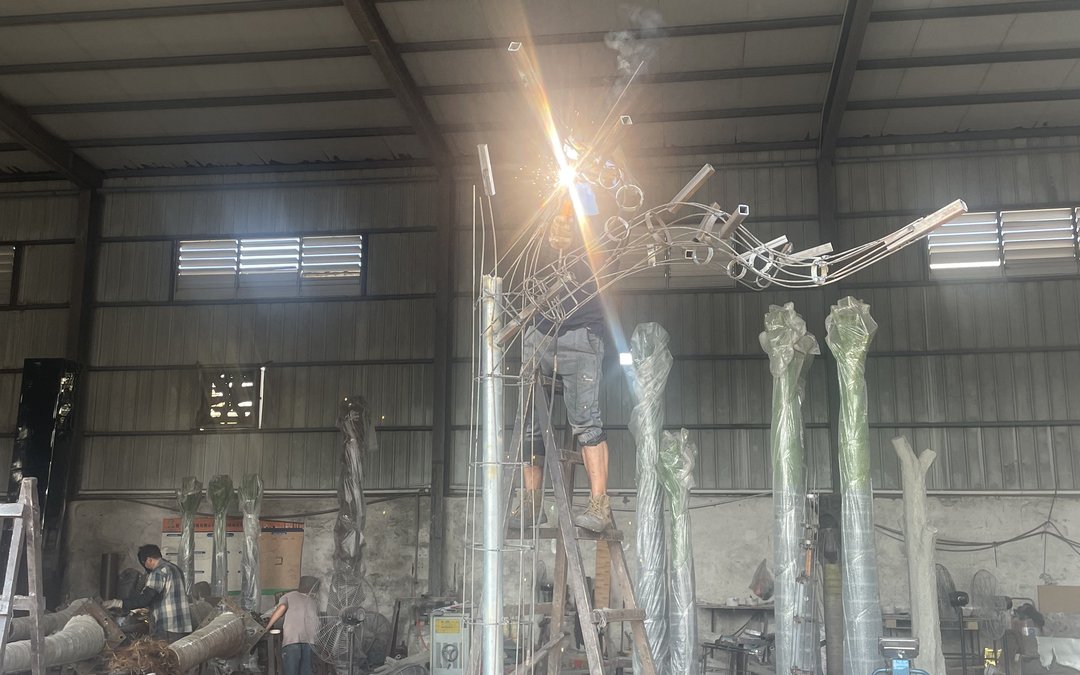

Crown bundling and the compression ratio. The crown of an 8 m banyan is fiberglass primary branches on a steel wire armature, dressed in layers of injection-molded polyethylene. Bundled along the branch axis with an internal former, a crown compresses to 45–55% of its open spread; pushed beyond that, the leaf layers interlock and the load transfers to the leaf surface. Bundles land at 3.4–4.2 m long and 0.8–1.0 m in diameter, which is what fills a 40 ft HQ long before the mast does. A date palm is the easier case — fronds compress along one axis with almost no interlock — which is why palm freight per unit is a poor benchmark for a broadleaf canopy.
Foliage selection has a freight consequence. Silk foliage compresses further but creases, and creases do not recover. Injection-molded PE holds its shape better under load, dusts less in service, and is the material that survives a 30-day transit at 55 °C. Leaf density for a commercial canopy sits at 1,800–3,200 leaves/m³; below that the canopy reads thin under downlight, above it the bundle weight climbs and the compression problem gets worse. The trunk shell is centrifugal-cast fiberglass over the steel core, not foam: foam cores dent under lashing pressure and cannot take a through-bolt.
Stow plan as a thermal decision. Crown bundles belong in the lower tier, mast segments on top with at least 300 mm of free air below the roof skin, and no bundle in direct contact with the container ceiling. Where a mixed order includes outdoor builds with UV-stabilised foliage, those go low and away from the door end. The stow plan should carry a simple rule that a loader can follow without reading the drawing twice: heavy and heat-sensitive low, long and rigid high.
Weight is not the ceiling; volume gets there first. A 40 ft HQ takes around 26,000 kg of payload, and four 8 m banyans in crates land in the region of 1,600–2,200 kg gross. The box is full long before it is heavy, which is why a mixed order should be planned by cubic metres and only checked against payload afterwards. What does need attention is point loading rather than total mass: a 200 kg mast segment resting on two 100 mm timber bearers concentrates the load on a small footprint, and softwood bearers crush under it over a four-week voyage, dropping the stack onto the container floor. Bearers at 1.2 m centres, hardwood or laminated, and a plywood spreader under each contact point solve it for the price of a few board feet.
Lashing geometry, stated once. Straps run at no more than 30° from the horizontal, taken to the container floor lashing rings rather than to the side rails, with one strap per segment and a timber chock at each end of the stack. Chains against a painted steel surface without a softener leave marks that arrive as a damage claim. The loading photo should show the strap angle and the chock positions, because that photograph is the only evidence that survives the voyage.
3. Life Safety, Fire Codes & Environmental Compliance
Fire performance is fixed at the leaf compound, not at the packing stage, but the documentation chain is what gets checked at destination. An IFR foliage report to NFPA 701 Method 1 or EN 13501-1 Class B-s1, d0 should name the tested construction — compound, leaf thickness, backing — and that construction has to match what is in the container. Where heat exposure above 70 °C is a routine risk on the lane, ask whether the additive system is compounded into the polymer or applied as a topical treatment; a topical treatment that migrates during a hot transit is a fire-rating problem discovered at re-inspection, months after arrival.
Wood packaging is regulated material. Cradles, pallets and dunnage all require ISPM 15 treatment — heat treatment is the usual measure — and the IPPC stamp naming the provider and the measure applied. An unmarked cradle is a hold or a re-treatment at destination, and re-treating a braced 8 m mast is neither quick nor gentle. Heat-treated timber also lets a shipment avoid methyl bromide fumigation, which matters when the receiving programme cannot absorb a 24-hour aeration window before unstuffing.
Sealed containers accumulate volatile organic compounds from wrapping film, bundle strapping and freshly cast fiberglass. Specify low-VOC materials, include desiccant at roughly 1 kg per 3 m³ of booked volume, and hold relative humidity inside the box under about 65%. On arrival, crown bundles need airing before they go into a closed atrium with a running HVAC system; a two-to-three day airing period is normal on a new build and should be written into the installation sequence rather than discovered on site.
4. Technical Comparison Table
Freight yield first, because it is the number the purchase order is built on.
| Tree Height (m) | Mast Segments | Crown Bundles | Booked CBM per Unit | Units per 40 ft HQ | Governing Constraint |
|---|---|---|---|---|---|
| 4 | 2 | 2 | 8–10 | 8 | Crown bundle diameter |
| 6 | 2 | 2–3 | 12–13 | 6 | Bundle stack height |
| 8 | 3 | 3–4 | 18–20 | 4 | Crown spread, not mast length |
| 10 | 3 | 4 | 23–26 | 3 | Volume, then payload |
Structural specification sits on the same drawing set and has to be quoted against the same heights.
| Tree Height (m) | Min Core Steel Ø (mm) | Leaf Density (leaves/m³) | Base Plate + Ballast (kg) | Application | Indoor/Outdoor |
|---|---|---|---|---|---|
| 4 | Ø48 × 3.0 | 1,800–2,200 | 90–120 plate, 250–350 ballast | Boutique hotel lobby under a 4 m soffit | Indoor |
| 6 | Ø60 × 3.0 | 2,000–2,600 | 120–160 plate, 350–500 ballast | Corporate HQ reception, mall concourse | Indoor |
| 8 | Ø76 × 3.5 | 2,400–3,000 | 180–260 plate, 500–700 ballast | 5-star hotel atrium, airport VIP lounge | Indoor |
| 8 | Ø76 × 3.5 | 2,400–3,000 | 240–320 plate, 800–1,100 ballast | Seaside resort lobby, open-sided colonnade | Outdoor, UV-stabilised |
| 10 | Ø89 × 4.0 | 2,800–3,200 | 260–340 plate, 700–950 ballast | Grand mall atrium, double-height resort lobby | Indoor |
Read the two tables together before releasing a purchase order. A 10 m build at three units per box changes the freight line by a third against the 8 m figure, and a mixed order of six 8 m and four 10 m trees will not fill containers cleanly at either count — plan the mix against the box, not against the project tree schedule. The standing heights, planter options and canopy spreads these figures are drawn from sit on the artificial banyan page, and they should match the packing drawing to the millimetre.
5. Structural Anchoring & MEP Coordination
The base plate is the datum, and it has to travel with its tree. Site anchoring for an 8 m build uses a steel base plate on M16 chemical anchors at 150 mm effective embedment into structural concrete, with a drilling template keyed to the plate's bolt circle. Where the slab cannot take the tension, the alternative is a ballast collar planter — 500–700 kg of dead load indoors, more where the canopy is exposed to wind. Both options are decided by engineering calculations at design stage, and both depend on the plate arriving with the correct tree. Put the serial number on the crate, on the plate and on the packing list in the same format.
Reassembly sequence and the tolerance it protects. Base plate, lower mast, middle segment, upper segment, then crown tiers from the inside out. Each joint should be checked for runout before the next segment goes on; correcting a 4 mm lean at the top of a fully dressed 8 m canopy costs a crane hour, correcting it at the second joint costs ten minutes. Torque values for the joint bolts belong on the assembly sheet, and the crew should be signing them off rather than judging by feel.
Sprinkler clearance and the drop that compression causes. An 8 m canopy under a glazed hotel atrium roof has to keep its required clearance below the sprinkler deflectors, and a compressed crown can sit 40–80 mm lower at the branch tips than the drawing shows. Re-set the branch angle on the armature clamps after dressing, then measure again — the submittal drawing, not the packing photo, is the reference.
Air movement and canopy sway. High-velocity air curtains and large diffusers put 2.0–2.5 m/s across a canopy at 3 m from the outlet. That is enough to keep a poorly braced crown moving visibly, and over a season it works the joint bolts. Where the diffuser layout is known at design stage, anchor the plate for the higher load case rather than arguing about it after handover.
Storage between delivery and installation. Crown bundles store flat, no more than two high, off a wet floor and out of direct sun. Mast segments store horizontally on timber, not on their ends. A twenty-tree order for a commercial atrium fit-out typically lands weeks before the floor opens, and the storage discipline in that gap decides the condition of the foliage on installation day.
The six-line check before the seal goes on. Loading is the last point where a mistake costs days rather than weeks. Six items are worth photographing against the packing list: piece count per tree number, base plate and anchor template present for every serial, crown bundles banded with the load direction visible, strap angle and chocks, door-end bracing, and the container number legible in the same frame. Where the purchase is on FOB terms, that set of photographs is also where risk transfers — after the container is sealed and handed to the carrier, a crushed crown is a marine insurance question, not a production one. Buyers who skip the loading record find that out at the claim, not at the port.
6. Commercial Contractor FAQs
Q: How many 8 m artificial banyans fit in a 40 ft high-cube?
A: Four units in a standard engineered knock-down configuration, at roughly 18–20 m³ booked per tree. The count drops to three where crowns exceed the 12 m spread, and to two if crowns ship assembled. Ask for the packing drawing, not the container count on the quotation.
Q: Can the crown ship assembled to save installation time?
A: For an 8 m banyan the assembled crown exceeds every container door aperture, so the answer is no on a 40 ft HQ. What can be pre-built is the branch tier structure: crowns can arrive as three assembled tiers that bolt onto the upper mast, which cuts site time to under a day without touching the freight envelope.
Q: Does 30 days in a container damage the foliage?
A: Not if the crown is bundled within its compression ratio and stowed in the lower tier. Damage follows from three conditions stacking up — compression beyond 55% of open spread, sustained interior temperature above 55 °C, and more than 72 hours in that state. Any one of the three is manageable; all three together produce permanent leaf set.
Q: Who owns the loading plan, the stowage drawing and the VGM declaration?
A: The shipper named on the bill of lading owns all three, whatever the forwarder does in practice. On tree orders the practical failure is that pre-advice is filed by a haulier who has never seen the packing list. Get the stowage drawing approved before the container is booked, and confirm who signs the verified gross mass.
Q: What lead time applies to an 8 m build?
A: 25–35 days for production at standard heights once the shop drawing and foliage sample are signed off, plus 25–35 days transit on Gulf lanes. The variable that moves most is the sign-off on the crown sample, because a colour or leaf-density change on an 8 m canopy cannot be absorbed late in the schedule.
Project Engineering Support & CAD Requests
We pack against a drawing, not against a photograph. Send the project tree schedule and the slab or planter detail, and our engineering team will return a packing drawing with CBM per unit, the mast segmentation, the crown bundle count and the base plate schedule — the same document the loading crew will work from, and the one your forwarder should be quoting against. For projects where the plate, the anchors or the rigging sequence need to match a structural engineer's drawing, we can issue DWG submittals and finish swatches for approval before the container is booked.
