Executive Summary
An outdoor artificial palm on a Gulf coastal site should hold colour to Grey Scale 4 (ISO 105-A02) and ΔE ≤ 3 after 2,000 h of ASTM G154 UVA-340 exposure, mounted on a Ø60–76 mm Q235 hot-dip galvanized core with a 2.5–3.2 mm wall and 1,800–3,200 leaves/m³ of UV-stabilised injection-moulded PE foliage, IFR to NFPA 701 as standard. Specified below that line — topical UV spray, silk fronds, recycled regrind with a degraded stabiliser package — the documented failure window at 45–50 °C is two to four summers, and the fix is a crown replacement rather than a repair.
1. Failure Modes & Commercial Pitfalls
Artificial foliage does not fail the way buyers expect. It does not tear or collapse. It loses colour first — unevenly, starting at the sun-facing face of the crown — and by the time the shift is obvious in a smartphone photo it has been sitting on site for a full season. Six specification errors produce almost all of it, and each one has a different paper trail.
Topical UV protection quoted as UV50+. A surface spray that carries the UV absorber, rather than the polymer itself, is the lowest-cost way to answer a UV question in a quotation. Its protection window in a high-UV zone is measured in months: a topical film on a moulded frond is typically spent before the first annual maintenance visit. What follows is chalking and dulling on the exposed face, then a slow drift of pale pigments toward grey-green. Two summers of retained-sample comparison usually settles the argument, and the remedy is not a touch-up — it is a crown replacement across the affected elevation.
Silk or polyester fronds on outdoor work. Silk photographs well indoors and is the wrong material outdoors. Polyester hydrolyses under combined UV and moisture, the fibres mat, and matting removes the porosity that lets air pass through a crown instead of pushing against it. A colour problem quietly becomes a structural one: the same crown that looked flat in year one presents more solid area in year three, and the projected area feeding the drag equation has changed without anyone reissuing the anchor detail.
Test evidence for a different product. A UV report is evidence only when it describes what is being bought: same polymer grade, same stabiliser package, same colour, and a production-moulded leaf rather than a flat pressed plaque. Reports are also routinely issued without the parameters that make them reviewable — irradiance, chamber cycle, exposure duration, and the evaluation method. A 1,000 h figure is a comparative measurement between two formulations under one cycle; it is not a service-life statement. ASTM G154 and ASTM G155 both note that operating conditions change the outcome, and the accepted practice is to complement chamber work with natural outdoor exposure. Converting lab hours directly into outdoor years should be rejected in writing, in the specification, before the quotation stage.
No retained colour baseline. Without an unexposed retained sample and an agreed measurement — ΔE to ASTM D2244, or a grey-scale rating to ISO 105-A02 — nobody can prove fading, because nobody defined it. The dispute then turns on adjectives rather than data, and the buyer generally loses it. This is also what makes staged replacement fail: fronds ordered in year three arrive from a different production batch, and the mismatch is visible under façade lighting long before it is visible in daylight.
Heat as a separate mechanism from light. Radiant load from a pale façade plus a 45–50 °C ambient pushes surface temperatures well above air temperature on dark components. Plasticiser migration, gloss loss and chalking follow, and they accelerate in PVC formulations already rated only "moderate" for outdoor exposure. Recycled regrind behaves worse than virgin polymer because the stabiliser package has already been partly consumed in its previous life. Thermally, the same environment works on the other end of the tree: gelcoat, resin and the planter shell.
A warranty that does not define fading. A five-year label frequently covers cracking and structural failure while excluding colour change and weather. Published outdoor greenery warranties range from five years on qualifying panels to twelve months on individual trees, and prorated terms reduce the remedy every year. Unless the document names covered SKUs, the installation environment, a measurable fade limit, exclusions, remedy and who pays freight on replacement, it has no value at handover — the venue owner reads the words "excessive fading" in year two and the supplier answers with "normal ageing".
2. Material Science & Structural Engineering Standards
Weathering performance is decided at the resin stage, not at the finishing stage. UV stabilisation in commercial outdoor builds means a hindered amine light stabiliser (HALS) compounded into the masterbatch, typically in the 0.3–0.8 % range, working together with a UV absorber. HALS acts as a radical scavenger and protects the polymer chain itself, while the absorber converts incoming UV into heat before it reaches the pigment system. Neither can be sprayed on afterwards with the same effect, which is why "UV treated" and "UV50+ in-resin" are not interchangeable phrases and should never be treated as one category in a bill of quantities.
Pigment chemistry decides how visible a given amount of degradation becomes. Earth tones built on inorganic pigments hold their reading far longer than bright organic yellows and greens, and lighter tones lose contrast against a façade first because there is less chroma to lose before the leaf reads grey. Leaf construction matters as much: moulded PE fronds with a 1.2–2.0 mm wall keep their angle and their surface finish, while thin extruded fabric flattens, mats and drags against neighbouring fronds. Crown density for commercial work runs 1,800–3,200 leaves/m³, dense enough to read as a crown from three floors up without closing the canopy into a solid sail.
The structural frame is what makes the foliage specification meaningful. A galvanized core of Ø48–76 mm sits behind this class of tree, Q235 steel with a 2.5–3.2 mm wall, welded to AWS D1.1 and hot-dip galvanized to ISO 1461, where the minimum average coating thickness on steel over 6 mm is 85 µm. Coastal and rooftop locations fall into ISO 12944 corrosivity category C5-M, where carbon steel corrodes faster than 50 µm per year unprotected; that is the reason the core, the base plate and the fixing hardware are specified together rather than treated as separate line items. Height drives the choice: a 4 m courtyard specimen sits at Ø48–60 mm, a 9 m date palm at the Ø76 mm end of the range.

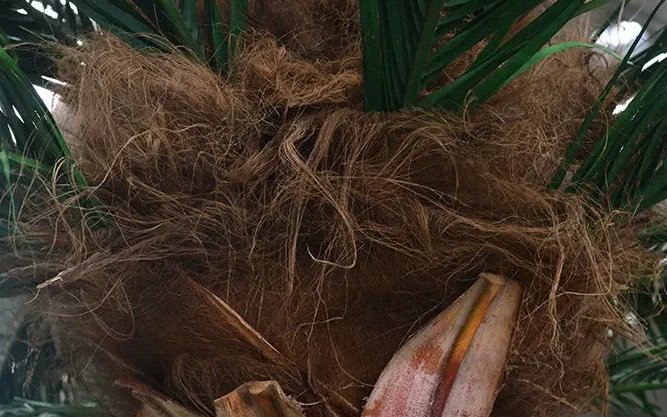

The trunk shell completes the load path and carries its own weathering case. Centrifugally cast fiberglass reproduces bark and ring texture and needs a UV-stabilised gelcoat to hold gloss; synthetic foam trunks chalk, discolour and crush locally where the core passes through them. On palms, the fibrous crown detail that hides the core junction is a common weak point in cheap builds: loose, unbacked fibre mats, holds water, and reads as shaggy within two seasons. Palm crown fibre in a commercial build has to be bonded and trimmed as a defined component.
What to ask for at specification stage is a defined test protocol, not a certificate number. A workable requirement set reads:
- Chamber exposure: ASTM G154 or ISO 4892-3, UVA-340 lamps, a stated cycle (for example 8 h light at 60 °C / 4 h condensation at 50 °C), stated irradiance at 340 nm, and a stated duration of 1,500–2,000 h for Gulf coastal work.
- Evaluation: colour difference to ASTM D2244 (ΔE) plus a grey-scale rating to ISO 105-A02, and a stated visual check for chalking, crazing and cracking on the same specimen.
- Specimen identity: finished moulded leaf or production crown section, in the actual specified colour, from the actual production line.
- Salt spray: ISO 9227 or ASTM B117, 480–720 h, on the base plate, bolts and any exposed steel — a coastal site needs the fixing evidence as much as the foliage evidence.
- Trunk and finish: gelcoat or coating system details with dry-film thickness, and adhesion tested by pull-off to ISO 4624 where a coated system is used.
3. Life Safety, Fire Codes & Environmental Compliance
Outdoor foliage still passes through two approval lines, and UV evidence answers only one of them. Fire performance is the other. NFPA 701 is the North American baseline for flame spread on textiles and films — Method 1 for small-scale screening, Method 2 for large assemblies — and EN 13501-1 Class B-s1,d0 is what EU-tendered work and most GCC hospitality packages request. Inherently fire retardant (IFR) builds carry the additive in the resin, so the rating travels with the material for the life of the part; topical flame retardant is a coating and depends on a film that UV exposure, cleaning and abrasion are all working to remove.
The two files should be read together, because they are affected by the same additives. UV stabilisers, pigments and fire retardants are all formulated into one compound, and a supplier optimising only for flame spread can deliver a crown that discolours in a season. Projects where the authority reviews a weathered façade element — an entrance canopy, a porte-cochère, an exposed mall entrance — can require the same IFR formulation tested after the agreed weathering cycle rather than in as-new condition, and this can be specified in the technical submittal. Where it is not requested, the buyer should at least confirm that the IFR package and the stabiliser package belong to the same formulation revision, since a mid-project compound change invalidates both reports.
Environmental compliance follows the same logic at 50 °C. For enclosed hotel atrium and interior installations, a recirculating HVAC system moves whatever the polymer off-gasses, so a REACH-conformant PE with no added plasticiser is the normal specification, and the material declaration should name the polymer and the additive families rather than assert that a product is safe. Outdoors the heat works differently on the same chemistry: plasticiser migration and volatiles are a surface and durability issue rather than an air-quality issue, but they are the reason a specification should name the compound rather than a product family. A submittal that lists formulation, colour, code year, weathering hours and evaluation method in one table is checkable; a folder of certificates with no product reference is not.
4. Technical Comparison Table
The columns below combine the structural data a structural engineer needs with the weathering evidence procurement should attach to each line item. The colour criterion assumes an exposed coastal or desert installation; an arcade-shaded courtyard can be specified to a shorter exposure duration, but not to a lower acceptance limit, because the failure mode is the same.
| Tree Height (m) | Min Core Steel Ø (mm) | Leaf Density (leaves/m³) | Floor Live Load & Ballast (kg) | UV / Weathering Evidence to Demand | Application | Indoor/Outdoor |
|---|---|---|---|---|---|---|
| Olive 2–6 | 48–60 | 1,800–3,200 | 100–220 anchored | G154 1,500–2,000 h, ΔE ≤ 3, GS 4 | 5-star hotel atrium / shaded terrace | Indoor, UV add-on for terraces |
| Coconut Palm 3–7 | 48–60 | 1,800–3,200 | 140–280 | G154 2,000 h plus B117 480 h | seaside resort pool deck | Outdoor (UV50+) |
| King Palm 4–8 | 60–76 | 1,800–3,200 | 180–320 | G154 1,500 h, ΔE ≤ 3, GS 4 | mall atrium / airport VIP lounge | Indoor / Outdoor |
| Washingtonia Fan Palm 4–8 | 60–76 | 1,800–3,200 | 160–300 | G154 2,000 h plus B117 720 h | hotel porte-cochère / city streetscape | Outdoor (coastal) |
| Date Palm 4–9 | 60–76 | 1,800–3,200 | 150–300 | G154 2,000 h, salt spray 720 h, ΔE ≤ 3 | seaside resort courtyard / public realm | Outdoor (C5-M) |
| Banyan 4–10 | 60–76 | 1,800–3,200 | 250–450 | G154 1,500 h, visual cracking check | corporate HQ reception | Indoor |
| Atrium Ficus 6–12 | 76 | 1,800–3,200 | 300–500 | indoor case: none required, low-VOC declaration | mall atrium / transport hub | Indoor |
Read the last two columns first. A commercial atrium case is governed by cleaning impact, seismic restraint and air quality, so the weathering column carries no weight and the money belongs in the core and the anchor. Move the same species outdoors to a pool deck or a public plaza and the exposure column becomes the governing purchase criterion — a sheltered arcade with 60 % shading behaves nothing like a west-facing forecourt at 48 °C, and the same 4 m olive tree can legitimately be specified with two different foliage builds on one project. The mistake to avoid is a single line item labelled "UV treated" covering both.
5. Structural Anchoring & MEP Coordination
The base is where a coastal specification fails first, and it usually fails before the foliage does. Hot-dip galvanizing to ISO 1461 or A4 stainless fasteners are the baseline for anything within salt-spray reach; bright zinc-plated bolts in a C5-M environment are gone in a couple of seasons, and the visible symptom is rust staining on the pavers and inside the planter, not a detached tree. Because the anchor detail is small, it is also the item most often deleted from a value-engineered package — and it is the one item that cannot be replaced after handover without scaffolding and a slab repair.
Thermal movement needs to be designed in, not discovered. Exposed steel in Gulf conditions is normally detailed for a 25 °C differential, so the base plate needs slotted holes or expansion washers so the plate can move without tearing at the bolt line or preloading the anchors as the day warms. On a rooftop terrace, the load path continues through the slab: the spreader plate sits above the waterproofing membrane on a protected upstand, the anchor uplift is resolved against the roof framing rather than the screed, and the watertightness detail is as important as the bolt capacity. Project-specific engineering calculations belong at this stage, not at installation.
Where drilling is prohibited — a warranted deck, a post-tensioned slab, a finished stone floor — the alternative is a ballasted collar planter, and its contents deserve more attention than they usually get. Water-filled ballast loses mass to evaporation and needs refilling; foam ballast degrades under UV and loses density at 50 °C; sand, gravel or concrete-filled ballast holds its mass but must be accounted for as a permanent floor load. The planter shell itself is a weathering item: a UV-stabilised HDPE or cast shell holds, while a thin recycled shell cracks within two summers and exposes the ballast.
Maintenance closes the loop, and it is where an otherwise sound specification is undone on site. High-pressure washing abrades the stabiliser-bearing surface layer and shortens the colour life of a crown; solvent-based cleaners attack pigment and gelcoat. A pH-neutral cleaner, a soft brush and a defined annual inspection — crown colour against the retained sample, base plate condition, bolt torque, ballast mass, planter shell — keeps the evidence chain alive for a warranty claim. MEP coordination adds two site conditions worth designing around: entrance air curtains impose a repeated 2–5 m/s load on anything standing in the door line, which is a fatigue case rather than an overturning one, and sprinkler throw clearance fixes the crown height in a covered atrium before the tree order is placed.
6. Commercial Contractor FAQs
Q: How many hours of ASTM G154 should a 50 °C desert project require, and how do those hours translate into years?
A: For exposed Gulf coastal and desert installations, specify 1,500–2,000 h to ASTM G154 with UVA-340 lamps and a stated cycle, evaluated as ΔE ≤ 3 (ASTM D2244) with a grey-scale rating of 4 or better (ISO 105-A02) on a production-moulded leaf in the specified colour. Do not accept a conversion from hours to years: ASTM G154 and G155 both note that chamber conditions change results, and accelerated data is comparative between formulations rather than predictive of service life. Ask instead for the same test run on the candidate products and read the numbers side by side.
Q: The supplier offers a five-year UV warranty — what has to be written into it to be worth anything?
A: The warranty needs covered SKUs and quantities, the installation environment (full sun, sheltered, coastal), a measurable fade limit, the listed exclusions, the remedy (repair, replacement or credit), whether it is prorated year by year, who pays freight and duties on replacement parts, the claim deadline, and the evidence required. Outdoor greenery warranties on the market run from five years on qualifying panels down to twelve months on individual trees, and several exclude weather damage and colour change altogether — so the period alone tells a buyer nothing.
Q: Why do light-coloured fronds fail earlier than dark green ones, and what should be specified for a pale scheme?
A: Light tones lose contrast sooner because there is less chroma to lose before the leaf reads grey, and organic yellow pigments shift faster than inorganic earth tones. For a pale or grey-green scheme, specify the pigment family rather than a colour reference, raise the stabiliser loading within the compound, and hold a retained unexposed sample as the contractual baseline. On a two-tone façade, buy the full replacement quantity for the exposed elevation in the same production batch, because a phased replacement from a later batch will not match.
Q: Can UV-treated and standard foliage be mixed on one project, and how are faded fronds replaced later?
A: Only per exposure zone, and only when the zones are genuinely different. A sheltered arcade, a shaded courtyard and a west-facing forecourt are three different cases and can be specified to different evidence levels, but each line item must state its own hours and acceptance limit. For replacement, keep the retained sample, record the batch code on the packing list, and order replacement crowns or foliage modules rather than individual leaves — module replacement keeps colour and geometry consistent and avoids re-rigging the tree on site.
Conclusion: Write the Colour Limit Into the Specification Before You Order
Colour loss on outdoor artificial foliage is not a maintenance surprise; it is the predictable result of a specification that named no number. The projects that hold their appearance through year five are the ones where the UV requirement was written as an acceptance criterion — hours, cycle, ΔE, grey-scale, specimen identity — and attached to the same line item as the core diameter and the anchor detail. Our engineering team issues weathering and salt-spray documentation against a named formulation and colour, together with the anchor calculation and finish swatches, so a structural engineer and a QHSE reviewer are working from one submittal. Send the site location, the exposure direction and the species list, and we will return the specification sheet with the UV and fixing evidence already mapped to each tree position. The full range is listed in the product catalogue, and project-specific builds start from the same formulation data.
