PE vs Silk Foliage and Fibreglass vs Foam Trunks: How to Verify Delivered Material Against the Specification

Executive Summary

Material substitution on large artificial trees is detectable, and the checks are simple enough to run on the loading bay. A commercial-grade specimen is built around a Q235 hot-dip galvanized steel core of Ø48–76 mm with a wall around 3.5 mm and a minimum 85 µm zinc coating to ISO 1461, carrying injection-moulded polyethylene foliage at 1,800–3,200 leaves/m³, with flame performance documented to NFPA 701 Method 1 or EN 13501-1 B-s1,d0. Five checks settle it: leaf cross-section, canopy density, core wall thickness, zinc coating and colour change against a retained sample.

A hydraulic press forming green polyethylene leaf blades - the moulded solid section that woven fabric foliage cannot imitate.

1. Failure Modes & Commercial Pitfalls

Substitution rarely arrives as a different product. It arrives as the same product with one component quietly changed, and the change is usually invisible in a photograph. Five patterns account for most of it, and each one carries a cost.

"Silk" is not silk, and it is not PE either. Nearly all commercial foliage sold as silk is a woven polyester or nylon fabric stretched over a wire stem. It drapes well and photographs well, which is why it survives in high-end interiors. It is also a fabric: under continuous lighting and near a window it fades, and in full sun above 40 °C the weave relaxes and the canopy sags. On a specimen specified as injection-moulded PE, a fabric canopy is a different product with a different service life, and dressing does not restore it once it has slumped.

The trunk goes from moulded shell to solid foam. A moulded glass-reinforced polymer shell around a foam core holds a ringed bark texture with a hard moulded edge, takes a fixing through the core, and can be repaired by re-finishing. A solid synthetic foam trunk is lighter, cheaper and softer. It scuffs, it deforms under a sustained load in a warm environment, and it cannot be taken apart at the joint for a repair. The consequence appears two years in, as a lean that cannot be corrected on site.

The core wall comes back thinner. A core reduced from a 3.5 mm wall to 2.0–2.5 mm still carries the static load, which is why it passes a casual check. What it does not survive is the splice: the bolted or welded joint between two transportable lengths is where bending concentrates, and a thin wall at the joint deforms first. The visible symptom is a crown that sits off-axis and reads wrong from the atrium floor, and the remedy is a replacement length plus international freight.

The canopy is dressed lighter. Leaf density is the easiest specification to shave, because a 20% reduction is invisible in a catalogue image and obvious at 12 m in a daylit space. The tree looks acceptable in isolation and thin when it stands next to a correctly built neighbour.

The stabiliser package is dropped. Polyethylene without a proper hindered amine light stabiliser package will yellow. The failure is not instant; it shows as a yellowness index climbing past tolerance at 18–30 months in a desert site, against five to seven years for a correctly stabilised formulation. By the time it is visible across a whole installation, the batch is long gone and every affected piece is a replacement.

The commercial cost of all five is the same shape: replacement pieces, freight, installation labour on a live site, and a snag item that outlives handover. Two of the five also end a project rather than merely annoying it. If the substitute material changes the construction described in the fire report, the compliance file no longer covers what was delivered, and the problem moves from the procurement file to the fire consultant's desk at exactly the wrong moment.

2. Material Science & Structural Engineering Standards

Each of the four components in a large artificial tree has an identifiable material signature, and in most cases the signature can be measured without destructive testing.

Foliage - injection-moulded PE versus woven fabric. An injection-moulded polyethylene leaf is a solid moulded section with moulded veins and a defined edge, produced in a steel mould at a fixed shot weight. Cut one leaf across and the section is uniform and dense; hold it to the light and it is opaque. Woven "silk" foliage is a fabric: a visible weave, a soft drape, a stitched or glued attachment to a wire stem, and a translucency under backlight that no moulded leaf reproduces. That single cross-section check separates the two materials faster than any document.

What keeps PE stable outdoors is not the polymer alone but the additive package compounded into the melt. Hindered amine light stabilisers work by regenerating during exposure, which is why they outperform a simple ultraviolet absorber over a multi-year service life, and they only function if they are dispersed through the resin rather than sprayed on the surface. A supplier describing a "UV coating" rather than a stabilised formulation has described a surface treatment, and a surface treatment on a leaf that is cleaned twice a year is a temporary benefit.

Canopy density. Leaf density is expressed as leaves per cubic metre of canopy envelope, typically 1,800–3,200 leaves/m³ for commercial specimens. It is verified by counting leaves in a 0.5 m cube of canopy, measuring that cube's volume and scaling up. An approved sample is the reference; a delivery reading materially below the sample's figure is a lighter dress, not a variation.

Trunk - moulded shell versus solid foam. The shell is a glass-reinforced polymer moulding 3–5 mm thick, and it is what carries the bark texture and the hard moulded cut edge at the crown and the base. Inside it, the structural core runs continuously. A solid foam trunk has neither the shell nor a continuous core, which is why a fixing that relies on a through-bolt cannot be taken in it. At the join between trunk and base plate, the requirement is that the core is continuous and that no foam sits between the bolt and the steel.

Core and coating. The core is Q235 hot-dip galvanized steel tube, Ø48–76 mm by height, wall around 3.5 mm, 85 µm minimum zinc to ISO 1461. Wall thickness is measured with an ultrasonic gauge or a calliper at mid-span on at least three tubes; coating thickness is measured with a magnetic gauge at ten points, including the weld toes, where thin coverage is most common.

Colour and UV performance, measured rather than judged. Colour is compared in the CIELAB space as a colour difference against a retained reference sample, quoted as ΔE. Accelerated weathering follows ASTM G154 or the technically equivalent ISO 4892-3: UVA-340 lamps, irradiance around 0.89 W/m²/nm at 340 nm, a black-panel light stage at 60 ± 3 °C, a condensation stage at 50 ± 3 °C, in an eight-hour light and four-hour condensation cycle, run for 500, 1,000 or 2,000 hours depending on the exposure class. Common acceptance criteria are a colour difference of ΔE ≤ 3.0 for light colours and ≤ 5.0 for dark, a yellowness index change of ΔYI ≤ 3.0, gloss retention of 80% or better for a demanding specification, and a chalking rating of grade 8 or better on the ten-point ASTM D4214 scale. Two practical rules sit behind those numbers: test hours do not convert into outdoor years, and each colour must be tested separately, because pigment type and loading drive weathering performance more than the base polymer does.

Read together, the material specification and the test evidence describe one thing: a construction. That is the asset a buyer is purchasing on a repeat order, and it is the thing worth writing down and keeping. A buyer taking delivery of an olive tree or a date palm for the first time should retain the approved sample, the stabiliser statement and the weathering report as three separate documents, because each one answers a different question later.

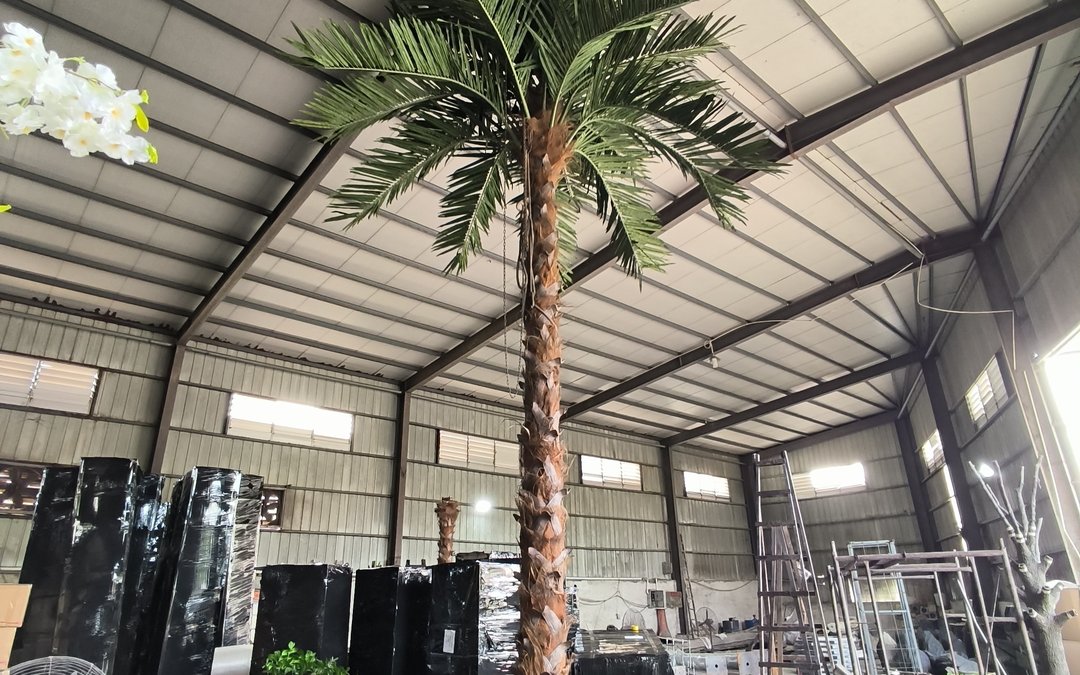

A tall palm in the factory bay before crating - moulded trunk texture and frond construction as delivered.

3. Life Safety, Fire Codes & Environmental Compliance

Fire performance is issued against a construction, which makes it the strongest argument for verifying material on delivery rather than trusting a certificate number.

What the standards actually describe. NFPA 701 is tested under two methods: Method 1 is the small-scale procedure and Method 2 the large-scale version, and a report states which was used. EN 13501-1 classifications such as B-s1,d0 used for GCC and European tenders are likewise issued for a described specimen. Both routes describe a material at a stated construction and areal weight. Two specimens can carry the same product name and still be different constructions.

Why substitution breaks the file. If the delivered canopy is a woven fabric rather than the tested injection-moulded sheet, or if the areal weight has moved because leaf density was reduced, the report no longer describes the goods. A fire consultant comparing the report's specimen description against a sample will notice, and the correction is a new test rather than a letter. On a repeat release the same logic applies per shipment: a certificate does not travel forward automatically to a batch built differently.

The conformity document is per consignment. Under the SABER route used for Saudi imports, each consignment is raised against a product registration created from a tested construction. A second release that changes the construction sits outside that registration, and the container waits while the file is rebuilt. That is a schedule failure caused entirely by a material decision taken without reference to the compliance file.

Indoor air quality. For enclosed HVAC environments - an airport VIP lounge, a hotel lobby, a covered atrium - specifications normally ask for low-VOC polymers and an odour-free finish. That is a materials statement made per construction, and it moves with the batch. Substituting a cheaper finish to avoid a changeover changes the statement as well as the material.

Traceability is what makes the check possible. A batch reference on the packing list, matched to the approval sample and to the fire report's specimen description, is the only way to prove later that a disputed piece came from a certified construction. Without it, a material argument becomes a conversation about memory.

4. Technical Comparison Table

The five material checks that correspond to that table, with the measured criterion and the signal that the check has failed:

Read the two tables together and the purchasing logic is clear. The left column of the upper table is what was specified; the lower table is how each element of that specification is confirmed on the ground. A delivery that passes all five checks has been verified as the specified construction. A delivery that fails one has been verified as something else, and the time to establish that is before the crates are unpacked, not after the installer has dressed the canopy.

5. Structural Anchoring & MEP Coordination

The fixing is where material substitution becomes a structural problem rather than an aesthetic one, because the fixing depends on the core being where the drawing says it is.

A base plate transfers load to the floor through a bolt pattern drilled in the plate and matched to the core. If the core is continuous and the plate is bolted through it, the load path runs through steel. If the trunk is a solid foam body with a short steel insert at the base, the load path runs through foam, and the plate's capacity is limited by the insert rather than by the plate. The difference is invisible from the outside and decisive in a pull test.

Three verification items belong at delivery, before installation begins. Plate flatness and hole pattern against the released drawing, because a plate re-made to a different pattern will not sit on the setting-out. Bolt grade, confirmed by the marking on the head, A4-70 stainless for coastal and poolside positions and A2 for inland sites, with chemical anchors proof-tested at 1.5 times the design load and an edge distance of at least five anchor diameters. And torque against part number, recorded per specimen, because the torque reading is the only evidence that the joint was made correctly, and it is what an inspector asks for after a snag is raised.

Where the base sits on a slab or deck that has not been designed for a concentrated point load, the arrangement normally needs a spreader plate or a designed plinth, and the loading has to be stated in the same set of engineering calculations as the anchor. That document should also state the design wind load and the friction assumption, so that a later substitution can be checked against a number rather than against an opinion.

The MEP side of the same question is about clearance. A specimen has to clear sprinkler throw and stay out of high-velocity air-curtain paths, and in a hotel atrium the ceiling void usually constrains the installation more than the floor does. A denser canopy changes the airflow around a sprinkler head, so a delivery dressed lighter than specified is not only a visual issue - it changes an assumption in the MEP coordination. Any change to canopy density or height after the MEP drawings are issued should be re-checked, and on a mall landscaping package with a fixed handover date that check is cheaper at the drawing stage than during a night installation window.

A calliper on a galvanized core tube reading 4.0 mm at the cut edge - wall thickness is measured, not assumed.

6. Commercial Contractor FAQs

Q: How can PE foliage be told apart from silk without dismantling the tree?

A: Take one leaf from a position that will not be missed and cut it across. Injection-moulded polyethylene gives a solid, uniform, opaque section with moulded vein detail and a defined moulded edge. Woven foliage gives a fabric weave, a flexible drape and a wire stem inside the cloth, and it transmits light. The two look similar at a distance and are unambiguous at 10 mm.

Q: What wall thickness should the steel core be, and how is it confirmed?

A: Around 3.5 mm nominal on the Ø48–76 mm core used across the 2–12 m range, with a minimum 85 µm zinc coating to ISO 1461. Confirm it with an ultrasonic gauge or a calliper at mid-span on at least three tubes, and take coating readings at ten points including the weld toes. A wall of 2.0–2.5 mm still carries a static load, which is exactly why the measurement matters more than a load test.

Q: Which UV test evidence should a report show?

A: A report citing ASTM G154 or ISO 4892-3, with the lamp type, the irradiance, both stage temperatures, the light-to-condensation cycle and the exposure duration stated, and a measured property afterwards. Common acceptance criteria are ΔE ≤ 3.0 for light colours and ≤ 5.0 for dark, a yellowness index change of ΔYI ≤ 3.0, gloss retention of 80% or better, and a chalking grade of 8 or better. Hours on their own are not evidence, and test hours do not convert into a number of outdoor years.

Q: What should be retained at delivery as the material reference?

A: Four items per project: the approved sample for every geometry, showing crown diameter, trunk finish and foliage colour; the stabiliser and formulation statement from the supplier; the weathering report with its cycle and duration; and the fire report's specimen description. Keep a spare leaf and a colour chip from the delivered batch with the batch reference, filed with the packing list. Those four documents are what turn a material dispute into a documented comparison.

Q: If a release does not match the construction, what can be done?

A: Measure first, then raise it in writing with the readings attached - wall thickness, coating, density count and colour difference against the retained sample. A mismatch in the core, the coating or the fire-relevant construction is a non-conformance against the purchase order, and the remedies are replacement of the affected pieces, re-testing, or a documented concession with a price adjustment. Which of those is available depends on whether the construction was written into the order, which is why the specification has to name the material, the wall thickness and the coating class rather than the product.

Conclusion: Measure the construction, not the promise

Material verification is not a laboratory exercise. A leaf cross-section, a density count, a calliper reading and a colour difference cover four of the five checks, and all four can be done at the loading bay in under an hour. The fifth - the stabiliser package behind the UV performance - is answered by the report and by the sample that should have been retained at approval. Retain the sample, measure the delivery, and keep the batch reference with the packing list.

Our engineering team issues material documentation per project: the construction schedule with core diameter, wall thickness and coating class by height, the foliage and stabiliser statement, the weathering and fire report set, and a base plate drawing with the bolt grade and torque values marked. Send the specification you intend to enforce and the heights in the package, and we will return the measurement sheet that confirms each item at delivery.
