Specifying SABER Certification and Civil Defence Fire Rating for Artificial Trees: The Compliance Dossier Saudi and UAE Projects Need Before the Container Ships

Executive Summary

Artificial trees specified for Saudi or UAE commercial projects above 3 m carry three separate compliance tracks, and they are reviewed by three different authorities. The structural basis of the submittal is a Q235 hot-dip galvanized steel core of Ø48–76 mm fabricated to AWS D1.1 with galvanizing at 85–120 µm per ISO 1461. The life-safety basis is inherently flame-retardant foliage tested to NFPA 701 Method 1 and Method 2, or classified EN 13501-1 Class B-s1,d0 for GCC and EU tenders. The import basis is Saudi SABER clearance, where the Product Certificate of Conformity (PCoC) runs twelve months per model and the Shipment Certificate of Conformity (SCoC) is issued per consignment with a 60-day validity window.

The order of operations decides whether a project clears customs and passes its fire inspection or absorbs a demurrage bill. Compliance documentation is generated at the factory, months before the container is booked, and none of it can be substituted after arrival.

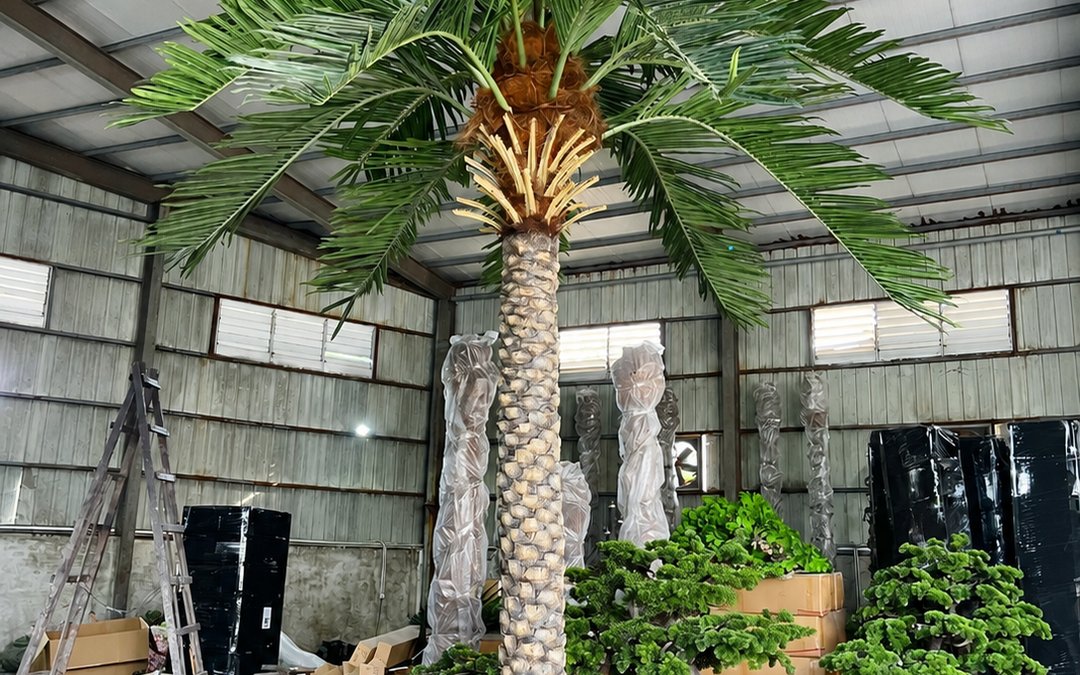

A finished palm crown standing in the production hall before crating: adjacent trunks remain in transit film and pallet staging fills the bay behind — the point in the schedule where conformity paperwork, not steelwork, is the last open item.

1. Failure Modes & Commercial Pitfalls

Certification failures on decorative planting are almost never caused by the product. They are caused by the sequence in which the paperwork is assembled, and by specifications written with adjectives instead of test methods. Four patterns account for most of the containers that sit at Jeddah, Dammam or Jebel Ali while a hotel fit-out programme slips.

The first is treating the certificate as a delivery document rather than a pre-shipment document. On the Saudi route the foreign manufacturer cannot open a SABER account; the Saudi importer holds the account, registers the product by HS code, engages a SASO-approved conformity assessment body and obtains the PCoC. The manufacturer's job is to supply the technical file that the importer uploads: test reports from an ILAC-accredited or ISO 17025 laboratory, product photographs from all angles, a label in Arabic or Arabic plus English, and the factory's ISO 9001 certificate. A PCoC takes roughly 3–10 working days once a complete file is in front of the certification body, and the SCoC is issued per shipment in 1–3 working days. Requested after the vessel has sailed, the same file becomes a customs hold. Nothing in that chain is a technical problem, which is why it is usually discovered too late — the buyer has already paid for the trees and the freight.

The second pattern is a flame certificate that describes a material the project did not receive, or no longer possesses. A retardant applied to the surface of a leaf is a treatment, not a property: it sits on the material and leaves the material each time the material is washed. The normal maintenance regime for a large indoor installation — a damp microfiber wipe every few weeks, plus a low-pressure rinse on ground-floor units — removes exactly the layer the test report was written about. At handover, or at the annual Civil Defence inspection, a spot re-test does not reproduce the certified figure. The tree is then physically sound, visually acceptable, and non-compliant, which is the worst of the three states because it has to come out of an occupied atrium.

The third is a specification that names a look instead of a polymer. When a tender schedule says "premium artificial foliage, flame retardant", the submittal contains nothing a third-party reviewer can verify. Two suppliers will both satisfy that wording while delivering different UV stabilisation, different leaf wall thickness and different fire behaviour, and the difference surfaces at the inspection rather than at the quotation stage. The document that prevents this is unglamorous and short: polymer grade, leaf density in leaves/m³, core diameter and wall thickness, galvanizing thickness, and the fire test method with a report number.

The fourth is a scope blind spot around the finished installation. A large interior tree in a glazed hotel atrium is inspected as an installed element, not as a shipped product. If the base plate, the fixing method and the crown clearance from the sprinkler throw envelope were never drawn, the material certificate alone will not carry the inspection, because the inspector is also assessing whether the object in front of them matches what was approved. A tree that is compliant on paper and undocumented in its section drawing is a re-inspection fee and a delay.

2. Material Science & Structural Engineering Standards

The reason material engineering belongs inside a compliance article is that a certificate always describes a specific material. If the tender does not name the material, the certificate cannot be matched to the delivered goods — so the material decision is a certification decision made early.

The core is the load path and the first thing a reviewer can measure. Commercial builds above 3 m use Q235 hot-dip galvanized steel tubing at Ø48–76 mm with a 2.5–3.2 mm wall, welded to AWS D1.1 shop practice and hot-dip galvanized to 85–120 µm per ISO 1461 so that a coastal installation has a coating figure rather than a promise. A 4 m interior olive tree sits at the lower end of that range; a 9 m coastal date palm needs the full Ø76 mm column with a machined, numbered sleeve joint. Both figures are checkable on site with a caliper and a coating gauge, which is what makes them useful in a submittal.

The trunk shell is a separate decision and a common source of substitution. Centrifugally cast fiberglass takes its mold from a real trunk, so the finished shell carries the ring texture, the fissures and a hard molded cut edge at the branch collars. It also bolts to the core at discrete, marked joints, which means the wind moment and the crown weight transfer steel to steel. A synthetic foam shell is lighter and cheaper to texture, and it behaves acceptably until the core penetration starts working: foam crushes locally under every gust and thermal cycle, the crown rotates off-axis, and a tree specified as straight stands visibly leaning by its third year. Foam also cannot carry bolt-together joints reliably, which removes the knock-down packing option from the design at the same moment it removes the structural evidence from the file.

Foliage is where the fire claim is actually decided. Injection-molded polyethylene produced from a real-leaf impression gives a single molded part with a wall of roughly 0.8–1.2 mm, a molded rather than cut edge, and a flame performance built into the polymer at the compounding stage. Commercial crowns are specified at 1,800–3,200 leaves/m³, and the figure belongs in the material schedule rather than in a brochure, because two crowns of the same apparent size at different density present visibly different silhouettes from three floors up. A UV-stabilised outdoor build carries the absorber and the hindered-amine stabiliser compounded into the masterbatch before molding, so the protection extends through the full leaf section and cannot be washed off — the same logic that keeps a fire certificate valid across a cleaning cycle.

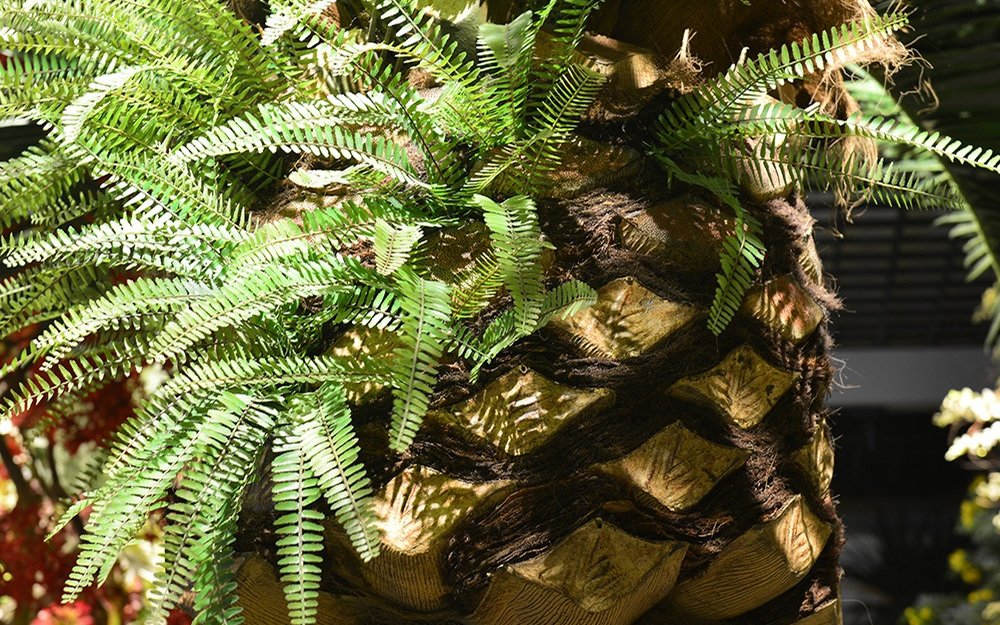

Cast trunk shell in detail: the moulded bark facets and the wrapped fibre banding are taken from a real palm specimen — this is the surface an inspector compares against the retained sample held with the O&M file.

3. Life Safety, Fire Codes & Environmental Compliance

Fire performance on artificial foliage is quoted as a material route and enforced as an assembly result, and the gap between those two ideas is where projects fail. NFPA 701 covers two methods. Method 1 is the small-scale screening test for fabrics and films; Method 2 is the large-scale assembly test applied when the material forms part of a finished construction. EN 13501-1 Class B-s1,d0 is the classification most GCC hospitality specifications and European tenders expect, where the s1 suffix limits smoke production and d0 confirms no flaming droplets. Both routes test a specimen in the form in which it will be installed, which is precisely why an inherently flame-retardant PE leaf and a topically treated leaf can share a report number and behave differently after the first wash.

Saudi import compliance runs on a parallel track with its own logic. SABER is the electronic conformity platform operated by SASO under the SALEEM programme, and it splits the obligation in two. The PCoC certifies the product model against the applicable Saudi technical regulation; it is valid for one year, issued per model and per factory, and tied to that importer's account — a change of importer means a fresh application. The SCoC certifies that a specific consignment matches the PCoC; it is issued per invoice, valid 60 days, and is the document Saudi customs actually matches against the digital record. An SCoC cannot be issued against an expired PCoC, so a project running across a year boundary needs the renewal diarised a month before expiry rather than discovered at the port. Since 2026 the traditional letter of undertaking route has closed, and the SABER record is verified against the customs declaration rather than accepted as a supporting paper.

The UAE route is a project approval rather than a product registration, and it runs in stages. Civil Defence reviews the design submission — layouts, clearances, evacuation provisions — before installation begins, then inspects the completed installation against the approved drawings before issuing a completion certificate, which is a prerequisite for occupancy. In Dubai, alarm and life-safety systems are also tied into the Hassantuk monitoring framework, and material evidence forms part of the same submission. For an atrium feature tree the practical consequence is that the fire test report has to describe the article on site, and the installer has to be able to show the material was not substituted between approval and handover. Retaining a production sample of the approved foliage with the first shipment, and logging it against the submittal reference, is the lowest-cost risk control on the project.

Air quality completes the file. A glazed atrium with closed HVAC recirculation concentrates whatever the installed materials release, and the odour complaint that surfaces two weeks after handover is an indoor-air issue rather than an aesthetic one. The workable commercial position is REACH-conformant PE with no added plasticiser and a declaration naming the polymer and the stabiliser system, rather than any claim of being odourless or non-toxic. Coastal Gulf installations add a separate environmental case: salt-spray evidence to ISO 9227 or ASTM B117 in the 480–720 hour range covers coating and fixing durability, and it is a different test from the UV weathering record, so it should be requested separately rather than assumed.

A compliance dossier for a Gulf artificial tree project typically looks like this:

Read that table as a responsibility map rather than a checklist. The documents a supplier can legitimately control are the test reports, the material declaration and the shop drawings; the certificates a buyer cannot delegate to a supplier are the PCoC and SCoC, because both are issued to the importer's account. Projects that fail at the port are usually projects where the buyer assumed the factory would handle a document that the factory is not legally able to apply for.

4. Technical Comparison Table

The rows below reflect factory-standard builds at 1,800–3,200 leaves/m³ on a Q235 hot-dip galvanized core, with IFR foliage as standard and the UV-stabilised exterior build available for coastal work. Ballast figures assume a contained-weight fixing with a 1.5 factor against overturning; anchored values are lower because the load reaches the slab through the base plate.

Use the table to fix the measurable columns before the compliance file is assembled, not after. Core diameter and wall thickness define what the shop drawings must state; leaf density and polymer identity define what the fire report must describe; the ballast or anchored figure defines whether the structural submission is a floor-loading calculation or a base-plate design. A specification that pins height but leaves the four middle columns to the supplier has no defensible technical baseline, and a certificate issued against an undefined baseline is not evidence.

5. Structural Anchoring & MEP Coordination

The fixing detail is where the structural file and the fire file converge, because the same drawing is reviewed twice — once for load transfer and once as part of the approved installation set. Two fixing families are used commercially. A concrete base plate set into the slab transfers the wind moment directly into the structure and is the default for permanent outdoor units at height; a ballast collar planter holds the tree by contained weight and is used where a waterproofing warranty forbids penetration, typically pool decks and some podium terraces. The choice is not aesthetic. Where ballast is the only permitted option, the unit is normally held below roughly 6 m and the contained weight is confirmed against the designed wind case rather than against a planter catalogue. Any deviation between the approved detail and the installed one is a compliance event at handover, not a site preference.

Projected crown area is the second driver and the one most often left out of the submission. A Gulf-facing exposure combines sustained wind with a crown that presents a large sail; the fixing is sized against the moment that combination produces, and the crown footprint therefore belongs on both the structural engineering calculations and the ceiling coordination drawing. Salt-spray exposure in a coastal location shortens the acceptable maintenance interval on the plate and fasteners, which is why the ISO 9227 or ASTM B117 result is a structural document as much as a coatings one.

MEP coordination then decides the geometry in the finished space. Sprinkler deflectors need the crown held below the throw envelope, so the crown extent has to appear on the sprinkler layout rather than being resolved on site. High-velocity air curtains at a hospitality or mall landscaping entrance apply a repeated lateral load to anything standing in the door line, and that same airflow is what strips loose foliage from a poorly secured crown. Cleaning access needs a route that does not require a scissor lift inside a finished atrium, and the approved material sample should be retained with the O&M file so a future replacement order can be checked against the article that passed.

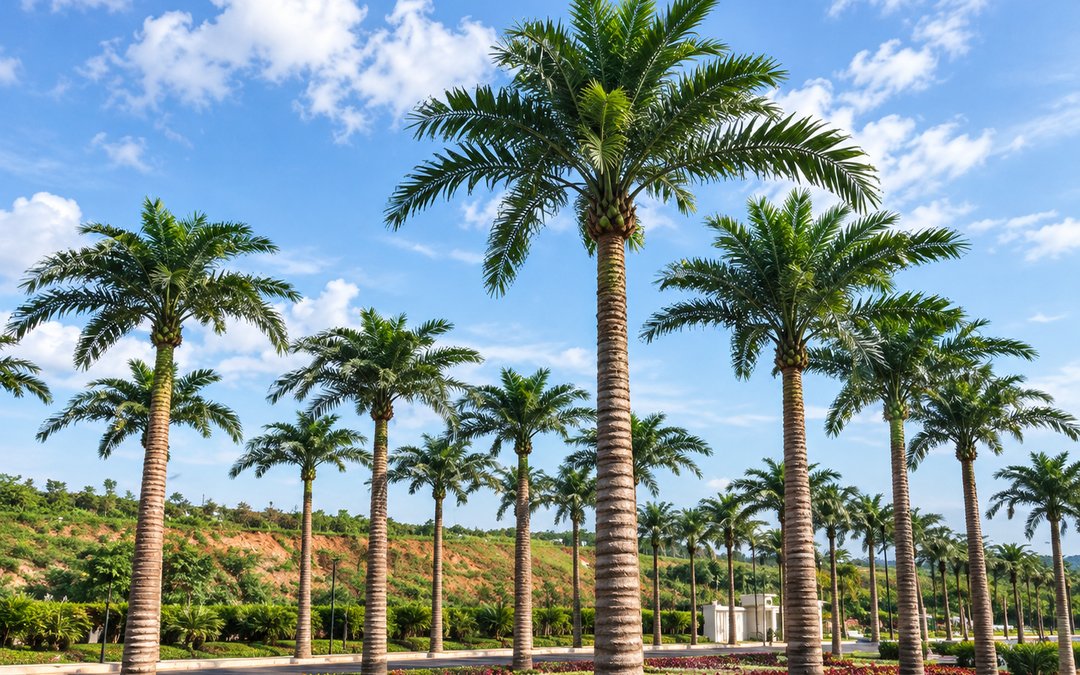

Tall palms holding a public road median planting — the exterior case where salt, sustained wind and a buried base plate rather than a ballast collar set the anchoring brief.

6. Commercial Contractor FAQs

Q: Who applies for SABER certification — the Chinese manufacturer or the Saudi importer?

A: The Saudi importer applies, and the manufacturer cannot open a SABER account. The importer registers on the SABER platform, enters the HS code so the system classifies the product as regulated or non-regulated, selects a SASO-approved conformity assessment body and uploads the technical file. For a regulated product that file produces a PCoC valid twelve months per model; each shipment then needs its own SCoC, valid 60 days. What the manufacturer supplies is the evidence: accredited test reports, all-angle product photographs, an Arabic or bilingual label, and the factory's ISO 9001 certificate.

Q: Is an NFPA 701 report enough for a UAE or Saudi hotel project?

A: Not on its own. NFPA 701 is the route most US-linked specifications name, and Method 2 is the large-scale assembly test that applies to installed constructions, but Gulf tenders and European specifications commonly ask instead for EN 13501-1 Class B-s1,d0, where s1 limits smoke production and d0 excludes flaming droplets. Provide both where the project identity is still open, and confirm which one the local Civil Defence reviewer wants before the material is ordered rather than at the inspection.

Q: What happens if the flame treatment washes off after installation?

A: The material no longer matches its report. A topically treated leaf carries a surface treatment that is consumed by washing, abrasion and light, so a re-test at handover will not reproduce the certified result and the article becomes non-compliant while remaining physically intact. Inherently flame-retardant PE foliage avoids the cycle because the flame performance is a property of the polymer rather than a coating, and it survives repeated damp wiping and low-pressure rinsing. This is the reason IFR foliage is specified as standard rather than as an upgrade.

Q: How far ahead of shipping should the compliance file be started?

A: Allocate 3–10 working days for the PCoC once the certification body holds a complete file, and start at least two weeks before the vessel sails so the SCoC can be raised in 1–3 working days without holding the container. The long-lead items are the accredited test reports and the Arabic label artwork, both of which are produced before shipment rather than at the port. Production itself runs 25–35 days for standard heights and 45–60 days for custom builds above 6 m, so a compliance file begun at order confirmation overlaps manufacturing rather than following it.

Conclusion: Build the Dossier Before You Book the Container

Certification on a large artificial tree is not a document that gets attached at the end of a project; it is a set of decisions about material, fixing and ownership that are locked in months earlier. The projects that clear smoothly are the ones that named the polymer, the core diameter and the test method before comparing quotations, and confirmed before shipping which certificate the importer must hold and which the manufacturer must supply. At Pure Faux Flora we build to a Q235 galvanized core with IFR PE foliage on a cast fiberglass trunk, and we return the material schedule with the fire report, the density figure and a physical foliage swatch so the specification can be checked at the bench. Send us the project location, the intended installation and the authority involved, and we will send back the technical file your importer needs to start the SABER application — see the full product catalogue for the 15 commercial tree builds, or browse delivered projects for comparable Gulf installations.
