Specifying the Roof Anchor and Base Plate for Large Artificial Trees: Bolt Grade, Galvanizing Class and Pull-Out Testing Before You Order

Executive Summary

A 6 m rooftop artificial tree on a Ø60 mm Q235 hot-dip galvanized core needs a 600 × 600 × 12 mm base plate on four M16 anchors at 125 mm effective embedment in C30/37, galvanized to ISO 1461 at 85 µm average or in A4-70 stainless where salt spray reaches the fixing, plus a pull-out test at 1.5 × design tension on at least 5 % of anchors before handover. Anchor tension for that unit is roughly 40 kN across the tension row; a 9 m palm reaches about 75 kN, which is cast-in embed plate territory rather than chemical anchors.

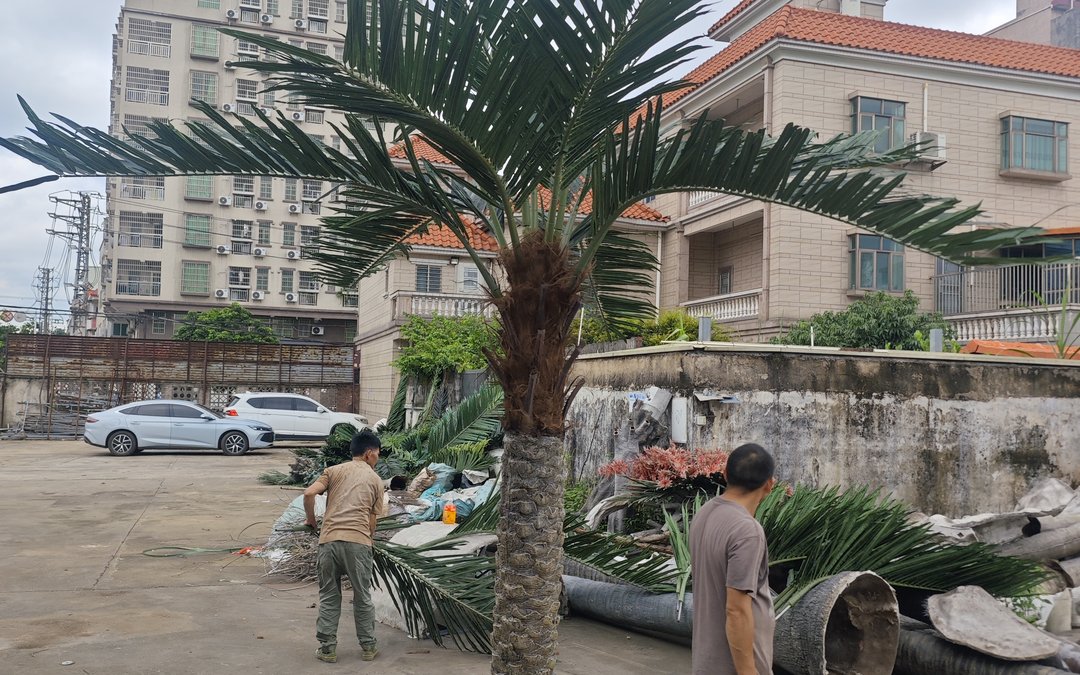

Palm standing in the factory yard with loose fronds and handling crew around it, ahead of crating and dispatch.

1. Failure Modes & Commercial Pitfalls

Fixing failures on large artificial trees are almost never a clean collapse. They are anchors that were never approved for the concrete they went into, plates that bent before the tree was loaded, and a handover file with no test record. Each of the following has a specific mechanism and a specific point in the programme where it can still be caught.

Bright zinc-plated bolts in a C5-M environment. Coastal Gulf air is classified as very high corrosivity, where unprotected carbon steel corrodes faster than 50 µm per year. An electroplated bolt — typically 5–8 µm of zinc — is a coating sized for an indoor plant room, not a sea-facing terrace. Red rust appears within one to two seasons, staining runs down the planter and across the pavers, and the section loss stays invisible under an already-installed tree. This is the most common fixed-price substitution on a landscape package.

Anchors evaluated in the wrong layer. A chemical anchor set into a 30–40 mm tile bed or a raised access floor will pass a static pull test and still be the wrong detail, because the load is not reaching the structural slab and the through-hole has breached whatever waterproofing sits beneath. On a roof terrace the waterproofing warranty is usually the first casualty, before any movement is visible. The related error is edge distance: below roughly five anchor diameters from a slab edge or a construction joint, the failure mode becomes a concrete cone rather than a steel failure, and the tabulated anchor capacity no longer applies.

Anchor approvals that do not cover the case. Anchors are qualified for specific base materials and crack states. An anchor approved only for non-cracked concrete, or installed without the manufacturer's hole cleaning sequence, does not deliver its tabulated capacity — dust left in a drilled hole is the most common cause of low pull-out on site, and the loss never shows up in a torque reading. In post-tensioned slabs, drilling without a scan is a programme-level risk: a severed tendon is a repair in the tens of thousands, not a re-drill.

A plate that is too thin, or unsupported at the bolt line. Plate thickness is set by the bolt row spacing, not by the tree's height. A 10 mm plate on a 700 mm bolt spacing distorts under preload, the tension row relaxes, and the fixing starts working in fatigue as the tree moves in every gust. Missing washers, bolts that are too long so the threads sit in the shear plane, and stiffeners dropped for packing convenience all produce the same result: a fixing that passed design and was never installed as designed.

Galvanic couples and preload loss. Mixing stainless fasteners into an aluminium component, or leaving a small stainless part in standing salt water against galvanized steel, sets up bimetallic corrosion that consumes the smaller cathode area first. Hot-dip galvanizing on high-strength bolts above grade 10.9 also has to be handled with the correct baking routine, because hydrogen introduced during pickling can cause embrittlement under sustained preload.

Nothing verified on site, and nobody owning the scope. The most expensive failure is procedural. The landscape contractor assumes the base is structural work, the structural engineer assumes a decorative planter, and the item that converts a wind load into concrete never appears on a submittal. When the base is finally installed there is no pull-out record, no torque record and no plumb check, so at handover the QHSE file simply records the gap. A custom anchor detail is cheap to design and expensive to retrofit — the cost lands in programme time, not in steel.

2. Material Science & Structural Engineering Standards

An anchor specification has three parts, and the buyer usually receives only one of them: a tree, a plate drawing, and a bolt. What makes the detail work is that all three are designed against the same numbers.

The core is the first input. Commercial builds above 3 m run a Q235 hot-dip galvanized steel core of Ø48–76 mm with a 2.5–3.2 mm wall, welded to AWS D1.1 and galvanized to ISO 1461. For steel over 6 mm thick, that standard sets a minimum average coating thickness of 85 µm with a 70 µm local minimum, which is what gives the core its sacrificial-anode protection. Core diameter follows height and exposure: a 4 m interior olive tree is fine at Ø48–60 mm, while a 9 m date palm on a coastal forecourt sits at Ø76 mm, and that diameter is what the base plate weld and the bolt pattern have to be built around.

The plate is the second input. Grade S275 or S355 plate at 10–12 mm is the working range for a 600–700 mm square base on this class of tree, with stiffener ribs where the bolt row spans more than roughly 500 mm, and drilled or punched holes sized for the bolt class being used. The arithmetic that sizes it is straightforward: tension per anchor equals the overturning moment divided by the bolt-row spacing. A 6 m unit at 18 kN·m over a 0.45 m spacing needs about 40 kN of total tension, which lands on a four-bolt M16 group; a 9 m palm at 49 kN·m over a 0.65 m spacing needs about 75 kN, which is beyond a standard M16 chemical anchor in C30/37 and belongs on a cast-in plate with welded headed studs.

The fixing itself is the third input, and it splits into two families. Cast-in embedded plates with welded headed studs are the robust answer on new build: the studs develop the load into the reinforcement cage, capacity does not depend on drilling quality, and the plate can be set to a survey level before the slab is poured. Chemical anchors are the retrofit answer, qualified through European Technical Assessments for defined base materials, temperatures and crack states — an ETA covering cracked concrete is what belongs in a public or hospitality structure, not a generic plug. M16 at 125 mm effective embedment in C30/37, with the manufacturer's cleaning sequence, an edge distance in the order of five anchor diameters and a matching cure time, is the practical baseline. Cure time is temperature-dependent and matters more in this market than in Europe: a resin that takes 60 minutes at 20 °C can be far quicker at 45 °C, and a plate bolted onto green resin loses its preload.

Material selection then follows exposure. Sheltered inland work can be hot-dip galvanized throughout; coastal, rooftop and pool-deck work moves the fasteners to A4-70 stainless (316 grade) or keeps galvanizing under a duplex paint system, while the plate itself stays hot-dip galvanized because that is the coating that survives a scratch. A2 stainless is sometimes quoted for coastal projects on cost grounds and will discolour and pit in a salt-laden atmosphere; the difference between A2 and A4 is not visible on an invoice but it is visible on the tree in year three.

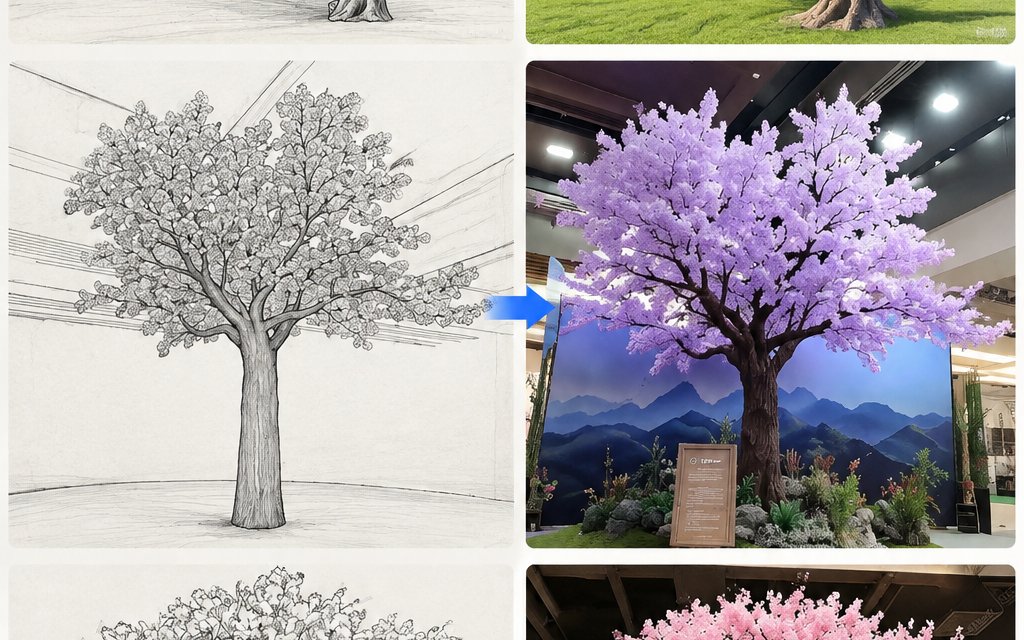

Approved shop drawing of a blossom tree beside the finished build on an exhibition stand - the drawing set the core and base dimensions.

3. Life Safety, Fire Codes & Environmental Compliance

The anchor detail and the fire file travel in the same submittal and are routinely confused for one another. NFPA 701 (Method 1 for small-scale screening, Method 2 for large assemblies) is the North American baseline for flame spread on textile and film materials, and EN 13501-1 Class B-s1,d0 is what EU-tendered work and most GCC hospitality packages ask for. Neither document says anything about whether a base plate stays in the slab under uplift, and a supplier who produces a fire certificate with no anchor calculation has answered half of the question the authority is asking.

Restraint is a life-safety item in its own right for public assembly interiors. A tall artificial tree is a non-structural element that still requires positive restraint against lateral and uplift forces, and in a closed hotel atrium that requirement usually reduces to the seismic and cleaning-impact case rather than the wind case — which is exactly why a lighter plate is defensible indoors. Move the identical tree to a rooftop terrace or a sea-facing plaza and the governing load switches to wind, and the fixing has to be re-engineered rather than re-labelled. A base qualified for a 30 m/s inland site should never be issued for a coastal plot without new numbers behind it.

Environmental and material compliance attaches to the same parts. Fasteners, plates and galvanized steel in an enclosed atrium sit inside a recirculating HVAC volume, so low-VOC coatings and REACH-conformant materials are the normal requirement, and the material declaration should name the polymer and the coating system rather than assert that a product is safe. Exterior work in this market is judged primarily on corrosion class: ISO 12944 classifies a very high corrosivity marine atmosphere as C5-M, and the whole fixing chain — plate, bolt, washer, cast-in stud — has to be specified inside that class rather than by habit. Stainless fasteners are also worth recording in the handover file by grade, because a future maintenance contractor replacing a bolt with whatever is on the van is how a correctly designed detail degrades over a decade.

4. Technical Comparison Table

The structural columns below are the ones a structural engineer will check; the last two are the ones procurement should use to compare quotations that look identical on the cover page. Fixing capacities assume C30/37 concrete, correct hole cleaning and the edge distances quoted in §2.

Two reading notes. First, the fixing column changes with location rather than with species: the same 6 m build is an M16 chemical anchor in a commercial atrium and a stiffened cast-in plate on a roof exposed to a 45 m/s gust. Second, "verification required" is not optional paperwork — it is the only evidence that the installed anchor matches the designed one, and it costs a fraction of the remedial work. Where drilling is prohibited, a ballasted collar planter is the alternative, but the ballast figure is real weight on the structure: holding a 9 m palm against a 45 m/s gust takes in the order of 12 t of contained mass, which rules that option out well before the design stage ends.

5. Structural Anchoring & MEP Coordination

Installation is where a sound detail is either preserved or lost, and the sequence matters as much as the components. The workable order on site runs: scan the slab for reinforcement and tendons, set out and record anchor positions against the approved drawing, core-drill to the specified diameter and depth, clean the hole with the brush-and-blow sequence in that order, inject resin from the bottom of the hole, insert and hold the anchor without disturbing it, respect the temperature-based cure time, set the plate, level and shim or grout under it, torque in a crossing pattern, then record everything before the tree is lifted on. Each hold point carries a number: depth tolerance, cure time, torque value, plumb tolerance of 1:500, and a pull-out test at 1.5 × design tension on a minimum of three anchors or 5 % of the total, whichever is greater.

Two site conditions deserve specific attention in this climate. Resin cure and pot life shift hard with temperature, so an anchor installed at midday in summer is not the same product as one installed at dawn in winter, and the installation sheet has to state the working window rather than a single cure figure. Thermal movement is the second: exposed steel in Gulf conditions is designed for a differential in the order of 25 °C, so the plate detail needs slotted holes or expansion washers so the plate can move without tearing at the bolt line or preloading the anchors as the day warms. Over-constraining that movement transfers the daily cycle into the concrete.

On roofs and terraces the load path continues past the bolt. Anchor uplift spread over a 0.5 m² load-spreader plate is a local bearing case far outside a typical roof live-load allowance, and it has to be resolved against the roof framing rather than the screed, usually with a short steel grillage spanning two structural members. The spreader then sits above the waterproofing membrane on a protected upstand, and the watertightness detail — upstand height, flashing and sealant compatibility — matters as much as the bolt capacity, because a roof leak will be attributed to the anchor whether or not the anchor caused it.

MEP coordination settles the geometry before any of it is built. Sprinkler deflectors need the crown held clear of the throw envelope, so a 9 m crown has to be positioned against the sprinkler layout rather than discovered beneath it, and high-velocity air curtains at a hotel or mall entrance impose a repeated 2–5 m/s load on anything standing in the door line — a fatigue case rather than an overturning case, handled with trunk bracing and a properly preloaded fixing. Handover closes the loop: an annual inspection checking torque, coating condition and plumb, plus a corrosion inspection at twelve months on any coastal installation, keeps the fixing inside its design assumptions for the life of the venue.

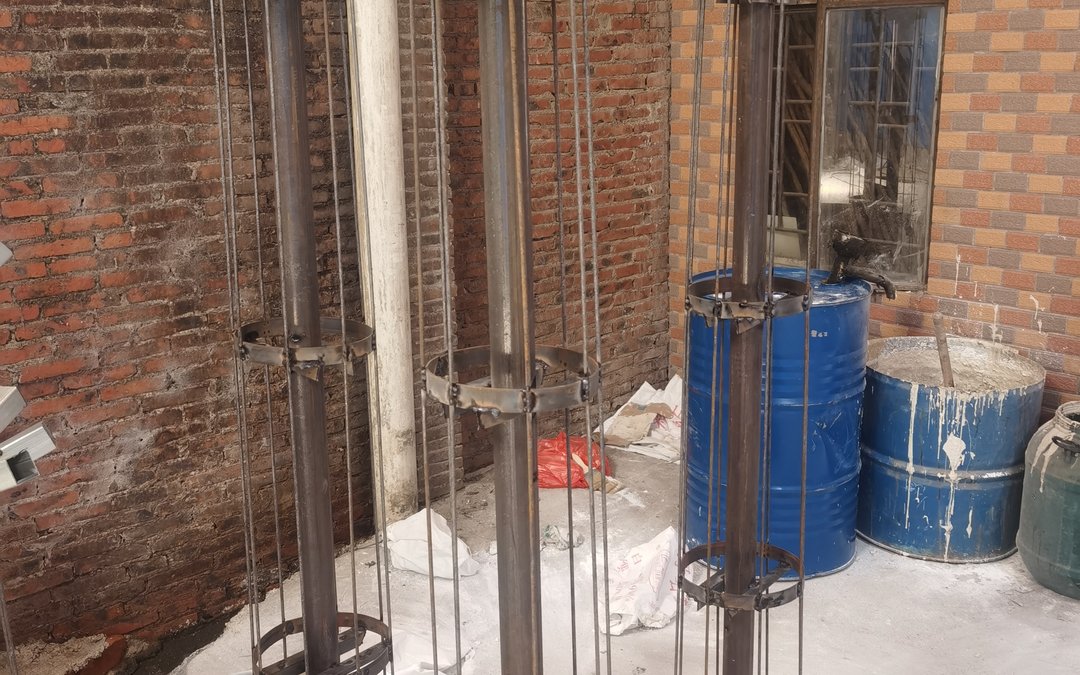

Welded steel armature frames with ring collars standing in the workshop yard beside resin drums, ahead of trunk build-up.

6. Commercial Contractor FAQs

Q: Who should supply the base plate and the anchor calculation — the tree supplier or the project structural engineer?

A: The project structural engineer signs off the fixing, and the supplier provides the input data and the fabricated assembly: core diameter and wall thickness, drag force and overturning moment for the specified height and crown area, base-plate size, thickness and grade, bolt class, effective embedment and edge distance, plus the steel mill certificate and the ISO 1461 galvanizing certificate. For a 6 m tree at a 45 m/s gust that package reads about 40 kN of total tension across the tension row; the engineer then checks the concrete cone, the slab thickness and the load path into the structure.

Q: Cast-in embedded plate or chemical anchors — which should the tender price?

A: Cast-in plates with welded headed studs for new build, chemical anchors for retrofit. A cast-in plate is placed with the reinforcement and surveyed before the pour, so its capacity does not depend on drilling or hole cleaning, and it removes the risk of hitting a tendon in a post-tensioned slab. Chemical anchors suit refurbishment, a slab already cast, or a tree position fixed late — but then specify ETA-qualified anchors with a cracked-concrete rating and require the pull-out record.

Q: What edge distance and embedment does an M16 chemical anchor need for a 6 m tree?

A: As a working baseline: 125 mm effective embedment in C30/37 minimum, an edge distance in the order of five anchor diameters, and a spacing of at least the same, with the manufacturer's hole cleaning sequence and the temperature-corrected cure time. Below roughly five diameters from a slab edge or a construction joint, the failure mode becomes a concrete cone and the tabulated capacity no longer applies — so the plate may have to be moved, or the load split across more anchors, rather than the anchor upgraded.

Q: What has to be in the handover file for the fixing to be defensible five years later?

A: The approved base-plate drawing with bolt class and embedment, the anchor ETA or approval reference, the drilling and installation record including hole cleaning, the torque record, the pull-out results at 1.5 × design tension, the survey level and plumb reading, the galvanizing certificate to ISO 1461 or the stainless grade declaration, the slab scan record where drilling took place, and the inspection schedule with the twelve-month coastal check. Standard heights ship in 25–35 days and custom builds above 6 m in 45–60 days, with the plate arriving pre-drilled and galvanized so no site fabrication is required.

Conclusion: Order the Anchor With the Tree, Not After It

The fixing decision on a large artificial tree is made once, early, and every later stage inherits it. In our experience the projects that run cleanly are the ones where the base-plate detail was issued alongside the slab drawings, so the anchors, the load spreader and the waterproofing upstand were resolved before the landscape package went to tender — and where the installation record was signed off on the day rather than reconstructed at handover. Our engineering team returns a signed anchor calculation, a base-plate drawing, the galvanizing or stainless documentation and finish swatches with every quotation, sized to the actual height, crown spread and site wind speed rather than to a generic table. Browse the full product catalogue, send the site plan with the exposure class and the slab build-up, and we will return the fixing detail your structural engineer can check and stamp.
