Mall Atrium Magnolia Base Plate Drawings: Why the Embed Sets Lead Time Before the Slab Pours

Executive Summary

A mall atrium magnolia stands on a base plate, and the drawing that decides the opening date is the embed template rather than the tree elevation. Four M16–M20 anchor bolts on a 250–320 mm bolt circle, a template held to ±3 mm, 60–80 mm of thread projection, and release of that sheet 4–6 weeks before the slab pours are the numbers to fix in writing. Miss the window and the fixing moves to post-installed anchors, adding 2–3 weeks and a pull-test regime on site.

Palms standing in a glazed shopping mall atrium, with the canopy reaching into the roof zone where sprinkler and lighting coordination has to be settled on paper first.

1. Failure Modes & Commercial Pitfalls

The failure is almost never the tree. It is the sequence. A slab is poured in week four because the concrete programme says week four, the tree package is awarded in week eight, and the first thing the fixing contractor discovers is that there is nothing in the concrete to land a 300 kg specimen on. What follows is predictable: a proposal for post-installed anchors, a structural check that nobody budgeted, and a site instruction that moves the installation date by two to three weeks.

Four drawing faults account for most of these situations. The first is a drawing set that carries the elevation and the finish but no base detail. A fabricator receiving an elevation will draw a plate to suit its own standard, the contractor will build to the architectural grid, and the two documents will disagree by the time both reach the slab. The second is a template set from nominal grid lines rather than from a site survey. In a fit-out where the slab was cast months earlier and the grid was set from a different benchmark, a 25–40 mm shift is ordinary, and a plate with 18 mm slotted holes will not absorb it. The third is projection. Leveling nuts need 60–80 mm of exposed thread above the concrete; a template set with the rods driven too deep cannot be recovered without cutting the plate, and one set too high leaves a trip line in a circulation area. The fourth is services. An uplight conduit, a floor box or a sprinkler branch that nobody drew through the base zone turns into core drilling next to a finished stone floor.

The site fix is where the money goes. A plate that cannot reach the bolts gets re-drilled on site, which removes the galvanised layer at the most corrosive point of the assembly and calls for a repair that an inspector will ask about. A bolt group cast 30 mm out gets chipped out of a cured slab, which means breaking concrete, re-setting, and a pour that has to cure before the plate can be torqued; two to three days is a good outcome, and the patch is visible in any photograph taken at handover. In a tenanted mall the same work has to happen at night, inside a hoarded area, with a permit, which triples the labour content of a job that a correct drawing would have removed entirely.

There is a cheaper-looking alternative that costs more later. A contractor who cannot wait proposes expansion bolts selected on site, sized by eye against the plate holes, torqued to a figure from memory. Expansion anchors are legitimate products and they have a place in retrofit work, but their capacity depends on hole diameter, edge distance, embedment and concrete condition, and none of those four is being measured in that conversation. The base plate is then carrying a moment from a canopy that acts like a sail, on an anchor with no evaluation for the actual slab.

The commercial consequence is not the cost of the repair. It is the date. A mall opening is a fixed event with tenant fit-out windows, a landlord's completion certificate and a marketing calendar behind it. A tree that arrives on time but cannot be fixed because the concrete is wrong is still a late tree, and the delay gets attributed to the supplier who shipped on schedule.

Why does the drawing clock run faster than the fabrication clock?

Two clocks start when the order is placed. One runs through drawing approval, first article, production and sea freight, and it is measured in weeks that the factory controls. The other runs to the first pour, and it is measured in weeks that the concrete contractor controls, which is usually a shorter and less flexible number. Anything cast into that pour has to clear the whole pipeline first: setting-out, review by the engineer of record, template fabrication, delivery to site. On a fast fit-out that window is four to six weeks, and no amount of factory capacity shortens it.

2. Material Science & Structural Engineering Standards

The base plate is sized by the moment, and the moment is a property of the specimen, not of the slab. A commercial atrium tree of this class runs on a Q235 hot-dip galvanised steel core, Ø48–76 mm depending on height, with a 2.5–3.2 mm wall, welded to AWS D1.1 and galvanised to a minimum average coating of 85 µm on steel over 6 mm as set out in ISO 1461. At 4 m the plate is typically 250 × 250 × 12 mm on four M16 bolts; at 8 m it moves to 350 × 350 × 20 mm on M20 bolts with 6–8 mm gussets. Those figures belong on the drawing with the design moment and shear written beside them. A plate dimension without a load is a shape, and a shape invites substitution.

The same logic applies to the trunk and the crown, because both change the load path. Centrifugal fibreglass shells at 3–5 mm wall take the mould texture from a real trunk and hold the ring pattern at close viewing distance, and they can be repaired locally after an installation knock. Foam shells are lighter and cheaper to freight, but foam creeps under sustained load, takes water where the coating is breached, and cannot be brought back to an invisible joint. On a 6 m specimen the shell is not the structural member, but its weight and stiffness decide how the crown behaves in a draught and how the piece is handled on site.

Crown geometry is the number that most drawings leave out. A 4–6 m magnolia carries a crown spread of roughly 2.2–3.2 m, and a crown that width behaves as a porous sail: it passes some air, catches the rest, and transfers the difference into the core as a bending moment at the plate. Leaf density for commercial work runs 1,800–3,200 leaves/m³, and the density affects both the visual read and the wind area. Drawing the crown envelope at its actual spread is what allows the ceiling, the sprinkler branch and the lighting track to be checked against the specimen before anyone fabricates it. Trees in the same atrium often sit under different ceiling conditions, and a 300 mm difference in available height changes the specification. A wide-crowned ficus canopy at 10 m and a 5 m magnolia in the same void raise the same drawing question at different scales: how much air the crown takes, and what the concrete has to resist.

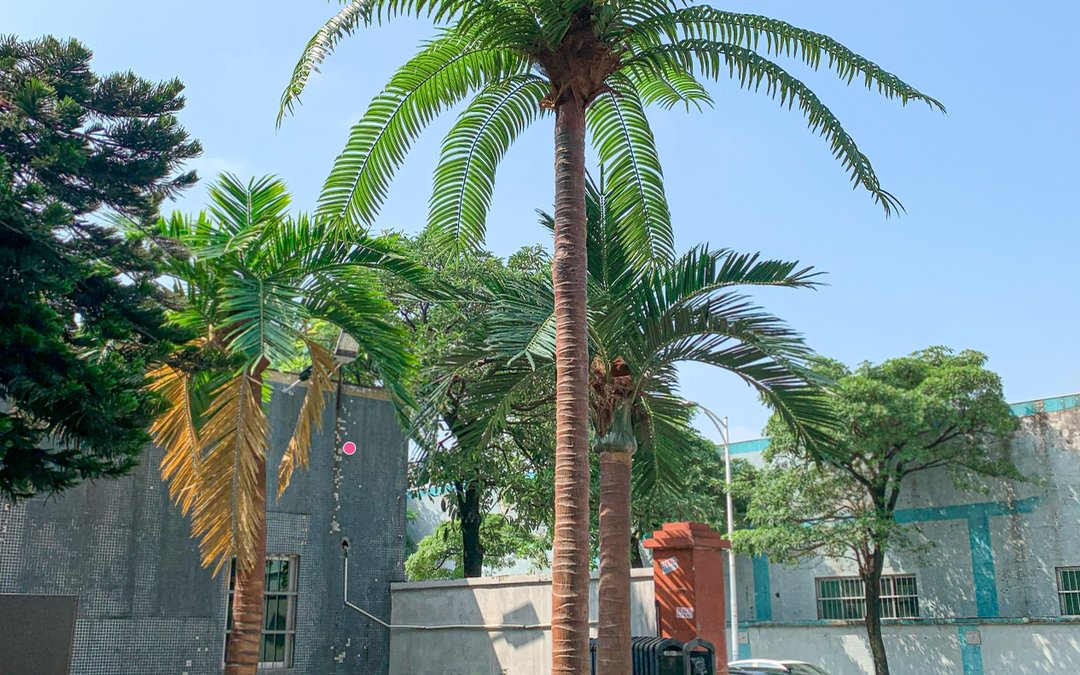

Moulded trunks and crowns standing in a factory yard before dispatch, where the working height and the crown spread can be checked against the dimensions that appear on the drawing.

Weight closes the loop. A 4 m specimen of this construction runs 60–90 kg, a 6 m runs 110–160 kg, and an 8 m with a steel core and a dense crown passes 250 kg. Two of those numbers decide site method rather than product quality: 90 kg is a two-person lift through a service door, and 250 kg needs a hoist, a lifting point designed into the core, and a route surveyed before the delivery date. A drawing that states the lifting point and the centre of gravity saves an argument on the night of installation, when the crew discovers that the only doorway into the atrium is 0.9 m wide.

3. Life Safety, Fire Codes & Environmental Compliance

Fire documentation travels with the drawing, not after it. Interior foliage in a mall or a hotel atrium is specified as inherently flame-retardant material and evidenced to NFPA 701 Method 1 for North American review, or classified to EN 13501-1 B-s1, d0 for European and most GCC submittals. The drawing set should reference the test report number, the material batch and the fixing detail that was tested, because a report for loose foliage does not automatically cover a completed specimen with a foam core and an adhesively fixed crown. Where a project asks for a certificate and receives a data sheet, the review stops there and the date moves.

Sprinkler coordination is a dimensioned item, not a note. NFPA 13 requires a clear space below the deflector — commonly 450 mm — and a canopy that grows into that band is an obstruction that the fire consultant will flag at the worst moment. The drawing needs a section through the specimen showing the deflector, the clearance and the crown envelope, which is why the crown spread from the previous section belongs on the same sheet as the base plate. In a tall atrium the same section shows the access route for cleaning and re-dressing, and a specimen with no access above it will be cleaned badly or not at all.

Means of escape is the other hard line. A base plate and its guarding must sit inside the tenancy line, and no part of a specimen may reduce the required exit width in a mall's common circulation. That constraint sometimes decides the position of the tree rather than its size, and it is cheaper to move a tree 400 mm on a drawing than after the floor is laid.

Environmental compliance in a sealed building is mostly about smell and emissions. Low-VOC polymers and solvent-free finishes matter in an atrium with recirculated air and no operable windows, and the specification should say so, because a specimen that smells of solvent for a fortnight generates complaints that no test report answers. In GCC projects the same submittal package usually passes through Civil Defence review alongside the landlord's technical submission, and a missing clearance dimension in that package is a comment cycle of ten to fifteen working days.

4. Technical Comparison Table

The table below sets the base plate and core figures against the venue each size is normally specified for. The application column is deliberately specific: a 6 m specimen in a mall feature position and the same height in a hotel atrium carry different ceiling, sprinkler and access constraints, and the fixing follows the constraints rather than the height alone.

For a 6–9 m date palm on the same slab, the plate figures are comparable but the crown behaves differently: fronds shed wind rather than catch it, so the governing case is often the temporary condition during lifting rather than the in-service one.

The second table is the decision that the drawing has to record, because it changes both the date and the inspection regime.

5. Structural Anchoring & MEP Coordination

A base plate drawing that a contractor can build from carries six items, and any one missing turns into a site question. It shows the setting-out point measured from two grid lines and from a site benchmark, not from the drawing's nominal grid. It shows the bolt pattern with diameter, grade, thread length and 60–80 mm projection, with the template plate thickness noted. It shows the grout pocket, 25–50 mm of non-shrink grout, and the leveling nut access needed to bring the plate true before grouting. It shows the conduit stubs for uplighting and any floor box, positioned relative to the bolt circle rather than to the column. It shows the edge distance to the nearest slab edge, commonly five times the bolt diameter as a working minimum. And it shows the slab build-up beneath the plate, so the contractor knows whether the fixing lands in a structural topping or in a screed.

The template itself is a small steel or plywood frame, and it only works if it is braced and checked diagonally before the pour. Three checks belong in the method statement: plumb of each rod, diagonal equality of the bolt group, and thread protection during placing and vibrating. A rod bent during the pour can sometimes be straightened, but a group that has rotated cannot, and the plate will arrive with holes that no longer line up.

Where the slab is already poured, a custom anchor design becomes the route rather than an afterthought. Adhesive anchors in a cleaned hole develop reliable tension capacity when the hole is drilled to the specified diameter, brushed and blown in the specified sequence, and cured at the substrate temperature rather than the air temperature — a 40 °C slab in an unshaded atrium cures faster than the label suggests, and a 5 °C night pour on an outdoor terrace cures far slower. Mechanical expansion anchors are acceptable for lighter specimens and shorter service expectations, but near an edge or in a thin topping their capacity falls quickly. Either route ends with a sample pull test, typically 10 percent of the fixings at 1.5 times the design load, witnessed and recorded.

MEP coordination fails in the last metre, not at the ceiling. High-velocity air curtains at a mall entrance push a curtain of air across the doorway, and a specimen placed inside that stream moves continuously; the effect is small on a 4 m tree and noticeable on an 8 m one with a wide crown. Sprinkler branches, lighting track and access hatches all compete for the same ceiling zone that the crown occupies, and the section drawing is where that competition gets resolved. On a phased fit-out, the same drawing also fixes the order of work: plate and grout first, specimen later, guarding last, with the floor protection removed only after the crown is dressed.

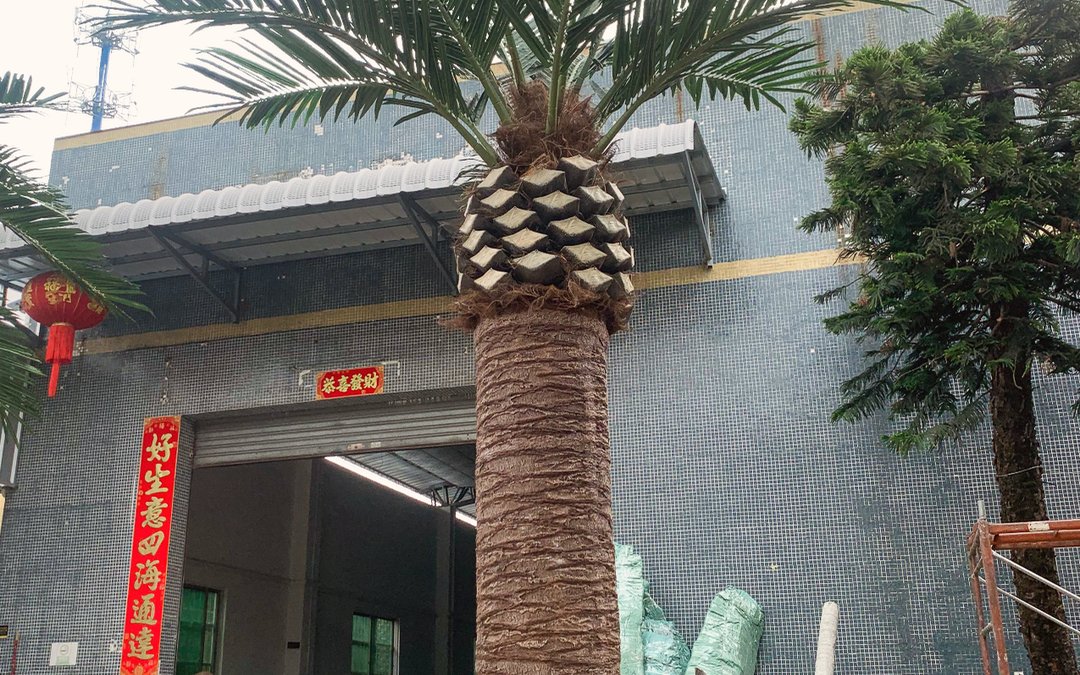

A finished specimen standing at the factory gate before dispatch; the base is hidden by the packing, which is why plate dimensions have to be agreed on paper before the concrete goes in.

6. Commercial Contractor FAQs

Q: What must a base plate drawing contain before a slab is poured?

A: Setting-out from two grid lines and a site benchmark; bolt diameter, grade and pattern with 60–80 mm projection; plate size, thickness and gusset detail with the design moment; grout pocket depth of 25–50 mm; conduit stub positions; edge distance of at least five bolt diameters; and the slab build-up. A sheet without the moment is a shape, and a shape can be substituted.

Q: Who is responsible for setting the anchor template?

A: The concrete or base contractor sets it, from a survey rather than from nominal grid, and the engineer of record checks position and projection before the pour. The tree supplier's responsibility ends at issuing a dimensioned template drawing and the physical template where the contract includes it. Splitting the responsibility without saying so in the purchase order is how a 30 mm error becomes a commercial argument.

Q: What happens if the slab is already poured when the tree is ordered?

A: The fixing moves to post-installed anchors, and the drawing becomes a fixing schedule with a pull-test regime rather than a template. Allow two to three weeks for the design check, drilling, cure and inspection, and expect the anchor type to be governed by edge distance and slab thickness rather than by the load alone. A slab scan is worth the cost before drilling anywhere near a post-tensioned or hollow-core floor.

Q: How long does drawing approval take, and what starts the lead time?

A: Approval typically runs two to three review rounds at five to ten working days each in a mall or hotel project, and the production clock starts from the approved and signed sheet, not from the purchase order. A 6–8 m specimen with a bespoke crown then needs 25–35 days in production plus 18–28 days at sea, so a project that freezes drawings in week two can still install in week fourteen, and one that approves in week ten cannot.
