Knock-Down Shipping for Large Artificial Trees: Joint Design, 40HQ CBM Yield and the Reassembly Checks That Keep a Split Core Straight

Executive Summary

Knock-down shipping splits every artificial tree above 3 m at a numbered joint on the Q235 hot-dip galvanized steel core (Ø48–76 mm, 2.5–3.2 mm wall, welded to AWS D1.1), and that decision — not the crown — sets what a container holds and what the buyer pays. A 40 ft high-cube carries roughly 8 six-metre date palm units, 9 king palms at 6 m, or 4 eight-metre banyans knocked down for freight, against a fraction of those counts shipped upright. The joint also sets whether the tree stands straight at handover, so its design belongs in the specification rather than in the supplier's packing note.

What follows is the engineering behind that split: where the core should break, how the joint is stiffened and registered, and which checks decide whether a reassembled tree behaves like a one-piece build.

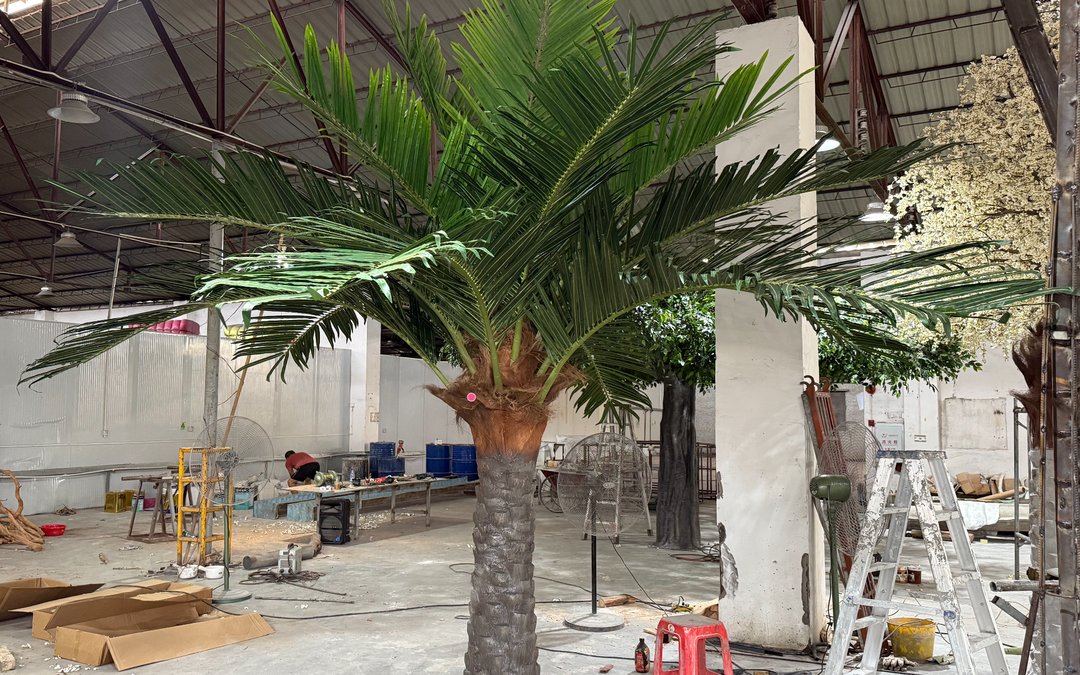

A completed palm standing on the assembly hall floor with the crown already mounted — ladders, cartons and trailing cables around it are the ordinary state of a finishing bay, and the trunk-to-base connection at its foot is the detail a knocked-down build has to reproduce on site.

1. Failure Modes & Commercial Pitfalls

Freight overruns and leaning trees usually trace back to the same blind spot: knock-down is treated as a packing decision made by the factory, when it is a structural decision made in the specification. Five patterns recur often enough to plan around.

The first is refusing to break the tree at all. A 6 m specimen shipped upright needs a crate with roughly a 2.4 m × 0.9 m footprint plus the crown's own spread, and the volume around a rigid, tapered object is mostly dead air. An order that fits one 40 ft high-cube knocked down needs three or four containers shipped upright, and the cost lands as freight plus demurrage rather than as a line item anyone approved. This is the single largest avoidable cost on a large planting package.

The second is splitting the core at the wrong station. Intuition says cut at mid-height because the pieces are then equal, and intuition is wrong: the bending moment peaks toward the base of a cantilever, so a mid-height split puts the joint in a zone that was never the problem while leaving the highest-stress region uninterrupted — or, worse, the supplier cuts low and places a plain slip joint exactly where the moment is greatest. A joint at that station with no stiffening and no registration is a hinge. The physical consequence appears as eccentricity: the crown rotates a few millimetres off-axis under each gust, the lean accumulates rather than recovers, and a tree specified as plumb is visibly out by year three with no single event to blame.

The third is an unmarked joint. When upper and lower lengths are interchangeable in appearance but not in fact, the pair that was fitted and checked at the factory is not the pair erected on site. Orientation matters too: a crown that is asymmetric — and most large palms and ficus canopies are — only reads correctly at its designed azimuth. Pieces without a numbered map and a keyed orientation arrive as a puzzle, and the resolution is usually a drill: holes opened out on site, fasteners forced, and the hot-dip galvanizing destroyed in the one place that will be exposed to condensation for the life of the installation. That is a corrosion cell created during installation, and it is invisible at handover.

The fourth is the claim that a split core performs exactly like a continuous one, offered without evidence. It can be true, but only when the joint is stiffened, the sleeve tolerance is tight and the assembled verticality is measured. Without a joint detail on the drawing, a torque figure and a plumb tolerance, the buyer has a verbal assurance and no acceptance criterion — the weakest possible position at a snag inspection.

The fifth is a site plan that assumes the finished state. A tall unit assembled on a finished hotel atrium floor needs a clear lift route, a clear head height and protection for the surface below; the same knock-down logic that saves CBM also lets the build clear standard door frames and lift openings, which removes the crane call entirely. Projects that plan the split for freight and forget it for access pay twice.

2. Material Science & Structural Engineering Standards

The core is the constant in every configuration. Commercial builds above 3 m run Q235 hot-dip galvanized steel tubing at Ø48–76 mm with a 2.5–3.2 mm wall, welded to AWS D1.1 shop practice and hot-dip galvanized to 85–120 µm per ISO 1461 so a coastal installation has a measurable coating figure rather than a promise. Core diameter tracks height because the bending moment does: a 4 m interior olive tree sits at the lower end of the range, while an 8 m banyan or a 10 m atrium ficus needs the full Ø76 mm column.

Three joint families are used commercially, and the choice is driven by where the split sits.

Two rules govern the station selection regardless of family. The joint belongs in the lower third of the tree but clear of the maximum-moment zone at the base connection, and it must sit below the crown's centre of pressure so the crown is not carried on the joint like a lever. Both are drawing decisions, and both can be verified after the fact: the core diameter is measurable with a caliper at the joint, and the joint station is measurable from the base plate.

Registration is what turns an assembly into a repeatable one. A dowel pin pair or a machined key at the joint fixes the azimuth, so the crown returns to the orientation it was fitted in, and it also removes the temptation to force the fit on site. Fasteners should be hot-dip galvanized to ISO 10684, or A4-70 stainless in coastal and poolside work, torqued to a scheduled figure and recorded. Where field modification is unavoidable — a base plate re-drilled for a shifted anchor, for example — the affected zone needs cold zinc-rich repair to ASTM A780 immediately, not a coat of paint at the end of the week. Acceptable assembled verticality is normally stated as 1:500, measured on the finished trunk rather than eyeballed.

The trunk shell breaks at the same station as the core, which is an aesthetic problem before it is a technical one. Centrifugally cast fiberglass takes its mold from a real trunk, so the joint line has to be placed in a bark fissure and given a molded lap, otherwise a visible ring appears at a height that reads as damage. Shell pieces also bolt to the core at discrete marked joints, so the wind moment transfers steel to steel; a foam shell cannot do this reliably, and foam is the reason some suppliers quietly cannot offer a tall knocked-down build at all. Foliage is the last piece of the packing puzzle: crowns are injection-molded PE at 1,800–3,200 leaves/m³, tagged per branch, and flat-packed in cartons so the crown's volume is a known, stackable figure instead of a loose bundle.

Moulded bark on a curved trunk seated on its steel base plate — the moulded surface detail and the plate interface are the two joints an inspector checks first, because a split trunk has to reproduce both at the same station.

3. Life Safety, Fire Codes & Environmental Compliance

A flame certificate describes a material and an assembly, and a knocked-down tree is assembled twice: once at the factory for fitting and photography, once on site by a crew that may not be the one that packed it. The compliance risk is not the polymer — inherently flame-retardant PE foliage tested to NFPA 701 Method 1 and Method 2, or classified EN 13501-1 Class B-s1,d0 for GCC and European tenders, keeps its performance because the flame resistance is a property of the material rather than a surface treatment that washing can remove. The risk is whether the article delivered matches the article certified, and a joint that is bolted slightly differently on site is a legitimate question at inspection.

That is why the submittal for a knocked-down build carries more than a product certificate. The package a reviewer can act on includes the joint detail with its stiffener and registration, the core diameter and wall thickness at the joint station, the fastener specification and torque schedule, the assembled verticality tolerance, and the numbered joint map that travels with the crate. Where a proof load was run on a representative joint, the report belongs in the same file; where it was not, the drawing and the torque record are the evidence available, and it is better to say so than to imply a test that does not exist.

Corrosion is the compliance issue that follows from shipping rather than from fire. The joint is the primary entry point for moisture and salt on any coastal unit, because it is a discontinuity in the coating and a place where two parts meet. That makes salt-spray evidence to ISO 9227 or ASTM B117 in the 480–720 hour range a joint document as much as a coatings one, and it makes the fastener grade — galvanized to ISO 10684, or A4-70 stainless in marine exposure — part of the same review. Field drilling and grinding are the avoidable half of this problem: every site-opened hole should be cold-zinc repaired to ASTM A780 and photographed for the O&M record, because the alternative is a rust bloom emerging at the joint inside the first wet season.

Air quality in enclosed space is unchanged by knock-down, but the declaration should still name the polymer and the stabiliser system rather than assert that the product is odourless. A glazed atrium with closed HVAC recirculation will concentrate whatever the installed materials release, and the practical commercial position is REACH-conformant PE with no added plasticiser. For a unit that will be part-assembled inside an occupied building, the on-site work also needs a materials-handling plan, not just a product file: the coating repair, the torque values and the plumb check are all performed in the space the certificate refers to.

4. Technical Comparison Table

The rows below reflect factory-standard builds at 1,800–3,200 leaves/m³ on a Q235 hot-dip galvanized core, with IFR foliage as standard and the UV-stabilised exterior build available for coastal work. Ballast figures assume a contained-weight fixing with a 1.5 factor against overturning; anchored values are lower because the load reaches the slab through the base plate.

Container yield is a separate schedule, and it is driven by how the build breaks down rather than by height alone:

Read the second table as a decision aid rather than a capacity table. Note that knock-down does not shrink the crown — the crown's spread is the volume driver, and no joint will change it. What the split removes is the void around a rigid upright shape, which then allows trunks to ride in cradles and crowns to stack. That is why the yield gain is largest on tall, heavily crowned builds and negligible on a 2 m crated unit that already stacks well, and why asking for the piece-by-piece CBM sheet at quotation is more useful than asking for a container count.

5. Structural Anchoring & MEP Coordination

The joint closest to the base plate is the most heavily loaded connection in the whole assembly, and the setting-out sequence is what keeps it inside tolerance. A concrete base plate transfers the wind moment into the slab through welded gusset ribs on the core tube, with the anchor bolts positioned in the plate; a ballast collar holds the unit by contained weight where the waterproofing warranty forbids penetration. The core joint should sit above that connection, not at it, so the plate and the joint are never competing for the same station — and the lower length should be the shorter one, so the heavier upper assembly is landed onto an already-stable stub.

Assembly follows a fixed order, and each step has a check that closes before the next begins. The base plate is set out and levelled first, and the plate's own levelness is recorded, because an out-of-level plate is carried all the way up. The lower core length is landed and the anchor bolts made up. Then the joint is made up to the scheduled torque with the registration key engaged, and the plumb is read — this is the last point at which a joint error can be corrected with a spanner rather than with a crane. Only then does the crown go on. Skipping the plumb check between the upper core and the crown is the most common source of a top-heavy unit that cannot be brought back inside tolerance once dressed.

Clear height and access are the site-side half of the same decision. A tall indoor unit assembled on a finished floor needs a clear lift route and head height, and it needs the same knock-down logic applied to door frames and lift openings rather than only to the container. Where a site crew is working above a finished stone or terrazzo floor, the base plate area should be protected before the lower length is landed, because the correction that a spanner permits is not available to a scratched floor.

MEP coordination then fixes the geometry in the finished space, and it interacts with the joint station more than it first appears. Sprinkler deflectors require the crown held clear below the throw envelope, so the crown footprint belongs on the ceiling coordination drawing. High-velocity air curtains at a hospitality or commercial atrium entrance apply a repeated lateral load to anything standing in the door line, and that airflow also strips loose foliage from a poorly secured crown — the joint and the crown fixing are the two places that load arrives. Where the custom anchor detail is drawn against a one-piece core and the build is later changed to knocked down, the connection has to be re-run rather than re-approved, because the joint changes the stiffness the base plate is being sized against.

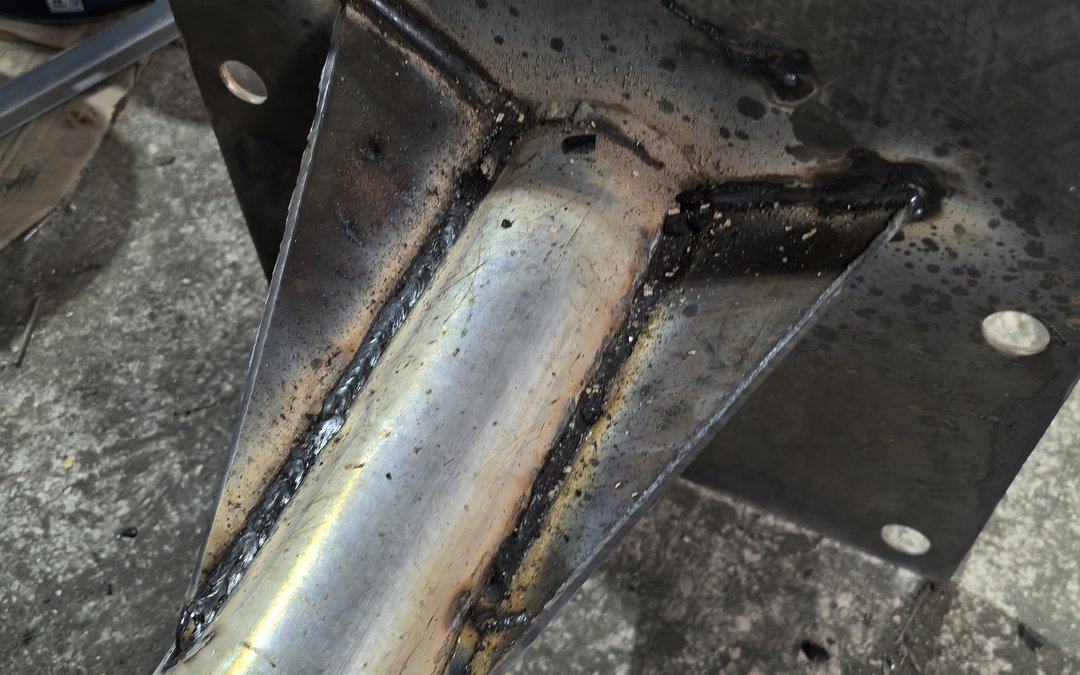

Welded gusset ribs between the core tube and the base plate, shop-applied with fillet welds and visible weld dressing — this is the connection the whole load path starts from, and the reason the detachable joint is held clear of it.

6. Commercial Contractor FAQs

Q: How many pieces does a large artificial tree ship in, and can it be delivered as one piece?

A: Everything above 3 m is normally split. A 6 m date palm or king palm ships as a crown plus a knocked-down trunk with one core joint, and an 8 m banyan or 10 m atrium ficus runs two joints. A single-piece build is possible at lower heights — a 5 m olive ships fully assembled on a timber cradle — but above roughly 6 m the upright crate consumes enough void volume to push an order from one container toward three or four, so one-piece delivery stops being a freight decision and becomes a cost decision.

Q: Does a split core reduce the structural performance of the tree?

A: Not when the joint is a designed connection. A machined sleeve with an internal stiffener liner and through-bolts, made up to a scheduled torque, restores continuity of the load path and gives a measurable acceptance criterion, and assembled verticality is normally held to 1:500. Performance does drop when the joint is a plain slip fit at the maximum-moment zone without stiffening or registration, because that is a hinge rather than a connection — which is why the joint detail, the torque figure and the plumb tolerance belong in the submittal, not in the packing note.

Q: Who reassembles the tree on site, and how long does it take?

A: The installing landscape or fit-out contractor does, from a numbered joint map supplied with the crate, and a two-joint unit is normally a same-day task for two people once the base plate is set and levelled. The sequence that keeps it inside tolerance is base plate, lower core, joint make-up, plumb check, then crown. No site drilling should be required: if holes have to be opened out, the joint was not machined correctly, and any field-opened zone needs cold zinc-rich repair to ASTM A780 and a photograph in the O&M file.

Q: How is the CBM figure estimated before the order is placed?

A: From a piece-by-piece packing sheet that lists loaded volume and dead weight per SKU rather than a single total. Every large build is priced with the packing sheet attached, and the useful number is yield per container at the quoted configuration: roughly 18 coconut palms at 4 m, 14 five-metre olive trees with planters, 9 king palms at 6 m, 8 date palms at 6 m, 4 eight-metre banyans and 3 ten-metre atrium ficus per 40 ft high-cube. A 40HQ payload ceiling also sits near 28 t, so a planter-heavy order can hit the weight limit while the box is still half full — the sheet should carry both figures so the limiting constraint is visible before booking.

Conclusion: Specify the Joint Before You Price the Freight

Knock-down shipping is usually sold as a packing trick and it is really a structural commitment. The split station, the stiffening, the registration key, the fastener grade and the plumb tolerance decide both what the container holds and whether the tree is still straight at handover, and none of them can be added after the core is cut. At Pure Faux Flora we build to a Q235 hot-dip galvanized core, cast the trunk shell in fiberglass so the joint line falls in a bark fissure, and return the joint drawing with a numbered map, a torque schedule and a piece-by-piece CBM packing sheet so the specification and the freight figure come from the same document. Browse the full product catalogue for the 15 commercial tree builds, or send the heights and the venue drawings and we will return the loading sketch alongside the submittal package.
