Injection-Molded PE vs Silk Foliage for Commercial Artificial Trees: Specifying Leaf Material, Trunk Build and Service Life Before You Order

Executive Summary

Specify injection-molded polyethylene (PE) foliage at 1,800–3,200 leaves/m³ on a Q235 hot-dip galvanized core of Ø48–76 mm for commercial trees above 3 m. Polyester silk has no defensible outdoor role and no flame certificate that survives a wet-cleaning cycle. Trunk shells should be centrifugally cast fiberglass over that core, not synthetic foam. Fire performance is quoted to NFPA 701; EN 13501-1 B-s1,d0 is available for GCC and EU tenders.

Palm trunk and crown staged in the works yard before dispatch: the moulded diamond-pattern bark detailing and the fibre tuft at the crown base are visible on the finished build, with adjacent trunks still wrapped in transit film.

1. Failure Modes & Commercial Pitfalls

The material decision on a commercial artificial tree is normally made with adjectives — "premium silk", "real touch", "natural look" — and adjectives do not survive a submittal review. They also do not survive eighteen months in a glazed hotel atrium. Four material choices account for most of the failures that land on a contractor after handover, and each one fails in a way the buyer can predict before ordering.

Polyester silk does not fail by collapsing. It fails by ageing in place. A silk crown is a woven fabric, so its edges are cut edges, and every cut edge is a fray point. Under constant HVAC delivery in a lobby or atrium, the airflow that a building needs for comfort is the same airflow that works the fibres loose; the crown then reads visibly thinner on the traffic side within two seasons while the shaded side still looks new. Add 24/7 architectural lighting and the daylight coming through a curtain wall, and polyester's photodegradation moves faster than the cleaning schedule can compensate for. The practical outcome is a feature tree that looked correct on installation day and looks tired before the fit-out snag list has closed.

Topically applied flame retardant is the second trap, and it is the one that costs money late. A retardant applied to the surface of a leaf or a fabric is a treatment, not a property: it sits on the material, and it leaves the material when the material is washed. The standard cleaning regime for a large indoor tree — a damp microfiber wipe every few weeks, plus a low-pressure rinse on the ground-floor units — is exactly the regime that removes it. The tree then holds a certificate that no longer describes the object on site, and a re-test at handover or at an annual inspection does not reproduce the original result. Nothing about this failure is visible in a photograph, which is why it reaches the buyer as a compliance problem rather than a warranty claim.

Synthetic foam trunks are the third. Foam is cheap, light and easy to texture, and it behaves acceptably until the load path starts working on it. The steel core passes through the foam, and at that penetration the foam crushes locally under every gust, thermal cycle and crown weight; the crush is a fraction of a millimetre and it does not matter once. Repeated over years it lets the crown rotate off-axis, so a tree specified as straight ships straight and stands visibly leaning by year three. Foam also cannot carry bolt-together joints reliably, which quietly removes the knock-down option from the design and with it the packing efficiency.

The fourth failure is the specification itself. When a buyer specifies "premium silk foliage" instead of a polymer, a leaf density and a test report, the submittal package has nothing in it that a third party can check. Two suppliers can both ship "premium silk" and deliver materials with different UV stabilisation, different leaf wall thickness and different fire behaviour — and the project discovers the difference at the inspection, when the material is already installed, paid for and in the QHSE file.

2. Material Science & Structural Engineering Standards

Injection-molded PE foliage is produced by molding the leaf from an impression taken off a real leaf specimen, which is why the vein structure, the edge serration and the natural curvature all survive into production. The leaf is a single molded part with a wall of roughly 0.8–1.2 mm, so it holds its shape under airflow and it can be wiped. Polyester silk is a fabric: cut, sewn or heat-pressed from sheet, typically 0.2–0.4 mm thick, soft and translucent in the hand and structurally closer to a flag than to a leaf. Neither is automatically more realistic — silk still wins for delicate multi-layer blossoms — but above 3 m, in a public space, with a cleaning schedule and an inspection regime attached, the material question is decided by durability rather than by close-up appearance.

UV performance is a resin decision, not a coating decision. In an outdoor-rated PE build the UV absorber and the hindered-amine stabiliser are compounded into the masterbatch before the leaf is molded, so the protection extends through the full leaf section and cannot be worn, wiped or rinsed off. A surface UV lacquer on the same leaf behaves like the topical flame retardant described above: it protects the object for a season or two and then stops, and the fade that follows is uneven because coverage was never uniform. The same logic explains the outdoor comparison that matters commercially — an untreated polyester crown can begin to shift colour within a single exposed season, whereas a UV-stabilised injection-molded PE build is specified with a documented 3–5 year colour-fastness window, verified under ASTM G154 fluorescent UVA-340 or ISO 4892-3 exposure and reported as colour change to ASTM D2244.

Density is the parameter that most often goes unstated, and it is the one that decides how a tree reads in a building. Injection-molded PE crowns for commercial builds run 1,800–3,200 leaves/m³ at the specification stage, and the number should be pinned in the submittal rather than left to the supplier's judgement: two crowns of the same apparent size at different density present a visibly different silhouette from three floors up. Density also interacts with airflow, so the figure belongs in the material schedule next to the fire class, not in the marketing sheet.

The trunk is a separate material decision from the leaves, and mixing the two up is common. Centrifugally cast fiberglass reproduces bark by taking the mold off a real trunk, and the finished shell carries the ring texture, the fissures and a hard molded cut edge on the branch collars — the surface detail that separates a reconstructed trunk from a molded one. More importantly, a cast shell bolts to the steel core at discrete, marked, numbered joints, so the wind moment and the crown weight transfer steel-to-steel. A foam shell absorbs that energy at the core penetration instead, which is the crushing mechanism from Section 1. The core itself is not a variable: commercial builds above 3 m run Q235 hot-dip galvanized steel tubing, Ø48–76 mm with a 2.5–3.2 mm wall, welded to AWS D1.1 shop practice and hot-dip galvanized to 85–120 µm per ISO 1461 for coastal exposure. A 4 m indoor olive tree sits at the lower end of that range, while a 9 m coastal date palm needs the full Ø76 mm column with a machined, numbered sleeve joint between core and shell.

For reference, the material triangle that procurement usually ends up comparing looks like this:

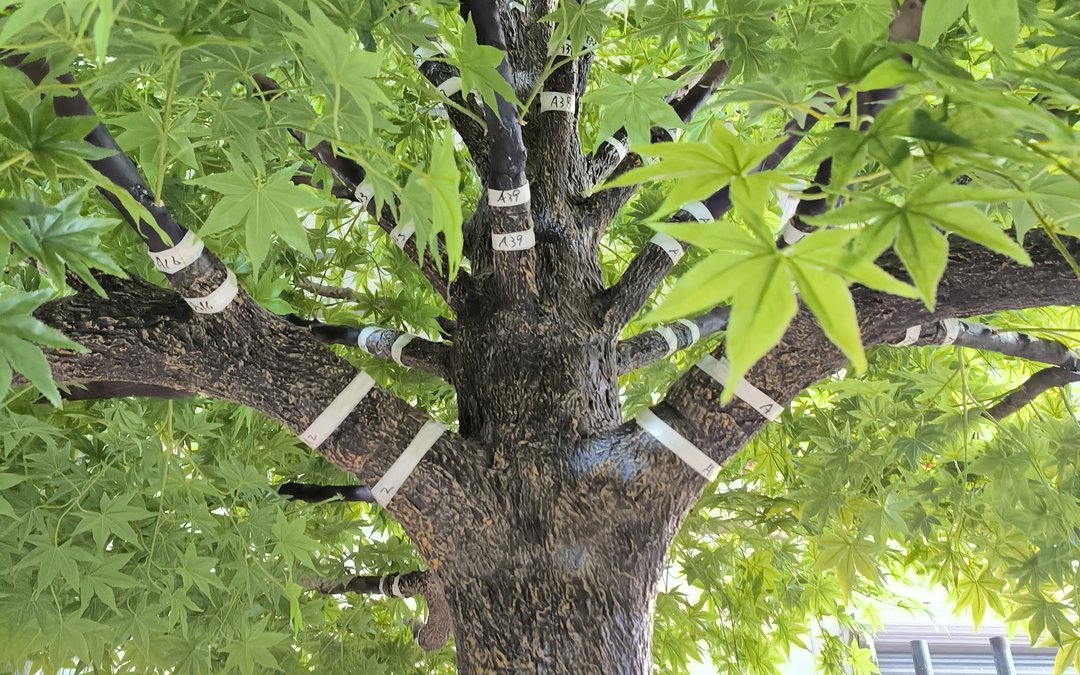

Injection-moulded foliage and cast trunk on a tagged branch assembly in the workshop — each branch carries a part number so the crown rebuilt on site matches what was inspected here.

3. Life Safety, Fire Codes & Environmental Compliance

Flame testing on artificial foliage is quoted as a material route, but it is enforced as an assembly result, and the distinction decides whether a certificate is usable. NFPA 701 covers two methods: Method 1 is the small-scale screening test for fabrics and films, Method 2 is the large-scale assembly test used when the material is part of a finished construction. EN 13501-1 Class B-s1,d0 is the classification the EU-tendered packages and most GCC hospitality specifications ask for, where s1 limits smoke production and d0 confirms no flaming droplets. Both routes test a specimen in the form in which it will be installed, which is the reason an inherently flame-retardant (IFR) PE leaf and a topically treated leaf can carry the same report number and behave completely differently after the first cleaning cycle.

The commercial consequence is straightforward. An IFR polymer resists flame as a property of the material, so repeated cleaning does not change the result and a re-test at handover reproduces the original figure. A topical treatment has a service life, and it is consumed by washing, abrasion and light. Where a project spans Gulf authorities, the material submittal is reviewed against the Saudi Building Code's fire protection provisions, the UAE fire and life safety framework or the local Civil Defence requirement depending on the emirate, and the common thread is a datasheet that has to match the article actually delivered. A supplier who cannot name the polymer, the treatment route and the test method has not produced a submittal; it has produced a brochure.

Air quality belongs in the same file. A glazed atrium with closed HVAC recirculation concentrates whatever the installed materials off-gas, and the odour complaint that arrives two weeks after handover is an indoor-air issue rather than an aesthetic one. REACH-conformant PE with no added plasticiser is the normal commercial specification for enclosed hospitality interiors, and the declaration should name the polymer and the stabiliser system rather than assert that a product is odourless or non-toxic. In exterior Gulf work the same foliage is also working at a 50 °C+ surface temperature, which is a specification input for the stabiliser package rather than a marketing line.

Two more items belong on the request list. Salt-spray evidence to ISO 9227 or ASTM B117 in the 480–720 hour range covers the coating and fixing durability of a coastal tree, and accelerated weathering evidence should be requested for both candidate materials on the same test cycle, reported with irradiance and the colour-change figure. The caution worth keeping in the buyer's own notes is that lamp hours do not convert into outdoor years: a 1,000-hour UV report is a comparison between two formulations under one cycle, not a service-life warranty.

4. Technical Comparison Table

The rows below reflect factory-standard injection-molded PE builds at 1,800–3,200 leaves/m³ on a Q235 hot-dip galvanized core. Ballast figures assume a contained-weight fixing with a 1.5 factor against overturning; anchored values are lighter because the load reaches the slab through the base plate instead.

Read the table as a material schedule rather than a size chart. The core diameter moves with height because the bending moment does, and the leaf density stays flat because it is a material property of the crown rather than a function of size. The two columns a buyer should check against the delivered goods are the soil-side ones: core diameter is measurable with a caliper at the sleeve joint, and leaf wall thickness is measurable with a micrometer on any single frond taken from the crown.

5. Structural Anchoring & MEP Coordination

Material choice changes the base detail before it changes anything else, because the fixing is sized against weight and projected crown area, and both are set by the material. A molded PE crown is lighter and more porous than a matted silk crown of the same silhouette, so it applies less drag to the same core; a cast fiberglass trunk is heavier than a foam shell of the same profile, so it adds dead load at the base while removing the local crushing that would otherwise rotate the crown. The net effect is that material substitution on a live project is not a like-for-like swap: a change from fiberglass to foam, or from PE to silk, invalidates the custom anchor detail that was drawn against the original figures and needs to be re-run rather than re-approved.

Outdoor units add a water term. Fabric foliage absorbs and holds moisture, so a silk crown in a coastal or poolside location swings in mass between dry and rain-soaked states, and the difference is carried by the anchors and by the ballast. That swing is one reason a UV-treated fabric crown does not become an exterior specification even when the fade figure looks acceptable: the fade is a colour question, and the water is a structural one. Where ballast is the only permitted fixing — typically on decks where the waterproofing warranty forbids penetration — the specification should hold the unit below roughly 6 m and confirm the contained weight against the designed wind case rather than against a planter catalogue.

MEP coordination then decides the geometry, and the material detail is what makes it checkable on site. Sprinkler deflectors need the crown held clear below the throw envelope, so the crown footprint belongs on the ceiling coordination drawing together with the sprinkler layout. High-velocity air curtains at a hospitality or mall entrance apply a repeated lateral load to anything standing in the door line, and that airflow is also what strips loose foliage from a poorly anchored crown: with molded PE leaves the load is a bracing case, whereas with fraying fabric it becomes a debris case as well. Cleaning access needs a route that does not require a scissor lift inside a finished commercial atrium, and the retained sample of the tested foliage should be kept with the O&M file so that a future replacement order can be checked against the material that passed.

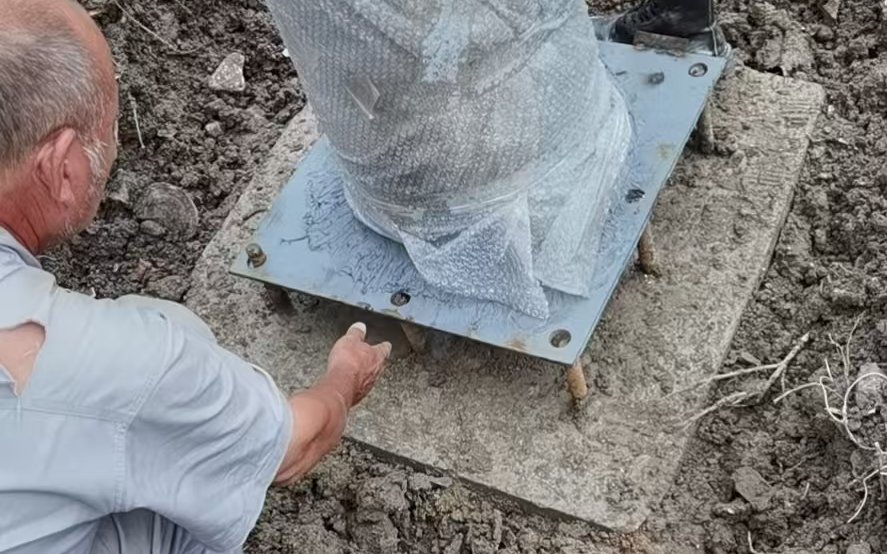

Base plate set out on prepared ground: the galvanized plate is aligned under the trunk base before the anchor bolts are set, with the lower trunk still in transit film.

6. Commercial Contractor FAQs

Q: PE or silk foliage for an indoor hotel atrium — which one decides the specification?

A: Injection-molded PE decides it once the tree is above 3 m or sits in a public space with a cleaning schedule and an inspection regime. PE at 1,800–3,200 leaves/m³ holds its silhouette, tolerates a damp wipe and low-pressure rinse, and carries an inherently flame-retardant polymer that does not change after cleaning. Polyester silk remains a legitimate material for delicate interior styling below 3 m, where close-up appearance outweighs cleaning frequency and the crown is not part of a life-safety submittal.

Q: Does an NFPA 701 certificate on the leaf material cover the finished tree?

A: No. NFPA 701 Method 1 is a small-scale screening test and Method 2 is a large-scale assembly test; the assembly result governs, and the specimen has to represent the finished build in the form it will be installed. The submittal should carry the test method, the report number and the material identity, and a topically treated leaf needs a re-test after any cleaning that removes the treatment. Inherently flame-retardant PE foliage avoids that cycle because the flame performance is a property of the polymer rather than a surface coating.

Q: How long does injection-molded PE foliage actually last in a commercial installation?

A: Colour behaviour is specified rather than warranted: outdoor builds are quoted at a 3–5 year colour-fastness window verified under ASTM G154 or ISO 4892-3, and indoor builds at lifetime colour because UV exposure inside a building is minimal. Mechanical life is longer than colour life in both cases, since a molded leaf has no cut edge to fray and resists deformation under airflow. Accelerated test hours are a comparison between formulations on one cycle, not a conversion into outdoor years, and the number worth requesting is the colour-change figure with both candidate materials run on the same cycle.

Q: What must be in the material submittal for approval?

A: Polymer and stabiliser identity, leaf density in leaves/m³, leaf wall thickness, trunk construction with the core diameter and wall thickness, hot-dip galvanizing to ISO 1461, the fire test method and report number to NFPA 701 or EN 13501-1 B-s1,d0, a low-VOC or REACH declaration for enclosed interiors, and where relevant salt-spray evidence to ISO 9227 or ASTM B117. A retained production sample of the foliage should travel with the first shipment so the inspector can compare the installed article against the approved one.

Conclusion: Pin the Polymer Before You Pin the Price

Material is the one decision on a large artificial tree that cannot be corrected later — a crown can be re-dressed, a base plate can be re-drilled, but the polymer the leaves were molded from is fixed at the press. The projects that hold up are the ones that specified a polymer, a leaf density and a test method before the quotation was compared, which also makes two quotations genuinely comparable instead of merely numerically different. At Pure Faux Flora we mold the foliage to a named PE grade with the stabiliser compounded in the masterbatch, cast the trunk shell in fiberglass over a Q235 galvanized core, and return the material schedule with the fire report, the density figure and a physical foliage swatch so the specification can be checked at the bench rather than taken on trust. Browse the full product catalogue for the 15 commercial tree builds, or send the canopy silhouette and the intended location and we will return the material schedule your consultant can stamp.
