Ground-Mounted Artificial Tree Foundations: Concrete Pad Sizing, Base Plate and the Wind Load Case to Fix Before You Order

Executive Summary

Large ground-mounted artificial trees are built from 2 m to 12 m on a Q235 hot-dip galvanized core of Ø48–76 mm, and the foundation is sized from the wind load rather than the weight of the tree. At a 45 m/s three-second gust, a 6 m specimen with a 2.4 m² crown presents around 1.2 kN of drag, which becomes roughly 4 kN·m of overturning moment at the base plate — and a different pad from the same tree standing in a sheltered courtyard. On ground, the pad rather than the bolt is where failures usually start.

Palm specimens on an open shoreline: salt, sand and unobstructed wind set the exposure case the foundation has to answer.

1. Failure Modes & Commercial Pitfalls

The structural part of a ground-mounted specimen is usually decided by whoever happens to hold the drawing. Five patterns account for most of the expensive outcomes, and all of them are visible before the tree is ordered.

The pad is priced as decoration. A landscape package often carries a line item for "base and fixing" that becomes a bedding layer and four mechanical anchors drilled into 60 mm of paving over compacted fill. That detail holds a small specimen and little else: the pull-out resistance of a bolt in a paving bed is measured in hundreds of kilograms, while a 6 m tree at a 45 m/s gust puts several tonnes of tension on the windward bolt row. Failure is quiet first — a plate that shifts 3–5 mm underfoot, grout cracking at the plate edge — and then it is a photograph on a site visit.

The foundation is sized from mass instead of overturning. Concrete is easy to reason about, so the pad gets sized to "hold the tree up". The wind case is a moment, not a weight: it has to be checked as eccentricity at the base, e = M / P, and the pad stays in full contact with the soil only while that ratio sits inside roughly one sixth of its width. A pad that looks generous on mass can fail the check and start lifting on one edge in every strong gust.

Uplift is never checked. Wind pulls while it pushes. On a pad in loose sand the resisting weight is the concrete plus only the soil directly over the pad, and the second term is smaller than most people assume; below the water table it drops again because the soil must be taken at its buoyant density. Gulf ground conditions sharpen this: sabkha and gypsum-rich soils lose strength when wetted, so a pad that reads as adequate in the dry season can settle unevenly in the first summer of irrigation.

The bolt template is fixed after fabrication. Cast-in bolts are the cleanest detail and the least forgiving. If the template reaches the factory after the base plate has been drilled, the bolt group arrives 15–20 mm out of position, and the site answer is a re-drill that strips the coating from the plate edge, or an oversized slotted hole that changes the bearing the design assumed. The reverse also happens: post-drilled anchors into a pad poured without a template land wherever the plate happens to sit, which is how M16 anchors end up 60 mm from a pad edge instead of the 80 mm the capacity table requires.

Water is left with nowhere to go. A base plate grouted flat onto a pad, inside a raised planter, under a drip line, sits in a shallow basin for days after every watering cycle. The visible result is a rust bleed across the paving; the invisible one is that the anchorage is the wettest steel on the project. Two lines of drainage detail decide whether the coating system reaches its design life.

Nobody owns the interface. The landscape contractor assumes the pad belongs to the structural package, the structural engineer assumed a decorative planter, and the supplier produced a base plate to its own standard pattern. The gap surfaces at handover, when the QHSE file asks for the design basis, the concrete grade and the proof-load record.

Buried services are found with the excavator. An irrigation main, a low-voltage lighting duct, a drainage run and occasionally a gas or telecom line usually share the planting strip where a 1.2 m pad is proposed. Finding them during excavation turns a two-day foundation into a variation, and moving the pad nearer a kerb or a pavement joint changes the detailing it needs.

2. Material Science & Structural Engineering Standards

The steel core sets the load the foundation has to carry. Ground-mounted specimens from 2 m to 12 m run on a Q235 hot-dip galvanized tube of Ø48–76 mm, with the diameter stepping up as height increases because the overturning moment grows faster than the height does. Galvanizing to ISO 1461 at 85 µm average is the outdoor baseline, and buried or splash-zone steel is where that coating does its most important work. Wall thickness, weld quality and base plate thickness belong to the same conversation: the plate has to spread bolt tension across the washer footprint without local yielding, and plate thickness follows the bolt row spacing rather than the tree height.

Concrete grade is part of the specification, not the contractor's choice. C25/30 to EN 206 is the ordinary footing grade and is adequate in normal soil. Within about 500 m of the coast, and across the saline soils that cover much of the Gulf coastline, the exposure class moves the mix: C30/37 with a cement content near 320 kg/m³ and a water/cement ratio at or below 0.45 buys useful chloride resistance, while sulphate-bearing ground calls for a sulphate-resisting or high-slag binder. Cover to reinforcement of 40–50 mm on buried faces is the detail that keeps the mix working a decade later.

Reinforcement and cast-in bolts are one assembly. A cage with four vertical bars and links gives the pad its bending capacity, and where cast-in bolts are used they are tied to that cage with the same template that sets the base plate pattern. A bolt left unrestrained during the pour ends up leaning, and a leaning bolt cannot be straightened without cracking the concrete around it.

Crown density is a structural input. Injection-moulded polyethylene foliage with a UV50+ stabiliser package is the outdoor baseline, and leaf density on a commercial specimen sits between 1,800 and 3,200 leaves per cubic metre. Density drives the look and the structural case at the same time: a densely dressed crown presents more frontal area and less porosity, and porosity is what lets air pass through instead of pushing. A specification that fixes density for appearance and then asks for a foundation is asking for a foundation based on an unstated sail area. The same logic runs down the trunk. A fibre-reinforced plastic skin cast from a real trunk mould gives a true bark texture and holds its shape; a foam trunk at 40–120 kg/m³ is lighter and cheaper and creeps under sustained load, which is the wrong property at the base of an 8 m specimen.

A date palm form is a different structural object from a broadleaf canopy. A palm crown is sparse, open and narrow in silhouette; a broadleaf canopy at the same height is a fuller bluff body with more drag. The two need different footing sizes at the same height, which is why the foundation schedule is built per specimen rather than per project.

Ground conditions, not frost, govern the depth. Frost depth is irrelevant across the Gulf. The local equivalents are the water table, sabkha and gypsum soils, and the depth of loose fill over undisturbed ground. A pad founded on 1.5 m of uncontrolled fill behaves nothing like the same pad on dense sand, and the lowest-cost moment to discover that is at the soil investigation stage.

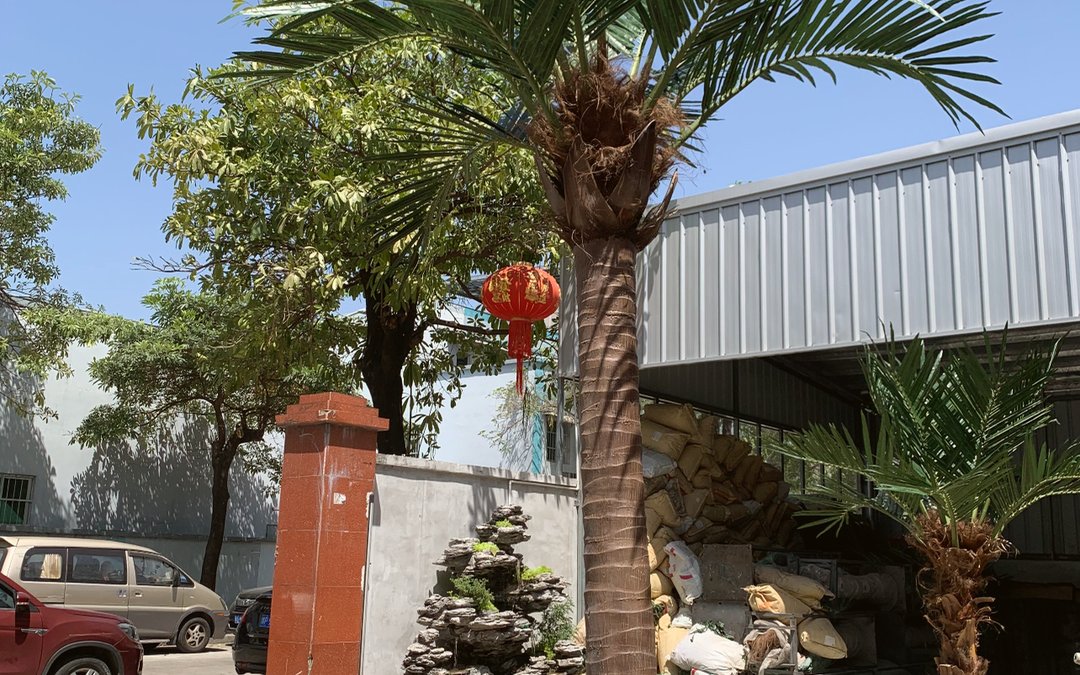

A specimen in the factory yard before dispatch, with stacked stock and the yard water feature behind it.

3. Life Safety, Fire Codes & Environmental Compliance

Fire classification. Foliage is inherently flame retardant to NFPA 701 available as an option, verified by Method 1 on the material in the form it is supplied rather than by a topical treatment that washes off. For European-tendered work, EN 13501-1 Class B-s1,d0 is the classification a consultant will normally name. Outdoors the classification still counts, because a ground-mounted specimen often stands in a forecourt, a drop-off lane or a planting strip beside a means of escape, and is inside the fire strategy of the building it fronts.

Wind code selection changes the number. Saudi projects typically follow SBC 301, which references the ASCE 7 wind methodology: a three-second gust basic wind speed taken from risk-category maps, an exposure category B, C or D by terrain, a directionality factor of 0.85 for most structures, and velocity pressure assembled from those inputs. European work and much UAE work follows EN 1991-1-4, which starts from a ten-minute mean basic velocity at 10 m over open country on a 50-year return period, applies a roughness factor by terrain category 0 to IV, and reaches peak velocity pressure from a mean velocity, a turbulence intensity and an air density normally taken as 1.25 kg/m³. Two engineers can take the same coastal site, apply both codes correctly, and produce wind pressures a quarter apart. The design basis has to be written down before the pad is sized.

Earthing and bonding. A free-standing steel-cored specimen is often the tallest object in a villa compound or forecourt. Where the lightning protection strategy covers free-standing structures, the core and base plate belong on the equipotential bonding system, and the connection has to be drawn. A clamp added to a galvanized plate afterwards usually means a drilled hole and a repaired coating.

Soil, water and materials. The polymer and its additives are bound in the material, so the environmental question at ground level is mostly about fixings: no solvent-based touch-up on buried steel, a zinc-rich repair coat on cut edges and drilled holes instead, and isolation between stainless fasteners and galvanized steel so a bimetallic couple is not left sitting in wet soil. Where the installation replaces living planting, a base assembly and anchoring detail designed for the site also removes the irrigation demand and the drainage load from the same bed. Records are part of compliance too: concrete grade, cube results, template record, torque log and any proof-load data are produced during construction or never.

4. Technical Comparison Table

The table reads the standard height range through the foundation variable, with the wind case taken as a 45 m/s three-second gust on an exposed site and no shielding credit. Footing sizes are a screening guide for a single specimen on medium dense sand at an allowable bearing pressure near 150 kPa; they are not a substitute for project engineering calculations.

Two rows carry most of the risk. The 6–8 m band is where the moment becomes serious while the pad still looks like a garden detail — and it is also the height at which the difference between C25/30 and a chloride-resistant C30/37 starts to matter, because the pad is the one element that can never be inspected or repainted later. The 10–12 m band is where a single pad stops being the economical answer on softer ground. The foundation transfers to a pile group, the decision moves out of the landscape package into the structural package, and both the lead time and the signature change. The same height band across the range of large artificial trees can therefore carry two quite different foundations, which is why height alone is a poor basis for a footing schedule.

5. Structural Anchoring & MEP Coordination

Start from the load path, not the hardware. The chain runs from crown area to drag force, to overturning moment at the base plate, to a tension and compression pair in the bolt group, to concrete bearing and breakout in the pad, to soil bearing and uplift resistance under the pad. Every link has to hold, and the pad is the link most often left to site judgement.

Three checks size the pad. Overturning: the eccentricity e = M / P stays inside one sixth of the pad width for full contact, so the pad widens or deepens until it does. Uplift: the resisting weight is the pad plus the soil prism directly above it, at compacted density above the water table and buoyant density below. Bearing: total vertical load over the pad area against the allowable bearing pressure from the geotechnical report. A pad sized on the third check alone is the classic ground-level failure.

Details that travel with the schedule. Anchor bolts set into a template tied to the reinforcement cage; 80 mm minimum from a bolt centre to any pad edge for an M16, which is the familiar five-diameter rule and a minimum rather than a target; non-shrink grout under the plate only, with a gap or a slope at the low side so the plate is not bedded into a dam; the pad top finished 150–200 mm above surrounding grade, or covered by a paving collar; and a zinc-rich repair coat on every drilled hole and cut edge before bedding.

Verification is cheap and it is the point. Torque every bolt to the specified value with a calibrated wrench and log the readings; proof-load at least one anchor in ten at 1.5 times the design tension, or as the project specification requires, and record the residual movement; check plumb on the specimen after grouting and before the crown is dressed. A handover file with those three records answers most warranty questions later.

Coordination at ground level. Have the buried services scanned before excavation — irrigation main and control valves, low-voltage lighting, drainage runs, and any gas or telecom duct along the strip. Keep the pad clear of kerb lines and pavement joints so settlement does not crack the adjacent paving. Route drip irrigation so it discharges away from the base plate rather than onto it, and put the uplighting conduit and any earthing connection on the same drawing as the pad so one trade does not find the other's trench. Where a project continues indoors, the same template discipline applies to the plate schedule used on a mall landscaping or atrium package, so one fixing schedule can serve both scopes.

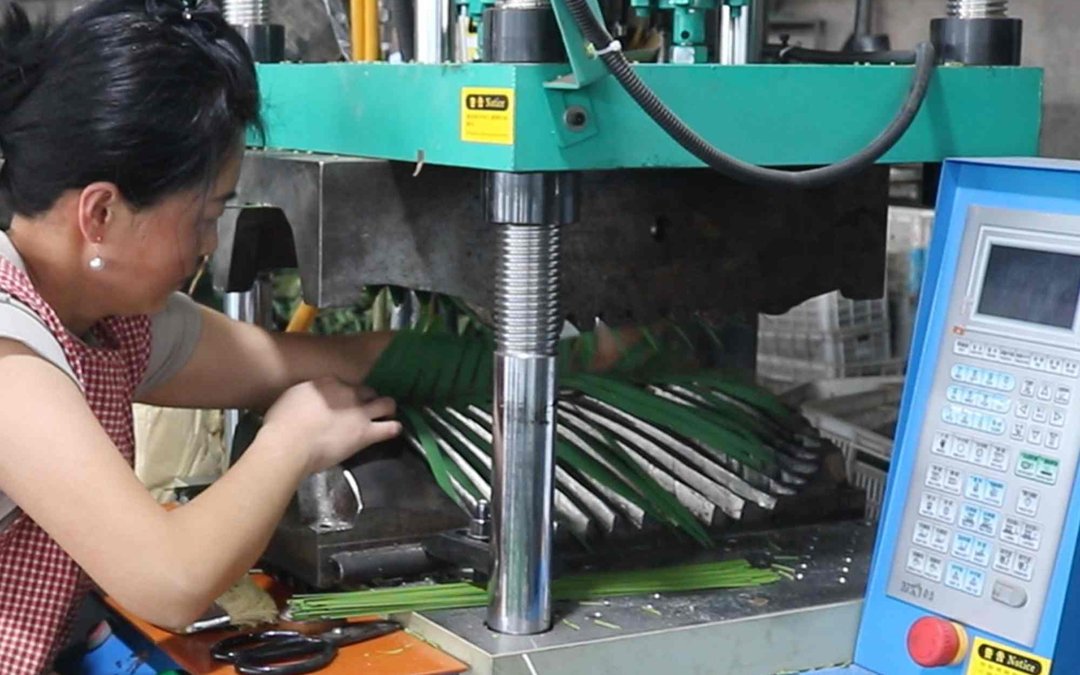

Frond strips assembled at the pressing station in the production hall before the trunk is crated.

6. Commercial Contractor FAQs

Q: Who owns the foundation design — the tree supplier or the project structural engineer?

A: The structural engineer owns the pad and the soil checks, because those depend on the site investigation, the groundwater and the code the project applies. The supplier owns everything above the grout line: the base plate, the bolt pattern, the anchor group capacity for that specimen's own wind case, and the template. The practical failure is each side assuming the other holds the load path. Write the split into the order, and exchange the base plate drawing and the pad drawing before either is fabricated.

Q: What foundation does a 6 m ground-mounted specimen on ordinary sand need?

A: As a screening answer on medium dense sand at about 150 kPa and a 45 m/s design gust, an 800 × 800 × 500 mm cast-in pad with four M16 bolts in C25/30, plus the drainage collar and grout detail above. That is a costing starting point, not a design: a coastal site, a soft sabkha layer, 1.5 m of fill or a higher design wind speed can move the pad to 1,000 × 1,000 × 600 mm or push the whole detail onto a screw-pile foundation. The cost difference between those two answers is normally smaller than the cost of opening the paving a second time.

Q: Can a ballast collar replace a concrete pad at ground level?

A: Only where the planter can be checked as a wind-loaded object in its own right and the required restoring mass sits on ground that will not settle under it. Ground level is more forgiving than a podium because the pad can bear on undisturbed soil, but it is also where ballast loses its advantage: the same footprint needs considerably more mass, and loose or wet soil under the planter reduces the effective resistance. On a paved forecourt, a small pad tying the collar down is usually the better compromise.

Q: What has to be on the pad drawing so the base plate matches it?

A: Five items: the bolt pattern dimensioned from one datum rather than from the pad edges; the bolt projection and thread length above the grout line; the pad top level relative to finished grade; the template requirement with a tolerance, typically ±3 mm within a group; and the concrete grade with the water/cement ratio for the exposure class. Keep the drainage and grout detail on the same sheet. Most field mismatches trace back to a base plate dimensioned to the pad edge, where a 20 mm construction tolerance in the pad turns into a 20 mm error in the bolt group.
