Executive Summary
A 6–10 m giant artificial eucalyptus tree is a made-to-order structure, not a stock item, so its delivery date is set by the drawing cycle rather than the production line. Three dates control the schedule: shop drawing release (day 5–7 from PO), drawing approval (day 8–12), and foam-and-steel fabrication plus surface finishing (day 20–45). Trunk cores run Q235 galvanized steel at Ø 60–150 mm with 1.5–3.0 mm wall thickness, canopies are injection-moulded PE or PE/polyester hybrid at 280–420 leaves/m³, and flame performance is tested to NFPA 701 Method 1 or EN 13501-1 Class B-s1,d0. Every metre of added height adds a load case to the base plate, so the structural drawing and the installation drawing cannot be issued separately.
Reading the schedule correctly matters because most large-project delays are not production delays. They are approval delays — the gap between a supplier issuing a drawing and the contractor confirming it. The sections below break that gap into its component steps, define what each drawing must contain, and set out the quantities a specifier can put in a tender document.
1. Failure Modes & Commercial Pitfalls
The low-cost substitute for a proper large-tree package is a supplier who quotes a lead time with no drawing obligation attached: "45 days, it ships." On a 6–10 m installation into a hotel atrium, an airport terminal or a mall atrium, that promise has three predictable failure modes.
Failure mode one — no structural submittal, so the base is guessed. A 9 m tree with a loaded canopy behaves as a cantilever. If no one issues a base plate drawing, the installer either casts a foundation too small for the overturning moment or over-builds a slab that the structural engineer then has to justify. In an occupied building, that change order costs more than the tree.
Failure mode two — fabrication starts before the drawing is approved. Once a trunk is foamed and surface-finished, changing its height or its branch angles is not an adjustment, it is a rebuild. Suppliers who begin fabrication against a verbal height confirmation will produce a tree that cannot be reconciled with the reflected ceiling plan.
Failure mode three — the installation drawing arrives after the ceiling is closed. Sprinkler head positions, high-level air curtains and light fixtures above a 9 m canopy are fixed by the MEP coordinated model. A tree that is specified without a clear installation envelope competes for that space, and the tree loses.
All three failures share a single root cause: treating a large artificial tree as a product with a lead time, rather than as a fabricated assembly with a drawing cycle. The remedy is contractual, not technical — the PO should name the drawings, their format and their review dates.
2. Material Science & Structural Engineering Standards
The drawing cycle exists because the material system is built in layers, and each layer is decided at a different stage of the schedule.
Trunk core. Commercial large trees use Q235 carbon steel, hot-dip galvanized to a 60–80 µm coating. Core diameter scales with height and canopy load: Ø 60–89 mm at 6 m, Ø 100–127 mm at 8 m, Ø 140–150 mm at 10 m, with wall thickness rising from 1.5 mm to 3.0 mm across that range. The core arrives as sections that bolt together on site, which is why the assembly drawing — not the facade drawing — governs the installation sequence.
Bark shell. Fibreglass shells reproduce eucalyptus bark's peeling plates and grey-cream tonal bands far more closely than foam. A fibreglass shell is roughly 2–4 mm thick and 3–5 kg per metre of trunk; a synthetic foam trunk is heavier and offers less control over surface detail. The hand-applied colour coat is the last step before packing, which is why final colour approval is a schedule milestone.
Foliage. Injection-moulded PE gives the willow-leaf silhouette of eucalyptus its narrow profile and holds colour under sustained light; PE/polyester hybrid construction adds finer vein detail on selected branches. Leaf density is specified rather than counted in the field, typically 280–420 leaves/m³, meaning a 9 m tree with a 4 m canopy spread carries roughly 3,000–4,500 individual leaf assemblies.

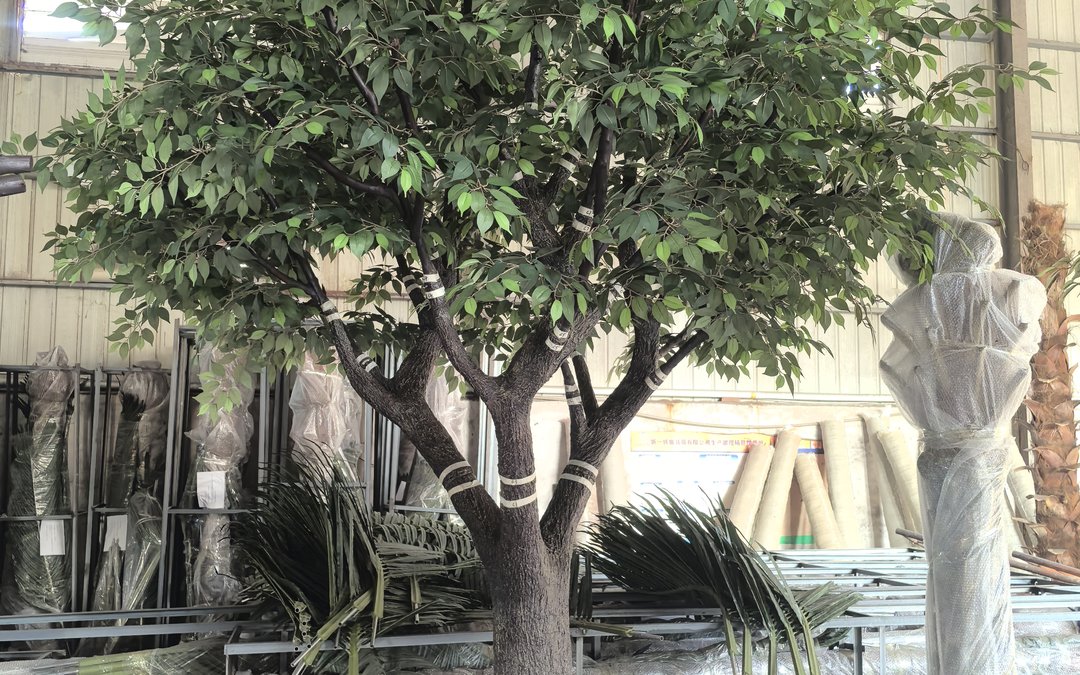

Material choice drives the drawing set. Fibreglass shells and steel cores generate a heavier, more rigid assembly, so the shop drawing must state lifted weight per section and the point where the trunk splits for transport — the banded joints visible on finished trees in the factory are those split points.
3. Life Safety, Fire Codes & Environmental Compliance
Fire and environmental compliance run on their own clock and cannot be compressed into the fabrication window.
Fire performance. Foliage in commercial interiors is tested under NFPA 701 Method 1 (small-scale vertical flame test) or Method 2, depending on weight per unit area. In GCC and European projects, the equivalent declaration is EN 13501-1, where Class B-s1,d0 is the recognised target for decorative elements in assembly spaces: limited contribution to fire growth, minimal smoke production, and no flaming droplets. Saudi projects also route through the Saudi Building Code SBC 801 framework, and UAE projects through Civil Defence review. The practical consequence for scheduling is that flame test reports must be requested with the quotation, because a report issued after the moulding run cannot be retrofitted to a different formulation.
Low-VOC construction. Trees specified for enclosed HVAC-served spaces should be assembled with low-VOC adhesives. Cure time for these adhesives is part of the fabrication lead time, not an afterthought — a tree packed before cure completes will off-gas in the delivery truck.
Documentation lead time. Test reports, declarations of conformity and material certificates are documents, and documents are produced by people. Building two to three working days into the schedule for the document pack to be collated and stamped prevents the common situation where the tree is ready but the submittal is not.
4. Technical Comparison Table
The table below sets out the specification envelope for a single-stem giant artificial eucalyptus tree, with the vertical load and base ballast that the structural drawing must resolve. Values are typical commercial ranges; the project-specific figure comes from the shop drawing.
| Tree Height (m) | Min Core Steel Ø (mm) | Leaf Density (leaves/m³) | Floor Live Load & Ballast (kg) | Application | Indoor/Outdoor |
|---|---|---|---|---|---|
| 6.0 | 60–76 | 280–340 | 90–140 total; 60–90 ballast | Corporate HQ reception, boutique retail atrium | Indoor |
| 7.5 | 89–108 | 300–370 | 150–220 total; 100–150 ballast | Restaurant and lounge feature tree, hotel lobby | Indoor |
| 9.0 | 114–133 | 340–410 | 230–330 total; 160–220 ballast | 5-star hotel atrium, airport VIP lounge | Indoor |
| 10.0 | 140–150 | 380–420 | 300–420 total; 200–280 ballast | Mall atrium centrepiece, seaside resort porte-cochère | Indoor / Semi-outdoor |
| 10.0 + wind | 150–168 | 380–420 | See wind-load case; embedded anchor required | Coastal promenade, rooftop garden, theme park plaza | Outdoor |
Two notes on reading the table. First, ballast weight is often the swing item — a freestanding tree concealed in a potted planter carries its stability in the ballast ring, while a tree with a cast-in base plate transfers the overturning moment into the slab and needs far less dead weight. Second, outdoor columns assume a wind-load case that must be calculated for the site, not taken from this table; coastal locations demand a separate structural check.
5. Structural Anchoring & MEP Coordination
This is where the drawing cycle earns its cost, and where the installation schedule is won or lost.
Two base strategies. A cast concrete base plate with chemical anchors is the correct choice for permanent installations on a finished structural slab: the base plate drawing gives anchor diameter, embedment depth, edge distance and the grout pocket that lets the plate finish flush with the floor. A ballasted collar planter is the correct choice where drilling is prohibited — heritage floors, post-tensioned slabs, or occupancies that cannot take wet trades. The shop drawing must commit to one, because the two solutions have different floor build-up heights and different installation durations (embedded plate: one pour plus 24–48 h cure; ballasted ring: same-day, no cure).
MEP coordination. For any tree above roughly seven metres, the shop drawing should be overlaid on the coordinated MEP model before fabrication. Three clearances matter: sprinkler spray pattern must not be obstructed by the canopy; high-level air curtains must not be short-circuited by foliage volume; and luminaire positions must not be occluded by the upper branches if the design intent is uplighting. Adjusting the tree in the drawing costs a revision; adjusting it after the ceiling is closed costs a variation.
Installation sequencing. A 9–10 m tree is delivered in two to four transport sections and assembled on site in a defined order: base plate or ballast ring first, then the lower trunk section, then intermediate sections with their bolt cages, then branch assemblies, then foliage, then final dressing. Each section lift should be scheduled against access availability — a scissor lift will not reach a 9 m canopy, and a boom lift needs a clear floor route that must be booked with the main contractor.
The schedule consequence is that installation is a two-visit operation for most large trees: a first visit to set the base and the lower sections while access is open, and a second visit to lift the upper canopy once adjacent trades have cleared. Tender documents that assume a single visit routinely discover this on site.
6. Commercial Contractor FAQs
Q: How long does a 9 m giant artificial eucalyptus tree take from PO to site?
A: Typical total is 45–60 days: 5–7 days for the shop drawing, 3–5 days for review and approval, 20–35 days for fabrication and finishing, 3–5 days for packing and document release, and 15–30 days transit depending on destination. The approval window is the one most often lost, because it sits with the contractor, not the factory.
Q: What drawings should arrive before fabrication starts?
A: A shop drawing showing overall height, canopy spread, core diameter per section, lifted weight per section, and split points; a base plate or ballast ring drawing with anchor specification and floor build-up; and an assembly sequence drawing showing the lifting order and access requirements. All three should be issued in DWG plus PDF so the contractor can overlay them on the coordination model.
Q: Can the height change after the drawing is approved?
A: Minor changes to branch angles and foliage arrangement are absorbable up to the start of the finishing stage. Any change to overall height changes the core section schedule and the base load case, so it restarts the drawing review. This is why the drawing approval milestone should sit before, not after, the deposit on tooling.
Q: Is a structural calculation needed for an indoor tree?
A: For freestanding trees under about seven metres with sufficient ballast, a simple stability statement is usually adequate. Above that height, or wherever the tree is anchored to the structure, the base plate drawing should be accompanied by a load statement the project's structural engineer can sign off — particularly where the tree sits above a suspended slab or near a glazed facade.
Q: How does outdoor siting change the schedule?
A: An outdoor tree adds a wind-load case, which requires the site's design wind speed and exposure category before the base drawing can be finalised. That adds a data-collection step at the front of the programme but does not necessarily extend the total, provided the wind data is supplied with the enquiry rather than discovered during review.
Q: What can compress the lead time?
A: Releasing the drawing for review before the finish swatch is confirmed, booking the site access slot at PO rather than at dispatch, and pre-agreeing the anchor strategy so the base drawing is not revised. None of these depend on the factory; all of them sit inside the buyer's control.
Project Engineering Support & CAD Requests
For projects where the tree package interacts with structure, MEP or an occupied-space installation programme, our engineering team issues a complete submittal pack: shop drawings in DWG and PDF, a base plate or ballast ring drawing with anchor specification, per-section lifted weights, a flame test report matched to the specified formulation, and an assembly sequence coordinated with the site access plan. Requests for a custom anchor detail or a height outside the standard range are reviewed against the same drawing cycle, so the review dates in your programme stay valid. We can also confirm leaf density against your lighting design if the canopy sits under a high-level fixture.
👉 Chat with Structural Engineering on WhatsApp (Instant Project Review)
Conclusion: Send the tree height, canopy spread, site access constraints and the date the ceiling closes — that set of four inputs is enough to return a drawing release date, an approval date and a firm installation window before the PO is signed.
