EN 13501-1 Fire Classification for Artificial Trees: What B-s1,d0 Certifies and How to Write It Into a Tender

Executive Summary

EN 13501-1 has no Class B1. The classification a European tender normally means is B-s1,d0, and the numbers behind it are fixed: under EN 13823 the fire growth rate FIGRA must stay at or below 120 W/s, total heat release over 600 seconds at or below 7.5 MJ, and flame must not reach the specimen edge; smoke is capped at SMOGRA 30 m²/s² and TSP600s 50 m², and no flaming droplets may fall in the first 600 seconds. A separate small-flame test, EN ISO 11925-2, requires flame spread of no more than 150 mm at 30 seconds exposure.

Class B1 is a different system. It belongs to DIN 4102-1, the German national standard that EN 13501-1 replaced for newly approved products, and the two schemes are not interchangeable in either direction. A spec that asks for "Class B1 to EN 13501-1" describes a class that does not exist, and the certificate it attracts may not cover the building it is installed in.

Artificial palms set out along a building under construction, trunks still wrapped from transit.

1. Failure Modes & Commercial Pitfalls

Fire paperwork fails in ways that are administrative before they are technical, and the cost lands on the programme rather than on the certificate.

The tender asks for a class that does not exist. "Class B1 to EN 13501-1" is the most common version of this error. A supplier answers with a DIN 4102-1 B1 certificate because that is what the words match, the consultant's fire engineer refuses it because the building's fire strategy is written in Euroclasses, and the package returns. Two to three weeks go by before anyone notices the requirement itself was wrong.

Reaction to fire is confused with fire resistance. A foliage classification describes how a material contributes to a fire that has already started. It says nothing about how long a structure resists one. Requirements written as "60-minute fire rating" on an artificial tree indicate a specification copied from a partition or a door schedule, and they will be returned by any reviewer who reads them.

The subscripts are dropped. "Class B" without the smoke and droplet codes answers roughly one third of the question. On a hotel atrium with a smoke reservoir above the canopy, s1 against s2 is a six-fold difference in smoke growth rate, and the difference decides how long an escape route stays usable. A quotation that omits the subscripts has not yet answered the enquiry.

The evidence is for the polymer, not the product. A resin manufacturer's test certificate is not a product certificate. The finished foliage carries a different mass per unit area, a different surface texture and a different mounting condition, and those are the variables the burner reacts to. Reports should name the leaf form, the colour and the density band actually supplied.

The tested mounting is not the installed mounting. EN 13823 classifies a product in a defined configuration. Foliage tested in a sparse arrangement can behave differently once it is packed into a dense canopy, and a combustible planter or a combustible backdrop under the canopy is not covered by the original classification at all.

A colour or density change voids the result silently. Flame-retardant performance is a function of the additive package and the mass of material present. Change the colourant or move to a denser canopy and the previous report no longer describes the goods.

2. Material Science & Structural Engineering Standards

The classification is a property of the whole foliage assembly rather than of the plastic it is made from, so the material decisions that a specifier makes are the same decisions that move the number.

Polymer and flame-retardant system. Injection-moulded polyethylene foliage and flame-retardant performance are compatible, but only when the retardant is compounded into the polymer. A topical spray or dip sits on the surface and abrades away during routine cleaning, which means the certified condition and the delivered condition diverge over the first two years of service. Reactive and additive systems behave differently as well: the additive route is easier to colour-match, while the reactive route holds performance longer under heat.

Mass and density. Total heat release scales with the amount of fuel present. Density for large commercial trees is normally specified between 1,800 and 3,200 leaves/m³, and a canopy specified at the top of that band carries meaningfully more polymer per unit volume than one at the bottom. The tender should state the density band and require the certificate to cover it, because a report issued for a sparse sample does not describe a dense canopy.

Leaf geometry. Thicker leaves with a lower surface-area-to-mass ratio ignite less readily, and a leaf form copied from a species with fine, narrow foliage behaves differently from a broad leaf of the same weight. This is why the report has to name the leaf form rather than the genus.

Trunk and bark. The galvanized steel core is non-combustible and contributes nothing to fire load. The bark sleeve around it is not: hand-sculpted fibreglass holds its shape and performs predictably, while polyurethane foam is a poor performer on both smoke and droplet criteria and should be excluded from interior specifications by a drawing note rather than left to the workshop.

Colour and additive change control. A colour code and a physical swatch belong on the approved drawing, and any change to pigment or stabiliser after certification should trigger a documented review of the fire test report. The same discipline applies to UV stabilisers on outdoor specifications, where the additive load is higher.

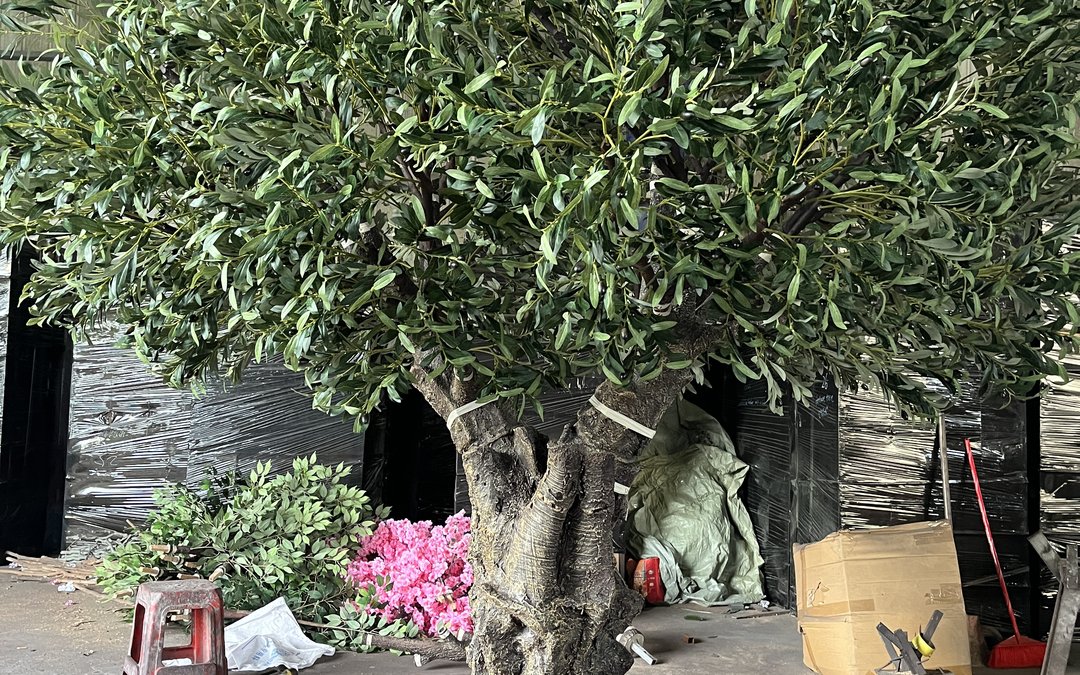

An artificial olive tree in the packing bay, trunk and branch junctions still visible before wrapping.

3. Life Safety, Fire Codes & Environmental Compliance

The chain that produces the classification is worth understanding, because a tender requirement is only enforceable if it names the right document.

Under the European Construction Products Regulation, products placed on the EU market carry a Declaration of Performance referring to a harmonised specification, and reaction-to-fire performance is classified to EN 13501-1 on the basis of test results. The classification below is the one a fire engineer will compare against the building's fire strategy.

The additional classifications sit alongside the letter. Smoke production is s1 at SMOGRA ≤ 30 m²/s² and TSP600s ≤ 50 m², s2 at 180 m²/s² and 200 m², s3 for neither. Flaming droplets are d0 where nothing falls in 600 seconds, d1 where nothing persists beyond 10 seconds, d2 for neither. A1 and F never carry subscripts, which is one reason a quotation offering "Class A or B" is a warning rather than a range: the move from B to A2 is a change of test regime, not a step along the same scale.

Two practical consequences follow. First, the certificate must be read against the mounting condition it was issued for, and the submittal should include that condition. Second, the requirement should be written in full - class, subscripts, test standard, and the product description the report covers - because a short requirement attracts an equally short certificate.

For projects outside Europe the requirement usually arrives as NFPA 701 Method 1 or Method 2, which measures different quantities under a different specimen preparation and does not convert into a Euroclass. Gulf submissions add a conformity route through the national platform, where the fire evidence joins the customs dossier. Where a tender lists both systems, it should state which one governs the approval, otherwise the package will be assessed twice against two answers.

4. Technical Comparison Table

The table below sets out the structural basis on which the fire specification is written. Reaction-to-fire requirements do not change the steel core or the ballast, but they do constrain the foliage system, so the two sets of numbers are normally read together. The columns hold whether the package is a canopy for a commercial atrium, a Mediterranean olive tree for a lobby, or a date palm specified for an exterior plaza.

Read the density column next to the fire requirement rather than separately. A specification that asks for B-s1,d0 at the top of the density band is asking for two things that pull against each other, and the supplier needs to know which one governs before the canopy is built. On exterior work the outdoor build carries a heavier stabiliser package, and the interior Euroclass report will not describe it - exterior foliage is specified under weathering standards, not under an indoor reaction-to-fire class. The interior classification for a 6 m tree in a mall atrium and the same height on an exposed seafront plaza consequently come from different document sets.

5. Structural Anchoring & MEP Coordination

Anchoring and fire performance intersect in one place that is easy to overlook: the point where the base plate and its anchors pass through a fire-rated slab.

The tree itself adds no fuel at that interface, because the core is galvanized steel and the base plate is steel. The penetration is what matters. A hole cast or drilled through a rated floor assembly interrupts the compartment line, and it needs a fire-stopping detail - typically an intumescent collar or an approved sealant system with its own test evidence - which is a separate document from the foliage classification. Where the slab is a composite metal deck, the fixings and the penetration both fall under the deck's own assessment, and the structural engineer of record should confirm the engineering calculations and the allowable load before the plate is set.

MEP coordination follows from the canopy volume. Sprinkler heads must maintain their spray pattern below the foliage, so the canopy envelope should be drawn as a keep-clear volume on the co-ordination sheet rather than assumed, and obstruction rules apply to a dense canopy in the same way they apply to a bulkhead. In a roofed atrium the canopy also sits inside the smoke reservoir, which is where the smoke subscript stops being paperwork: s1 foliage contributes less to the smoke layer that the smoke exhaust system is sized to clear, and a canopy specified without a smoke class leaves that calculation without an input. Where the tree stands in a means of escape, the combustible content of the planter, the ballast collar and any fabric wrap should be declared, because those items are frequently added by others after handover.

Close-out is where the fire file is finally tested. The handover pack should carry the certificate for the foliage actually delivered, the mounting condition it was issued for, the fire-stopping evidence for every slab penetration, and the cleaning instruction that states which agents may be used. A cleaning contractor who uses a solvent degreaser can remove the surface condition the test was based on, and the asset then loses its classification without any physical damage being visible.

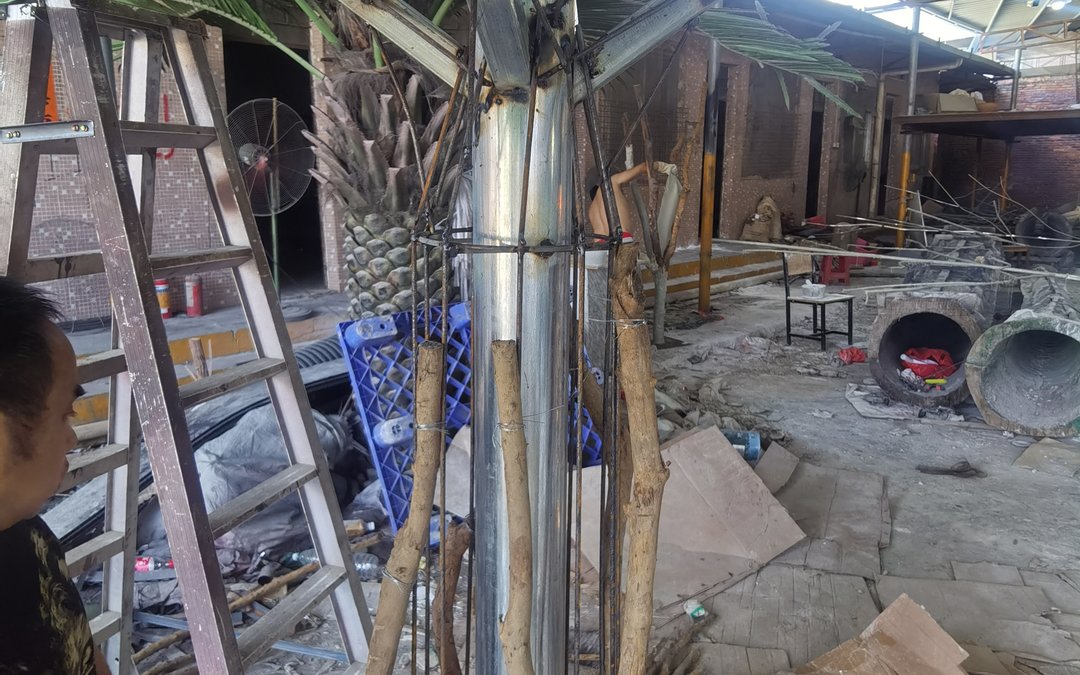

The galvanized steel core and welded branch arms of a large specimen during assembly; the metal structure carries no fuel load.

6. Commercial Contractor FAQs

Q: Is Class B1 a real EN 13501-1 classification?

A: No. EN 13501-1 defines A1, A2, B, C, D, E and F, with s1 to s3 for smoke and d0 to d2 for flaming droplets. B1 comes from DIN 4102-1, the German standard that EN 13501-1 replaced for newly approved construction products. The two systems overlap rather than map onto each other: a DIN 4102-1 B1 material can fall within EN 13501-1 class B or class C, and in some cases within A2, depending on the product and the test result. A tender should name the Euroclass string it requires and leave the national class out.

Q: What is the difference between B-s1,d0 and C-s1,d0 in cost and availability?

A: The gap is mostly in the additive package and the number of test programmes behind the product, not in the foliage itself. Class B caps FIGRA at 120 W/s against 250 W/s for class C, and total heat release at 7.5 MJ against 15 MJ, so a supplier reaching B is usually optimising the compound rather than the moulding. For a dense canopy at 3,000 leaves/m³, B-s1,d0 is achievable but the density band has to be declared on the certificate, since a report issued for a lighter canopy will not describe the delivered goods.

Q: Can a certificate be re-issued for a different colour or density?

A: Only if the change is covered by the original test scope or by an extension to it. Pigments and flame-retardant additives are compounded together, and a colour change can alter the additive loading enough to move FIGRA. The workable route is to fix colour and density before the test programme and to treat later changes as a controlled variation, with the test laboratory confirming whether the existing report still applies.

Q: Does an EN 13501-1 certificate replace a Gulf conformity approval?

A: No. The Euroclass answers the reaction-to-fire question in the language a European fire engineer uses. A Gulf submission additionally runs through the national conformity platform, where the fire evidence becomes one document in a broader dossier alongside the test report, the batch traceability record and the declaration of conformity. Both routes can be satisfied by the same underlying test programme, but the paperwork is issued against different requirements and neither one substitutes for the other.

Q: How should the fire requirement be written into a specification?

A: Name the class and both subscripts, name the test standard, describe the product the report covers including leaf form, colour and density band, and require the mounting condition to be stated. Adding a clause that the certificate must be traceable to the production batch closes the last gap, because it prevents a report from a different production line being offered for the goods on order.
