Executive Summary
Large artificial trees run 2–12 m on a Q235 hot-dip galvanized core of Ø48–76 mm, and the programme is set by two clocks rather than one: fabrication at 25–35 days for standard heights and 45–60 days above 6 m, plus a drawing approval cycle that runs before either. Issue DWG shop drawings at 1:20 with the anchor bolt pattern and the base-plate setting-out, or the slab is poured without an embed plate and the recovery cost lands on site.
1. Failure Modes & Commercial Pitfalls
Programme failures on architectural trees almost never trace back to the factory. Fabrication is the part of the chain that behaves predictably; the delays sit in the drawing set, the approval gate and the site sequence around them. Five patterns account for most of the slippage, and each one is visible from the buyer's side of the table before the order is placed.
A single lead-time figure is the first and most expensive trap. A quotation that reads 25–35 days describes the fabrication window only, and a programme built on that number alone is short by two to three months. The realistic chain runs: enquiry and specification freeze, drawing issue in roughly 5–10 working days, consultant or engineer review across 5–15 working days with a resubmittal likely, then approval to manufacture, then 25–35 days of fabrication for standard heights or 45–60 days above 6 m, then packing and booking, then 18–30 days of sea transit into the Gulf, then port clearance and site delivery. Each gate is a normal, expected stop — the failure is treating the last number as the only one.
Anchors discovered after the slab is poured come second. A large tree needs a positive fixing, which means a base plate and a bolt pattern that has to be set out from a grid line before concrete is placed. If the tree is added to the package during value engineering, after the structural drawings have been issued for construction, the slab arrives without an embed plate. The recovery is either chemical anchors drilled into a finished slab — with the waterproofing consequence that brings on a roof terrace — or chipping and re-forming. Neither is a material problem, and both are two to three weeks of programme that no supplier can compress.
The substitution cycle is the third pattern. A tree that is dropped from the package and re-introduced late typically re-enters without a floor loading figure, without a base detail and without a material approval, because the earlier submittal was closed out. The anchor detail then lands on the landscape contractor's scope by default, or on nobody's, and the QHSE file at handover inherits a gap that has to be closed with a site visit and a new calculation rather than with a document that already existed.
Site sequence is the fourth. A crown cannot be assembled underneath a finished ceiling: a 9 m specimen installed in a hotel atrium needs a clear vertical work zone and a lifting route, and a ceiling grid, lighting track or sprinkler branch installed first converts a straightforward lift into a coordination meeting. The same applies to the floor. Trees frequently arrive before the finish is laid, which means a protected staging area, and a drawing that does not say so leaves the contractor improvising with pallets and cling film at the site gate.
The fifth pattern is the quietest: a drawing that assumes work the site crew cannot legally do. A detail that shows a field weld, a field-cut core or an on-site trim invites a crew with no certified welder and no galvanizing repair material. The drawing set has to be buildable with bolted, numbered joints and hand tools, and that is a specification decision rather than an installation preference — once a shop drawing carries a weld symbol, the schedule acquires a specialist subcontractor on its critical path.
2. Material Science & Structural Engineering Standards
The shop drawing is only as good as the bill of materials behind it, so the two belong in the same submittal. Commercial builds above 3 m run a Q235 hot-dip galvanized steel core of Ø48–76 mm with a 2.5–3.2 mm wall, welded to AWS D1.1 shop practice and hot-dip galvanized to 85–120 µm per ISO 1461 for coastal exposure. A 4 m indoor olive tree sits at the lower end of that range with a single rigid core; a 9 m coastal date palm needs the full Ø76 mm column and a machined sleeve joint between core and shell, because a trunk that travels as one rigid 9 m member cannot be shipped economically or lifted into an atrium.
What the DWG set has to carry is a short list, and most rejections come from something on it being missing rather than from something being wrong. At 1:20, the sheet needs the overall height and the crown diameter, the trunk base diameter at the plate, the base-plate envelope with its bolt circle and bolt size, the setting-out dimension from the nearest structural grid line, the finished weight of the tree and of the plate assembly, the lifting points and the centre of gravity for the rigging plan, and the packed volume per piece for the shipping calculation. A second sheet at 1:5 for the base connection is what the site foreman actually works from, and it should show the torque value, the shim arrangement and the inspection hold point.

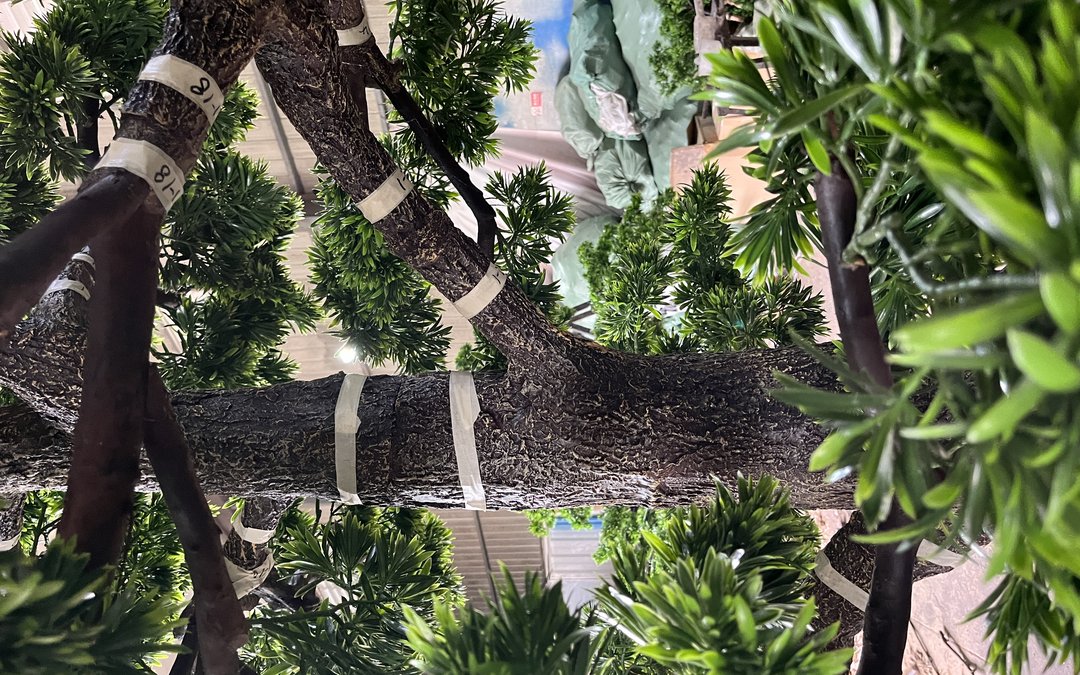

Foliage and trunk specification belong on the drawing as annotations rather than on a separate marketing sheet, because the numbers have to travel with the object. Injection-molded PE foliage is specified at 1,800–3,200 leaves/m³, and the crown diameter on the drawing has to be the crown diameter as built at that density — a drawing that dimensions a 3 m crown against a crown built at the low end of the density range will not describe the tree that arrives. The trunk shell is centrifugally cast fiberglass over the core, bolted at marked and numbered joints, and the joint positions are the reason a 9 m specimen can be built inside a finished building at all. Synthetic foam shells are lighter and cheaper, and they also cannot carry those bolted joints reliably, which removes the knock-down option from the drawing and with it the volumetric efficiency that makes a multi-tree order affordable to ship.
3. Life Safety, Fire Codes & Environmental Compliance
Compliance documents run on their own clock, and they gate the manufacturing release rather than running alongside it. The material file that accompanies a DWG submittal normally contains the flame test report to NFPA 701 (Method 1 for small-scale screening, Method 2 for large-scale assemblies) or to EN 13501-1 Class B-s1,d0, a low-VOC or REACH declaration for enclosed interiors, the ISO 1461 galvanizing certificate for the core, and salt-spray evidence to ISO 9227 or ASTM B117 in the 480–720 hour range for coastal sites. Where the project sits in the Gulf, the material submittal is reviewed against the applicable fire and life safety framework before the article is accepted on site, and the review compares the approved datasheet against what is delivered.
Two programme consequences follow. First, the fire report has to describe the material actually being made: a certificate issued against a previous formulation, or against a topically treated leaf when the order is now an inherently flame-retardant polymer, is a rejection at the material approval gate rather than at the site inspection, and the resubmittal restarts the review clock. Second, the material approval is a separate gate from the installation inspection, and both have to sit in the programme. For a commercial atrium where the tree is part of the fit-out package, the two approvals are commonly handled by different parties — the fit-out contractor for the material and the MEP or civil defence consultant for the installation — and a programme that shows one gate only will not be honoured by the other.
There is a practical habit that shortens both reviews without adding cost. The drawing set should name the polymer, the leaf density, the core diameter and the fire test method in the title block or the general notes, so the reviewer can check the document against the article without requesting a separate specification from the supplier. Where an aesthetic mock-up or a finish sample is part of the approval, the sample has to come from the same production run as the tree, and a retained piece should travel with the shipment and be filed with the O&M documentation. That single retained sample is what closes a material query at handover in an afternoon instead of a week.
4. Technical Comparison Table
The rows below reflect factory-standard builds. Core diameters scale with height because the bending moment does; leaf density is a material constant of the crown rather than a function of size. Lead times are quoted from drawing approval, which is the gate most programmes get wrong — the approval cycle runs in front of these figures, not inside them.
| Tree Height (m) | Min Core Steel Ø (mm) | Leaf Density (leaves/m³) | Floor Live Load & Ballast (kg) | Application | Indoor/Outdoor | Standard Lead Time From Drawing Approval |
|---|---|---|---|---|---|---|
| Olive 2–6 | 48–60 | 1,800–3,200 | 100–220 anchored | 5-star hotel atrium | Indoor | 25–35 days |
| Japanese Maple 2.5–6 | 48–60 | 1,800–3,200 | 120–260 | villa courtyard / restaurant terrace | Indoor or covered outdoor | 25–35 days |
| Coconut Palm 3–7 | 48–60 | 1,800–3,200 | 140–280 | seaside resort pool deck | Outdoor (UV build) | 25–35 days up to 6 m |
| King Palm 4–8 | 60–76 | 1,800–3,200 | 180–320 | airport VIP lounge | Indoor or covered outdoor | 45–60 days above 6 m |
| Date Palm 4–9 | 60–76 | 1,800–3,200 | 150–300 anchored | seaside resort courtyard | Outdoor (coastal) | 45–60 days above 6 m |
| Banyan 4–10 | 60–76 | 1,800–3,200 | 250–450 | corporate HQ reception | Indoor | 45–60 days above 6 m |
| Ficus canopy 6–12 | 76 | 1,800–3,200 | 300–500 | mall atrium | Indoor | 45–60 days (custom) |
Read the last column as the only figure that can be quoted with confidence, because it is the only one under the supplier's control from the moment the drawing is signed off. Everything upstream — the enquiry, the drawing issue, the review, the resubmittal — belongs to the project, and it is where a two-week slip in approval becomes a two-week slip in delivery with no factory capacity left to absorb it.
5. Structural Anchoring & MEP Coordination

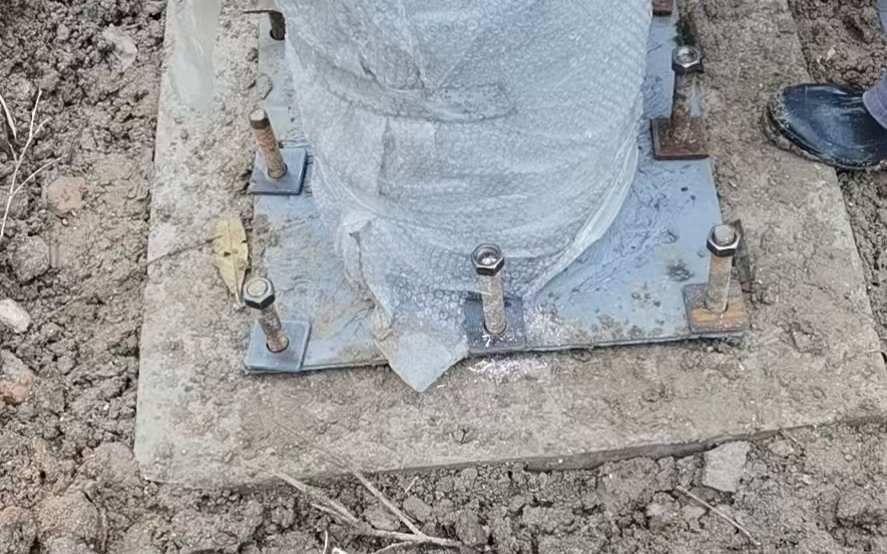

The base detail is the single drawing that has to be issued early, because it is the only part of the tree that interacts with the structure before the structure is finished. A bolted base plate becomes a cast-in embed plate with welded headed studs when the programme allows it, and a retrofit chemical anchor when it does not; the two are not interchangeable, and the engineering calculations behind them assume different concrete conditions, edge distances and inspection regimes. The item that decides which one applies is not the tree — it is the date the base drawing reaches the structural engineer relative to the date the slab is poured.
MEP coordination then resolves the geometry that the drawing set has to record. For an indoor specimen, the crown has to be held clear below the sprinkler throw envelope, which puts the crown footprint on the ceiling coordination drawing alongside the sprinkler layout and the lighting track. Where the tree stands in a door line, high-velocity air curtains apply a repeated lateral load that the base detail should acknowledge. For outdoor work, the setting-out includes the fall of the paving and the drainage around the plate, because a base recess that collects water is a corrosion problem long before it is an aesthetic one. High-level crowns also need a documented lifting route: the largest specimens are usually assembled from a platform, and the sequence note should state the clear height and the plant access point so the ceiling, façade and landscaping trades can be sequenced around it.
Thermal and geometric tolerance belong in the same note. Exposed steel in Gulf conditions is designed for a 25 °C differential, so the base plate should carry slotted holes or expansion washers at the bolt line rather than a fully rigid pattern. A tolerance of ±10 mm on the setting-out is normally adequate at 6 m and above, provided the plate is sized to absorb it — a plate that exactly matches the bolt pattern with no slot has no room to accommodate the concrete that was poured to the drawing's own tolerance. Closing out the package means handing over the setting-out sheet, the base connection detail, the anchoring torque value and the retained material sample as one document set, so the next trade that touches the floor has the information in front of it rather than in a separate file.
6. Commercial Contractor FAQs
Q: How long does the drawing approval cycle add to the lead time for a large artificial tree?
A: Budget 5–10 working days for the first DWG issue and a further 5–15 working days for consultant review, with one resubmittal as the normal case rather than the exception. Fabrication of 25–35 days for standard heights or 45–60 days above 6 m starts only after approval to manufacture, and sea transit into the Gulf adds 18–30 days. A programme that plans on the fabrication figure alone is typically two to three months short of a workable delivery date.
Q: What must appear on a DWG shop drawing set for an architectural tree?
A: A 1:20 general arrangement showing overall height, crown diameter, trunk base diameter, base-plate envelope with bolt circle and bolt size, and the setting-out dimension from the nearest grid line; a 1:5 base connection detail with torque value, shim arrangement and inspection hold point; the finished weight, the packed volume per piece, the lifting points and the centre of gravity; and general notes naming the polymer, leaf density in leaves/m³, core diameter and wall thickness, galvanizing to ISO 1461, and the fire test method to NFPA 701 or EN 13501-1 B-s1,d0.
Q: Can a large tree be installed before the ceiling and floor finishes are complete?
A: It can, and on most fit-out programmes it should be, but the sequence has to be drawn rather than assumed. The crown is assembled from a platform or a lift, so a clear vertical work zone and a documented lifting route are needed before the ceiling grid, lighting track and sprinkler branches are closed. Floor finish protection, a defined staging area and a protection detail for the base plate should be noted on the drawing so the landscape and fit-out trades are not negotiating the order of works on the day of delivery.
Q: When should the order be placed for a 9 m specimen on a fit-out programme?
A: Work backwards from the installation date rather than forwards from the enquiry. Take the installation window, subtract site delivery and clearance, subtract 18–30 days of sea transit, subtract 45–60 days of fabrication above 6 m, subtract an approval gate of 10–25 working days including one resubmittal, and then subtract the drawing issue. For a 9 m specimen installed at the end of a fit-out that places the order roughly four months before the lift, and the base-plate drawing roughly five months before it.
Conclusion: Issue the Drawing Before the Slab, Not After
The drawing is the cheapest deliverable in the package and the one that decides the programme, which is why it deserves to be treated as a milestone rather than as paperwork. At Pure Faux Flora we issue a DWG set at 1:20 with a 1:5 base connection detail, a packed-volume sheet and a lifting and sequence note, together with the ISO 1461 galvanizing certificate, the fire test report to NFPA 701 or EN 13501-1 B-s1,d0 and a retained foliage sample — so the structural engineer, the civil defence consultant and the installation crew are all working from the same document. Browse the full product catalogue for the 15 commercial tree builds, or send the installation date and the slab status and we will return the drawing programme that fits in front of it.
