Wind Load and Storm Readiness for Artificial Trees at Red Sea Resorts: Coastal Anchor Checks, Canopy Removal and the Inspection Schedule to Specify

Executive Summary

A coastal Red Sea installation is designed for wind exposure category D, not for the sheltered exposure that generic anchor details assume. Trees from 6 m to 9 m sit on a Q235 hot-dip galvanized core of Ø60-76 mm with an 85 µm zinc coating to ISO 1461. Within about 500 m of saltwater, fixings should be A4-70 stainless, and the base plate checked for uplift as well as compression.

A finished blossom tree staged on the factory apron before crating - the condition every anchor detail has to hold once it stands outdoors.

1. Failure Modes & Commercial Pitfalls

The wind load on a 6 m tree at a beachfront resort is roughly twice the load on the same tree in a sheltered courtyard, and the difference is not in the tree. It is in the terrain. Coastal sites on the Red Sea coast have open water upwind for kilometres, with no trees, no buildings and no topography to break the boundary layer, which is precisely the definition of the most severe exposure class in every major wind code. A specification copied from an inland project, or from a supplier's standard drawing, carries the inland pressure with it.

Four failure patterns account for most of the coastal problems that surface after handover.

The exposure class is never stated. Supplier drawings usually say "wind load as per project requirement", which pushes the calculation back to the buyer without a code basis. When nobody resolves it, the anchor gets sized by habit rather than by pressure, and habit is derived from the last project, which was usually not on a shoreline.

The fixing grade is downgraded to save cost. A2 (304) stainless and hot-dip galvanized carbon steel look identical on a delivery note and behave very differently in salt spray. Chloride deposition accelerates marine corrosion by roughly five to ten times compared with an inland site, which turns what reads as a 20-year fixing into a 5-8 year fixing, with the worst attack hidden in crevices: under washers, under the bolt head, and in the gap between plate and slab.

The crown is left dressed through the storm. A fully dressed canopy is a bluff body. It is the crown, not the trunk, that generates most of the overturning moment on an outdoor specimen, and a crown left in place during a sustained gale or a coastal storm converts a design case into an overload case. Palm fronds crack at the rachis and cannot be dressed back, so the damage is not cosmetic.

Nothing is documented after installation. Torque values, as-built plate positions and the grout condition are recorded once, if at all. Two years later, after a storm moves a base plate by 8 mm, there is no baseline to compare against and no evidence trail for an insurance discussion.

The commercial consequence is worth naming plainly. The anchor for a 6-9 m tree on an exposed deck is not the expensive part of the package. Replacing a bent core, re-drilling a slab, re-grouting a plate and re-shipping a crown length costs several times the anchor, and it lands after the opening date has already been committed. The wind load question is a schedule risk before it is a structural one. The same pressure applies whether the crown is a 5 m olive tree on a villa deck or a 9 m palm on a promenade; the geometry sets the moment, not the species.

Why does an inland anchor detail fail on the coast?

Because three assumptions stop being true at the same time. The design pressure rises with the exposure class, the corrosion allowance falls with the chloride load, and the maintenance interval has to become shorter than annual. An anchor sized on any two of those and not the third will pass a visual inspection on the day it is installed and fail the third.

What fails first after a storm?

In practice, in this order: the grout or bedding under the base plate cracks and the plate starts to rock; the bolts lose preload and the first visible sign is a rust weep at the plate edge; the trunk-to-base connection develops a coating line at the flange; the crown modules either shed fronds or take a permanent set. All four are visible in a fifteen-minute walk-through if someone knows what to look at, and none of them are visible from a photograph taken at eye level in a lobby.

2. Material Science & Structural Engineering Standards

The structural case starts at the core. Large outdoor specimens are built around a Q235 hot-dip galvanized steel tube running from Ø48 mm at 2-4 m up to Ø76 mm at 9-12 m, with a nominal wall thickness around 3.5 mm and a minimum 85 µm zinc coating to ISO 1461. On a coastal site the relevant question is not whether the core is galvanized, because it is, but whether the coating is intact at the points where the structure is cut, drilled or welded after galvanizing. Those are the initiation points for every corrosion failure that follows.

Coating system. For a C5-M marine environment, a duplex system - hot-dip galvanizing plus a polyester powder or liquid topcoat at roughly 60-120 µm - performs materially better than galvanizing alone, because the organic layer keeps the electrolyte off the zinc surface while the zinc protects the steel wherever the organic layer is scratched. Bare galvanizing is defensible on a sheltered podium; on a beachfront deck it is a five-year conversation. Field-cut edges, drilled holes and damaged zones need a zinc-rich repair coat, applied before the plate is bedded, not after the project is handed over.

Fixings. A4-70 (316) stainless is the default for anything within about 500 m of saltwater, and A2 (304) is acceptable only at sheltered inland locations. Stainless and galvanized steel form a galvanic couple, so isolation washers or a coated separator between stainless fasteners and a galvanized plate are standard practice rather than a refinement. Where chemical anchors are used, the anchor must be specified as a system: resin, stud grade and embedment depth selected together against a European Technical Assessment, not assembled from three suppliers' data sheets.

Foliage and crown. Injection-moulded polyethylene foliage with a UV50+ stabiliser package is the outdoor baseline, with a hindered amine light stabiliser loading typically in the 0.3-0.8% range by polymer weight. Leaf density for a commercial specimen sits between 1,800 and 3,200 leaves per cubic metre depending on species and height. Density matters for wind for the same reason it matters for appearance: a densely dressed crown presents more frontal area and less porosity, and porosity is what lets wind pass through instead of pushing.

Canopy geometry is a design variable. A crown that detaches in modules is worth more on a coastal project than a crown that is fixed permanently to the trunk. Removing detachable crown modules drops the frontal area of a 6 m specimen by roughly 35-45%, which cuts the overturning moment in the same proportion and moves the storm case back inside the design envelope. Species with a sparse, open crown - a 9 m date palm, for example, or a fan palm - present a smaller sail at the same height, which is one reason palm-form specimens appear so often on exposed waterfronts. The trade-off is real: a sparse crown reads lighter in a resort landscape, and a dense canopy on the same trunk needs the heavier fixing.

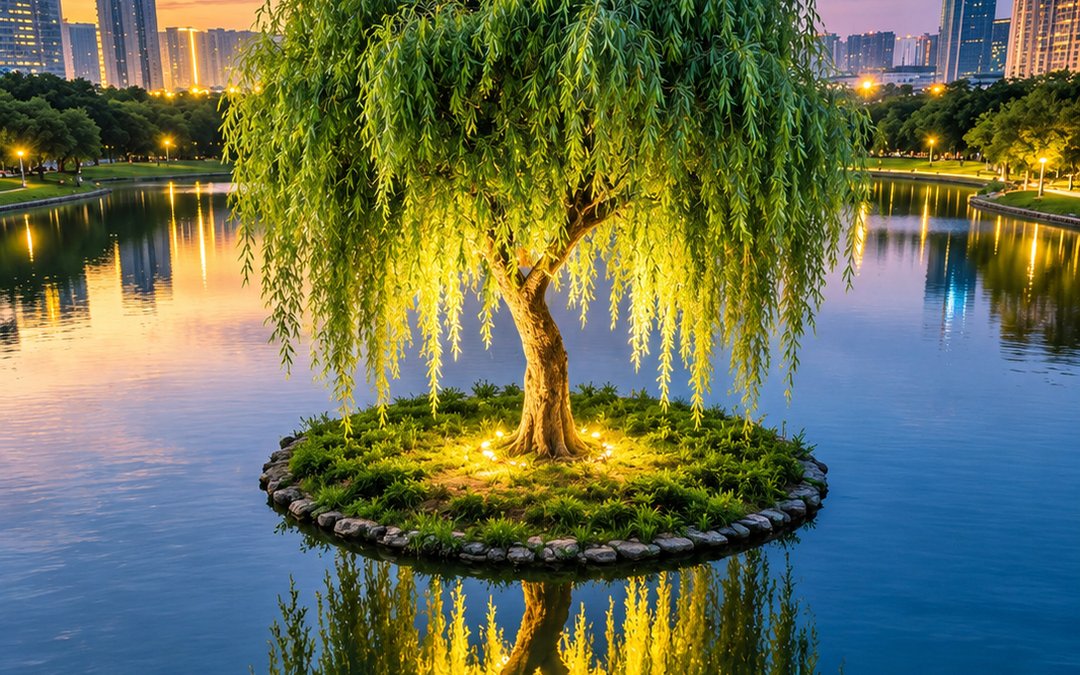

An illuminated willow on a landscaped island in open water - a setting with no upwind shelter and continuous wind fetch across the lake.

What the coating has to survive. Salt spray testing to ASTM B117 is the usual screening evidence, quoted as hours to red rust, commonly 480-720 h for a coastal-specification system. Grey-zone claims are the trap: a B117 result describes the coating, not the fixing or the base plate, and a supplier who quotes one number for the whole assembly is describing the easiest component to pass. Ask separately for the core coating, the fastener grade and the plate finish.

3. Life Safety, Fire Codes & Environmental Compliance

Fire performance and wind performance are separate conversations, and on a coastal resort project they land on different parts of the same tree package.

Outdoor free-standing specimens generally sit outside the scope of interior finish requirements, because they are not part of a building's interior finish and not in a means of egress. The moment the same landscape continues under a canopy, into an arrival pavilion, through a porte-cochère or into a hotel atrium, interior requirements apply and the material has to be documented against them. The two references used across GCC submissions are NFPA 701 and EN 13501-1.

NFPA 701 has two test methods. Method 1 is the small-scale test used for fabrics and films up to a specified weight, and Method 2 is the large-scale test used for assemblies that cannot be represented by a small sample. A full artificial canopy with a steel armature and a dressed crown is closer to the second case, and a certificate quoting Method 1 for a canopy assembly answers a question nobody asked. The certificate should be read for three things: which method was run, what the sample construction was, and what the measured mass loss and after-flame time were.

EN 13501-1 reports a reaction-to-fire class rather than a pass or fail, and for foliage the target class in a commercial specification is normally B-s1,d0: limited combustibility class B, minimal smoke production (s1), no flaming droplets (d0). There is no "Class B1" in EN 13501-1 - B1 belongs to the superseded German DIN 4102-1 system - and a submittal that mixes the two numbering systems usually indicates a certificate that was not read carefully before it was filed.

For enclosed interiors, low-VOC and odour-free polymer selection matters because the air is recirculated through the same HVAC system that serves the lobby. For an open coastal pavilion it matters far less. What matters more in the coastal case is that the fire documentation survives the same moisture the structure is exposed to: certificates kept in the project file rather than on site, with the sample reference and production batch, because a Civil Defence or SABER review two years after handover will ask about the material that was used, not the material that was proposed.

4. Technical Comparison Table

The table reads the same tree range through the coastal variable. Core diameters follow the standard build for each height band; ballast and fixing values assume an exposed deck with no shielding credit, and they are a screening check rather than a substitute for project engineering calculations.

Two rows deserve comment. The 6-8 m band is where coastal projects most often get the detail wrong, because it is tall enough to generate a serious moment and short enough that a planter looks like an adequate answer. On a beachfront deck it usually is not, once the ballast mass required for the restoring moment is calculated and the planter itself is checked for the wind load acting on its own exposed face. The 4-6 m indoor band shows the opposite case: no wind load at all, so the governing requirements become the fire classification and protection of the floor finish rather than the anchor. The same height band can carry several very different fixings across the full range of large artificial trees, which is why height alone is a poor basis for an anchor specification.

5. Structural Anchoring & MEP Coordination

Anchoring on a coastal deck resolves into four decisions, taken in this order: how the load gets into the structure, what material carries it, how water leaves the detail, and how the assembly is checked over its service life.

Load path. The base plate transfers overturning moment into the slab as a bolt tension and compression pair. Uplift governs the bolt design on an exposed deck, so the plate has to be checked for the maximum simultaneous tension rather than for the static weight of the tree. Bolt edge distance from the slab edge is conventionally taken at five times the anchor diameter as a minimum, and the plate thickness has to be sufficient to distribute the tension without local yielding at the washer face. Where the slab cannot take a chemical anchor - post-tensioned slabs are the common case, and thin topping over a metal deck is another - the anchor moves to a cast-in arrangement coordinated with the structural package months earlier, not improvised on site.

Material. A4-70 stainless studs, isolation washers between stainless and galvanized steel, and a plate finish matched to the exposure class. Bolts should be torqued to the manufacturer's value with a calibrated wrench and the values logged, not estimated. The annual re-check is a torque verification, because preload loss is the earliest measurable sign that something has changed.

Water management. A base plate sitting flat on a slab with grout packed around its perimeter creates a shallow basin that holds salt-laden water against the plate edge and the bolt shanks for days after rain. The detail should shed water - a small slope or a gap at the low side, non-shrink grout only under the plate and not forming a dam around it, and the base of the tree wrapped in a way that does not trap moisture against the coated steel. This is the most frequently omitted item on coastal anchor drawings, and it is the one that decides whether the coating system reaches its design life.

Ballast as an alternative. A ballast collar planter is legitimate where the required mass is achievable and the planter can be restrained against sliding. Two conditions are usually missed. The planter body is itself a wind-loaded object and has to be checked as one. And the mass has to sit directly over the structural slab, not on a raised deck or paver system that will deform under it.

Storm-readiness sequence. For any coastal project, the practical routine belongs in the O&M manual at handover. Before a forecast storm: remove detachable crown modules where the design assumes removal, verify torque on the plate bolts, check that the grout lines are intact, and clear loose items from the planter and the surrounding deck. After the storm: a walk-through within 24-48 h covering the plate, the grout, the bolts, the trunk-base junction and the crown modules. A documented pre-storm and post-storm record is also what turns a warranty discussion into a fact-based one.

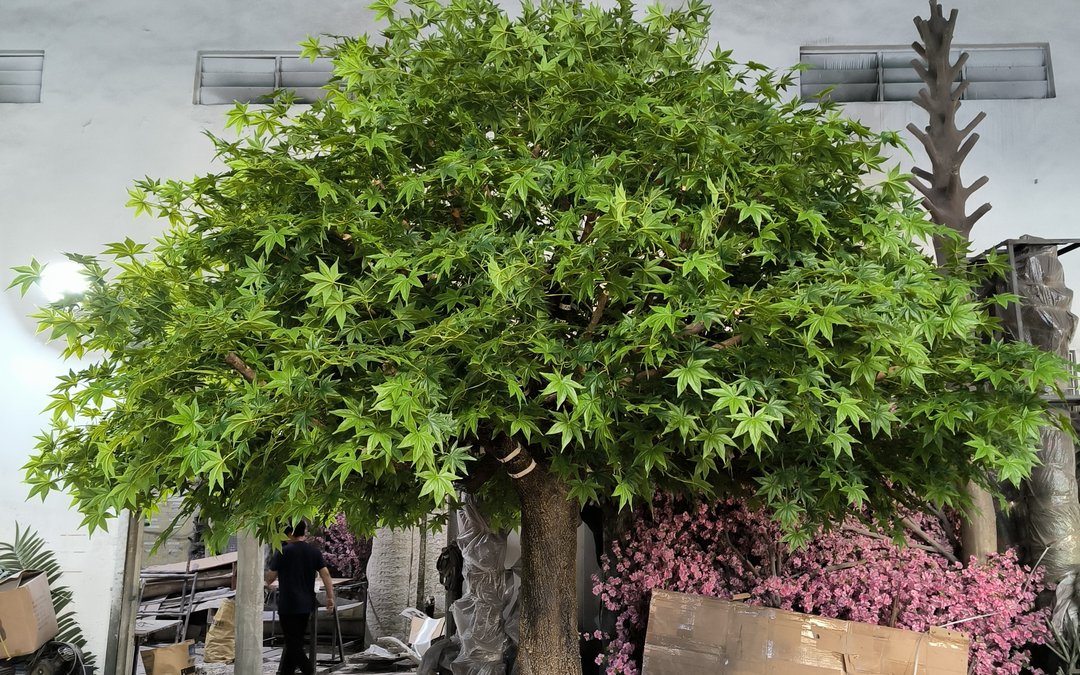

Workshop assembly of a large canopy tree, trunk base and lower structure visible, with a bare armature in the background - the geometry that reaches site and has to be fixed down.

Inspection intervals. A workable coastal schedule is quarterly visual inspection in the first year and after every storm event, annual torque verification, a coating and fixing condition review at 3-5 years with localised refinishing as required, and a load check of the fixing system at 5-10 years or earlier if the condition review shows progressive corrosion. The interval is set by the exposure class and by the observed condition, not by a generic annual rule borrowed from an inland site.

MEP coordination. Indoors, the anchor has to coexist with the sprinkler layout: a sprinkler head directly above a crown will not reach the floor below it, and the canopy has to be kept clear of the sprinkler throw envelope rather than treated as decoration. High-velocity air curtains at entrances impose a steady lateral load near the plate and should be identified on the same drawing. Outdoors, the anchor package has to coordinate with the waterproofing and drainage of the same deck, with the uplighting circuit that usually sits inside the planter, and with any lightning protection covering free-standing structures. Each of these interfaces is cheap to fix on a drawing and expensive to fix on site. Where the anchor departs from a standard product detail, the engineering calculations have to be produced for the specific height, exposure class and slab, and issued before fabrication starts. Comparable coastal builds and their fixing arrangements are collected in the project portfolio.

What does the storm-readiness sequence look like?

Pre-storm: crown modules removed where the design depends on it, torque verified and logged, grout and drainage checked, floodlights and cabling secured. Post-storm: a 24-48 h walk-through of plate, grout, bolts, trunk base and crown, with photographs filed against the pre-storm record. The whole routine takes under an hour per tree.

6. Commercial Contractor FAQs

Q: Who is responsible for the coastal wind load calculation?

The party that holds the structural design responsibility for the deck, because the exposure class, the pressure coefficient and the slab capacity all come from the building's structural model. The tree supplier can and should provide the geometry - height, crown frontal area, mass, centre of gravity, base plate footprint - plus the fixing material specification. A supplier issuing a signed wind load calculation for someone else's slab is a warning sign in a submittal review, not a shortcut.

Q: What fixing grade should be used on a beachfront installation?

A4-70 (316) stainless within roughly 500 m of saltwater, with a coating or isolation layer between the stainless fastener and any galvanized component, and a zinc-rich repair coat on field-cut edges. A2 (304) is a reasonable choice inland and a poor one in direct salt spray.

Q: Can a ballast planter replace a base plate on an exposed deck?

Where the required mass is achievable and the planter is separately restrained against sliding, yes. On a 6-9 m specimen on an open beachfront deck the required mass commonly exceeds what a planter of the available footprint can hold, and the planter's own loaded face has to be checked as well. The answer is a calculation, not a preference.

Q: What should be handed over for the anchor system?

The as-built anchor drawing with plate positions and bolt centres, the fastener grade and torque log, the grout and drainage detail, the coating system data sheets, the fire certificates with sample references, and a maintenance schedule stating inspection intervals and the storm routine. Without the torque log, the first annual inspection has no baseline to compare against.
