Executive Summary
A 3–8 m spiral topiary is a fabricated geometry rather than a species, so the audit target is the tooling. Helix pitch should hold to ±5 mm and outer diameter to ±10 mm, over a Q235 galvanized core of Ø48–76 mm, with 1,800–2,400 leaves/m³ at the outer radius. Indoor builds need inherently flame-retardant foliage tested to NFPA 701 or EN 13501-1 B-s1,d0. A supplier who cannot show the former has not built the shape.
1. Failure Modes & Commercial Pitfalls
Most topiary failures are not material failures. They are geometry failures that surface six weeks after handover, when the tree is already bolted down and the opening date has passed.
Axis drift. A helix wound by hand without a former starts straight enough at the base and leans as it rises. Three degrees of error at the base becomes roughly 315 mm of lateral offset at the tip of a 6 m tree. In a double-height lobby that reads as a manufacturing defect from the car park entrance, and correcting it means cutting the core, re-welding it and touching up the finish on site.
Pitch drift. Spiral topiary is read as rhythm. Turns spaced 420 mm apart at the bottom and 510 mm apart at the top create visible banding; the eye picks it up before it can name it. Hand-wound trees typically drift 60–100 mm over the full height, which is why the pitch template matters more than the welder's experience.
Baldness on the outer radius. Leaf plates laid flat work on a canopy, not on a curve. The outside of a spiral has the longest sightline and the highest plate spacing, so a tree with adequate overall density can still show 20–40 mm gaps at the outer turn when viewed from 1.5 m eye height. That is where the frame becomes visible, and a visible frame is the point at which a client stops calling it a tree.
Node fatigue. A 6 m topiary presents roughly 1.2–1.6 m² of effective sail. In a 30 m/s gust at a coastal entrance, the bending moment at the base plate lands in the region of 6–9 kN·m. A frame assembled from short offcuts with butt welds at the turn transitions concentrates that load into joints that were never designed for it.
Quotation as a symptom. The lowest-cost failure signal arrives before production, in the price. A lump-sum figure with no tooling line, no material grade and no machine time is a forwarded price from somewhere upstream. Factories quote against their own cost base and can name the machine, the mould and the jig; intermediaries have to ask someone else first.
2. Material Science & Structural Engineering Standards
Core and frame

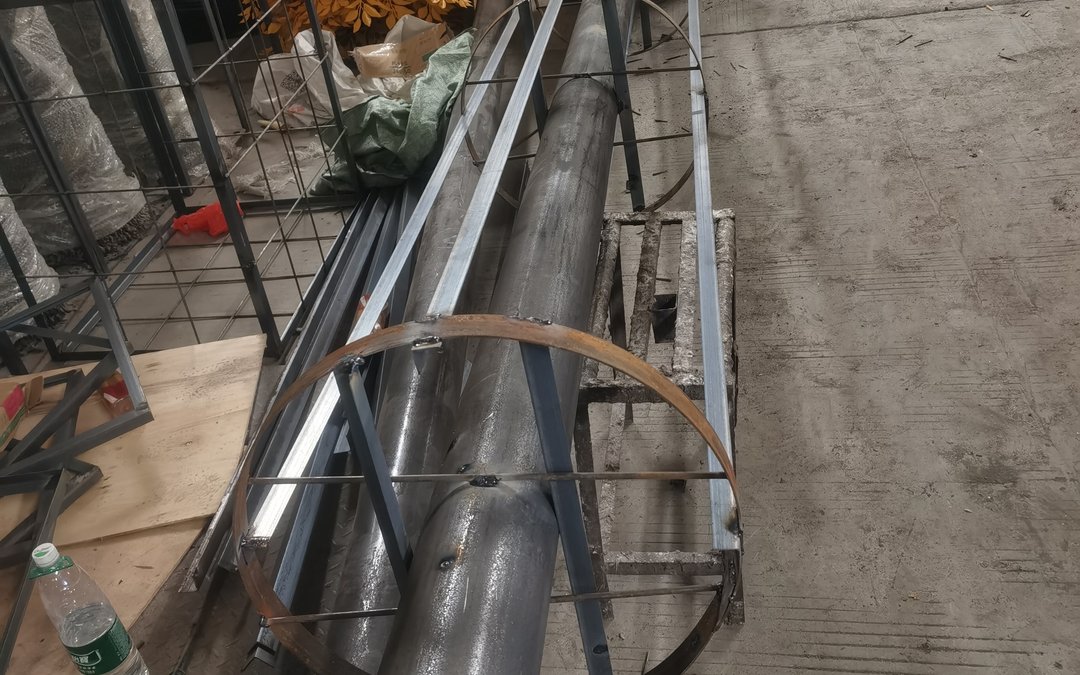

The structural core is a Q235 hot-dip galvanized tube, Ø48 mm at 3 m rising to Ø76 mm at 8 m, with 2.5–3.5 mm wall. It runs continuous from the base plate to the top cap. Where a build has to be split for freight, the split happens at a registered sleeve joint with an internal spigot of at least 200 mm engagement, not at a butt weld.
Galvanizing is specified to ISO 1461 at 85 µm average coating thickness. On coastal sites the fastener schedule moves to A4-70 stainless, because a galvanized bolt in a galvanized plate still creates a crevice that holds chloride.
The helix itself is usually a separate flat or round bar wound around the core and welded at each turn transition. That is the part that reveals whether a factory builds shapes or buys them. The same frame logic applies to a Mediterranean olive tree trained into a helix, which is why the audit questions transfer between species.
The former is the audit object
A factory that produces spiral topiary owns a former set: rings at each turn, a pitch template, and a base jig that squares the core to the base plate before welding. The full set for one model typically occupies 1.5–2 m² of floor and is stored with an ID tag, because it is reused for every repeat order.
Ask for three things and watch how long they take to arrive:
1. A tooling register listing jig ID, build date and the models each jig serves. 2. Photographs of the former in use, with a tape measure visible against the ring spacing. 3. A first-article record that ties an approved sample to the jig that produced it.
A genuine manufacturer produces all three from a shelf. An intermediary offers finished trees, catalogue pages and a promise to check with the factory partner. The same pattern holds across the model range: the supplier who can walk a buyer through the tooling behind one model can do it for all of them.
Foliage fixing on a curved surface

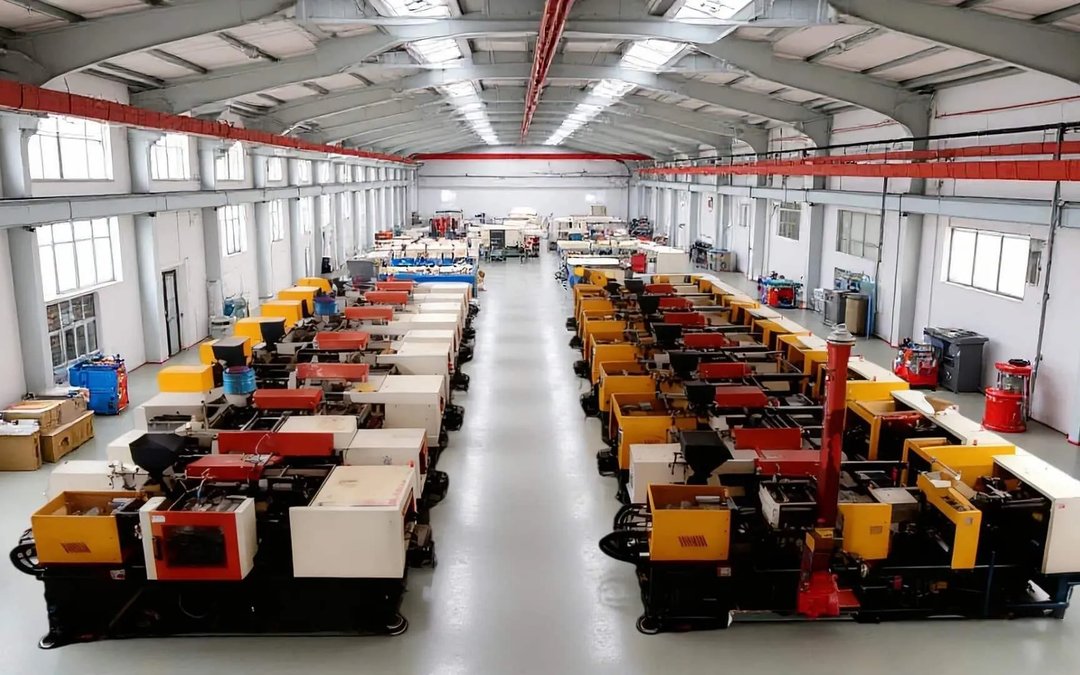

Injection-moulded PE leaf plates on a UV-stabilised compound are the default for commercial work. On a spiral, each plate needs three-point fixing — stem clip, wire tie and a spot of structural adhesive at the plate root — because a single clip rotates as the foliage is dressed and leaves the plate facing inward after a season of cleaning.
Leaf density at the outer radius should be 1,800–2,400 leaves/m³. The measurable check is a 20–30 N pull test on a sample plate after five cleaning cycles; retention below 70% of the initial pull value means the adhesive or the clip geometry is wrong, and the tree will bald from the outside in.
Trunk and surface
The trunk is a moulded fibreglass shell, 3–5 mm thick, over the core, with a ring pattern cut or cast into the surface. Foam is acceptable as a filler inside the shell and unacceptable as a substitute for it, because foam creeps under a sustained bending load and cannot be repaired once it does.
First article before batch
Shaped work is approved on a physical reference, not a render. A 1:5 maquette is enough to settle proportion, turn count and foliage mass; a 1:1 first article is needed to settle the joint positions, the pick points and the way the spiral reads at eye height. The approved article should stay at the factory, photographed from four sides with a date stamp, and become the production reference for the batch.
3. Life Safety, Fire Codes & Environmental Compliance
Fire performance for a shaped indoor tree follows the same rules as any other foliage, with one extra trap: the shape makes it easier to specify a coating instead of a material.
Inherently flame-retardant foliage carries the retardant in the polymer compound, so the property survives cleaning, abrasion and re-dressing. A topical spray sits on the surface and is removed by the first aggressive clean — typically within 12–24 months in a busy commercial atrium. NFPA 701 Method 1 reports a vertical burn result for the textile or film assembly, and the report should state whether the sample was tested before or after the specified wash cycles. EN 13501-1 classification for European and GCC submittals should read B-s1,d0 for a tree in a public interior; s1 limits smoke production and d0 limits flaming droplets.
The certificate holder matters as much as the classification. Check that the name and address on the test report match the business licence and the proforma invoice. A report issued to a partner factory does not cover goods converted somewhere else, and a fire officer reading the submittal will notice the mismatch before the buyer does.
For enclosed spaces with recirculating HVAC, ask for the cure interval before packing. Solvent and plasticiser odour needs 24–72 hours of airing before crating; trees packed warm arrive with the smell trapped in the carton and release it into the lobby over the first week.
Batch traceability closes the loop. The resin batch and the retardant batch should be recorded against the order, marked on the carton and on the core, so a later sample can be tested against the same production run rather than against a generic catalogue sample.
4. Technical Comparison Table
| Tree Height (m) | Min Core Steel Ø (mm) | Turns / Helix Pitch (mm) | Leaf Density (leaves/m³) | Base Plate or Ballast | Application | Indoor / Outdoor |
|---|---|---|---|---|---|---|
| 2.5–3 | 48 | 8 turns / 310–375 | 1,800–2,000 | 250×250×8 mm plate, 4×M10 | Corporate HQ reception | Indoor |
| 4 | 60 | 9 turns / 444 | 1,800–2,200 | 300×300×10 mm plate, 4×M12 | Airport VIP lounge | Indoor |
| 6 | 60–76 | 9 turns / 667 | 2,000–2,400 | 300×300×10 mm plate, 4×M16 | 5-star hotel lobby | Indoor |
| 6 | 76 | 9 turns / 667 | 2,000–2,400 | 350×350×12 mm plate plus 150 kg collar | Seaside resort entrance | Outdoor |
| 8 | 76 | 10 turns / 800 | 2,200–2,400 | 400×400×16 mm plate on engineered base | Mall atrium | Indoor |
Pitch values assume a constant turn count across the height; a design that varies the pitch deliberately should say so on the shop drawing, because the tolerance then applies to the drawn value at each turn rather than to an average.
5. Structural Anchoring & MEP Coordination
The base plate is the interface where a shaped tree either stays upright for a decade or starts rocking after the first season.
For a 4–6 m indoor build, a 300×300×10 mm plate with four M12×160 chemical anchors at 80 mm effective embedment is the usual starting point, subject to the slab. Edge distance should be at least five anchor diameters, which is 60 mm for M12; a plate set 30 mm from a slab edge will spall before the anchor reaches its design load. Torque to the anchor manufacturer's figure, commonly 40 N·m for M12, and pull-test 10% of anchors to 1.5 times the design load.
Slab thickness is the constraint that gets discovered late. Below 150 mm, a 4 m topiary with a 150 kg collar is already marginal in punching shear, and a hollow-core slab needs the anchors landed in a rib or a grout pocket. Ground-penetrating radar before drilling costs less than a post-tensioned tendon repair.
Where drilling is not permitted, the alternative is a ballast collar planter: 60–90 kg for a 3 m tree, 150–250 kg for a 6 m outdoor build, with the mass sized against the overturning moment rather than against the tree's own weight. The collar must be tied to the plate, not merely stacked around it, or the tree walks out of the planter during a cleaning cycle. For shapes that cannot use a standard plate, a custom anchor layout belongs on the shop drawing before the slab is poured, not after.
MEP coordination decides whether the finished object reads as designed or as an obstruction:
- Sprinkler clearance. The topiary tip should sit at least 450 mm below the deflector. A spiral that grows into the spray pattern will be cut back on site, and a cut spiral cannot be re-tensioned.
- Air curtains. Lobbies with 3–5 m/s lateral discharge at the door line will flatten the lower turns. Specify a denser plate count in the bottom 1.5 m, or move the tree out of the discharge path.
- Hoisting. Above 4.5 m, the build is normally split into two or three modules. Each module needs a designed pick point, not a sling around the foliage, and the shop drawing should show the pick point and the module weight, as it would for a large ficus canopy build.
- Cleaning access. A 6 m spiral needs a 2.5 m reach from a platform or a lift. If the hotel atrium has no access route, specify a removable top module so the upper turns can be cleaned at floor level.
6. Commercial Contractor FAQs
Q: What tooling evidence should a buyer ask for before a topiary order is released?
A: Three documents: a tooling register with jig ID and build date, dated photographs of the former with a tape measure against the ring spacing, and a first-article record linking the approved sample to that jig. A supplier that owns the shape produces all three within a working day.
Q: Can a 6 m spiral topiary ship in one piece?
A: Rarely. Above 4.5 m the helix is knocked down into two or three modules with a registered sleeve joint, which has to be dimensioned on the shop drawing and re-torqued on site. Expect roughly 3–4 crated units of 6 m spiral per 40 ft HQ, against 12–16 units at 3 m.
Q: Whose name should appear on the fire test report?
A: The entity that converts the resin. The name and address on the report should match the business licence and the proforma invoice. A report issued to a third party describes a factory the buyer is not contracting with, and the submittal will not survive a fire officer's cross-check.
Q: How is helix tolerance checked when the tree arrives on site?
A: Hang a plumb line from the top cap, measure lateral offset at three heights, then measure outer diameter at each turn and compare with the approved first article. More than 10 mm on diameter or 5 mm on pitch is a non-conformance to be recorded before installation, not a cosmetic note at handover.
Q: Does a trader's ISO certificate prove the tree was made in that factory?
A: No. An ISO 9001 certificate covers a quality system at a named address, and it says nothing about where a specific order was converted. Cross-check the certificate address against the production address shown in the audit video and against the shipper named on the bill of lading.
Conclusion: Audit the Former, Then Sign the Order
Shaped work cannot be verified from a catalogue. The jig, the first article and the shape of the quotation tell a buyer more about who will build the tree than any showroom visit, and all three can be checked before a deposit moves.
