Wind Load, Base Plate and the Slab Beneath: The Structural Checks a Mall Atrium Magnolia Needs Before You Order

Executive Summary

An 8 m artificial magnolia in a mall atrium needs a Ø76 mm steel core, a 400 × 400 × 12 mm base plate and a host slab of at least 200 mm. The wind case that sizes those parts is a design pressure near 1.0 kPa, producing 14–18 kN·m at the base. Most failures start in the slab, not in the tree.

A finished specimen standing free in the factory yard, with moulded trunk blanks racked alongside — the moment it leaves the jig, the base plate is the only thing carrying it.

1. Failure Modes & Commercial Pitfalls

The expensive mistakes in this category are rarely about foliage. They are about a fixing detail copied from a ground-mounted job and dropped onto a suspended slab.

Ground anchor, slab substrate. A 300 mm chemical anchor designed for a slab-on-grade is specified into a 150 mm post-tensioned slab over a retail level. The anchor holds. The slab does not. Punching shear cracks radiate from the plate, the tile finish lifts within a season, and the repair involves closing the atrium and cutting a new opening from below.

Tendon strike. Nobody scans the slab before drilling. A 12 mm hole lands within 30 mm of a post-tensioning tendon. The consequence is not a failed tree; it is a structural report, a shutdown and a repair negotiated with the building's engineer.

Ballast-only specification for a tall tree. A 6 m tree with a 400 kg collar planter is stable in still air and unstable in a 15 m/s gust through an open entrance. The overturning check is simple arithmetic, and it is the one most often skipped because the planter looks heavy.

Base plate on finished tile without grout. The plate bears on four high points, the tile crushes, the plate rocks, and every cycle loosens the anchors a little further. Two years later the tree leans 20 mm, which reads to a visitor as "cheap product" even though the product is fine.

Canopy treated as solid sail. Leaf density is specified for looks and never checked against the wind case. A 3,200 leaves/m³ canopy presents a different projected area to a 1,800 leaves/m³ canopy, and the base moment moves with it.

Semi-open atrium ignored. A glazed commercial atrium with operable louvres, an open entrance zone or a retractable roof is not an indoor environment for structural purposes. Wind enters, internal pressure builds, and the tree that was "indoors" is loaded like an outdoor specimen.

Each of these failures has the same signature: the tree arrives, the installation looks correct, and the defect appears six to eighteen months later when the finish has already been signed off.

2. Material Science & Structural Engineering Standards

The base moment has to travel from the canopy into the slab through a chain of components, and each link has its own limit.

Core. Q235 hot-dip galvanized steel tube, Ø48–76 mm with 2.5–3.5 mm wall, sized by height and by the wind case rather than by height alone. Galvanizing is specified to ISO 1461 at 85 µm minimum for outdoor and semi-open positions; a painted tube will pass the first inspection and fail the fifth.

Branch collars. The welded collar where branch stubs meet the main tube is the least inspected joint on the tree and the one that carries the canopy's local loads. A 3 mm fillet weld on a 2.5 mm wall is a heat-sink problem: the weld looks continuous and undercuts the tube on the far side. Specify throat thickness, a weld procedure, and a visual check with the shell removed before the trunk is closed.

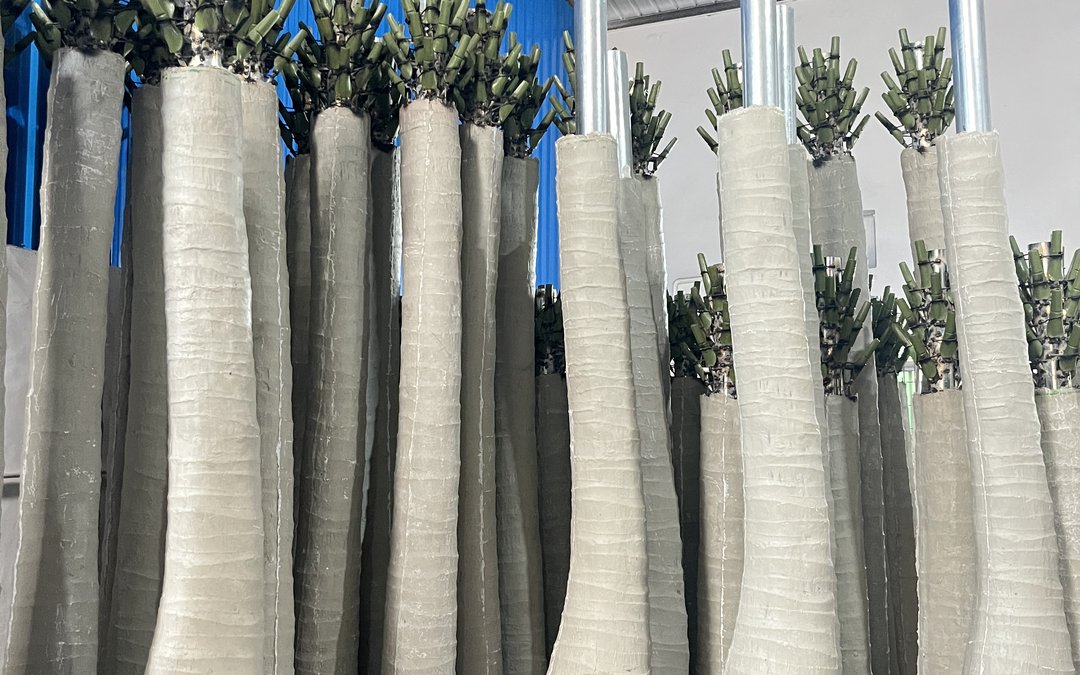

Trunk shells racked in the workshop with the galvanized core and leaf sockets still exposed — the only stage at which core diameter, wall thickness and collar welds can be checked directly.

Shell. Centrifugal fibreglass at 3–5 mm over the core gives the bark its texture and protects the tube from abrasion. Foam shells are lighter and cheaper in freight, but they creep under sustained canopy load and cannot be repaired in place; a cracked fibreglass shell can be patched and repainted, a crushed foam shell cannot.

Base plate and gussets. A 400 × 400 × 12 mm plate with four gussets is a reasonable starting point for a 6–8 m specimen. Without gussets, the plate bends between the anchors and the tube, and the grout line opens. Plate thickness should be checked against the anchor tension, not copied from a smaller model.

Leaf density and projected area. Injection-moulded PE foliage at 1,800–3,200 leaves/m³ changes both the look and the drag. Porous canopies are not solid plates: effective solid area typically runs 35–55% of the envelope, and that factor belongs in the wind calculation as a documented assumption rather than a guess.

Section modulus. Wind moment rises roughly with the square of height, because both the exposed area and its lever arm grow. Going from 6 m to 8 m does not need 33% more core; it needs a section that can carry close to double the moment. This is why a supplier quoting the same Ø60 mm core across a 4–10 m range is telling you the core was chosen for cost.

Where the design intent moves from a flowering specimen to a broad evergreen canopy, the same core and plate logic carries over to an atrium ficus. What changes is the solid-area factor and the canopy centroid, not the fixing method.

3. Life Safety, Fire Codes & Environmental Compliance

Anchoring and fire compliance intersect at the slab penetration, and this is where Middle East approvals tend to stall.

Foliage classification. Indoor specimens are specified with inherent flame-retardant foliage tested to NFPA 701 Method 1, or to EN 13501-1 Class B-s1,d0 for European and GCC tender packages. A topical spray that passes on delivery degrades with cleaning; the certificate and the cleaning instruction have to be read together.

Penetration sealing. Every anchor hole through a fire-rated slab is a penetration. It needs a tested firestop detail, not acrylic sealant, and the detail should appear on the shop drawing. Civil Defence reviewers in the region increasingly ask for the fixing drawing as part of the submittal set, not as a separate site instruction.

Load path documentation. The authority is not assessing the tree; it is assessing whether a consultant has signed for the load. A one-page set of engineering calculations showing design pressure, projected area, base moment, anchor tension and slab check is what turns a site query into a closed item.

Indoor air quality. Closed HVAC environments in hotels and malls bring VOC questions. Low-emission polymers and a documented curing period before the tree enters the building avoid the "new plastic" complaint in the first week of operation.

Sprinkler interaction. A dense canopy can obstruct spray patterns. The tree position should be checked against the sprinkler layout at design stage; moving it 600 mm later is a variation, not a layout tweak.

4. Technical Comparison Table

Two notes on reading the table. The moment column assumes a 1.0 kPa design pressure acting on 35–55% solid canopy area; a coastal site at Exposure D will push the upper rows higher. The ballast column is a stability figure for collar-planter installations and does not replace the anchor check.

5. Structural Anchoring & MEP Coordination

This is where the wind calculation either becomes buildable or becomes a site argument.

Cast-in versus chemical. Cast-in anchors are the correct choice when the slab is still open and the tree position is fixed. Chemical anchors are the practical choice for retrofits, but only with a slab scan, a documented edge distance (minimum 5d from any free edge) and a pull test on site at 1.5× the design tension on at least 10% of anchors.

Slab thickness is the real constraint. Below 150 mm, a 6 m tree needs either a spreader plate, a secondary steel frame spanning to beams, or a different position. Drilling a 110 mm embedment into a 120 mm slab leaves 10 mm of cover and no margin for error, and the first core hole proves it.

Post-tensioned and hollow-core slabs. Both need a ground-penetrating radar scan before any drilling, and both restrict where anchors can go. On hollow-core, anchors must land on a rib or a grout-filled cell; anchoring into a void gives a pull-out value close to zero regardless of what the anchor catalogue says.

Ballast collars. A collar planter is a legitimate solution for trees up to about 5 m indoors, provided the overturning check is done: wind or impact force at canopy height, multiplied by the lever arm, resisted by the collar weight times half its base width. For a 6 m tree, the collar weight needed usually exceeds what the design team expects, which is why tall specimens end up on plates.

Grout and levelling. Non-shrink grout at 25–50 mm under the plate, full bearing, no dry-pack corners. On a finished stone floor, the plate sits on a recessed pocket or a stainless trim ring — not directly on the tile.

Anchoring and the branch node. The load enters the tree at the base plate and leaves it at the collar. A welded branch collar that passes a 5 kN proof load at the factory tells you the node was built to a procedure; a collar that was never tested tells you nothing.

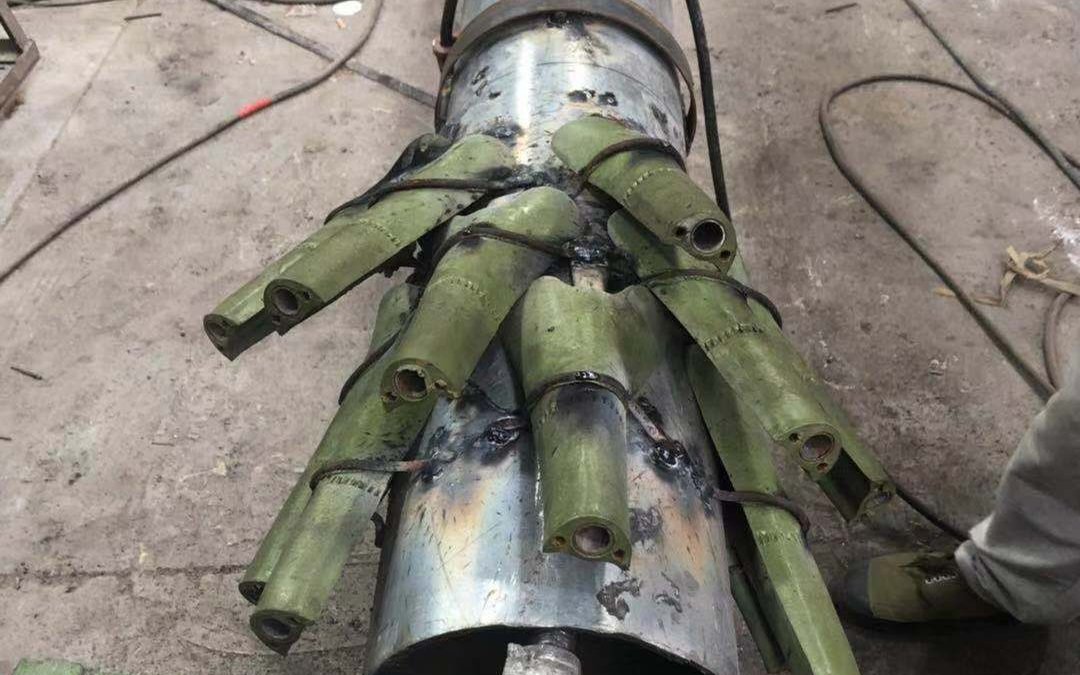

A welded branch collar on the galvanized core, with plastic sleeves protecting the stubs before foliage assembly — the node where canopy load transfers into the tube.

MEP coordination. Sprinkler throw clearance of at least 450 mm below deflectors, air curtain discharge kept off the canopy so the tree does not oscillate continuously, and cable or sensor routes kept out of the anchor zone. A tree that moves in the air curtain is not a wind problem; it is a fatigue problem at the collar.

Deflection limit. Specify head movement rather than only strength: H/200 is a workable serviceability limit for a decorative specimen, and it is the number that stops a "structurally adequate" 8 m tree from visibly swaying every time the entrance doors cycle.

6. Commercial Contractor FAQs

Q: What slab thickness does a 6 m tree need?

A: 200 mm is the working minimum for a 6 m specimen on a four-anchor plate. Between 150 mm and 200 mm, a spreader plate or a secondary frame is normally required, and below 150 mm the tree should move to a column line or change fixing type. The check is punching shear at the plate perimeter plus local bending, not just anchor pull-out.

Q: Can a weighted planter replace drilling the slab?

A: Yes up to roughly 5 m, if the overturning check is documented. Above that, the collar weight needed to resist the design moment becomes impractical for a floor with a live-load allowance, and the planter itself becomes the structural element that has to be justified.

Q: Who produces the wind load calculation — the supplier or the project engineer?

A: The supplier provides the inputs that only the factory knows: core section, plate geometry, anchor layout, canopy projected area and solid-area factor. The project engineer confirms the design pressure from the local code and signs the slab check. A supplier who offers to "cover" the slab check is taking a liability it cannot hold.

Q: How should the anchors be verified after installation?

A: Torque check on every anchor, pull test at 1.5× design tension on a 10% sample, and a photographic record of the scan, the hole depth and the firestop before the plate is grouted. That record is what closes the item at handover.
