Specifying UV50+ Date Palms for Desert Casino Resorts: How Siting, Shade and Reflected Glare Decide Which Face Fades First

Executive Summary

Large outdoor date palms at desert casino resorts hold their colour only when four entries are fixed in the purchase order: a 6–9 m specimen on a Q235 hot-dip galvanised core of Ø48–76 mm to ISO 1461, UV50+ stabilised foliage tested to 3–5 years colour fastness, a ΔE ≤ 3 limit measured to ASTM D2244 against a retained unexposed sample, and the exposure zone the specimen will actually occupy. The zone is the entry buyers omit, and in desert conditions it decides more of the outcome than the other three.

A palm specimen on an outdoor resort pool deck, where water-side reflection, paving and the surrounding structures add to the direct solar load on the canopy.

1. Failure Modes & Commercial Pitfalls

A large palm in a desert resort does not fail by tearing or collapsing. It fails by losing colour unevenly, and the unevenness is the part that ends up in writing. The sun-facing face of a crown greys out first, the shaded face keeps its green, and by the time the difference is obvious in a phone photograph the specimen has been standing for a full season. Foliage colour comes from pigment compounded into the polymer, and the same canopy can hold three different readings from three angles on the same afternoon.

The most expensive mistake is a single line item. A schedule that carries one row described as UV treated, covering a casino porte-cochère, a pool deck, a landscaped forecourt and a shaded arcade, prices four different exposures at one rate. The arcade row is over-specified and the west-facing forecourt row is under-specified, and the under-specified one is what the operator sees in year three. Measured against the trees beside it, a faded specimen reads as a defect rather than as an ageing installation, which is a different conversation with the client.

The alternative materials make this worse rather than cheaper. Single-shade injection-moulded fronds built on one flat pigment go dull and grey-green as a group, because there is no tonal variation left to lose. Surface-applied UV sprays and dipped coatings sit as a thin film on an unstabilised substrate, and that film is the first thing a pressure wash or a solvent-based cleaner removes. Once the film is gone, the polymer underneath has no stabiliser package of its own and the fade accelerates. Chalking and gloss loss follow, the surface takes dust more readily, and a dust film on a desert installation keeps the canopy warmer through the afternoon.

Missing documentation turns a physical problem into a commercial one. Without a retained unexposed sample and an agreed measurement, nobody can prove how much colour was lost or when it was lost, so the discussion moves to adjectives and the buyer rarely wins it. Retained samples also fix the second-order problem: fronds ordered in year three arrive from a different production batch, and a batch mismatch is visible under façade lighting long before it shows in daylight.

Two siting failures sit behind most of the complaints, and neither is solved by buying a better tree. The first is stand-off. A specimen placed within a metre of a coated glass curtain wall or a polished stone façade sits in two light fields: the direct beam and whatever the façade returns. The reflected component is a small fraction of the direct beam, but it arrives late in the day when the trees are already hot, and it is the reason two identical specimens twelve metres apart on the same forecourt can be three grey-scale grades apart at year four. The second is water. A pool deck, a fountain edge or an irrigated planter bed adds splash, chlorinated aerosol and a permanently damp base cavity to the same canopy that is already carrying the UV load.

The zone table below is the practical translation. It comes before the product schedule, because it decides which rows the product schedule needs.

2. Material Science & Structural Engineering Standards

The core comes first because everything downstream is set by it. A commercial-grade palm of this class is built on a Q235 hot-dip galvanised steel tube, Ø48–76 mm depending on height, with a 2.5–3.2 mm wall, welded to AWS D1.1 and galvanised to a minimum average coating of 85 µm zinc on steel over 6 mm as set out in ISO 1461. The diameter and the wall thickness are what stop the crown from creeping out of shape over years of thermal cycling; a lighter tube shows the deflection first in the outer branch arms, where the moment is highest. On a 6–9 m palm the specification belongs at the Ø68–76 mm end of the range, and the same tree specified at Ø48 mm is a different product with a shorter service expectation.

The trunk shell is the next decision. Centrifugal fibreglass reproduction takes the mould texture from a real trunk, so the ring pattern and the fibre base survive at close viewing distance, and the shell can be repaired locally if it is damaged during installation. Synthetic foam shells are lighter and cheaper to ship, but foam creeps under sustained load, absorbs water where the coating is breached, and cannot be repaired back to an invisible joint. On an outdoor desert installation the shell also takes the thermal cycle: a dark trunk shell in full afternoon sun runs well above air temperature, and a shell that expands against a rigid core is where hairline cracks appear first. Trunk detailing for this class of tree typically covers three to five metres of visible trunk height, and the point where the moulded texture meets the crown is the weakest visual joint on the piece.

The fronds carry the colour question. Injection-moulded polyethylene at a 1.2–2.0 mm wall holds its angle and its surface finish, where thin extruded fabric flattens, mats against neighbouring fronds and greys out faster. Hindered amine light stabilisers, typically in the 0.3–0.8 percent range by mass, are what convert a polyethylene frond from an indoor product into one that can be specified outdoors; the loading is a formulation decision the supplier makes, and it is not visible in a photograph. Pigment chemistry matters as much as the stabiliser. Inorganic earth tones and oxide-based greens hold a reading far longer than bright organic yellows and greens, which is why a pale or yellow-green scheme fades visibly sooner than a mid-green one at the same stabiliser loading. Two or three tonal variations blended into a single frond look more natural, and they also fail more gracefully, because a crown never shifts to one uniform grey.

Crown density is quoted as leaves per cubic metre, and commercial work runs 1,800–3,200 leaves/m³. Density is normally discussed as a realism number, but it has an exposure consequence as well: a dense crown shades its own inner fronds, and those inner fronds keep their colour measurably longer than the outer ones that take the full beam. A sparse crown exposes more of its surface, so the visible colour shift arrives earlier and reads as thinning as well as fading. On a 9 m palm in an exposed position, density at the lower end of the range is a deliberate choice, not an economy measure.

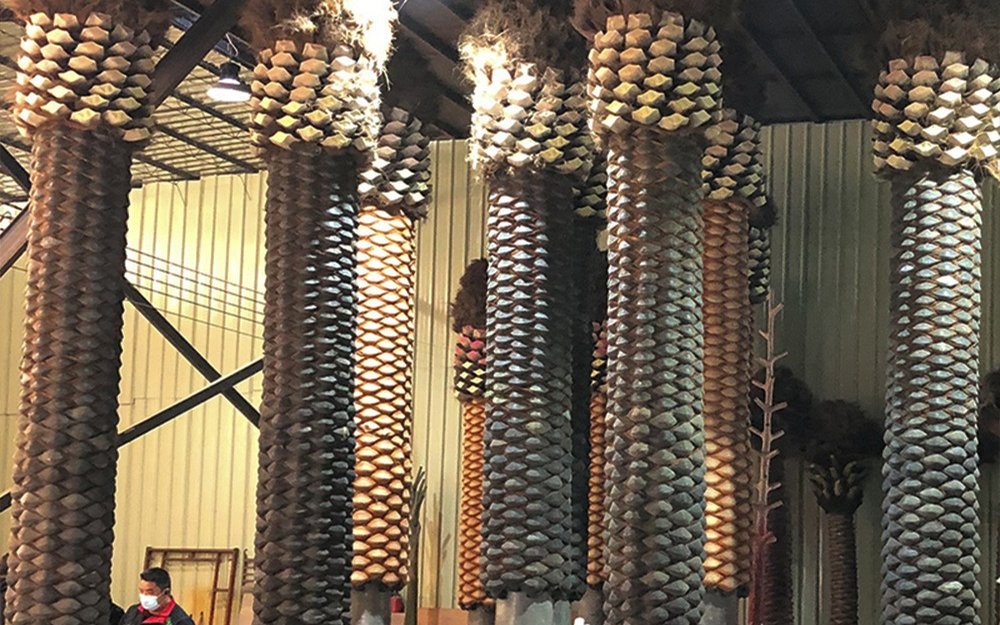

Moulded palm trunks standing in rows inside the production workshop, with the modelled bark texture carried to full working height before crowning and assembly.

Evidence is the last piece of material science, and it is where specifications are usually thin. ASTM G154 covers fluorescent UV exposure and ASTM G155 covers filtered xenon-arc exposure; both allow different cycles, so a report that does not state the lamp, the irradiance, the cycle, the specimen temperature and the exposure hours has not said anything a buyer can hold. ASTM D2244 converts the measured colour shift into a ΔE figure against the retained sample, and ISO 105-A02 provides the grey-scale rating that can be used where an instrument reading is not available on site. Hardware and fixings sit on a different test path: ASTM B117 salt fog gives a comparative ranking for coated and stainless components, and ISO 9223 corrosivity categories place the site itself on a scale, with coastal Gulf positions commonly falling into the higher categories. One rule matters more than the rest. No accelerated weathering result converts into a fixed number of outdoor years, because the laboratory cycle and the installation are not correlated until somebody correlates them. The defensible claim is comparative: this construction against that construction, under this stated cycle.

3. Life Safety, Fire Codes & Environmental Compliance

Fire performance is not usually the governing constraint on an outdoor palm, but it becomes one the moment the specimen stands under a canopy, inside a porte-cochère, or within a glazed atrium. NFPA 701 is the reference most Gulf and North American submittals use, with Method 1 applied to lighter materials and Method 2 to heavier constructions, and EN 13501-1 with a B-s1,d0 classification is the usual European and tender route, where s1 covers smoke production and d0 covers flaming droplets. Both frameworks certify a construction that was tested, which is why the treatment route belongs in the specification and not in the certificate alone.

The exposure zone changes what the fire file has to say. A specimen that is washed by rain or cleaned on a fixed cycle carries a different surface condition into an inspection than one that sits dry under a ledge and accumulates dust and airborne oil for two years. Where the authority reviews the weathered condition rather than the as-new sample, the specification can require the same inherently flame-retardant formulation to be tested after the agreed weathering cycle, so the report and the delivered tree describe the same material. Inherently flame-retardant foliage carries its resistance in the polymer compound, so cleaning removes dust rather than protection; a topically treated crown loses part of its treatment every time it is washed.

The cleaning regime is also an environmental document. Cleaning agents used on foliage should be pH-neutral and free of aggressive solvents, because the same solvents that remove a dust film will attack the stabiliser package and the pigment carrier. In a sealed building this sits alongside the air-quality requirement: low-odour, low-VOC polymers are specified for enclosed interiors where the HVAC system has no purge path, and the material declarations that support that requirement belong with the rest of the submittal. For projects with European procurement rules, the ECHA framework governs which pigments, plasticisers and stabilisers may be used at all, and a formulation change made to satisfy a restricted-substance list can change the weathering behaviour of the same product.

Interior positions on a casino floor are a special case in this file. There is no UV load, but there is continuous artificial light, contact traffic far heavier than in a hotel atrium, and a cleaning chemistry that sits on the surface between washes. The fire documentation is what the authority reviews; the colour specification is what the operator reviews two years later.

4. Technical Comparison Table

Read the last two rows together, because they are the same product in two different exposure zones and they do not behave alike. The porte-cochère pair sits under a canopy where rain rarely reaches the base, so dust accumulates on the foliage and the UV load arrives at an angle the canopy does not block. The pool-deck pair takes splash, chlorinated aerosol and a base cavity that stays damp, and its fixings move from galvanised to stainless in the same revision. Both rows are quoted at Ø76 mm, and both need the west elevation of the crown treated as the governing surface.

The ballast figures are the mass required to resist the governing uplift case on an interior slab, not the weight of a planter. The moment an outdoor specimen moves from a planter to a cast-in or chemically anchored base plate, the calculation changes form, and the base plate, the anchors and the structural engineering calculations become separate documents in the submittal rather than notes on a planter drawing. Interior positions above a finished ceiling or over a public area carry the same discipline, and a commercial atrium scheme with a suspended specimen over an entrance court will be reviewed on its fixing detail rather than on its appearance.

5. Structural Anchoring & MEP Coordination

Anchoring in a desert resort is decided by three site conditions: what the specimen stands on, what is below it, and who has to reach the canopy later. A ballast collar planter is the correct answer over a waterproofed slab, because it spreads the load, needs no penetrations and can be repositioned during the fit-out. A base plate on cast-in or chemically anchored bolts is the correct answer where the specimen is exposed to wind, where it stands at height, or where the design intent is a flush finish with no visible planter. What matters for the specification is that the fixing grade scales with the site: hot-dip galvanised steel to ISO 1461 covers inland positions, and A4-70 stainless or an equivalent corrosion class is the realistic choice within splash distance of a pool, a fountain or a salt-laden coast.

The deck interface is where a pool-side palm is usually lost. Water that drains towards a base cavity instead of away from it keeps the fixings and the base plate wet for most of the year, and a damp cavity also holds heat after sunset, which is the worst combination for the trunk shell. On a deck installation the specification should carry the drainage arrangement, the clearance between the base and the finished paving, and the requirement that the cavity drains rather than collects. Interior positions invert the logic: there is no rain to disperse dust, so cleaning access matters more than drainage, and a 9 m specimen set into a fixed planter with no access route to the west face will keep its dust film and lose its colour earlier than its neighbour.

MEP coordination is what makes the difference between a clean installation and one that is discovered later. A crown installed under a sprinkler line can shadow the spray pattern, so the obstruction rules apply and the tree position has to be checked against the reflected ceiling plan before the base plate is set. A high-velocity air curtain at a casino entrance or a hotel porte-cochère applies a continuous lateral load to any crown inside its stream, and it does so when the canopy is at its warmest and softest. A supply diffuser placed directly above a crown delivers warm, dry air continuously and, indoors, keeps the canopy from ever being washed by rain, so the dust film is permanent. None of these are reasons to move the tree; all of them are reasons to read the mechanical drawings before the position is frozen. Where the canopy will be cleaned on a schedule, the access method belongs in the maintenance plan at handover rather than in a site visit two years later.

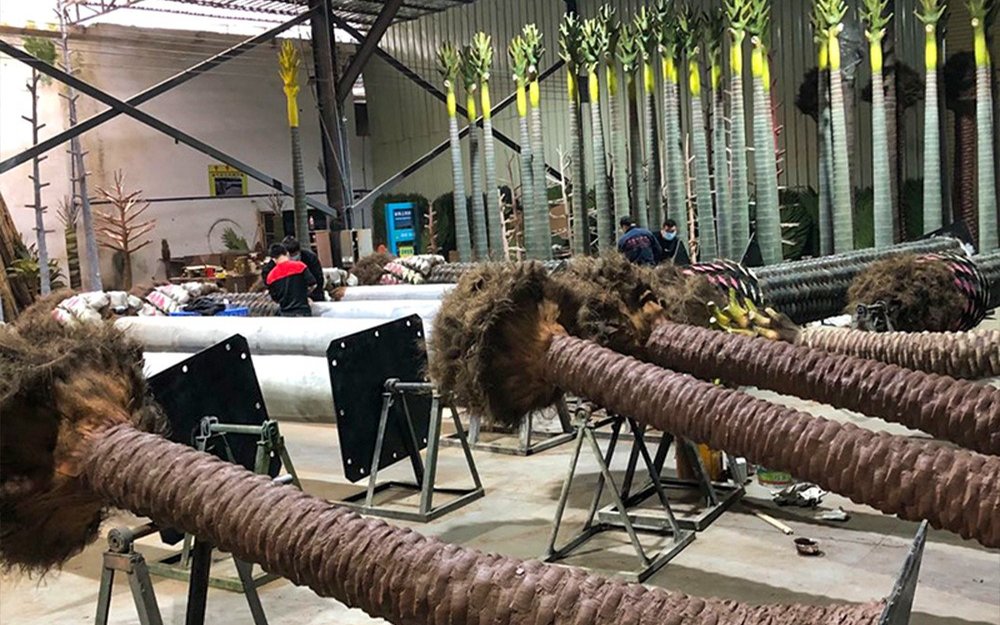

Trunk pieces on fabrication stands with their steel base plates fitted during workshop assembly, ahead of the galvanising and finishing stages.

6. Commercial Contractor FAQs

Q: How much shade credit can a specification take for a shaded position?

A: Shade reduces the UV dose the canopy receives; it does not change the failure mechanism, so the material grade can stay at standard stabilised foliage but the colour limit should not be relaxed. Write the shorter exposure duration and the longer cleaning interval as the shaded position's allowance, and keep the ΔE limit identical across all positions so an inspector compares every specimen against one acceptance figure.

Q: Why do two specimens from the same order fade at different rates?

A: Orientation and stand-off are the usual explanations, followed by cleaning access. The west face of a crown takes the low afternoon sun at an incidence that overhead shading does not stop, and a specimen within a metre of a coated glass or polished stone façade receives an extra reflected component late in the day. A specimen that cannot be reached for cleaning also keeps its dust film, which raises surface temperature and holds the canopy warmer.

Q: What evidence should be attached to the order before a deposit is paid?

A: Four documents: the weathering report with the lamp type, cycle, irradiance and hours stated, the ΔE result measured to ASTM D2244 against the retained sample, the retained unexposed sample with the approval number written on it, and a batch or lot reference that links the report to the goods being produced. For fixings and hardware within splash distance, add the corrosion test evidence alongside the material certificate.

Q: Does the fire rating change once the palm has been outside for two seasons?

A: The classification belongs to the tested construction, so a weathered specimen and an as-new specimen are two different test conditions. Where the authority inspects the installation rather than the report, request the same flame-retardant formulation tested after the agreed weathering cycle, and keep the cleaning instruction with the fire file so the housekeeping team does not use a product that removes the surface the report describes.

Project Engineering Support & CAD Requests

The exposure zone is the decision that has to be made before the order, and it is the one we work through with buyers at submittal stage. Our engineering team returns an exposure-zone schedule that names the position of every specimen on the drawings, the foliage build and stabiliser route proposed for each one, the fixing grade and base plate detail, and the cleaning interval the operator should plan for. Shop drawings, finish swatches, the retained reference sample and the weathering documentation for the construction are issued with the submittal, so a consultant or an authority reviews one pack instead of three separate requests.

Send the site plan with the specimen positions marked, the heights, and the intended fixing arrangement through WhatsApp or the RFQ form. We will come back with the zone schedule, the board of artificial date palms and companion species such as the king palm quoted against it, and reference installations at comparable venues through our completed projects — before the deposit is due, not after the container is booked.
