Large artificial date palms specified for Middle East commercial landscapes require a Q235 hot-dip galvanized steel core sized Ø60–114 mm across a 4–10 m height range, UV-stabilized injection-molded polyethylene fronds rated UV50+ for 50°C+ surface temperatures, a hot-dip galvanize plus powder-coat marine finish, and a ballast or slab-anchored base rated for 220–520 kg live load. Fire compliance follows NFPA 701, with EN 13501-1 B1-s1,d0 available for GCC and EU tenders.
Large artificial date palms (5–7 m) anchoring a Gulf resort poolscape, demonstrating finished spatial scale against a two-storey facade.
1. Failure Modes & Commercial Pitfalls
Coastal and desert installations fail on environment, not on appearance. Four patterns dominate UAE, Saudi, and Qatar projects.
Silk fronds chalk and tear within a single Gulf summer. The combination of UV at 50°C+ surface temperature and abrasive salt air destroys woven leaf material in one season, leaving a resort poolscape with bare frond ribs by the second year.
Untreated or only-painted steel rusts from the inside out. Rust bleeds down the trunk onto surrounding stone and into the root zone, and the core loses section thickness — a structural loss the landscape architect cannot see from the deck.
"Wind resistant" without a kN-rated wind load is the most expensive mistake. A 7 m palm is a sail; an open Gulf front and a walled courtyard are different load cases, and a generic claim provides neither the overturning moment nor the anchor pattern the structural engineer needs.
Decorative planter ballast on an open pool deck tips under uplift. Sand-filled pots are not a computed ballast, and once a palm goes over it takes the deck lighting and nearby furniture with it.
2. Material Science & Structural Engineering Standards
Internal structural core. Commercial-grade outdoor palms use Q235 hot-dip galvanized steel tubing, wall thickness 4–6 mm. Core diameter scales with height: Ø60 mm at 4–5 m, Ø89 mm at 5–7 m, Ø114 mm at 7–10 m. The galvanize layer is the primary corrosion barrier; a powder topcoat is applied over it for the marine environment. Welds at branch joints follow AWS D1.1 shop-weld practice.
Bark and surface finishing. Centrifugal fiberglass casts taken from a real date palm carry the diamond bark pattern and natural taper. Synthetic foam "bark" skins crack at the crown bend under wind load and fade unevenly. The fiberglass jacket is bonded to the steel core so the texture survives repeated shamal exposure.
Foliage engineering. Injection-molded UV-stabilized polyethylene fronds hold colour for a measured window in years at 50°C+ surface temperature, against silk's single-season failure. Frond count runs 90–120 on a 4–5 m specimen up to 150–180 on a 7–10 m crown; the metric that matters for a resort is colour-hold duration, not just initial appearance.

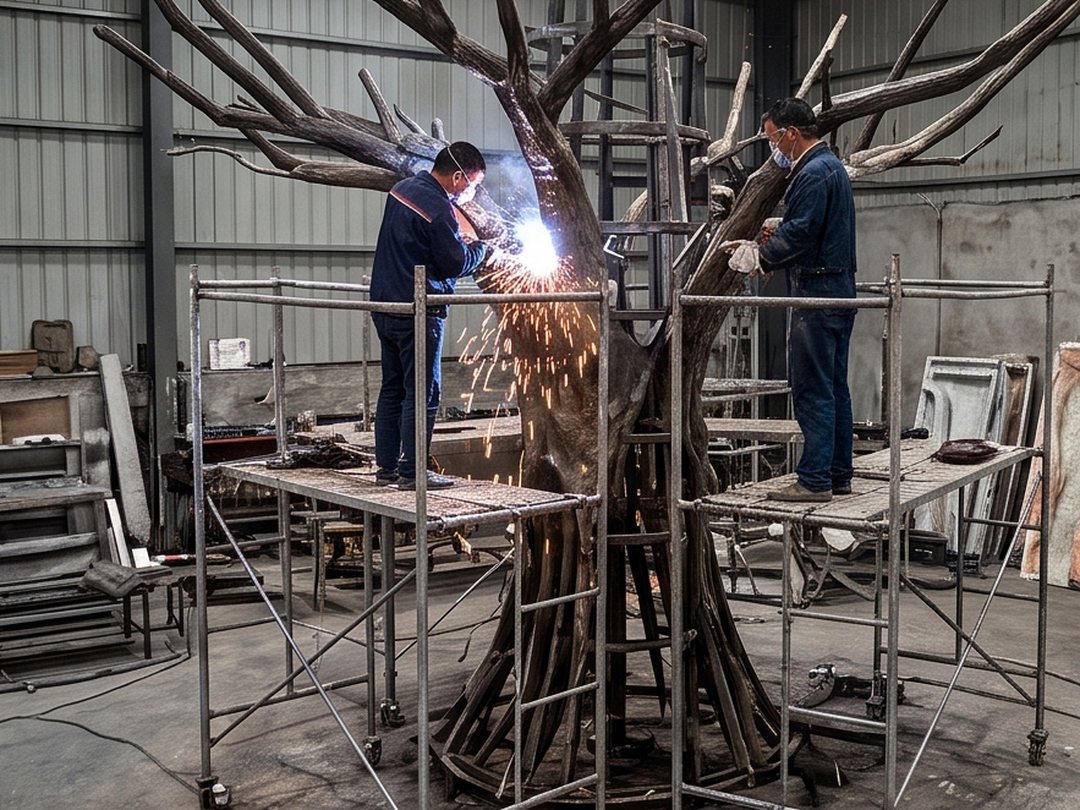

Factory welding of the galvanized steel armature and trunk core that carries the canopy load; the fiberglass bark jacket is bonded to the core.
3. Life Safety, Fire Codes & Environmental Compliance
North America. Resort installations are typically evaluated to NFPA 701; the certificate should state the method and the assembly it covered.
Europe and GCC tenders. EN 13501-1 Class B1-s1,d0 applies to public-commercial landscapes and covered walkways. Inherently flame-retardant (IFR) polymer meets this as a material property; spray treatments do not hold the class after weathering.
Environmental. Outdoor foliage polymer should be low-VOC and odorless. PE used in commercial canopy systems carries no off-gassing signature and is inert in sealed or open environments alike.
4. Technical Comparison Table
| Tree Height (m) | Min Core Steel Ø (mm) | Frond Count (canopy) | Floor Live Load & Ballast (kg) | Application | Indoor/Outdoor |
|---|---|---|---|---|---|
| 4–5 | 60 | 90–120 | 220 (ballast) | Villa courtyard, pool deck | Outdoor |
| 5–7 | 89 | 120–150 | 380 (ballast) | Resort poolscape, streetscape | Outdoor |
| 7–10 | 114 | 150–180 | 520 (slab-anchored) | Beachfront feature, theme park | Outdoor |
All versions: hot-dip galvanize + powder marine coat, UV50+ PE fronds. Wind load is sized per site survey, not from a generic chart.
5. Structural Anchoring & MEP Coordination
Two mounting systems. Below 5 m, a ballast collar inside a planter — a 700 × 700 × 15 mm steel plate with four M12 bolts — holds the specimen on a sheltered deck. Above 5 m, or anywhere the exposure is open, the trunk flange anchors to the structural slab or a buried pier (M16–M20, four points), with the connection below the finished deck level.
Wind governs the anchor, not the look. The structural engineer receives the overturning moment and the anchor pattern from a site wind survey; an open Gulf front returns a higher wind class than a walled courtyard, and the palm is shortened or the anchor relocated to match — the load is never assumed. The root zone sits on a drainage-friendly base so water does not pool against the coating and accelerate corrosion at the ground line.
Base flange bolted to the structural slab (M16–M20, four points), engineered for overturning moment and live-load resistance during installation.
6. Commercial Contractor FAQs
Q: How long before the fronds fade in Gulf sun? A: UV50+ stabilized PE is specified for colour hold measured in years at 50°C+ surface temperature. The fade window for the project's climate band is quoted up front; replacement fronds are available as a service item if a fixed long-term look is required.
Q: Can it take a coastal storm or shamal winds? A: The core and anchor are sized to a wind load taken from a site survey. Provide the location and the exposure — open Gulf front versus sheltered — and the response is a wind class with a number, not a generic reassurance.
Q: Do you install, or supply only? A: Supply engineered-to-spec, with coordination support for the local contractor on the anchor. For Gulf projects, installers in Dubai and Abu Dhabi have been used and can be shortlisted.
Project Engineering Support & CAD Requests
Our manufacturing team delivers against these architectural specs with full submittal packages. Request the following before procurement closes:
- CAD drawings (.DWG / .STEP files) and ballast calculations for the specific height and exposure.
- A physical material sample swatch box — real bark sample plus IFR foliage swatches — for finish sign-off.
