Water Ingress and Salt Spray on Outdoor Artificial Trees: Drainage, Fastener Isolation and the Wet-Season Checks That Decide Service Life

Executive Summary

Outdoor specimens from 2 m to 12 m run on a Q235 hot-dip galvanized core of Ø48–76 mm with a minimum 85 µm zinc coating to ISO 1461. In a C5-M marine atmosphere, where chloride deposition exceeds 200 mg/m²/day, zinc is consumed at 4.2–8.4 µm a year - so 85 µm is a decade of sacrificial layer before cut edges, welds and fixings are counted. Water and salt then reach the three places a specification usually leaves open: the base cavity, the planter and every fastening below the splash line.

A large narrow-leaved specimen standing in the assembly hall, with branch stock, crates and a timber ladder around it.

1. Failure Modes & Commercial Pitfalls

Sun and heat get the attention on outdoor specifications, and yellowing is the visible symptom. Corrosion and water are the slower, more expensive failure, because they start where nobody inspects and they end in a replacement that cannot be matched. Six patterns account for most of the damage.

The base cavity becomes a sump. A moulded plate on a paved slab is not a sealed joint; water collects in the space between the plate and the paving, and in a coastal site that water carries chloride. The first rust on a specimen that was sold as maintenance-free is usually found by lifting the plate, not by looking at the tree. Without a specified drain path, the cavity holds moisture for days after rain and never fully dries.

Welds and cut edges carry no zinc. Hot-dip galvanizing is applied to the fabricated core, and zinc burns off at the weld pool while shearing and drilling remove it at the edge. Field experience on coastal structures is consistent here: uncoated cut ends degrade at roughly three times the rate of an intact galvanized surface, and those ends sit in the wettest part of the assembly. A specification that names a coating class but not edge and weld treatment has specified the middle of the tube only.

The fastening is treated as an accessory. A galvanized fixing into a stainless or aluminium component creates a galvanic couple, and A2 stainless - the grade most often quoted - is not a marine grade: 304 frequently shows surface rust within months where chloride loading is high, while A4-70 with 2–3% molybdenum resists pitting at the same site. The cost difference across a twenty-piece project is negligible against a re-fix at height.

Foam is specified for weight and paid for in water. Open-cell foam takes up water through any break in the shell, and once wet it holds moisture against the core and adds mass to the crown. Closed-cell foam at 45–80 kg/m³ stays dry in the same position. This is the most common substitution on a value-engineered outdoor build, and it is invisible until the specimen is opened.

Foliage sheds where the cleaning cloth goes. Injection-moulded polyethylene at 1,800–3,200 leaves/m³ is stable in itself, and the leaf-to-branch socket is the part that wears. Repeated wet-dry cycles, dust that turns to a mud film and mechanical cleaning all work on the same socket, so a crown loses retention long before the colour has moved. Retention after cleaning cycles is testable, and it belongs in the specification next to the UV claim.

The planter keeps the water the tree was meant to shed. Planters supplied without a drainage layer and without drainage holes pool water at the base, and irrigation emitters placed inside the trunk footprint wet the specimen several times a week in a climate that already supplies rain and dew. The result is a permanently damp base, mineral staining on the paving, and a corrosion rate that behaves like a splash zone rather than an open atmosphere.

The commercial consequences are concrete. Rust bleed on paving or a stone facade is a cleaning and replacement claim that arrives eighteen months to three years after handover, on a defect list the contractor thought was closed. A specimen that has to be re-fixed at height needs access equipment, a night-time work window and a second site visit. A crown that has thinned requires replacement foliage, and matching a two-year-old batch is a colour lot question rather than a stock question.

2. Material Science & Structural Engineering Standards

The reason water is an engineering subject on these builds rather than a maintenance subject is that the water path is decided at production, and every one of those decisions is cheap at that stage.

Core and coating class. A Q235 hot-dip galvanized core between Ø48 mm and Ø76 mm with a wall around 3.5 mm carries the specimen, and the zinc layer is its sacrificial protection - 85 µm to ISO 1461 on a standard build, with a heavier class specified for coastal and poolside positions. In a C5-M atmosphere zinc is consumed at 4.2–8.4 µm a year, in C4 at 2.1–4.2 µm, and in C3 at 0.7–2.1 µm, which gives a service-life estimate per exposure band rather than a claim per product. Where the finish is also visible, a duplex system is specified: galvanizing as the base, a conversion primer at 5–8 µm for adhesion, and a polyester or polyurethane topcoat at 80–100 µm dry film thickness as the UV and salt barrier.

Edge and weld treatment is a separate line item. Because the zinc is interrupted at welds and cut edges, the specification has to name the repair: a zinc-rich compound of at least 92% zinc in the dry film, brushed onto cut ends, drilled holes and weld zones before packing. This line costs almost nothing and is routinely omitted, because the galvanizing certificate describes the tube rather than the finished assembly.

Drainage detail, not drain holes. A closed base section traps salt-laden moisture and fails from the inside, so the base is detailed as open geometry with drain slots of at least 10 mm, sloped so that water and debris leave the assembly and rain washes the slot clear. Slots that are too small clog with dust and salt crust in the first season, and a slot that holds a stone holds water.

Fasteners and isolation. A4-70 (316) fixings with 2–3% molybdenum are the baseline for anything standing in a marine atmosphere, with nylon or EPDM isolating washers wherever stainless meets a dissimilar metal, and mild-steel fixings into a stainless frame excluded outright. Where a specimen sits in a splash line rather than in open air, the fixing assembly is treated as a wet detail: sealed, isolated and accessible, because it will be serviced.

Material selection inside the shell. A moulded glass-reinforced polymer trunk shell with sealed ends does not take up water, and it can be repaired and re-coated on site. Closed-cell foam at 45–80 kg/m³ is acceptable as a filler inside a sealed shell; open-cell foam in the same position is a sponge. The core must stay continuous through every joint, because a joint that transfers load through filler rather than through steel is also a joint that lets water into the load path.

Tests that say something about a wet site. The evidence to ask for on a coastal or poolside specification is a neutral salt spray result to ASTM B117 or ISO 9227 at a stated duration - 720 h where a C4 claim is made, 1,000–1,500 h where C5-M is claimed - assessed with a scribe and reported as creep at the scribe to ISO 4628-8 with a blistering rating, plus a cyclic test such as ISO 16151 or ASTM G85 Annex 5 where the site has real wet-dry cycling. The panel has to be production-representative: same substrate, pretreatment and coating system, with a weld and a sheared edge included. A flat, edge-sealed coupon passes and proves nothing about the assembly that will stand outside.

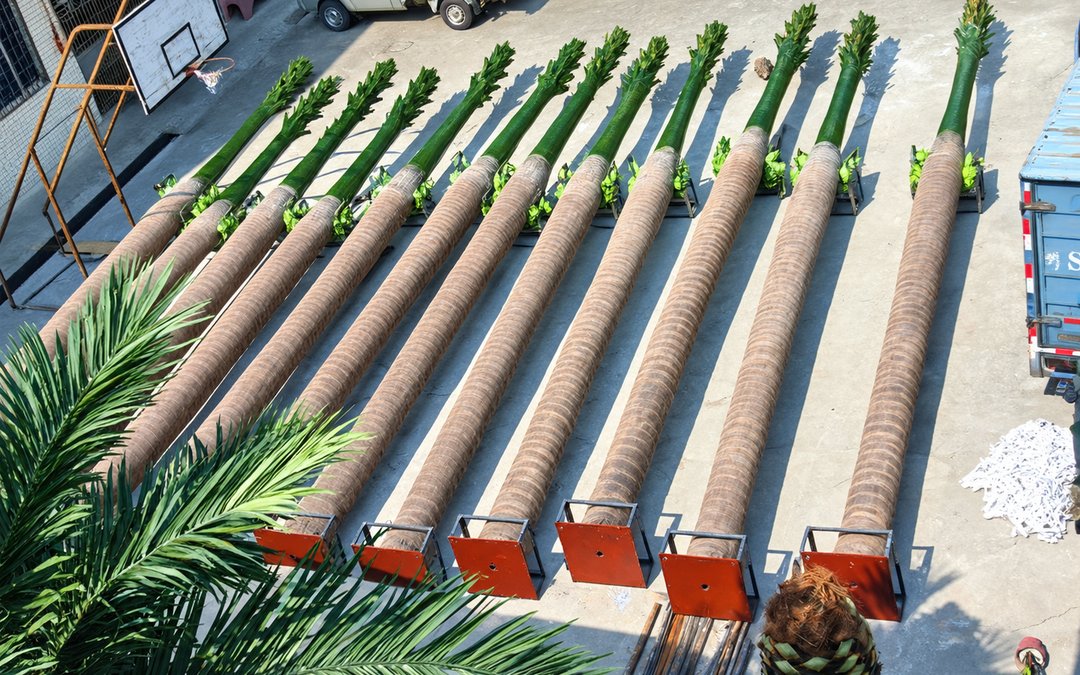

Palm trunk and crown assemblies laid out in the factory yard with base plates fitted - the ends, welds and fixings that decide where corrosion starts.

3. Life Safety, Fire Codes & Environmental Compliance

Water and cleaning practice interact with fire compliance, and the interaction is easy to lose on an outdoor project.

Fire evidence is issued against a construction. For covered outdoor positions - a canopy, a poolside colonnade, a terrace under a roof - the venue is treated as an enclosed space by the authority having jurisdiction, and the specification usually asks for NFPA 701 Method 1 or Method 2 evidence, or an EN 13501-1 classification such as B-s1,d0 on European and GCC tenders. That evidence describes the tested construction, including the method and the areal weight of the material, so a later substitution of foliage or coating moves the product outside the document it is travelling under.

Surface-applied fire treatment does not survive a wet site. A retardant applied as a coating performs until it is washed, abraded or worn off, which in a coastal position with a cleaning regime measured in months rather than years does not hold. Intrinsically fire-retardant polymers carry the property in the material, and that distinction matters most outdoors, where cleaning frequency is highest.

Cleaning agents belong in the specification. Bleach, aggressive solvents and abrasive pads strip both the UV-stabilised finish and any additive sitting at the surface. A cleaning instruction written for the site - mild soap, low pressure, soft cloth, rinse and air-dry - protects the coating system as much as the appearance, and it is the line that decides whether the corrosion-protection layer is still present in year five.

Indoor air quality statements travel with the batch. Where a specimen sits in a covered retail or hospitality space with mechanical ventilation, low-VOC and odour-free polymers are commonly specified, and that statement is made per construction. Damp storage before installation is what usually undoes it: a crate that has taken water in transit will smell of it long after the surface has dried, and the fix belongs in the load rather than on site.

Traceability is the compliance link. The batch reference on the packing list, the fire report reference and the conformity document have to point at the same construction. Keeping that line costs nothing at the first order and is what allows a buyer to prove, two years later, that a piece under a corrosion or colour claim came from the construction that was certified.

4. Technical Comparison Table

The same range read as a water-exposure schedule, which is the table to use when a site sits near the coast, beside a pool or on a podium:

Read together, the two tables settle the argument that stalls most coastal specifications. The tree height decides the core diameter, and therefore how much zinc the assembly starts life with; the exposure band decides how fast that zinc is consumed and which fixings survive it. A C5-M position and a C3 courtyard can carry the same 6 m specimen with the same crown, and they should not carry the same base detail, the same fixing grade or the same cleaning interval.

5. Structural Anchoring & MEP Coordination

The anchoring detail and the site's water management are the same drawing seen twice, and the anchor is where an outdoor specimen either survives the first wet season or starts to bleed rust onto paving.

The base plate is a wet detail and should be specified as one. Three things belong in the drawing: a plate set on shims with the cavity grouted or deliberately left open and draining, a fall in the paving of 1–2% away from the base so water leaves rather than ponds, and a drain path from the plate itself so the lowest point of the assembly is never below the water line. Anchor grade follows the exposure band from the table above - A4-70 stainless where chloride is present, isolating washers wherever stainless meets a dissimilar metal, chemical anchors proof-tested at 1.5 times the design load, an edge distance of at least five anchor diameters, and torque values recorded against the part number so that a later inspection is a measurement rather than an opinion. Unusual slab build-ups, a plant deck or a raised paving system normally need a custom anchor detail at order stage, and that same detail is what keeps the base cavity inspectable for the life of the installation.

The MEP interfaces that cause water damage are the ones nobody lists as interfaces. Condensate from chilled ceilings and air-handling drip pans, sprinkler test and drain lines, and irrigation emitters left inside the trunk footprint all deliver water to a specimen that was designed to shed rain, not to be sprayed. Emitters should be kept clear of the base and re-aimed at the planting pocket they serve, and a specimen should not be positioned directly beneath a condensate or drain line in any covered space - including a hotel atrium, where the ceiling void is deep enough for a drip to travel a long way from its source before it appears on the trunk.

The inspection path is the other half of the design, because every detail above has to be reachable. A base plate buried under 100 mm of decorative stone, or a drain slot inside a planter filled with gravel, cannot be checked without dismantling the installation. The specification to write is short: the base cavity, the drain slot and every fixing below the splash line have to be visible or reachable using the venue's own maintenance access, from a ladder rather than from scaffolding. Where the exposure band is C5-M, or the specimen stands in a splash line, that access requirement is what turns a corrosion inspection into a ten-minute task instead of a works order - and it is also what stops a commercial atrium terrace from carrying a hidden defect through a five-year warranty period.

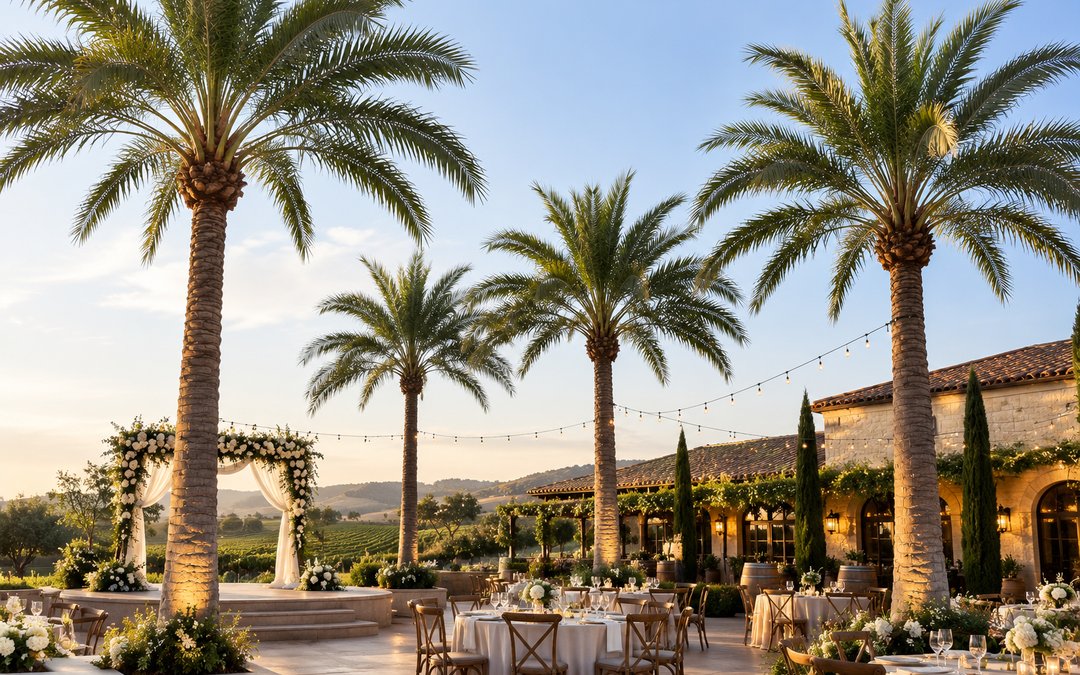

A row of palms along an open terrace at dusk - an exposed, wet-and-dry position of the kind the base detail has to survive.

Two further items belong in the handover file on an outdoor project. The first is a zinc thickness record for the base assembly, measured after fabrication rather than quoted from the mill certificate, because the dipped section, the weld zone and the cut edge are where the number actually matters. The second is a documented position survey: which specimens sit in the C5-M band, which sit under a canopy, and which are in the splash line of a pool or a fountain. Those three lists carry different cleaning intervals, different inspection intervals and different spares requirements, and the olive tree specification that suits a sheltered courtyard will not have the same base detail as the one standing at the water's edge on the same site.

6. Commercial Contractor FAQs

Q: Does rain and coastal humidity damage an outdoor artificial tree?

A: Not the foliage body - injection-moulded polyethylene is unaffected by rain and by freezing. The damage is at the interfaces: standing water in the base cavity, zinc consumed faster than the coating class allows for, cut ends and welds with no sacrificial coating, and fixings that pit where chloride is present. A specimen specified for C5-M with a duplex coating, a closed-cell core and A4-70 fixings performs in a coastal position; the same specimen specified for a sheltered courtyard will not.

Q: Where does corrosion start first on an outdoor specimen?

A: At the three places where the protective layer is interrupted or where water sits: the base cavity, the weld and cut-edge zones, and the fixings below the splash line. Field experience on coastal structures is consistent on this - uncoated cut ends degrade at roughly three times the rate of an intact galvanized surface, and closed box sections that trap salt-laden moisture fail before any open section of the same assembly.

Q: What fixing grade and coating should a coastal site specify?

A: A4-70 (316) stainless with 2–3% molybdenum for fixings, with isolating washers at dissimilar-metal contacts, and a duplex coating system on the steel: hot-dip galvanizing at 85 µm to ISO 1461 as the floor, a conversion primer at 5–8 µm, and a polyester or polyurethane topcoat at 80–100 µm dry film thickness. Zinc-rich repair at a minimum of 92% zinc in the dry film goes onto cut ends, drilled holes and weld zones before packing, and it is specified separately because the galvanizing certificate does not cover them.

Q: How is water kept out of the base cavity?

A: It is not kept out; it is given somewhere to go. The base is detailed with drain slots of at least 10 mm sloped to the outside, the paving falls away from the plate by 1–2%, closed base sections are avoided, and the cavity is left grouted or open to drain rather than sealed under decorative stone. Slots smaller than that clog with dust and salt crust in the first season, and a slot that holds a stone holds water.

Q: What should be inspected after the first wet season?

A: Four things, and the list does not change after that. Reach the base and check for standing water and for white or red corrosion product at the plate and the slot. Measure zinc thickness at the base assembly and compare it against the fabrication record. Check torque on a sample of fixings and look for pitting or bleed at each fixing and at every dissimilar-metal contact. And check leaf retention in the lower crown, which is where cleaning and wet-dry cycling show up first. Values recorded in the first season give the owner a baseline for re-coating at three to five years instead of a surprise replacement at eight.

Conclusion: Specify the water path at order stage, because it cannot be added after installation

Water and salt are the slow failure on an outdoor installation, and every control that matters is a drawing rather than a product: the coating class against the exposure band, the repair coat on cuts and welds, the drain slot in the base, the fixing grade with its isolating washer, and the fall in the paving. Specified at order stage, they add a line to the drawing set. Left open, they become a re-fix at height, a rust bleed on a stone facade and a colour-lot search for a replacement crown.

Our engineering team issues the outdoor package as documents rather than assurances: the exposure band schedule for the site, the coating and fixing specification per band, the base plate detail with its drain and its fall, the salt-spray and cyclic test evidence with the panel described, the cleaning and inspection regime written around the access the venue actually has, and a spares schedule drawn from the same colour lot as the main pieces. Send the site position, the distance to open water and the maintenance access the venue can offer, and we will return a specification that states what changes between the courtyard specimens and the ones standing at the water's edge.
