Multi-SKU Artificial Tree Orders for Hotel Atriums: How Variant Count, Not Unit Quantity, Sets Your MOQ

Executive Summary

A 6-9 m atrium ficus runs on a Ø60-76 mm Q235 core in a 2.5-3.5 mm wall, carries 1,800-3,200 leaves/m³ of IFR polyethylene, and lands on a base plate or ballast collar sized for 180-400 kg. None of that sets the minimum order. The number of production setups does: heights multiplied by finishes multiplied by fire classes. Three heights in three finishes across two fire classes is 18 separate runs, not one order of 40 trees.

A single specimen in a round planter ringed by a curved bench, against full-height glazing - one height, one finish, one fire class, which is the lowest-cost configuration a specifier can write.

1. Failure Modes & Commercial Pitfalls

The pattern repeats on almost every hotel atrium package. An indicative price is issued against a schedule of 40 trees. The bill of quantities is then broken down by the interior designer into heights, two or three trunk finishes, two leaf tones and a fire requirement per space. The revised quotation comes back 30-45% higher per tree, and nobody can explain where the increase came from, because the tree count never changed.

What changed is the number of times the factory has to stop and reset. That reset is the real minimum, and it is invisible in a tree count.

The tree count is the wrong denominator. A 42-tree package sounds like a healthy order until it is spread across nine variants at four to five pieces each. Four trees is below the point where pulling a trunk mould, changing the armature jig and running a first-article inspection is worth scheduling against a project delivery date, so the supplier either pads the unit price to cover the changeover or pushes the line to the end of the queue.

"Same model, different height" is not the same product. A 6 m and a 9 m canopy ficus may share a leaf shape and a colour reference, but they do not share a trunk mould, an armature, a core tube or a base plate. The armature height changes, the branch-arm positions change, the core moves from Ø60 to Ø76 mm, and the anchoring load case changes with the crown area. Each of those is a physical reset on the floor.

Two greys are two colours. A specification that calls for "warm grey" on the lobby trees and "stone grey" on the terrace trees reads like a minor finish note. In production it is two masterbatch runs with a 25 kg minimum each, two colour approvals against the same reference card, and a visible ΔE risk when the two lots are installed in sight of each other.

The fire class split is the quietest cost. One part of the package inside the sprinklered atrium, another on a semi-open terrace, often produces two fire strategies: an inherently flame-retardant compound for the interior and a treated or heavier construction for the exterior. That is two formulations, two test reports and two production lots, even when the trees look identical in a render.

Changeover time is charged somewhere. A trunk mould change on a large press is 4-8 hours of dead time, and a first-article check adds another one to two days before the run is released. Suppliers rarely quote that as a line item; it is amortised into the unit price of whichever variant is smallest, which is why the four small terrace trees often carry the highest price per piece in the whole quotation.

The commercial consequence is not only price. Variant-heavy orders also stretch the delivery sequence, because each setup has to be scheduled, inspected and released separately, and a single failed first article delays every variant behind it.

2. Material Science & Structural Engineering Standards

A setup is a physical state of the production line, and it is worth naming the parts, because a buyer who can name them can argue about them.

Trunk mould. The glass-reinforced shell is laid up in a mould that fixes the taper, the buttress flare and the bark texture. Large trunk moulds are priced in the USD 1,500-6,000 band depending on size and texture depth, and a new height outside the existing family means a new mould or a re-worked extension. Shell wall thickness sits at 3-5 mm; below that the trunk dents under handling, above it the weight starts to load the base plate.

Core tube. Q235 steel, hot-dip galvanised to ISO 1461 at 85 µm minimum. The diameter steps with height rather than with appearance: Ø48 mm is normal up to about 5 m, Ø60 mm covers 6-8 m, and Ø76 mm is the working range for 9-12 m specimens. Wall thickness stays in the 2.5-3.5 mm band. A buyer who asks for a 9 m tree on a Ø48 mm core is asking for a different deflection curve, not a discount.

Armature and branch sockets. Each trunk carries welded branch stubs at fixed heights and angles, and the leaf panels key into those sockets. The photograph below shows the state before foliage: painted sockets welded onto steel rods, tied with wire, every position set by the jig. Change the branch count or the tip height and the jig is re-fixtured, which is a separate setup even when the trunk mould is reused.

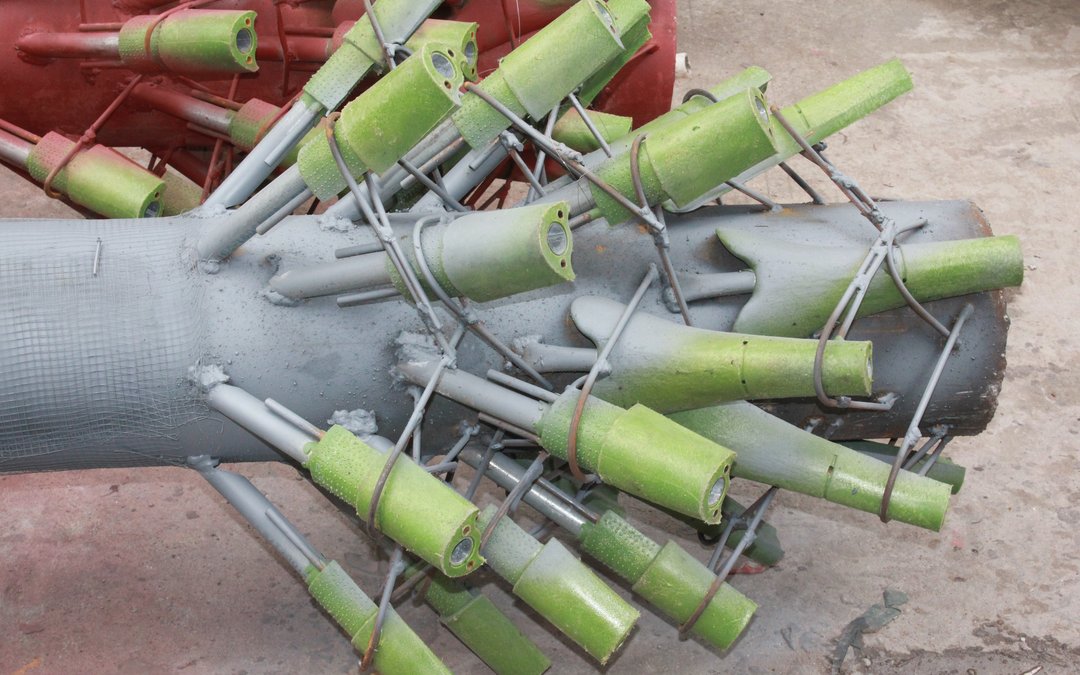

An armature before foliage: glass-reinforced trunk, welded branch sockets at fixed heights and angles, wire-tied. Every socket position is set by the jig, so a change in branch layout is a re-fixture, not an adjustment.

Leaf tooling. Injection-moulded polyethylene leaves come off a multi-cavity tool that costs USD 20,000-60,000 to build. Leaf shape is therefore the least flexible variable in the whole package: reusing an existing leaf shape across every variant costs nothing, while a bespoke leaf for one accent tree can exceed the value of the tree itself at project quantities. A schedule that mixes an olive tree crown with a date palm frond is therefore two tooling families before any quantity is discussed, and the product range spans 1.5-12 m precisely because those families are already built and paid for.

Colour. Masterbatch is bought in 25 kg minimum lots, and colour is approved against a physical card, not a hex code. Within one run, ΔE ≤ 2 is a realistic tolerance; across separate runs of the same nominal colour, ΔE ≤ 3 is achievable but has to be managed by keeping the masterbatch lot number on the record.

Fire compound. An inherently flame-retardant compound is ordered as a batch with its own additive loading, and that loading is fixed for the run. It is not a switch that can be flipped per tree inside a batch.

The table is the whole argument in one place: the left column is what buyers write in a specification, the middle column is what the factory actually does, and the right column is why a line item with four pieces behaves like a special order.

3. Life Safety, Fire Codes & Environmental Compliance

Fire performance behaves like a material property, not a label, which is why it multiplies setups faster than any other variable.

The test is run on a construction, not on a material name. NFPA 701 Method 1 is the usual route for foliage and decorative assemblies in North America, and the report has to describe the method, the construction and the mass per unit area that was tested. A report issued for a 2,400 leaves/m³ crown at one coating weight does not automatically cover a 3,100 leaves/m³ crown with a heavier topcoat, because the mass per unit area is outside the tested range.

Europe and the Gulf work from a classification, not a pass mark. EN 13501-1 B-s1,d0 is the classification most often written into hotel and mall submittals, and it is issued on the basis of a test series rather than a single flame time. The practical implication for a mixed package is that every distinct construction needs its own classification document, and a classification for a standard compound does not transfer to a treated variant.

Post-treatment spray is a second product. A spray-applied retardant can bring a standard compound up to a required class, but it adds a process step, it is a surface treatment that wears with cleaning, and it must be assessed as applied. Mixing sprayed and inherently flame-retardant trees inside one visual family is a common source of mismatch at handover, because the two surfaces age differently under the same cleaning regime.

Documentation is per variant. A submittal package that survives review usually contains a declaration of the formulation, the test report with method and construction described, a batch or lot reference that ties the delivered trees to that report, and a cleaning instruction that does not attack the finish. Four documents, one per variant, is normal; four documents claimed for eighteen variants is a red flag.

VOC and indoor air. For enclosed, mechanically ventilated interiors, the specification should ask for low-VOC polymers and a cure period before the space is occupied. This is a compound-level requirement, so it belongs in the same batch decision as the fire class rather than being tacked on at packing.

4. Technical Comparison Table

The table below is a sizing reference for atrium specimens and doubles as a check on how many distinct core and base configurations a package is really asking for. Heights that share a core diameter can often share a base plate family; heights that cross a core step cannot.

Two readings matter here. First, the 6 m and 8 m rows share a Ø60 mm core, so they can usually share a base plate detail and an anchor pattern even though they need different trunk moulds. Second, the jump from 8 m to 10 m crosses a core step, which changes the plate, the anchor count and often the slab thickness requirement - so a package that mixes 8 m and 10 m trees is already two structural families, whether or not the designer thinks of them that way.

5. Structural Anchoring & MEP Coordination

Anchoring is the last place a variant count grows unnoticed in a commercial atrium, because base details are usually specified by the structural engineer in a separate document from the tree schedule.

Base type is a variant. A cast-in or chemically anchored base plate and a ballast collar planter are different fabricated items with different drawings, different approvals and different installation trades. A package that uses ballast collars on the terrace and base plates in the atrium has two base families before a single tree is ordered. Within the ballast family, three planter finishes are three more setups, which is why planter finish is worth consolidating with the trunk finish rather than specified independently.

Anchor hardware scales with the plate, not with the tree. M16 chemical anchors with an edge distance of five diameters are a common starting point, with 10% of anchors pull-tested to 1.5 times the design load. The plate size follows the moment at the base, so the 10 m row in the table above does not use the same plate as the 6 m row even when both are bolted to the same slab, and a custom anchor layout is normal once the plate crosses a core step.

Slab capacity decides the base before the tree is chosen. A 150 mm slab, a 200 mm post-tensioned slab and a 250 mm transfer slab accept different fixing strategies. On post-tensioned or hollow-core slabs the anchor positions have to be scanned before drilling, and on hollow-core the anchors must land on a rib or be grouted, which is a design change rather than an installation detail.

MEP coordination happens once, early. Sprinkler deflectors need clearance below the crown, and a tree crown that grows into the sprinkler throw during installation is a commissioning problem, not a styling problem. High-velocity air curtains at entrances deflect foliage and load the branch sockets cyclically, so trees placed inside the air curtain line need a stiffer armature. Both constraints are lowest-cost to resolve before the slab is poured, because moving an anchor after the pour is a core-drilling and load-check exercise.

Consolidate the hardware schedule too. Anchor kits, templates and touch-up paint are usually priced per base type. If the package can be reduced from four base details to two by aligning heights to the same core step, the hardware schedule shrinks with it, and the installation crew carries fewer templates to site.

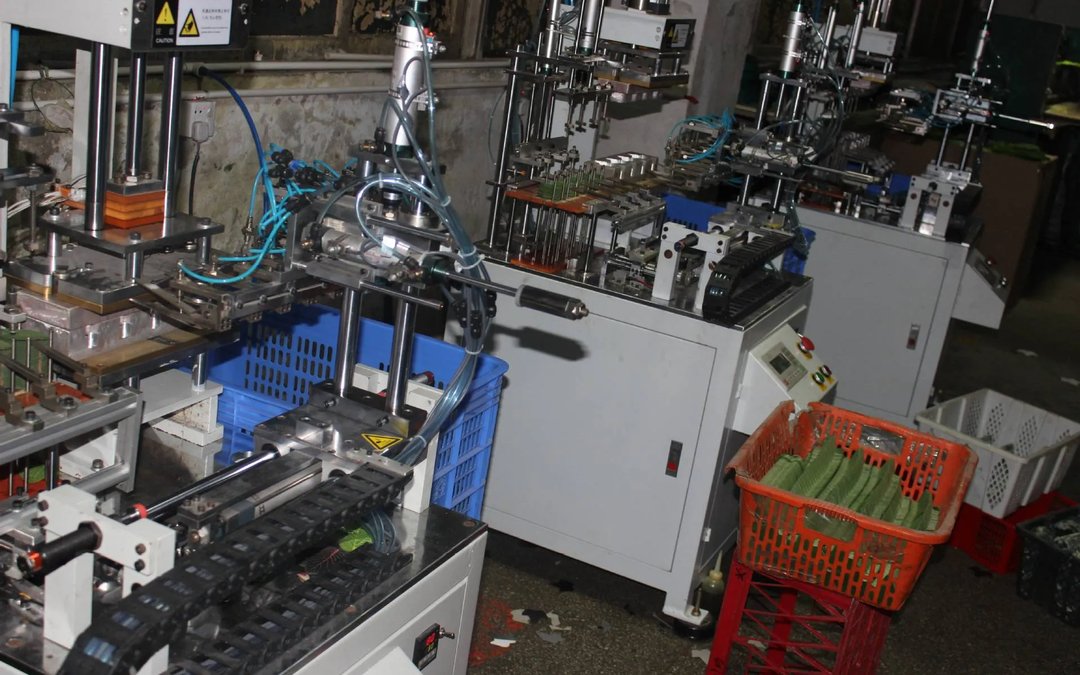

Leaf injection presses on the production floor, with a basket of moulded leaves waiting to be sorted. The tool in each press is fixed by leaf shape, which is why a new leaf design is a tooling decision rather than a colour choice.

6. Commercial Contractor FAQs

Q: Does a mixed atrium package carry one MOQ per species, or one per order?

Per setup. A supplier quoting a single MOQ for the whole package is either quoting the largest variant's minimum and absorbing the rest, or planning to consolidate variants into one run by compromising on height or finish. Ask for the setup count in writing, then ask which variants fall below it.

Q: Can two heights share one trunk mould to reduce the setup count?

Only where the armature is built as an extension of the same mould family and the joint is designed into the trunk. Above a certain ratio the taper and branch spacing stop reading correctly, and the joint becomes visible at eye level. On a 6 m and 8 m pair it is often feasible; on a 6 m and 12 m pair it is a new mould, whatever the quotation says.

Q: How should the bill of quantities be written so quotations stay comparable?

One line per variant, with columns for height, trunk finish, leaf tone, fire class and base type, plus a setup count calculated from those columns. Ask each supplier to price the setup minimum and the changeover separately from the per-piece rate, so the comparison is between production plans rather than between headline unit prices.

Q: What lead time should be allowed when a package carries eight setups?

Standard heights run 25-35 days, and custom builds above 6 m run 45-60 days from approved drawings. Each additional setup adds roughly two to three working days for changeover and first-article release, and those days sit in series rather than in parallel when the same line and the same crew handle every variant.

Q: Is it cheaper to split the package between two suppliers to avoid MOQ?

Usually not, once colour matching, fire documentation and base hardware are counted. Two suppliers means two masterbatch lots, two colour approvals and two document sets that have to agree, and the atrium will show the difference between them. Splitting works when the variants are genuinely different product families with no visual adjacency.

Project Engineering Support & CAD Requests

We can turn a variant-heavy bill of quantities into a setup schedule before it goes to quotation: one line per production run, with the core diameter, armature family, trunk mould, finish lot and fire class that each run requires. That schedule is usually the difference between three comparable quotes and three numbers that cannot be compared at all.

Send the tree schedule, the slab information and the fire requirement for each space, and we will return a setup count with the drawings and finish swatches behind it. For projects already in tender, the same review can be run against a supplier's quotation to show which line items are carrying a hidden changeover.
