Verifying Factory Capacity for Large Artificial Trees: Assembly Stations, OEE and the Audit Numbers That Separate a Manufacturer From a Trader

Executive Summary

For large artificial trees, capacity is set by hand-assembly stations, not by machine count. A 6-10 m specimen consumes roughly 6-12 man-hours of dressing and finishing; a hall with 8-12 assembly positions running one shift produces in the order of 60-150 units a month before rework, and quoted figures that assume full utilisation usually run 1.5-2 times the verifiable number. Ask for 90 days of output records, the confirmed order backlog and the approved mould list before accepting any figure.

A large blossom tree standing in the factory hall during assembly, crown banded, with a second specimen and loose foliage on the floor behind.

1. Failure Modes & Commercial Pitfalls

Capacity overstatement is the most common single cause of a late project, and it is rarely deliberate fraud. It is usually arithmetic: the sales figure multiplies machines by hours by an ideal cycle time and stops there. The number that matters is the one that survives changeovers, downtime, rework, inspection and the fact that a large specimen moves through the works mostly by hand.

Five patterns account for most of the gap.

Theoretical maximum is quoted as capacity. Measured across contract manufacturing, usable output generally lands between roughly 55% and 75% of the theoretical figure, because real shops lose time to mould changes, material loading, machine warm-up, breakdowns and minor stops. A supplier quoting the theoretical number is quoting a ceiling that no operating factory reaches, including on a good day.

Installed machines are counted as running machines. A row of injection presses in the brochure is not capacity if two of them are idle, cold or waiting for a mould. Dust on a machine housing, a barrel that is not up to temperature, or a press whose last maintenance tag is fourteen months old are all signals that the installed base is larger than the productive base.

The constraint is assumed to be the machines. In this product category it usually is not. Moulding foliage is fast and largely automated; welding the armature, finishing the trunk, dressing the crown and packing a 3 m carton are manual and slow. A factory with abundant moulding capacity and twelve dressing positions is limited by the dressing positions, and a capacity claim built on press tonnage ignores the actual bottleneck.

The floor belongs to someone else. A trader can present a partner factory, a clean sample and a professional quotation without owning a single process. The tell is in the work order rather than the showroom: where the master cartons are printed, whose name is on the outgoing label, whether the sample in the showroom matches the batch on the floor, and whether the structural drawings carry the same company as the invoice.

The capacity is not reserved. A supplier that quotes a date against shared capacity will move that capacity when a higher-margin rush order arrives, because nothing in the contract prevents it. Contract manufacturing casework puts reallocation to higher-margin orders among the leading causes of unexplained delay. A date without a capacity commitment is a preference, not a plan.

The commercial consequence is a sequence, not an event. The first shipment slips two weeks, then the buyer rushes the balance by air at several times the sea freight per unit, then the installation crew stands idle on site, and then the opening date that was fixed eighteen months earlier becomes a negotiation. None of that is visible in the quotation, which is why the check happens before the deposit rather than after the delay.

Why is the quoted capacity number almost always higher than the real one?

Because the quoted number describes equipment operating at its theoretical maximum with no changeovers and no defects, and the real number describes a shop that loses a quarter to a third of its time to setup, maintenance and rework. The gap is not a lie, it is an unstated assumption. The buyer's job is to make the assumption explicit and price the risk.

What does a trader look like on a floor audit?

Not like a stereotype. Traders frequently have an office, a showroom and a genuine partner factory they can drive to. The distinction shows up in process ownership: ask which steps are performed on this site, who owns the moulds, whose welders hold the qualifications, and where the galvanizing is done. A supplier who answers "the moulds stay with the processing partner" has told you where your order will be queued, and it will not be at the front.

2. Material Science & Structural Engineering Standards

Capacity in this category is decided by the process chain, so the audit starts by mapping which steps happen under the same roof. A large outdoor or atrium specimen passes through five stages: armature fabrication (cutting, welding, corrosion protection), trunk finishing (fibreglass or resin build-up over the steel), foliage production (injection-moulded polyethylene or silk), hand assembly and dressing, and export packing.

Armature and welding. The core is a Q235 steel tube from Ø48 mm at 2-4 m up to Ø76 mm at 9-12 m, wall thickness around 3.5 mm, with a hot-dip galvanized finish to ISO 1461 at a minimum 85 µm. Welding is the step that most often determines how many trees a shop can produce, because it is skilled, manual and difficult to parallelise. Welder qualification records, a weld map per tree, and a galvanizing certificate that names the load rather than the coating are the three documents that turn a claim into evidence. Cutting, welding and galvanizing are frequently split across three sites, and each handover is a queue.

Foliage and polymer. Foliage is injection-moulded polyethylene with a UV50+ stabiliser package, or silk in the decorative segment. Moulds are the capital item: a hardened steel mould runs for hundreds of thousands of cycles, while an aluminium tool is typically good for tens of thousands, so the mould register is also a statement about how long the factory intends to keep producing the model. Mould count sets the variety a factory can run at one time; it does not set throughput in units per month.

Where the hours actually go. Dressing is the hidden cost. Each leaf cluster or frond is attached by hand, and hours scale with crown volume and density rather than with tree height alone. Leaf density for a commercial specimen sits between 1,800 and 3,200 leaves per cubic metre, and a dense crown such as a large olive tree takes longer per cubic metre to dress than a sparse palm-form crown, because the same volume carries more attachment points. Two specimens of the same height can therefore differ by two or three man-hours each, which changes monthly output whenever the order mix changes.

What the capacity question really is. Combine the two facts and the audit question resolves cleanly: how many dressing positions are staffed, how many man-hours a specimen of the ordered size consumes, and how many working days the shop actually runs per month. Machines enter the answer only where moulding is the constraint, which is rarely the case for large specimens.

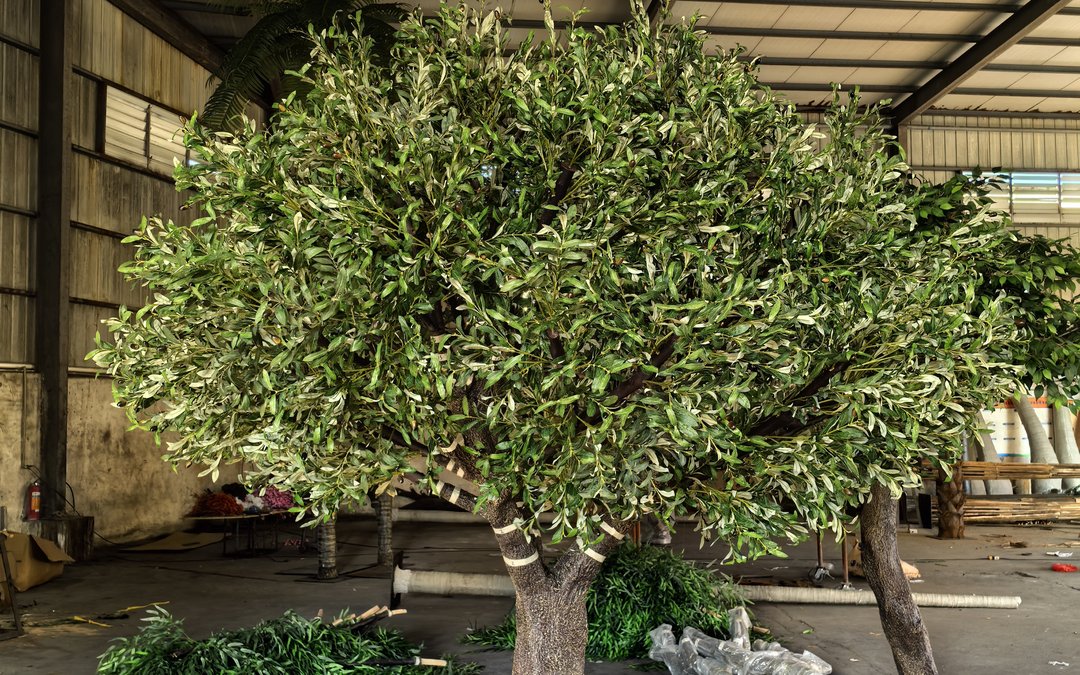

Foliage built out over a banded trunk in the workshop, with cut foliage staged on the floor - the hand-dressing stage where monthly output is really decided.

In-house share is the number to write down. Ask for a percentage, and ask for it per stage. A factory that welds, moulds, dresses and packs in-house is a different risk profile from one that welds and dresses while buying the trunk, the galvanizing and the foliage. Subcontracting is normal and not disqualifying; the failure is subcontracting without saying so, because the buyer then carries queueing risk at every external step with no visibility.

3. Life Safety, Fire Codes & Environmental Compliance

In a factory audit, compliance evidence is not a formality. It is a proxy for whether processes are controlled, and it is the only part of the assessment that can be checked without booking a flight.

The baseline certificate is ISO 9001, and its value in an audit is the scope statement rather than the logo: which processes and which site are covered. A certificate issued to a trading entity that covers "sales of decorative products" is not evidence of a controlled production process, and a review of a submittal package should read the scope line first.

Product-level evidence is what the project actually needs. For a hotel atrium or any covered interior, foliage is documented against NFPA 701 or EN 13501-1, and a report is only useful if it names the sample construction, the method used and the measured result. For outdoor supply, the relevant evidence is a UV and colour-retention test on the polymer, typically naming the polymer batch and the stabiliser loading, plus salt-spray data for coastal projects. Certificates that name a generic product family and reference no batch cannot be tied to the goods on the pallet.

Chemical compliance also falls inside the audit. European and increasingly GCC specifications reference REACH obligations on substances in the polymer and in any applied finish, and a supplier who can produce a declaration naming the substance list and the testing basis is a supplier whose paperwork is under control. A supplier who responds with a general statement of environmental responsibility has told you the documentation is assembled per enquiry rather than maintained.

The last point is procedural. A wall of certificates proves that a process was validated once, for someone else, at some point. It does not prove that the same process runs on your order. The evidence that does is batch-linked: test reports naming the polymer batch, mill certificates naming the heat number of the steel tube, and inspection records that carry a date inside your production window. Ask for one of those three and the difference between a documented factory and a decorated office becomes visible.

4. Technical Comparison Table

The rows below are factory-standard builds; the last column is the evidence a buyer should be able to obtain for each class before releasing a deposit. Load figures are indicative static values including the planter where a ballasted base is used, and they are a sizing check rather than a substitute for project engineering calculations.

Read the table as a request list rather than a specification. Height and core diameter set what the shop drawing must state; density and polymer identity set what the fire or UV report must describe; the evidence column is what a buyer should hold before money moves. A 9-12 m order placed without the anchor-interface drawing is a schedule risk in its own right, because the structural interface is usually the last item to be resolved and the first to delay fabrication. Across the wider product range, the pattern repeats: the specification is standard, and what differs between suppliers is whether the paperwork behind it exists.

5. Structural Anchoring & MEP Coordination

An audit does not stop at the production floor, because a large tree order fails at interfaces as often as at capacity. Three of those interfaces should be checked as part of supplier selection rather than left to the shop drawing stage.

The anchor interface. Whoever holds the structural design needs the tree's geometry: mass, centre of gravity, base plate footprint, bolt pattern, and the crown frontal area where the specimen stands outdoors. A supplier who cannot supply those numbers, or who supplies them differently for every enquiry, will produce an anchor that has to be redesigned after fabrication. The right evidence is a standard base plate drawing per height class plus a load data sheet, both dated and both consistent with the quoted build.

Load data for the floor or roof. Long before the anchor is chosen, the building's structural engineer needs the unfactored load reaching the slab, including the planter where one is used. On upper floors and podiums this figure is what determines whether the landscape scheme is feasible at all. A supplier whose answer is "about 200 kg" without stating whether that includes ballast, medium and the tree is providing a number that cannot be used.

MEP and site coordination. Internally, the same trees have to clear the sprinkler throw envelope and avoid air-curtain discharge zones. Externally, planters and base plates interrupt deck drainage and waterproofing, and the uplighting circuit runs through the same footprint. Each of these becomes a variation at site if it was not resolved at drawing stage, and the cost lands on the buyer. Checking a supplier's ability to produce a coordinated drawing set - not just a product sheet - is part of the audit, because an order of twenty specimen trees is a drawing exercise before it is a manufacturing one.

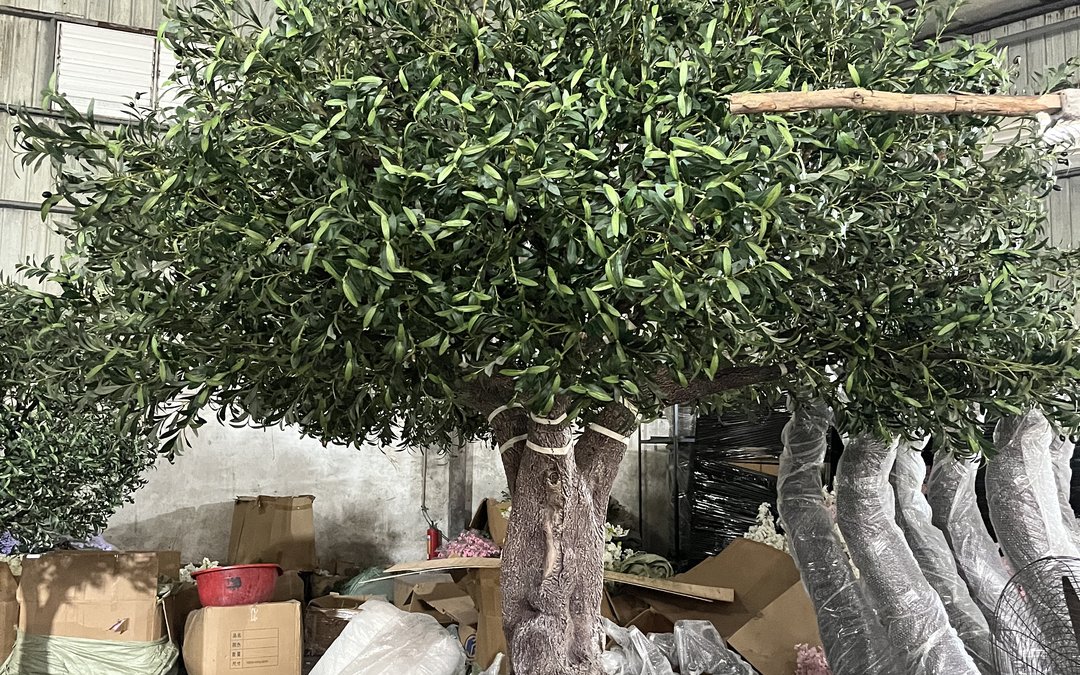

Crown and wrapped trunk lengths of a large specimen staged around partly packed cartons in the workshop - work in progress, not finished stock.

A workable desk audit. Three requests, sent together, convert most of this into paperwork. First, 90 days of daily output records by line or work station, for parts of comparable size and cycle time rather than the shop's showcase item. Second, the confirmed order backlog for the next 90 days, which shows how much capacity is already committed. Third, the approved mould list for your model class, which shows whether the tooling is available when the order is scheduled. Then calculate available capacity as proven average daily output multiplied by the working days the factory actually runs, minus the confirmed backlog and a changeover allowance. If that number is negative, the date cannot be met on the current schedule - and that is a conclusion reached before any travel.

The capacity lock clause. After selection, the commitment that matters is not a date but an allocation. A clause that fixes a number of production positions or hours to the order per week, and requires a weekly progress report counting finished passing units rather than estimated work in progress, is what prevents silent reallocation. Retention tied to pre-shipment inspection results is the second half of the same mechanism.

How can capacity be checked without a three-day audit?

Ask for the three documents above, cross-check them against each other, then spend one unannounced day on the floor of the shortlisted supplier. Count machines that are running, count staff at dressing positions, look at work-in-progress piles and ask where the order will sit in the schedule. A full system audit is a second-order tool; the three numbers are what actually move the decision.

6. Commercial Contractor FAQs

Q: What is the single most useful number in a capacity check?

Man-hours per unit at the dressing stage, for your size and density. It connects the order to the labour actually available and it cannot be inflated by quoting machine specifications. Ask for it per size class, and compare it against the number the schedule implies.

Q: How should a mixed order be split to protect the delivery date?

Split by bottleneck, not by value. Place the tall, dense specimens - the ones that consume the most dressing hours - in the first production window, and the shorter, sparser items where they can fill gaps. If the order is split across two suppliers for risk, keep the anchor interface and the finish specification identical, or the site will end up with two fitting systems.

Q: What should be done if the audit suggests a trading company?

Do not walk away by default; change the terms. Ask for the production partner to be named, request joint inspection at that site, put the capacity commitment in the contract against the partner's line, and hold retention against pre-shipment inspection. That structure works with a competent trader and fails immediately with an incompetent one, which is the information being bought.

Q: Which certificates are worth collecting at this stage?

ISO 9001 with the scope line read, the reaction-to-fire report for covered interiors, the UV and colour-retention report for outdoor supply, the mill certificate for the steel tube, and the galvanizing certificate naming the load. Anything that cannot be tied to a batch or a date on the order is decoration.
