UV and Thermal Ratings for Outdoor Artificial Trees in 50 °C Desert Sites: What to Specify, and What Test Evidence to Demand

Executive Summary

Outdoor artificial trees on Gulf desert sites carry two ratings, not one. UV is the better-known half: SGS-tested color fastness of 3–5 years on treated builds. The thermal half is normally missing from the purchase order. A dark injection-molded PE canopy in full sun at 45 °C ambient reaches 65–75 °C surface temperature, and the foliage end of that canopy moves about 2 mm against its own branch hub on every daily cycle, while the Q235 hot-dip galvanized steel core (Ø48–76 mm) holding it moves a fraction of that. A specification written around UV hours alone buys a tree whose failures appear at the joints, not in the pigment.

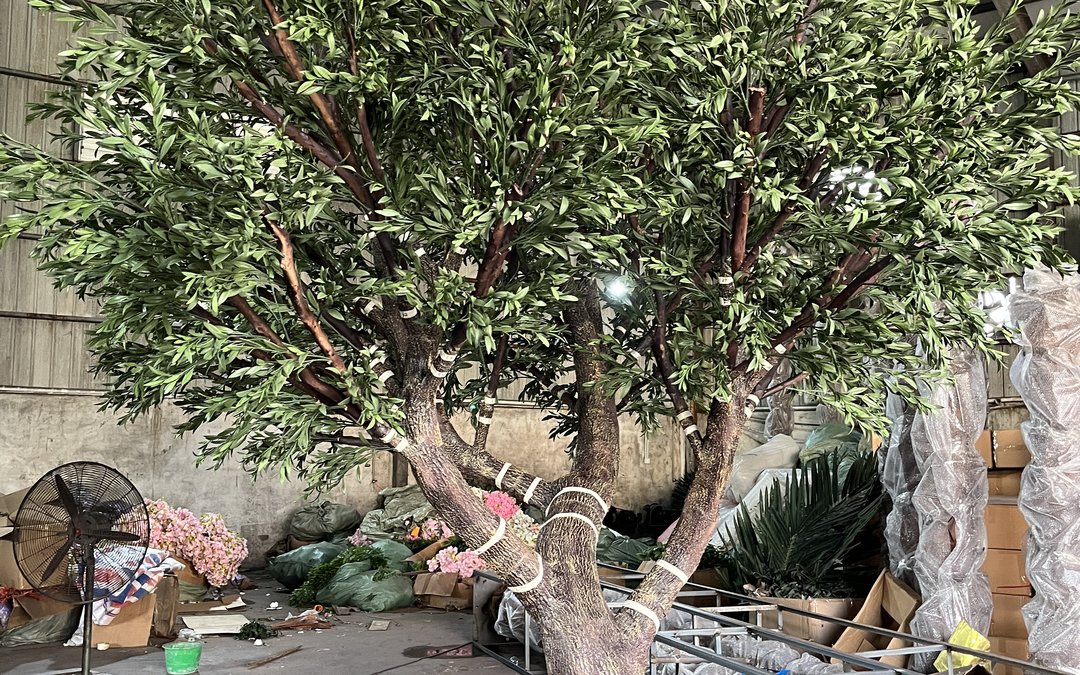

A multi-trunk artificial tree on the workshop floor with branch collars banded for finishing; wrapped stock and a workshop fan sit behind it.

1. Failure Modes & Commercial Pitfalls

The commercial failure mode in a desert climate is rarely "the leaves faded". Fading is the visible, slow, arguable one. The expensive one is a tree that still looks acceptable in year two but no longer meets the two conditions that matter on a live project: the crown no longer reads straight, and the fire documentation no longer describes the object that was installed.

Consider the sequence on a typical Gulf installation handed over in October. Cool-season ambient is 22–28 °C, so nothing looks wrong at snagging. The first summer delivers 45 °C ambient and roughly 900–1,000 W/m² peak irradiance. A dark green canopy absorbs most of that and runs 20–30 K above ambient. Three things then happen at once. The leaf stalk, molded in polyethylene with a coefficient of thermal expansion six to fifteen times that of the fiberglass and steel it is clipped to, grows and shrinks about 2 mm relative to its socket, twice a day, for 150 days. The molded bark shell, if it was bonded along its full length to the steel arm inside, accumulates a relative movement of several millimetres and typically relieves it by debonding at the ends or by splitting at a seam. And any surface-applied flame retardant on the canopy is now sitting at 70 °C for nine hours a day, which accelerates the migration that cleaning then removes.

Compare this with the two cheap substitutes that a first-time buyer is most likely to be offered. Silk foliage on a lacquered steel arm has no thermal stabiliser package, so the pigment fails first and the fiber becomes brittle; the crown mats down and loses what little porosity it had. A foam or timber trunk looks convincing in a sample room and creeps under load at 60 °C, so the canopy rotates off-axis within two seasons and the installation is described as leaning on every later inspection. Neither failure is visible in the month the tree is installed, which is exactly why they get through snagging and land in the defect liability period.

Species changes the arithmetic but not the mechanism. A date palm on a resort forecourt concentrates the whole daily cycle into a small number of very large fronds and a heavy crown, so each attachment point carries more movement and more mass than a broadleaf equivalent; a broadleaf form spreads the same movement across hundreds of small leaf hubs, so each joint sees less. That is why a palm crown can still feel stiff in the hand and crack at the frond base after two summers, and why the same supplier's broadleaf build often survives longer on the same site with no change to the raw material.

The physical consequences are concrete. A canopy that has rotated 3° off-axis on a 8 m tree moves its crown by around 400 mm, which is enough to foul a sprinkler throw pattern or a wayfinding sign. A debonded bark shell admits water into the arm interface, and on a coastal site that becomes corrosion at the exact point the structural documentation assumed protection. A canopy that has dropped a fire-retardant class no longer matches the submittal a QHSE reviewer signed, and re-testing an installed canopy is far more expensive than testing a sample was.

2. Material Science & Structural Engineering Standards

How much does a canopy actually move between a cool night and a hot afternoon?

The answer is set by the coefficient of linear thermal expansion of each material, and the materials in one artificial tree differ by more than an order of magnitude. Typical values used in design are 11–13 × 10⁻⁶/K for carbon steel, 23 × 10⁻⁶/K for aluminium, 15–30 × 10⁻⁶/K for glass-reinforced polyester (the fiberglass trunk shell), 50–80 × 10⁻⁶/K for rigid PVC, roughly 100–180 × 10⁻⁶/K for polypropylene, and 120–180 × 10⁻⁶/K for the HDPE and LDPE used for molded foliage.

The practical consequence is a differential, not an absolute. Take a 200 mm frond stalk molded in PE with a nominal 150 × 10⁻⁶/K, clipped to a glass-reinforced hub at 25 × 10⁻⁶/K. Over a day that swings from a 10 °C desert night to a 70 °C canopy surface, the temperature range is 60 K. The stalk length changes by 200 mm × 150 × 10⁻⁶ × 60 ≈ 1.8 mm. The hub changes by 200 mm × 25 × 10⁻⁶ × 60 ≈ 0.3 mm. The 1.5 mm difference has to go somewhere: it either slips quietly in a correctly sized socket, or it works the socket open over roughly 365 cycles a year.

Scale the same calculation up. A branch arm 1.5 m long, over-molded with a fiberglass bark shell and rigidly bonded to the steel armature for its full length, accumulates 1,500 mm × (25 − 12) × 10⁻⁶ × 60 ≈ 1.2 mm of differential against the steel — small, but applied at the two ends of a stiff shell, which is where debonding starts. If the shell is a monolithic PE sleeve instead of fiberglass, the differential rises to 1,500 mm × (150 − 12) × 10⁻⁶ × 60 ≈ 12.4 mm. That is no longer a tolerance question; it is a design error, and it is why molded polyethylene belongs on the leaf, not on a long arm.

The trunk itself deserves one number that project teams rarely hold. A 6 m galvanized steel core grows 6,000 mm × 12 × 10⁻⁶ × 60 ≈ 4.3 mm taller between a cool morning and a hot afternoon, and a 10 m core grows about 7.2 mm. The tree is therefore never a fixed-length object. Anything hard-tied to it — a soffit bracket, a handrail, a signage arm, a light fitting clamped to the crown — will be loaded twice a day. The honest design answer is to keep the only fixed point at the base plate and let everything above it float.

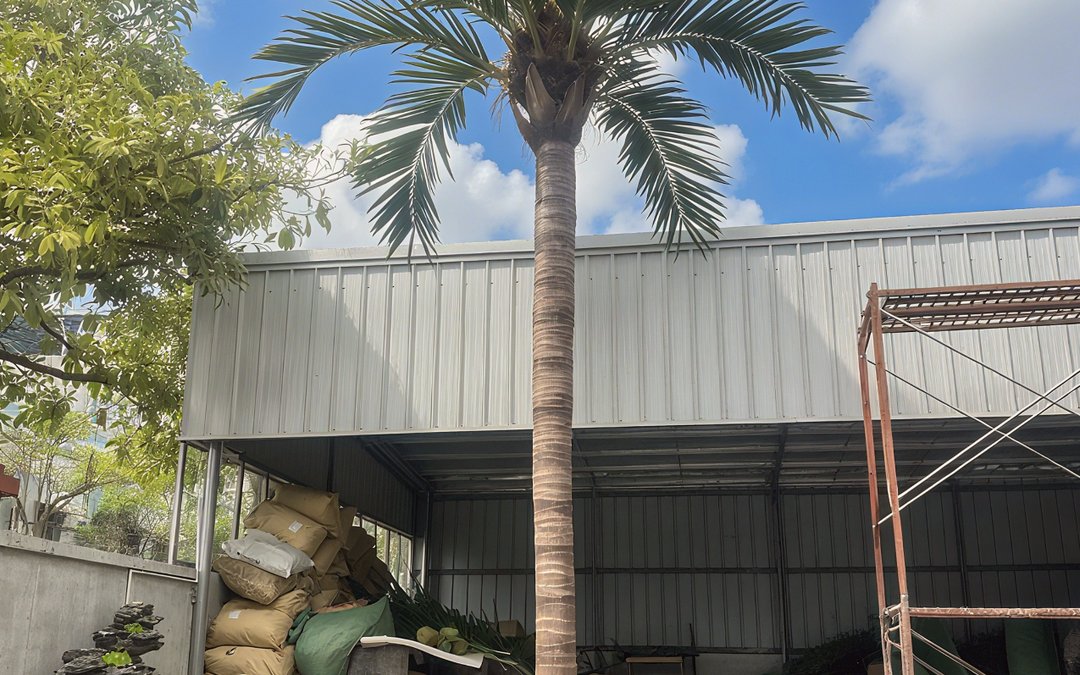

An artificial palm trunk in the yard outside the workshop, its moulded ring texture running the full height of the shell.

Where the heat actually comes from, and why the canopy colour is a structural variable

Canopy surface temperature is driven by absorptance as much as by air temperature. A saturated dark green or black foliage compound with a solar absorptance around 0.85–0.92 will run 20–30 K above ambient under peak Gulf irradiance; the same geometry in a light olive or silver-grey tone runs 10–15 K cooler, because more of the incident energy is reflected rather than converted to heat. On a permanent outdoor installation that 10 K difference is not cosmetic: it moves the whole asset further from or closer to the heat deflection temperature of the polymer.

That margin matters because the heat deflection temperature of unfilled HDPE measured to ASTM D648 at 0.45 MPa is in the 70–80 °C band. A canopy running at 70–75 °C is therefore operating in the same range as its own softening behaviour, and it is doing so while carrying a static load from its own mass and a dynamic load from wind. Two detailing decisions follow directly. First, do not let a dark foliage element sit in permanent contact with a dark steel or aluminium arm in full sun; the metal reaches a higher temperature than the polymer and becomes a local hot spot at the weakest interface. Second, treat light foliage tones as a thermal specification on exposed sites, not as an aesthetic preference.

What test evidence turns these claims into a specification

Five tests cover the thermal side of a desert installation, and all five are standard methods that a laboratory can run on production-molded parts rather than on flat plaques.

Two conditions decide whether this evidence is worth anything. The specimens must be production-molded parts in the exact pigment and colour being supplied, because a flat coupon and a foamed or glass-filled molding behave differently. And the numbers must be reported as retention against an unexposed control from the same batch, not as a single pass/fail line, because retention is what tells a specifier how much margin is left.

3. Life Safety, Fire Codes & Environmental Compliance

Does a flame-retardant rating survive five summers at 70 °C?

It can, but not automatically, and the mechanism is thermal rather than fire-related. Two routes reach a compliant canopy. A topically applied flame-retardant finish sits on the surface of the polymer; an inherently flame-retardant compound carries the chemistry in the resin itself. On an interior installation at 22 °C the difference between them shows up as wear. On an exterior installation at 65–75 °C surface temperature, the difference shows up as migration: a surface finish sitting at that temperature for years, then being washed on a maintenance cycle, can measure below the class it was certified at.

For projects in the Gulf and in Europe, the two reference points are NFPA 701 for textile-type and film-type foliage, tested by the appropriate method for the material form, and EN 13501-1 Class B-s1,d0 where a European-style tender or a Civil Defence submission asks for a reaction-to-fire classification rather than a test method result. In both cases the useful question at order stage is not "is it fire retardant" but "what is the retention evidence after the cleaning regime you are recommending". Ask for the flame test to be repeated on a specimen that has first been put through the specified cleaning cycle, and for the certificate to name the formulation and colour that will ship.

There is a second interaction that a specifier should hold in mind. Mineral-filled flame-retardant compounds load the polymer with a high filler fraction, which changes thermal expansion and low-temperature impact behaviour at the same time as it changes fire performance. A compound tuned only for the flame test can arrive with a coefficient of expansion that is worse than the unfilled grade and an impact behaviour that is worse at night. The three properties need to be specified as one set, on the same specimen.

For indoor installations in enclosed, mechanically ventilated environments — a hotel atrium, an airport lounge, a shopping mall — the constraint is air quality rather than sunlight. A canopy that runs warm at 40 °C will also emit more than the same canopy at 22 °C, which is why low-VOC and low-odour declarations matter more in a sealed atrium than in an open forecourt. For projects bound for the EU, a REACH screening against the candidate list of substances of very high concern belongs in the document pack; if the foliage compound is supplied with a declaration from the compounder that names the formulation, that declaration should be filed next to the flame certificate rather than in a separate folder.

4. Technical Comparison Table

The table below pairs the standard sizing parameters with the expansion allowance that each height class needs at its outermost leaf hub, using a 60 K daily swing and a PE-to-fiberglass differential of 125 × 10⁻⁶/K. The allowance is the clearance the socket or collar must have so that movement is taken as slip rather than as stress.

Two rows in that table are worth reading as decisions rather than as data. Leaf density falls at the tallest and most exposed heights on purpose: a dense crown is a larger projected area and a larger thermal mass, and on an outdoor tree above 8 m the density that flatters a sample is the density that loads the anchorage. Density is also a function of species and finish rather than of quality, which is why the same nominal crown reads differently across the range of large artificial trees and why density belongs on the drawing beside the height. And the two outdoor rows are the ones where the allowance stops being a tolerance and becomes a specification item, because those are the installations that see a 60 K daily swing rather than a 10–15 K interior swing.

The same reasoning explains why species placement is a thermal decision on the mixed plantings that most Gulf schemes end up buying. An olive tree in a corporate reception can be specified at 2–3 m with a dense canopy and a ballast collar, and it will behave conservatively because the interior swing is 10–15 K rather than 60 K. Move the same build onto an exposed pool deck and the specification has to change on three counts at once: a lighter crown tone, a widened expansion allowance, and a base plate replacing the ballast collar. Buying one specification and installing it in both locations is the single most common way that a project ends up with a tree that is correct indoors and noisy outdoors.

5. Structural Anchoring & MEP Coordination

One fixed point, and everything above it floating

Every calculation in this article reduces to a single anchoring rule. The base plate is the only point that is fixed to the structure; all expansion above it must be free to move. In practice that means the slip or clearance detail is placed at the branch collar or at the leaf hub, the fiberglass shell is not bonded along its full length to the steel armature, and the planter or ballast collar never clamps the trunk shell rigidly at a second height. A second rigid clamp looks like good practice and is the fastest way to guarantee a cracking shell.

For rooftop and podium installations the sequence at the base is standard: a base plate carried on a raised curb or a grouted pocket so the waterproofing membrane is not penetrated by the plate itself, chemical anchors sized to the substrate with an edge distance honoured against the slab edge, and stainless or hot-dip galvanized hardware matched to the exposure class. Where the slab buildup cannot be confirmed from the drawings, the engineering calculations behind the plate belong in a signed submittal rather than in a quotation table. Coastal sites push the hardware class up and make the plate-to-core interface the critical corrosion point, which is why a documented re-torque visit at roughly 30 days and again at 12 months is worth writing into the handover pack rather than leaving to the facilities team to remember.

MEP coordination follows from the same thermal logic. A sprinkler head above a dense crown needs its throw pattern kept clear, and a canopy that has rotated slightly on a hot day is a canopy that has moved a sprinkler obstruction. A high-velocity air curtain at a mall entrance or a hotel porte-cochère applies a continuous lateral load to any crown inside its stream, and it does so at the same time as the canopy is at its softest. A supply diffuser placed directly above a crown delivers warm dry air to it continuously and, in an indoor atrium, also prevents the rain-washing that would otherwise remove some deposited dust. The same check applies to mall landscaping schemes under a glass roof, where interior surface temperatures sit well above what a sealed office floor sees and the allowance is therefore wider than an office specification would suggest. None of these are reasons to move the tree; they are reasons to check the reflected ceiling plan and the mechanical drawings before the tree position is frozen, rather than after the base plate is set.

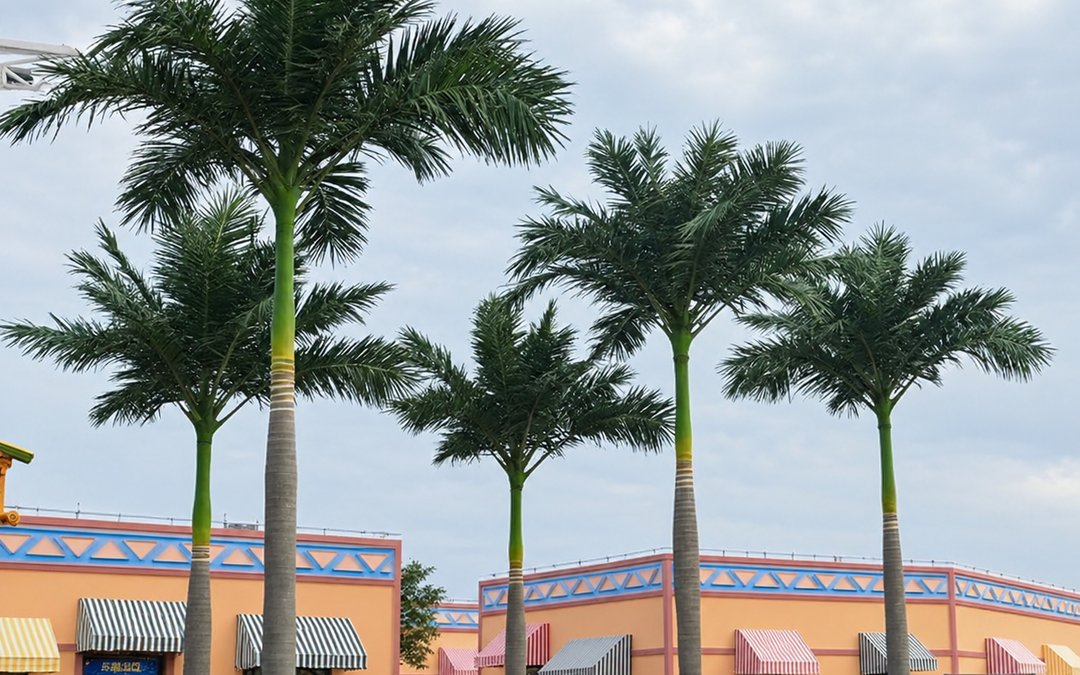

A row of artificial palms along a retail frontage, with every base connection sitting below the finish line and behind the planter edge.

6. Commercial Contractor FAQs

Q: Does a UV rating alone cover an outdoor installation in a desert climate?

A: No, and the gap is measurable. A UV rating describes the photochemical durability of the pigment and stabiliser system, evidenced by accelerated exposure hours and colour change measured to ASTM D2244. It says nothing about how a canopy behaves when its surface sits at 65–75 °C. The two ratings describe different failure mechanisms: UV sets how long the colour holds, and thermal behaviour sets whether the leaf hubs, collars and shell seams survive the daily 60 K swing. A purchase order for a permanent outdoor installation needs both, on production-molded specimens.

Q: What test evidence should be demanded before shipment?

A: Five items are enough to cover the thermal side. Accelerated UV exposure to ASTM G154 or ISO 4892-3 at 1,000 h and 2,000 h; colour change to ASTM D2244 with a ΔE* limit of 3.0 for light tones and 5.0 for dark tones; chalking and gloss to ASTM D4214 and ASTM D523; heat ageing to ASTM D3045 or ISO 2578 with tensile and impact retention of at least 70 %; and a coefficient of expansion per material, with a thermal cycling report on a complete leaf-to-hub assembly. All five should be run on production parts in the shipping pigment, with an unexposed control from the same batch.

Q: How much expansion allowance belongs in the fixing schedule?

A: Between roughly 5 mm at the outermost leaf hub of a 2–3 m tree and 12 mm on a 10–12 m tree, assuming a 60 K daily swing and a polyethylene-to-fiberglass differential of about 125 × 10⁻⁶/K. The allowance should be shown as a dimension on the shop drawing, not implied by a note. The check is simple: if the drawing shows a rigid bond or a second clamp between the base plate and the crown, the allowance does not exist regardless of what the notes say.

Q: What are the lead time and MOQ when a thermal variant is specified?

A: MOQ is project-based rather than per-model, and mixed orders across the range consolidate into one project quantity. Lead time runs 25–35 days for standard heights and 45–60 days for custom builds above 6 m, measured from the approved shop drawings rather than from the enquiry. A thermal variant with a named pigment, a defined expansion allowance and a specified test pack adds sampling time before drawings are frozen, not production time after them, which is why the specification is worth settling before the drawing issue rather than during it.

Conclusion: Specify the Second Rating Before the First Summer

A desert installation is decided by two ratings, and most purchase orders carry only one of them. The UV half is well understood and, in practice, well documented: accelerated hours, colour change, chalking and gloss. The thermal half is what actually fails first on a permanent outdoor tree, because a canopy at 65–75 °C is a canopy whose foliage moves about 2 mm a day against its own hub, whose shell seams accumulate small differentials into a debond, and whose fire finish sits at a temperature that accelerates the very migration that cleaning then removes. Writing the allowance, the joint detail and the five test items into the specification costs a paragraph, and it moves the whole argument out of the argument-about-fading and into measurable evidence that travels into the project handover documentation instead of the snag list.

Our engineering team issues the expansion allowance, the joint detail, the anchor calculation and the ASTM test pack against the named formulation and colour that will actually ship, so a specifier, a structural reviewer and a QHSE reviewer are reading one submittal rather than three. Send the site location, the exposure class and the tree heights, and we will return the thermal and UV specification together.
