Executive Summary
Rooftop and podium artificial trees are governed by where they stand, not by how tall they are. A tree in a roof corner sees local pressures roughly 1.5–2.5 times the field-of-roof value, and shielding from the trees in front of it cannot be claimed as a reduction. Design every tree at the free-stream value, then let the base moment pick the fixing: a Ø48 mm core for 2–3 m, Ø60 mm for 4–6 m, Ø76 mm above 6 m, with a base plate and 4–8 × M16 chemical anchors where ballast mass would run past roughly 1 tonne.
1. Failure Modes & Commercial Pitfalls
Wind does not fail a rooftop tree by pushing it over on a stormy day. It fails the tree months after handover, in calm weather, at the point where a decision was made about layout and never revisited. Three mechanisms cover most of the losses.
The first is the corner tree. A roof is not a single aerodynamic surface: it is divided into a field zone, an edge zone and a corner zone, and the corner sees the highest local pressures of the three, typically 1.5–2.5 times the field value on the same building. A layout that places six identical trees around a roof terrace therefore contains one tree that is loaded far harder than the other five, and it is usually the one standing at the junction of two parapets with nothing to break the flow. Buyers who price the anchors from the average tree are pricing the wrong tree.
The second is the shielding assumption. A landscaper who has placed one row of trees in front of another will reasonably assume the front row takes the load and the rear row sits in its wake. That assumption does not survive contact with a structural reviewer, because the standard treatment of rooftop structures does not allow a shielding credit: each object is designed against the free-stream pressure for its own zone, on the grounds that wind direction is not fixed and the wake of one porous canopy is not a dependable shield. There is a further complication — flow accelerating between adjacent objects, so a tight cluster can load its own members harder than an isolated tree would be loaded.
The third is the substrate, and it is the one that produces the insurance conversation. A base plate bolted into 50 mm of screed over insulation has no uplift capacity worth the name, because the anchors are holding onto a topping rather than the structural slab. Trees on a rooftop are usually installed after the finishes package, so the drilling happens into whatever the waterproofing and paving contractor left behind, and the tree is the only element on the roof with a heavy mass three to six metres above a membrane it cannot be allowed to penetrate.
Compare the two cheap answers a buyer will be offered at tender stage. A free-standing ballast collar is genuinely adequate for a 2–3 m tree in a sheltered interior courtyard, and it is genuinely inadequate for a 6 m tree at a roof edge, where the required mass climbs into the tonne range and stops being deliverable by lift. A "wind-rated" claim without a stated design pressure, a stated effective area and a stated base moment is not a design; it is a label, and it will not survive the first correction note.
The commercial consequences are ordinary and expensive. A tree that has walked 40 mm across a terrace on its base is a snag item that reopens every wet season; a screed-fixed plate that has pulled its anchors leaves four holes in a waterproofing detail that now has to be cut and made good; and a tree that has been re-anchored after handover loses its crown orientation, which is the one thing the client actually paid for. None of this is a material failure. All of it is a layout failure that was cheaper to fix on the drawing than on the roof.
2. Material Science & Structural Engineering Standards
How is a rooftop tree actually loaded, and what does the standard allow?
The load path is the same one used for any roof-mounted object, and it is short enough to write out. A design wind pressure qz is established from the site basic wind speed, the exposure category and the height above grade, adjusted by a gust-effect factor for the structure's own dynamic response — around 0.85 for a rigid, low-mass assembly, rising once the crown assembly behaves flexibly. That pressure is then multiplied by a force coefficient for the canopy and applied to the canopy's effective area: force = qz × gust factor × force coefficient × effective area. For a Gulf coastal urban site, qz at low roof heights commonly falls in the 0.5–0.9 kN/m² band once the site factors are applied, and the site's structural engineer sets the number.
The single most powerful input in that expression is not the wind speed and not the height. It is the effective area, because it depends on the canopy's solidity — how much of the projected crown is actual material rather than air gaps. Well-spaced foliage on a properly branched frame might present a solidity around 0.15–0.20 of the projected circle; a matted, tightly wired crown can present 0.30–0.40. That difference roughly doubles the force on the same nominal tree. Two consequences follow, and they point the same way: a porous crown carries less wind load, costs less to freight, and can be specified at a lower leaf density without looking thin. Specifying leaf density as a range rather than a single target, with the lower end used on exposed rooftops, is an engineering decision rather than a downgrade.
The load reaches the roof as a base moment rather than as a simple horizontal force, because the canopy mass and the canopy area both sit high up. That moment, not the force, decides whether the tree can be held by mass or has to be held by anchors. Take a 6 m tree with a 3 m crown in a 0.7 kN/m² local pressure, a gust factor of 0.85, a force coefficient of 0.8 and an effective area of 1.4 m²: the horizontal force is about 0.67 kN, and applied at a centroid roughly 3.5 m up it produces a base moment of about 2.3 kN·m. Resistance by ballast then requires the moment to be divided by the planter's half-width — for a 1.2 m base that is about 1.9 kN, or close to 200 kg of ballast once a safety factor is applied, and a 4 m tree in the same configuration roughly doubles that. Ballast therefore works well at 2–3 m, becomes expensive at 4 m, and stops being practical above roughly 5 m on an exposed roof.
What has to be checked in the core, and why diameter alone is not the answer
Once the base moment is known, the structural quantity to verify is the section modulus of the steel core, not its outside diameter. For a hot-dip galvanized Q235 tube with a 3–4 mm wall, the elastic section modulus is roughly 4,500 mm³ at Ø48 mm, 8,300 mm³ at Ø60 mm and 15,500 mm³ at Ø76 mm. At a 235 MPa yield strength those values correspond to first-yield moments of about 1.1, 1.9 and 3.6 kN·m. That is why the sizing bands step with height: a Ø48 mm core is a sensible armature for a 3 m tree and an unsuitable one for an 8 m tree at a corner, even though both trees look similar in a rendering.

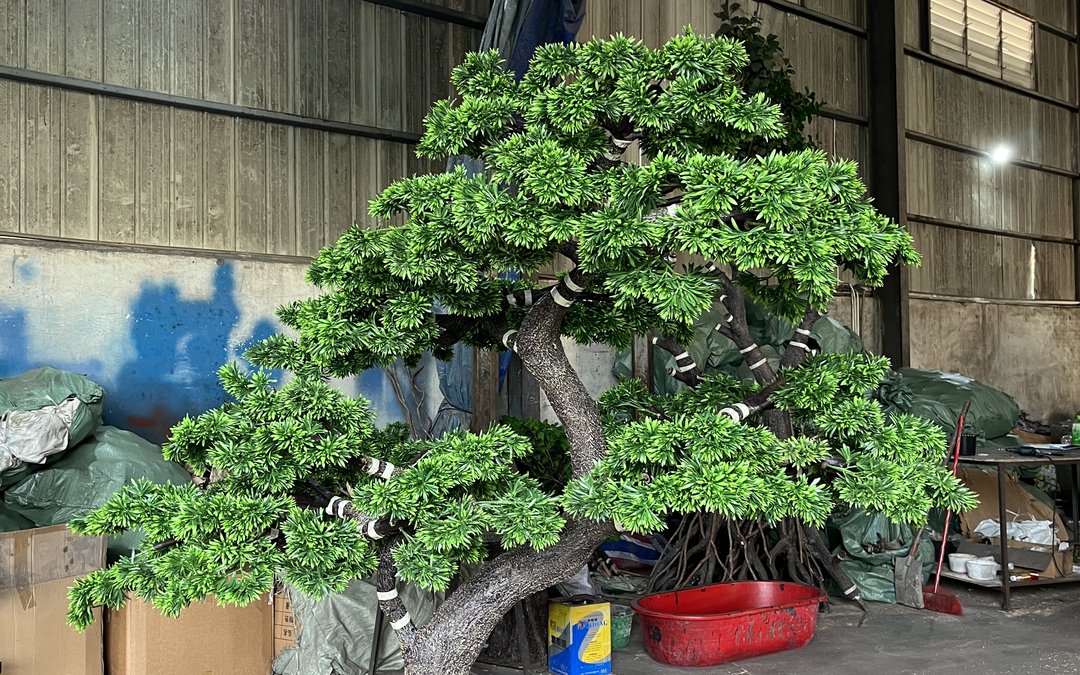

Two further details belong in the same submittal. The core has to be continuous across its joints, because a coupling that transmits moment four metres above a terrace is a fatigue detail rather than a simple connection. And the canopy-to-core interface has to survive the crown's own movement: a heavy crown on a long arm applies a fluctuating moment at every wind event, and the branch collar is where that shows up first. A submittal that shows the core, the coupling and the collar as one continuous load path is far easier to review than three separate certificates.
3. Life Safety, Fire Codes & Environmental Compliance
A rooftop tree sits in an unusual position in a fire strategy: it is outside the sprinklered envelope, so the reaction-to-fire question is usually lighter than it is inside an atrium, and the fire-separation question is usually heavier. The material side still runs on the familiar references — NFPA 701 for foliage tested as a textile or film, and EN 13501-1 Class B-s1,d0 where a European-style tender or a civil defence submission asks for a classification rather than a test result. Where the tree stands under a canopy, pergola or shaded bar deck on the same roof, the canopy is no longer an open-air item and the specification should follow the interior case.
The heavier question is the slab. A podium roof is frequently a fire-rated separation between the terrace and an occupied floor below, and a chemical anchor penetrating that separation changes the rating of the assembly unless the penetration is properly fire-stopped. Two consequences follow at design stage. Base plates and their penetration details should be shown on the fire strategy drawing rather than discovered by the contractor, and anchors should be positioned to avoid ducts, cable trays and the structural zones that other trades have already claimed. The same drawing set should carry the waterproofing interface: a raised curb or grout pocket keeps the plate out of the membrane, and the anchor holes should not be drilled at a low point where water will stand around the fixings.
Coastal and saline exposure belongs in the same document, because rooftop hardware on a Gulf coastal site is in an aggressive category and the fixings are the smallest, most exposed steel on the tree. Hot-dip galvanizing to a defined coating mass for the plate, A4-grade stainless or equivalent for the anchors and the nuts, and isolating washers between dissimilar metals are the practical measures. A rooftop plate is also the last element anyone inspects, which is why salt and standing water around it are worth designing out rather than maintaining out.
4. Technical Comparison Table
The table below reads the same range of trees through the layout variable, because on a rooftop the layout usually decides the fixing long before the height does. Ballast values assume a 1.2 m planter base and a safety factor applied to the computed overturning moment.
| Tree Height (m) | Layout Condition | Min Core Steel Ø (mm) | Leaf Density (leaves/m³) | Floor Load or Ballast (kg) | Application | Indoor / Outdoor |
|---|---|---|---|---|---|---|
| 2–3 | roof field zone, 3 m or more clear of any parapet | 48 | 1,800–2,200 | ballast collar, 90–140 | corporate HQ rooftop reception terrace, villa courtyard | Outdoor |
| 3–4 | roof edge zone, inside 1.2 m of a parapet | 48 | 1,800–2,200 | ballast collar, 200–320, plus a tie-down to structure | hotel rooftop bar terrace, clubhouse deck | Outdoor |
| 4–6 | roof corner zone, two exposed faces | 60 | 1,600–2,000 | base plate, 4 × M16 into the structural slab | seaside resort pool deck, podium garden | Outdoor |
| 6–8 | podium deck over an occupied floor | 60–76 | 1,600–2,000 | base plate, 6 × M16, fire-stopped penetration | hotel podium terrace, mall roof garden | Outdoor |
| 8–10 | free-standing, no shielding credit available | 76 | 1,400–1,800 | base plate, 8 × M16 chemical anchors, local slab check | theme park entry plaza, city streetscape | Outdoor |
| 10–12 | interior atrium, no wind zone | 76 | 2,200–2,800 | cast-in anchor cage, engineered per project | grand mall atrium, airport VIP lounge | Indoor |
Read the first two rows together and the point of the table becomes visible. A 3 m tree in the middle of a roof and a 3 m tree one metre from a parapet are the same tree at the same height with the same core, and they need different fixings — one can stand on mass, the other should be tied down. Nothing in a height-based sizing table can express that difference, which is why the layout has to be fixed before the anchor detail is drawn. The same logic applies across the range of large artificial trees, where two models of identical height can sit at opposite ends of the same specification.
5. Structural Anchoring & MEP Coordination
Where a rooftop plate has to reach, and where it must not
Rooftop fixing starts with a question that is answered by a drawing rather than by a supplier: what is under the finish? If the answer is a structural slab, the plate can be chemically anchored with the edge distance and embedment sized for the substrate, and the penetration is fire-stopped and detailed against the waterproofing as a curb or pocket. If the answer is insulation and a screed, the plate cannot be anchored to it, and the options are a cast-in spigot set at slab level before the finishes go down, or a through-fixing to a plate on the soffit. The third case, a lightweight deck with no uplift capacity at all, is the one where the tree moves back inside the building and the design changes rather than the fixing.
Ballast still has a place on a rooftop, and its place is bounded by arithmetic rather than by preference. Using the overturning conversion above, a tree whose base moment is around 2.3 kN·m needs roughly 200 kg in a 1.2 m planter, which a two-person crew and a lift can handle. A tree at the same exposure with twice the moment needs about 400 kg, which is deliverable but awkward; beyond that the collar becomes a structural element in its own right, needs its own load check on the slab, and still has to be restrained against sliding. The honest crossover on an exposed roof is somewhere around 3–4 m, and above it a base plate is the lower-risk answer even though it looks like more work.
How layout should be fixed, and what the parapet really does
Four layout rules do most of the work, and all four are cheaper to apply than to litigate.
Keep the tree out of the corner zone unless the design is sized for it. Where a corner placement is required by the design intent, accept that this tree is the critical case and detail it individually rather than reusing the standard detail from the row.
Keep a crown diameter between the tree and the parapet if the reduced field-of-roof value is what the design depends on. A parapet is often assumed to shelter whatever stands behind it, and it does shelter the base — but the crown is above the parapet line, and the pressure reduction applies to an object sitting well within the parapet's wake.
Do not claim shielding from other trees, and do not design a row as if the windward tree protects the rest. Design each tree at the free-stream value for its own zone, then use the row only to share the restraint where it genuinely can be shared: a tie that links several planter bases converts several small point loads into one distributed load path, which is a legitimate and often cheaper strategy than anchoring each tree individually.
Check what else is on the roof. Air-cooled condensers, exhaust stacks and cooling tower intakes create local flow that a layout drawing does not show, and a tree placed in that discharge is loaded continuously rather than seasonally. Cable trays, drainage gullies and lightning protection runs all occupy the slab the tree wants to drill into.
None of these are reasons to abandon a rooftop planting scheme. An olive tree on a podium terrace is a well-established specification across Gulf mixed-use projects, and the same is true of a tall date palm in a resort pool surround, where the crown is deliberately sparse. The difference between a scheme that lasts and one that does not is whether the layout, the exposure class and the fixing were settled on the same drawing as the planting plan.
MEP coordination and the permanent inspection record
Rooftop MEP coordination is mostly about access and sequence. A tree above 6 m needs a hoisting point, and the crane or hoist load has to be checked against the slab and against the parapet height on the route in, because a crown that will not clear the parapet has to be lifted in pieces. Service runs should be routed so the tree's base plate does not sit on the maintenance route to the air handling unit it shares the roof with. And the base detail should end with something that can be inspected in year three: a photograph of the plate and fixings against the approved shop drawing, taken before the paving is reinstated, plus a documented re-torque visit at around 30 days and a second at 12 months.
This is also the point where the rooftop case converges with the interior one. A hotel atrium tree and a podium tree fail for the same reason when the base detail is left to the last week of the programme, and they fail in the same place: at the interface between a load that was computed and a penetration that was not detailed.
6. Commercial Contractor FAQs
Q: Can shielding from other trees be claimed to reduce the wind load on a rooftop tree?
A: No, and the assumption is worth removing from the design at the first review. Rooftop structures are designed against the free-stream pressure for their own roof zone, without a shielding credit, because wind direction is not fixed and the wake behind a porous canopy is not a dependable shield. Tightly grouped trees can in fact load each other harder where flow accelerates between them. If restraint can genuinely be shared, the correct way to use that is to tie the bases together into one load path, not to reduce the design pressure.
Q: How close can a rooftop artificial tree stand to a parapet or a roof edge?
A: Distance from the parapet changes the applicable zone, so it changes the fixing rather than only the pressure. A tree standing in the field zone, roughly 3 m or more clear of any parapet, can usually be held by a ballast collar at 2–3 m height. The same tree inside about 1.2 m of a parapet, or at a corner where two parapets meet, falls into the edge or corner zone and should be designed for the higher pressure and tied down. A parapet shelters the base of a tree, not the crown above it.
Q: Ballast or base plate — which fixing belongs on a rooftop?
A: The base moment decides. Dividing the overturning moment by the planter's half-width gives the mass required: a tree at roughly 2.3 kN·m of base moment needs about 200 kg in a 1.2 m planter, and one at twice that moment needs about 400 kg, which is where the collar starts to need its own slab check. On an exposed roof the practical crossover is around 3–4 m of tree height, above which a base plate with chemical anchors into the structural slab is the lower-risk option. Ballast remains a reasonable choice in sheltered courtyards and interior atria.
Q: What should the wind-load submittal contain before anchors are ordered?
A: Seven items. The site basic wind speed and the exposure category; the design pressure with the site factors applied; the gust-effect factor; the canopy force coefficient and the effective area with the assumed solidity stated; the resulting base moment; the fixing design with anchor type, embedment, edge distance and substrate confirmed; and the slab check or the fire-stopped penetration detail where the plate passes through a rated assembly or waterproofing. If a submittal states only the tree height and a wind rating, with no pressure and no effective area, the anchors underneath it have not been designed.
Conclusion: Fix the Layout Before You Detail the Anchor
On a rooftop, the layout is the load case. A tree in a corner sees roughly double the pressure of the same tree in the middle of the deck, a parapet shelters its base but not its crown, and no neighbouring tree can be counted on to break the wind for it. Those three facts decide whether the fixing is a ballast collar that two people can position or a base plate anchored into the structural slab through a fire-stopped penetration, and all of them are answerable on the planting plan before a single hold-down is priced.
