Executive Summary
On a giga-project, an artificial tree package is released for manufacture only after six document gates clear, and the drawing set - not the 25-35 day factory build - sets the real lead time. A 6 m palm is built on a Q235 hot-dip galvanized steel core at Ø76 mm, a 3.5 mm wall and a minimum 85 µm zinc coating to ISO 1461. What authorises it is four drawings, one structural calculation report, one physical finish swatch and one fire test certificate. Each returned revision cycle costs 10-15 working days; three returns cost six weeks.
Landscaping packages on programmes the size of NEOM or the Red Sea developments are not approved by the person who will eventually plant the tree. They are approved by a consultant's document controller who has never met the supplier, holds four hundred other submittals, and returns anything that does not fit the project register format. To that reviewer the drawing set is the product.
1. Failure Modes & Commercial Pitfalls
A package that satisfies an in-house buyer is not the same as one that satisfies a consultant. The difference shows up as returned submittals, and every return burns schedule the factory cannot recover, because the mould sits idle while the delivery date stays where it was.
Five patterns account for most of the lost time.
The sheet is technically right but administratively inadmissible. It arrives without the project's title block, drawing-number prefix, revision code or sheet size. Document control rejects it before an engineer reads it. One full cycle disappears, 10-15 working days, with no technical comment returned at all.
The setting-out drawing and the structural calculation describe different trees. The setting-out sheet shows a 6 m specimen while the calculation checks a 5 m core and a smaller base plate. A reviewer who finds that contradiction cannot approve either document, so the package returns as a whole and the correction cascades into the anchor schedule.
Height or grade changes are agreed on site and never reach the revision. The crown is manufactured to a superseded sheet, and the error surfaces when the crate is opened at the hotel atrium it was destined for. A four to six week rebuild follows, plus airfreight if the opening date is already fixed.
The calculation report is missing or unsigned. A drawing that cannot be verified is not approved, however accurate its geometry. Suppliers who issue shape without load path leave the structural reviewer with nothing to check, so the submittal is simply held until the numbers arrive.
Unit and scale errors survive review. Trunk diameter written as 76 cm rather than 76 mm; a detail drawn at 1:100 while the sheet key says 1:50; a DWG exported in a version the consultant's software cannot open cleanly. Each of these is a return, and each return is a two to three week round trip once the comment sheet, the correction and the re-issue are counted.
The commercial cost is not the drafting fee. It is that a package which should occupy eight weeks of programme occupies fifteen, and the space opens with temporary planting.
2. Material Science & Structural Engineering Standards
The drawing is where a material specification stops being a sentence and becomes a buildable instruction. Three details carry most of the risk.

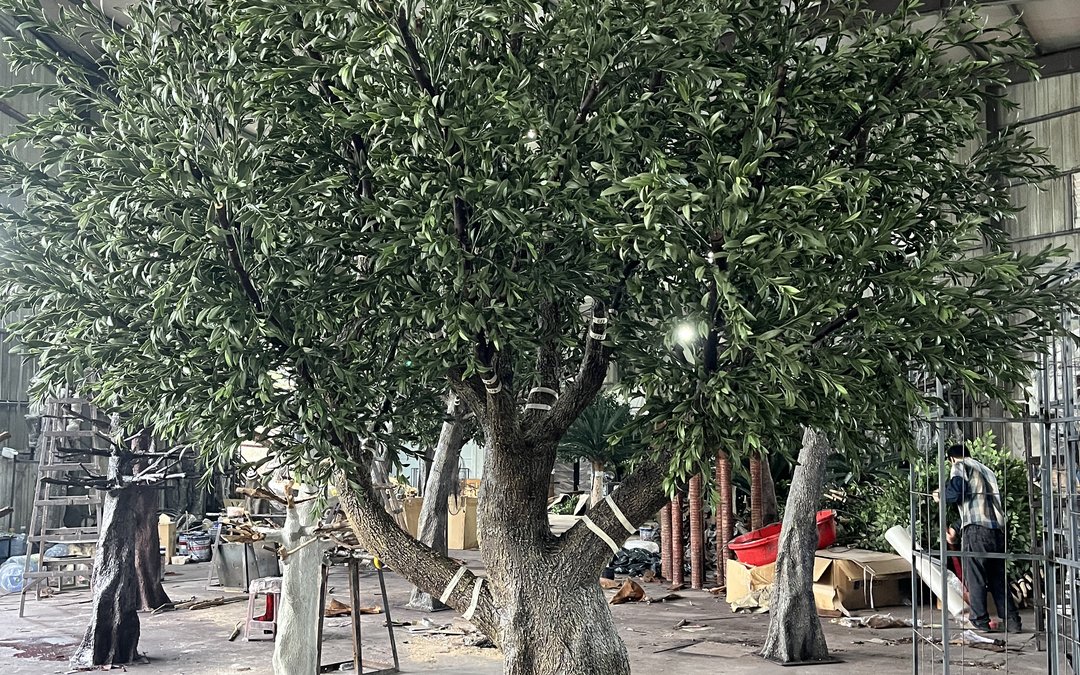

Steel core. Commercial trees above 3 m run a Q235 hot-dip galvanized core in the Ø48-76 mm band, with wall thickness rising across that band. The trunk section detail must state the core diameter, the wall thickness and the galvanizing class, because the calculation report checks exactly those numbers. On coastal sites the protective system usually moves from plain ISO 1461 galvanizing to a duplex coating, and the drawing has to carry that change. A sheet that says only "galvanized steel core" cannot be verified and will come back.

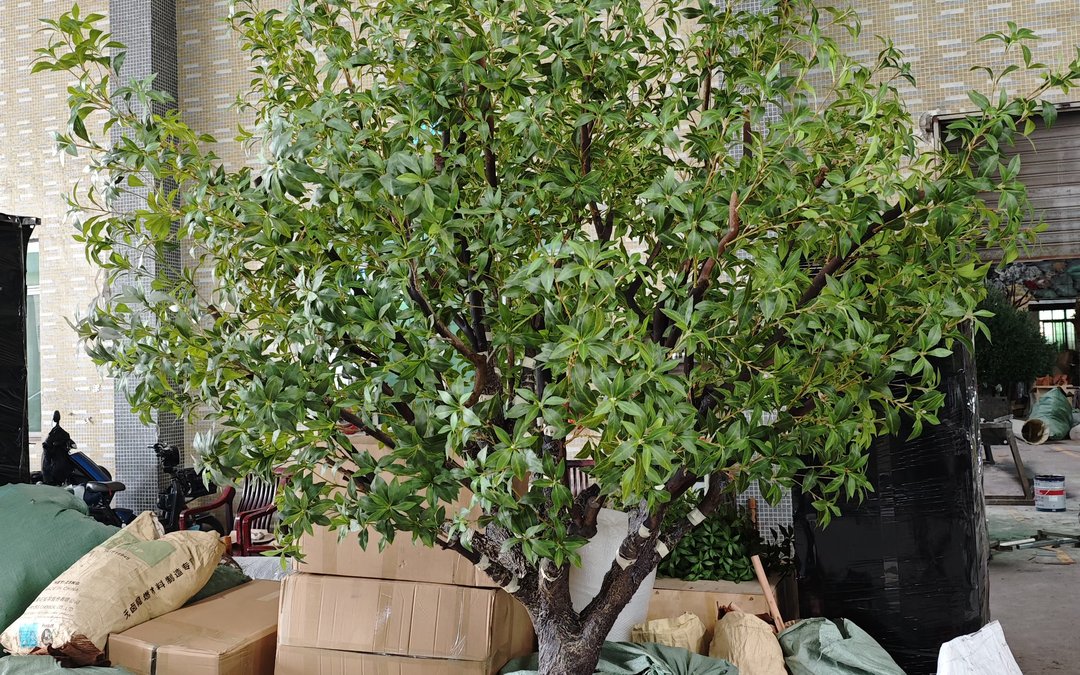

Trunk finish. Hand-sculpted fibreglass bark with visible ring texture is the durable option. Synthetic foam is lighter and cheaper but creeps under sustained load and cannot be repaired in place, which is why foam should be excluded from the connection zone by note rather than left to workshop discretion.
Foliage. Injection-moulded PE foliage holds colour under constant illumination and cleans with water; silk carries a finer silhouette but fades and traps dust. Density is specified as a range, typically 1,800-3,200 leaves/m³, and the foliage schedule on the drawing should name the species, the leaf form, the colour code and the physical swatch reference. Colour cannot travel inside a DWG file: two 6 m date palm crowns from different production batches can sit two or three steps apart on a colour fan. The approved swatch is the contract document, and the sheet only points at it.
The engineering calculations that sit behind those notes are what convert a visual specification into a submittal a consultant can sign.
3. Life Safety, Fire Codes & Environmental Compliance
Fire evidence travels in the same register as the geometry, and an incomplete fire package holds a tree just as effectively as an unapproved drawing.
For indoor installations the foliage is tested to NFPA 701, Method 1 or Method 2 depending on the specimen mass per unit area. For European and GCC submissions the same material is classified under EN 13501-1, most often B-s1,d0, where the three groups answer three separate questions: contribution to fire, smoke production, and burning droplets. A certificate quoting "Class B1" without the s1 and d0 suffixes answers only the first of them, and consultants increasingly return it.
The distinction that matters commercially is inherent flame retardance against a topical treatment. A spray or dip sits on the leaf surface and abrades away in cleaning, while a flame-retardant polymer is part of the leaf itself. Submittals should therefore carry the test report for the finished foliage rather than a certificate for the raw resin, and the report should name the colour and density actually ordered.
In sealed indoor environments, material declarations covering volatile organic compounds and odour matter because the HVAC system recirculates. Roofed atriums with low air change rates concentrate any residual monomer smell, so a low-VOC declaration belongs in the package even where no authority formally demands one.
Two administrative points save a round trip. The certificate has to be traceable to the production batch, and the fire consultant who reviews the package is rarely the one who reviewed the geometry. A self-contained document set, with the same drawing numbers and the same revision code on every sheet, is read faster by both.
4. Technical Comparison Table
The table below is the summary sheet most reviewers ask for: one row per height band, carrying the numbers that drive the core, the base plate and the anchor group. It reflects interior and exterior build standards for large commercial trees. A specification for a Mediterranean olive tree and a full commercial atrium package follow the same column logic.
| Tree Height (m) | Minimum Core Steel Ø (mm) | Leaf Density (leaves/m³) | Floor Live Load & Ballast (kg) | Application | Indoor/Outdoor |
|---|---|---|---|---|---|
| 2-3 | 48 | 1,800-2,200 | 90-140 (ballast collar) | Corporate HQ reception | Indoor |
| 3-4 | 60 | 2,000-2,400 | 120-180 (ballast collar) | 5-star hotel atrium | Indoor |
| 4-6 | 60 | 2,200-2,600 | 150-220 (collar or base plate) | Airport VIP lounge | Indoor |
| 6-8 | 60-76 | 2,400-2,800 | 250-400 (cast-in base plate) | Mall atrium | Indoor |
| 8-10 | 76 | 2,600-3,200 | 400-600 (plate plus uplift check) | Seaside resort | Outdoor |
| 10-12 | 76 | 2,600-3,200 | 500-750 (plated, braced core) | Theme park plaza | Outdoor |
The 6-8 m band generates the most rework, because it sits at the transition between a ballasted collar planter and a cast-in base plate. On a mall project the floor finish is normally laid after the structure is complete, so the plate detail has to fix the finished floor level before that floor exists. Ballast figures are project values, not catalogue values: they depend on the exposure category, the height of the tree above the restraint point and the wind speed the structural engineer adopts for the site.
5. Structural Anchoring & MEP Coordination
The anchoring sheet is the one drawing that cannot be corrected later, so it carries the most coordination information per square metre.
A complete anchor detail shows the plate footprint, the plate thickness, the anchor group layout with edge distance and spacing, the embedment depth, and the setting-out datum referenced to the finished floor level. Cast-in anchors are the practical choice while the slab is still open; post-installed chemical anchors suit a finished slab but carry reduced capacity factors when the group sits close to an edge or a construction joint. Where the slab is post-tensioned, the plate has to be set out around the tendon layout, and that constraint belongs on the drawing rather than in a site instruction.

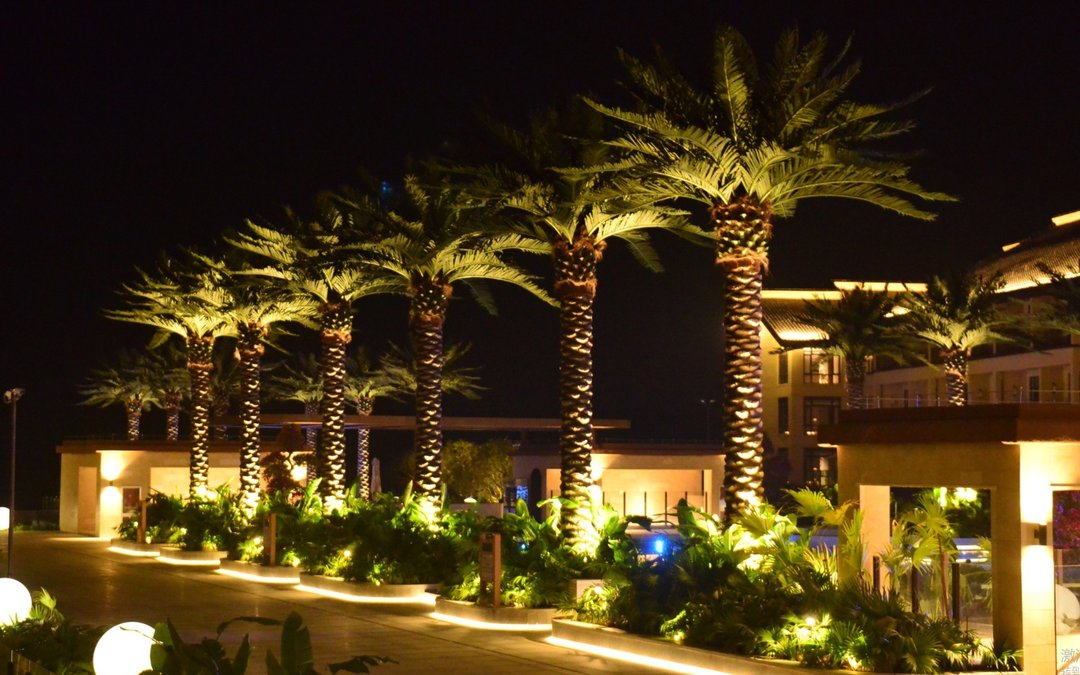

MEP coordination is what turns a good detail into an installable one. Three items recur on every roofed project. Sprinkler heads must keep their throw clear of the canopy, so the canopy envelope is drawn as a keep-clear volume rather than assumed. A power provision for the uplight circuit needs a floor box or a conduit sleeve set out relative to the base plate, because cutting the floor finish after handover is expensive. Air curtain and diffuser positions matter on exterior entrances, where a high-velocity discharge can load a slender trunk.
Close-out documentation closes the loop. The as-built base plate drawing, the anchor proof-load record at 1.5 times the design tension, and the packing list keyed to the drawing numbers travel together, so the contractor who installs the tree is reading the same revision the consultant approved.
6. Commercial Contractor FAQs
Q: What does a complete submittal package for a large artificial tree contain?
A: Four drawings, one calculation report, one sample set and the fire evidence. The drawing register covers the general arrangement, the setting-out and anchor plan, the trunk and base plate detail, and the as-built sheet released at handover. The calculation report covers the core section, the base plate and the anchor group. The sample set is a colour swatch and a foliage sample that match the ordered batch, and the fire evidence is the test report for the finished foliage.
Q: How much does the approval process add to lead time?
A: Two to three weeks per review cycle, and a typical first submission takes two cycles. Production of 25-35 days for standard heights starts from the release-for-manufacture date, not from the purchase order, so a package approved in week six delivers in week eleven or later. A well-formed first submission that clears without a comment is the single largest schedule saving available on a project of this kind.
Q: Can drawings be issued in the consultant's own DWG template?
A: Yes, provided the drawing frame, layers, text styles and units are supplied up front. Suppliers normally work in a generic template, so the project CAD standard has to be issued with the enquiry rather than with the first submittal. Where a project only issues PDFs, the same sheet set can be delivered as vector PDF at the project's sheet size, with the revision code in the file name.
Q: Who owns the anchor design, the tree supplier or the structural engineer of record?
A: The engineer of record owns the capacity of the slab and confirms the allowable tension per anchor. The tree supplier provides the loads, the plate geometry and the anchor layout that carry those loads, and the calculation report demonstrates the link. On most contracts the drawing is issued as a delegated design and stamped back by the engineer of record, which is why the loads have to appear on the sheet rather than only in the report.
Q: What happens if a tree arrives with the wrong trunk diameter?
A: The plate and anchor group usually stay correct, because the base detail is driven by the largest tree in the package rather than by the individual specimen. The visible consequence is a base plate that reads oversized against a slim trunk, and a hole pattern that no longer matches a replacement tree. Correcting it after handover means re-drilling a finished floor slab, which is the outcome the drawing review is meant to prevent.
