"Foliage Attachment and Molded Bark Texture on Large Artificial Trees: How the Leaf-to-Branch Joint Drives Leaf Drop and Re-Foliation Cost"

Executive Summary

Leaf retention on a commercial artificial tree is decided by the leaf-to-branch joint, not by the leaf. A molded PE frond seated in a keyed socket on a 3–5 mm fiberglass bark shell over a Ø48–76 mm galvanized steel core should hold a 25–35 N pull-out when new and keep at least 70% of that after five cleaning cycles. A glued or taped frond starts shedding in its first hot season under glass.

Two details carry that number: the stem root where the frond enters the branch, and the molded bark relief that hides and protects the joint. Both are inspectable on a sample in minutes, and both are cheaper to settle before production than to repair in a trading atrium.

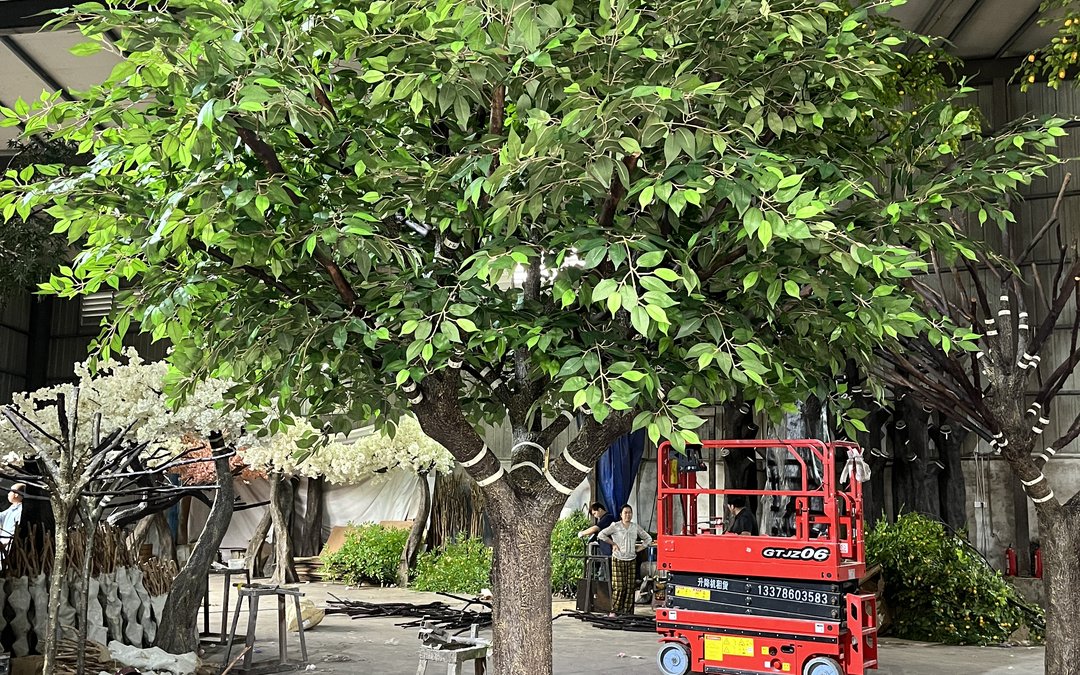

A large ficus build in the production yard with the trunk banded for handling, photographed at full canopy height beside the lift used to dress it.

1. Failure Modes & Commercial Pitfalls

The four attachment shortcuts below account for most of the leaf drop reported on large installations, and each one fails in a different way.

Glue alone is not a joint. Hot-melt and contact adhesives are the fastest way to dress a crown, and they are the first thing to fail in a space with a glass roof. Surface temperatures on dark foliage under an atrium roof in the Gulf commonly sit at 45–55 °C in the afternoon, which is inside the softening range of common hot-melt grades. The adhesive creeps, the frond rotates in its seat and eventually releases. The failure is not dramatic: a canopy loses three or four fronds a week, the floor-cleaning contractor is the first to notice, and by the time anyone inspects it the joint that failed is indistinguishable from the twenty next to it that are about to.

Tape and twisted wire abrade the stem root. A wire loop or a wrap of tape around a molded stem root works well enough in the workshop. In service, every cleaning pass, every lift-based dusting and every air movement from a diffuser works that contact point. The molded root wears through its surface, loses the flare that held it in the socket, and the frond becomes a loose item that can be pulled out by a visitor's hand at eye level.

Staples and heat-staking into a thin shell. Fastening a frond directly to a 1–2 mm sprayed skin loads a single point in a material with no reinforcement behind it. The fastener tears a clean hole, the hole opens with each cleaning cycle, and the repair is no longer a frond replacement — the branch section has to be re-skinned.

What a shedding canopy costs in a trading space. A canopy that loses fronds is not only a cleaning problem. On a 6 m tree carrying roughly 2,400–2,800 leaves/m³, loss reads as thinning from the mezzanine long before anyone sees a frond on the floor, and a thin upper canopy is exactly what the designer was trying to avoid when the tree was specified. The commercial consequences stack in a predictable order: extra cleaning visits, an appearance complaint from the tenant or the operator, an attempted re-foliation from a platform at night-shift rates, and — if no matching spare foliage was supplied with the order — the replacement of a whole branch section or crown, in a color that no longer matches the rest of the tree.

The repair that cannot be matched. Spares ordered separately, months later, come from a different masterbatch lot. Two batches of the same nominal green can sit 3–6 ΔE apart under a 4,000 K LED wash, which is visible on a canopy seen from below. The cost of that mismatch is not the spare part; it is the second visit, the lift, and the decision to live with a visible patch.

2. Material Science & Structural Engineering Standards

The four attachment routes, and where each one belongs

Keyed socket with a molded stem root. The frond stem is molded with a flare and a locating key, and the branch carries a matching boss bonded into the shell. Load goes into the boss, then into the shell wall, then into the core. This is the only route that behaves as a designed joint, and it is the one to specify on anything above roughly 3 m or anything within reach of the public.

Ultrasonic or heat-staked weld. A PE stem welded to a PE branch is a homogeneous joint and holds well, provided the branch material is the same polymer. An ultrasonic weld onto a blended or painted surface is a different proposition, and its pull-out scatter across a production batch is wide enough to require sampling.

Mechanical clip or retaining ring. A clip, split ring or silicone boot around a molded root is a legitimate secondary retention device. It also adds a small part that can be omitted on site, so the specification has to treat it as a controlled component rather than an accessory.

Adhesive-only. Acceptable only for short-cycle interior props, in spaces with no direct solar gain, on units below about 3 m. It should never appear in a hotel atrium or a commercial atrium specification, because the two conditions that kill hot-melt — surface heat and repeated cleaning — are both present there.

Pull-out and retention values worth writing into the specification

Attachment performance is not covered by a single international standard, so the practical route is to write acceptance criteria into the purchase specification and test them on the first article. Four figures do most of the work:

• Initial pull-out: 25–35 N per frond, tested axially on a sample of at least ten fronds taken from different branch positions. Below 25 N, handling and cleaning will release foliage.
• Retention after cleaning: ≥ 70% of initial after five simulated damp-wipe passes on the same fronds.
• Conditioning before re-test: 72 hours at 50 °C and 90% relative humidity, then repeat the pull-out. This single step separates a joint that is mechanically retained from one that is merely stuck.
• Loss allowance in transit: under 1% of dressed fronds per crate, counted at unloading and photographed before the crate is opened fully.

A 6 m canopy typically carries 900–1,400 frond clusters. Dressing runs at 120–200 clusters per person-hour once the branchwork is positioned, which puts the dressing stage of one large tree at 6–10 person-hours — and that figure is the reason a weak joint is tempting to a workshop under schedule pressure, and the reason it is worth testing.

Bark relief is a substrate, not just a finish

Molded bark does two jobs, and the second one is usually overlooked in the sample review. The first is appearance: relief depth of roughly 0.8–2.0 mm over a 3–5 mm shell reproduces the ring pattern and hard cut edges of the master trunk when the mold is taken from a real one. The second job is structural — the relief gives the attachment system somewhere to sit. Sockets and bosses are bonded through the shell, and the bark relief hides the joint line so that the finished canopy reads as foliage growing from wood rather than foliage pushed into a tube.

Specify attachment sockets, not just a texture sample. A bark swatch that shows convincing relief tells you nothing about what is behind it. The sample review should ask for the branch section to be cut or sectioned, so the boss, the shell thickness and the core are visible at the joint.

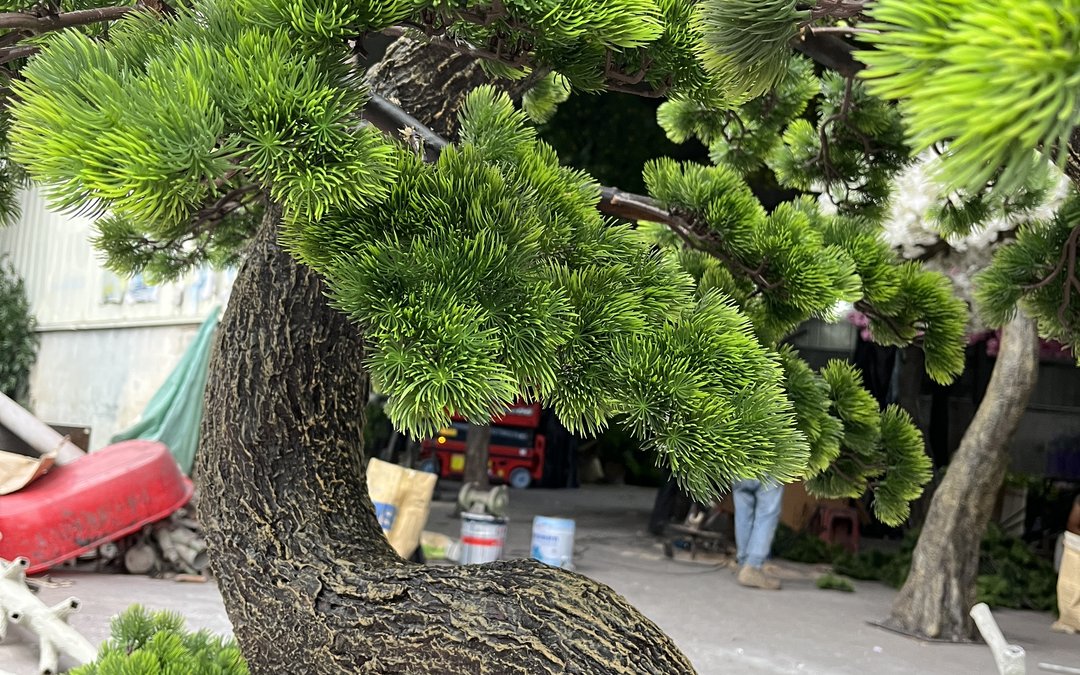

Molded bark relief on a pine-style trunk, shown at the depth the master pattern carries — the same substrate that holds the attachment bosses.

Why spares must come from the same masterbatch

Every frond in an order should be drawn from one pigment lot, and the spare allowance should be produced inside the same run, not ordered afterwards. A target of ΔE ≤ 2.0 against the installed canopy is achievable when the spares are made from the same compound; it is not achievable when they are made from a later batch. The commercial consequence is simple: a spare frond that matches is a ten-minute repair and a spare frond that does not is a branch replacement.

Transport is the first attachment test

Attachment is stressed hardest before the tree is ever installed. The photographs on this page show the two protections that matter: banding around the trunk and main branches, and a full mesh wrap over the branchwork. Both exist to stop the canopy loading its own joints under vibration. Banding that is tied too tightly creases foliage against a branch and leaves a permanent line; mesh that is fitted loosely allows clusters to rub against each other for the length of a sea leg.

The inspection that catches this costs one person and forty minutes per container: count released fronds per crate, photograph the counts, and compare against the loss allowance. A crate arriving with more than 1% of its fronds loose points back to the joint, not to the freight.

3. Life Safety, Fire Codes & Environmental Compliance

Fire performance is tested as an assembly, and the attachment method is part of that assembly. A flame-retardant foliage material quoted to NFPA 701 (Method 1 and Method 2) on its own does not cover a non-compliant adhesive, a PVC tape or a foam fastener added afterwards. For GCC and European tenders, the equivalent route is EN 13501-1 Class B1-s1, d0, again assessed on the supplied construction rather than on the leaf film alone.

Three practical consequences follow:

Substitutions after the test invalidate it. Changing a clip, an adhesive or a retaining boot between the tested sample and the production run is a change to the tested assembly. If the design has to change, the fire documentation has to be re-issued for the revised build.

Cleaning chemistry has to be compatible with the joint. Solvent-based cleaners attack hot-melt adhesives and can stress-crack molded shells. A pH-neutral detergent and a damp microfiber wipe protect both the surface and the joint, and the cleaning contractor should be told which products are approved rather than left to choose.

Indoor air quality. Adhesives used at the joint are the small-volume, high-odour component of an artificial tree. In a sealed commercial atrium with recirculated air, a low-VOC, low-odor adhesive system is the specification, and the odor test should be done on the finished unit in a closed room rather than on a raw sample.

4. Technical Comparison Table

The table below sets the attachment build against the structural figures that the same tree has to carry. Heights and core sizes follow the standard range for large commercial builds; the attachment column is the decision this article is about.

Read the attachment column together with the height column, not on its own. Below 5 m, a glued frond will survive a decade in a low-heat interior, and there is no reason to pay for a socket. Above 5 m, or anywhere the public can reach the canopy, the joint becomes the component that decides the maintenance cost of the whole installation — and the price difference between a keyed socket and a glued frond is a small fraction of one night-shift re-foliation.

5. Structural Anchoring & MEP Coordination

The load path has to be continuous. A frond carries almost no load, but the sum of the canopy does: wind pressure on a 10 m outdoor crown, accidental contact at floor level, and the concentrated pull of a person leaning on a low branch all travel the same path — frond to socket, socket to shell, shell to core, core to base. If the socket is bonded into a 1 mm skin rather than a reinforced boss, the path is broken at the first link, and the base plate is carrying a canopy that is no longer attached to it properly.

Anchoring method follows the slab, not the tree. Where the slab can be drilled, a custom anchor set — cast-in or chemical — takes the overturning moment directly. Where drilling is barred, a ballast collar carries it through self-weight, and the ballast figure should be set from the overturning calculation rather than from an assumption. Both routes assume the canopy is intact; a shedding canopy changes the wind area, and the calculation is only valid for the specified density.

Cleaning and re-foliation access. The photographs here show how the work is actually done: a scissor lift or platform positioned beside the trunk, with the canopy dressed or cleaned from above and the trunk protected by banding. That access requirement is a design input. A tree placed against a glass wall with no lift footprint is a tree that cannot be re-foliated, and it should be moved at design stage rather than discovered at the first maintenance visit.

MEP coordination. Supply diffusers pointed straight into a canopy work the attachment continuously, and a return grille close to foliage pulls dust into the joint line; both are worth a note on the reflected ceiling plan. Sprinkler clearance matters for the same reason it matters on any large feature: a canopy that blocks a deflector is a handover comment, and repositioning an installed tree is a second mobilisation.

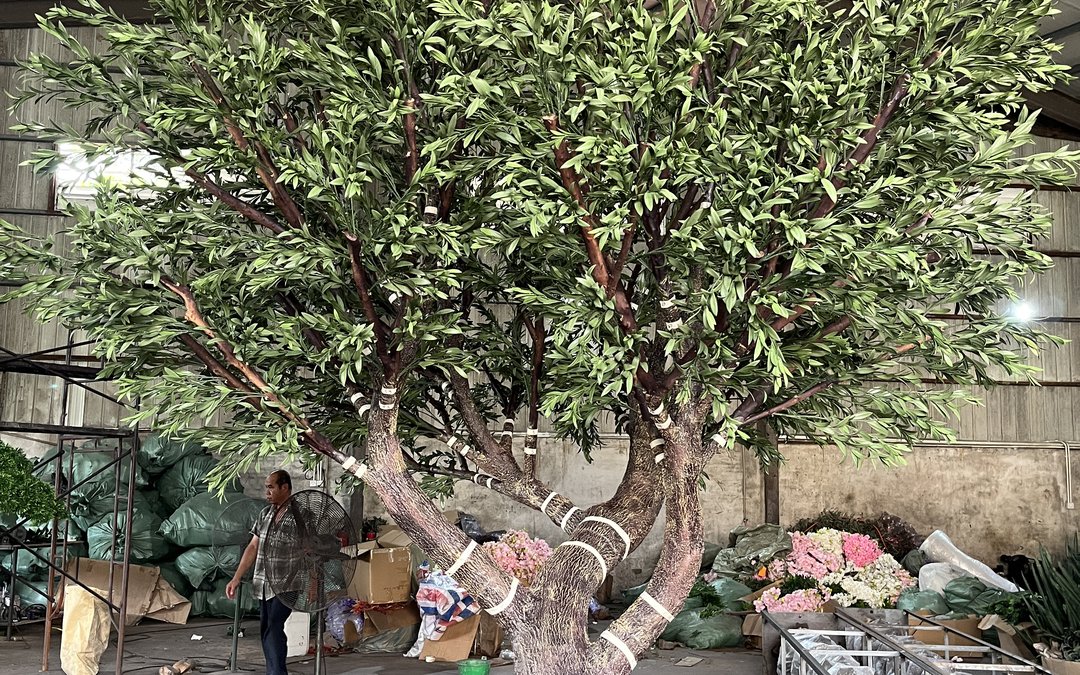

An olive-style build in the workshop with trunk and branchwork wrapped in mesh before crating, showing how much of the branch geometry is dressed by hand.

6. Commercial Contractor FAQs

Q: How do I check leaf attachment on a sample before approving the order?

A: Ask for a branch section, not a loose frond. On a supplied branch, pick ten fronds from different positions, pull each one axially and record the release load — 25–35 N is the working band for a keyed socket on a commercial build. Then repeat after five damp-wipe passes; if the same fronds drop below 70% of their original figure, the joint is friction rather than retention. A supplier who can send a sectioned branch with the boss and shell visible is showing the joint, not the surface.

Q: Are glued fronds ever acceptable on a commercial project?

A: On short-cycle interior props below about 3 m, in a space without direct solar gain, adhesive attachment is a reasonable cost decision and will last years. In a glazed atrium, a hotel lobby or anything outdoors, adhesive is the wrong joint: surface temperatures in the 45–55 °C range sit inside the softening window of common hot-melt grades, and the cleaning cycle works the joint loose. The failure shows up as gradual thinning rather than a single event, which is why it is usually discovered late.

Q: What pull-out figure should go into the specification?

A: Specify 25–35 N initial pull-out, measured axially on ten fronds from different branch positions, with ≥ 70% retention after five damp-wipe cycles and a re-test after 72 hours at 50 °C and 90% relative humidity. Add a transit allowance of under 1% loose fronds per crate, counted and photographed at unloading. Those four figures give an inspector something to measure on the first article, which is the point — an attachment claim that cannot be measured on site is not a specification.

Q: How many spare fronds should be supplied, and how are they matched?

A: Carry 3–5% of dressed foliage as spares, produced inside the same production run and from the same masterbatch lot, and ask for the lot reference on the packing list. A spare frond made from the same compound matches the installed canopy to within about ΔE 2.0 under interior lighting; a frond ordered six months later from a new batch can sit 3–6 ΔE away, which is visible from the gallery level. Spares that match turn a repair into a ten-minute task.

Q: Can a single branch be re-foliated on site without dismantling the canopy?

A: Yes, when the tree was built as branch modules with keyed joints and the spare foliage came from the same lot. The branch is detached at its splice, dressed on the platform, and refitted; on a 6–10 m unit that is a night-window task rather than a project. The operation depends on two things fixed at the factory — the splice design and the spare color — and neither can be added later. If the canopy is one welded assembly, the same repair becomes a crown lift.

Q: Does adding a clip or an adhesive after the fire test affect the rating?

A: It can. NFPA 701 and EN 13501-1 assessments apply to the construction that was tested, and the attachment hardware, adhesive and any tape are part of that construction. Swapping a clip or introducing an adhesive after the test leaves the documentation describing a different assembly. If the design has to change, ask for the test evidence to be re-issued against the revised build rather than assuming the original report still covers it.

Conclusion: Settle the Joint Before You Settle the Leaf

The leaf is the visible decision and the joint is the load-bearing one. A specification that names a polymer and a color, and leaves the attachment method to the workshop, has left the most likely failure in service to the least supervised part of the process.
