Executive Summary
Artificial trees belong in MasterFormat Division 12 92 00 as interior planters and artificial plants, or Division 32 where they form part of exterior improvements. Six things should be fixed at Design Development rather than at handover: installed height, canopy diameter, base footprint, fire evidence, foliage build, and transport joints. Catalogue heights run 2-12 m, standard production is 25-35 days and 45-60 days above 6 m, and the standard that governs decorative vegetation is NFPA 701 under IFC Section 807.4.
A specification that carries those six items lets a contractor price the work, lets a fire officer accept it, and lets the base detail be built into the slab while the slab is still open. A specification that carries none of them pushes all six decisions into the construction phase, where each one is more expensive and slower to reverse.
1. What Goes Wrong Without This
The costly mistakes in this category are rarely material choices. They are decisions that were never made in the design set and therefore had to be made on site, under time pressure, by people who were not in the original conversation.
Start with where the tree sits in the project manual. Interior trees normally belong in MasterFormat Division 12 92 00, Interior Planters and Artificial Plants; trees that form part of exterior improvements belong in Division 32. A large steel-core tree crosses that boundary. If the section stops at appearance and dimensions, the base plate, the anchors and the slab interface have no home in the documents, and the submittal comes back asking which consultant owns the anchorage. The answer is a revised section and an RFI, and it tends to land in the middle of procurement, which is the least convenient week in the programme.
Fire evidence produces the same problem in another form. A supplier letter quoting "Class A" usually refers to ASTM E84, which describes surface burning of interior wall and ceiling finishes. A freestanding artificial tree is treated separately: the International Fire Code addresses artificial decorative vegetation at Section 807.4 and points to NFPA 701, which asks a different question. A project that accepts an E84 letter for a freestanding tree discovers the difference at inspection, after the tree is already standing in a hotel atrium. The specification should name the test method, the construction the sample was tested in, and the date of the report.

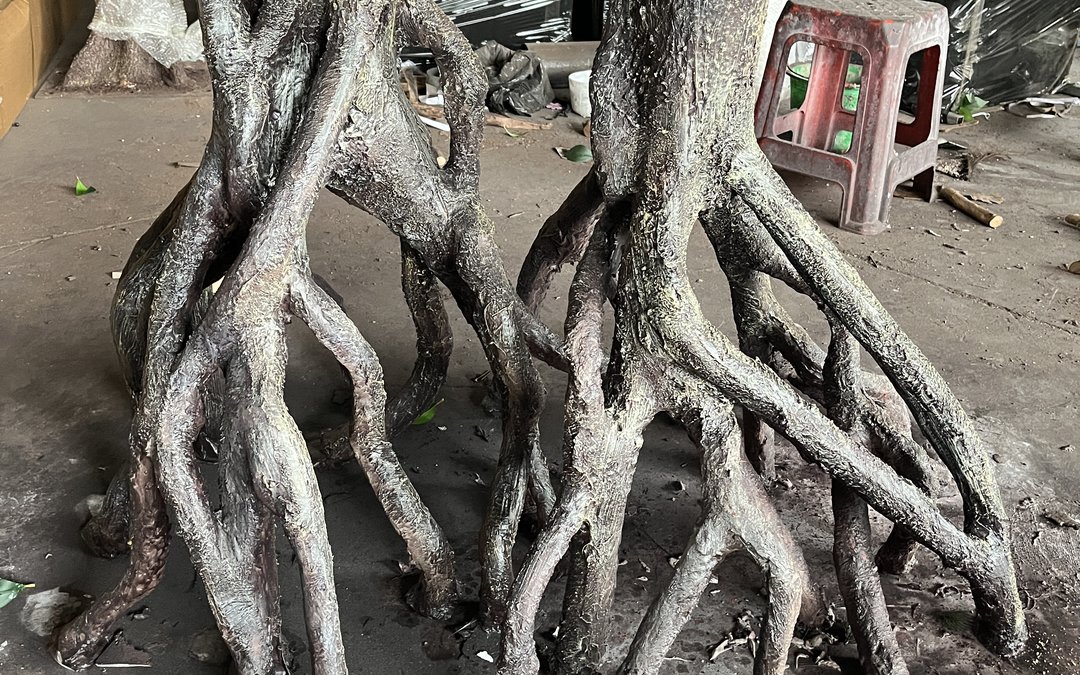

The base is the third late decision. A 6-12 m tree concentrates its load into a small footprint, and that footprint has to be settled while the slab is still exposed. When the tree is chosen after the stone or timber finish is laid, anchor positions are drilled into a finished surface, the repair is visible, and on a suspended slab the anchor design may need a structural review that nobody programmed. On mall landscaping and other phased retail work the sequence is worse, because the floor is often closed before the tree arrives on site.
The procurement window is the fourth issue. Furniture, fixtures and equipment selection usually falls in Design Development, and procurement, permitting and bidding follow in the next phase. A standard tree takes 25-35 days in production; anything above 6 m moves to 45-60 days, before freight. A tree specified at handover therefore arrives after the opening, and the opening date is not a variable that the supplier controls.
Transport is the fifth. A 9 m tree designed as a single assembly does not pass a service lift, a door head, or a standard crate. Whether it ships with engineered knock-down joints is a design decision that has to be taken before the armature is welded, because those joints are part of the frame rather than a packing detail added at the crate. Changing that decision after fabrication means rebuilding the tree, not repacking it.
2. The Decision Framework
The six decisions below are inexpensive on a drawing and expensive on site. Each carries a pass test that can be applied inside a design review, before any supplier is contacted.
1. Spec section and cross-references. Name Division 12 92 00 for interior work, or Division 32 where the tree belongs to the exterior package. Once a base plate, anchor or structural frame is involved, cross-reference the structural and fire sections from the plant section, and say who seals the calculation. Pass: a reviewer can find the anchorage requirement without hunting through a second document set. 2. Installed envelope. Fix finished height, canopy diameter and the clear zone around them, and put them on the plan. Catalogue heights run 2-12 m; a 5 m olive tree and a 10 m atrium ficus sit in different structural brackets and load at roughly 14 and 3 pieces per 40 ft HQ respectively. Pass: the envelope appears on the reflected ceiling plan and the floor plan, not only on a mood board. 3. Base footprint and fixing surface. State the fixing surface — slab on grade, suspended slab, raised floor or planter — and the thickness available for anchors, before finishes are scheduled. Where the tree is tall or custom, anchor and overturning design is a project-specific package of engineering calculations rather than a catalogue figure. Pass: the structural engineer of record holds the base footprint on a drawing. 4. Fire evidence. Name the code path and the test method, not the phrase "Class A". For artificial decorative vegetation the reference is NFPA 701 under IFC Section 807.4; ASTM E84 answers a different question; California Title 19 is a registration route rather than a test result. Pass: the section names the method, and the report still describes the construction being supplied. 5. Foliage and trunk build. Decide the visible build: steel armature with moulded fibreglass bark or foam, injection-moulded PE or silk foliage, and the UV performance expected behind glazing. Write it as performance and let the manufacturer propose the construction. Pass: the requirement can be checked on a physical sample rather than on a data sheet. 6. Transport and assembly. Fix whether the tree ships assembled or with engineered knock-down joints, and the maximum piece length the site can accept — lift dimensions, door head heights, and the route from the loading dock. Pass: the piece list and the crate plan exist before the purchase order is raised.
3. Numbers, Tiers and Timelines
The table collects the figures a design team is most often asked to defend in a review. Ranges describe standard catalogue production; project values are confirmed at quotation.
| Item | Typical Range or Tier | What Drives It | Decision Rule |
|---|---|---|---|
| Spec section | Division 12 92 00 interior · Division 32 exterior | Where the tree is fixed and which consultant reviews it | Cross-reference the structural and fire sections once a base plate is involved |
| Installed height | 2-12 m catalogue · 6 m and above moves to custom | Armature size and mould availability | Fix the envelope on plan at Design Development |
| Production lead time | 25-35 days standard · 45-60 days above 6 m | Armature fabrication plus foliage dressing | Place the order before the procurement phase opens |
| Container loading | 3-18 pieces per 40 ft HQ depending on model | Canopy volume and assembled or knock-down build | Decide the shipping build before the crate is designed |
| Fire evidence | NFPA 701 for decorative vegetation · EN 13501 B-s1,d0 for EU work | Which code the authority having jurisdiction applies | Name the test method, never the phrase Class A alone |
| Submittal turnaround | 5-10 working days for a complete package | Completeness of data, dimensions, material and fire reports | Send one coordinated package rather than four separate emails |
| Design phase window | Selection in Design Development · procurement in the next phase | Publication of the FF&E schedule | Lock the tree before the furniture schedule closes |
| Anchor design | Project-specific where the tree is tall or custom | Slab type, available thickness, wind and seismic criteria | Request a sealed calculation wherever the code calls for one |
4. How to Apply It to a Live Project
Each of the six decisions lands at a different point in the project, and the point is usually earlier than teams expect.
RFQ. Send the installed envelope, the fixing surface, the fire method the authority applies, and the maximum piece length the site can accept. A photograph on its own produces a quotation that cannot be compared with another supplier's, because it does not state whether the price includes the base plate, the anchors, or the transport joints. Catalogue ranges and typical applications are listed on the products pages.
Sample. Ask for a foliage colour swatch and a bark sample reviewed in the actual lighting condition, because glazed atrium daylight and warm interior lighting read differently on the same moulded PE. Where the tree is a feature piece, a small base mock-up on site is cheaper than a repair to a finished floor.
Shop drawings. A dimensioned drawing should carry the internal frame, the joint positions, the base plate, the anchor layout and the assembly sequence. Expect considerably more fabrication information than appeared in the construction set; that is normal. Anything that deviates from the basis of design belongs in a substitution or an RFI, rather than appearing quietly inside a fabrication drawing.
Production. Standard trees take 25-35 days, and anything above 6 m takes 45-60 days. Book that against the FF&E schedule rather than against the opening date, and confirm whether the price holds if the programme slips by a quarter.
Shipping. Confirm container loading per model: a 5 m canopy ficus is roughly 6 pieces per 40 ft HQ, an 8 m banyan roughly 4 when knocked down, and a 6 m date palm roughly 8. That number decides whether a second phase needs a container of its own or can share space.

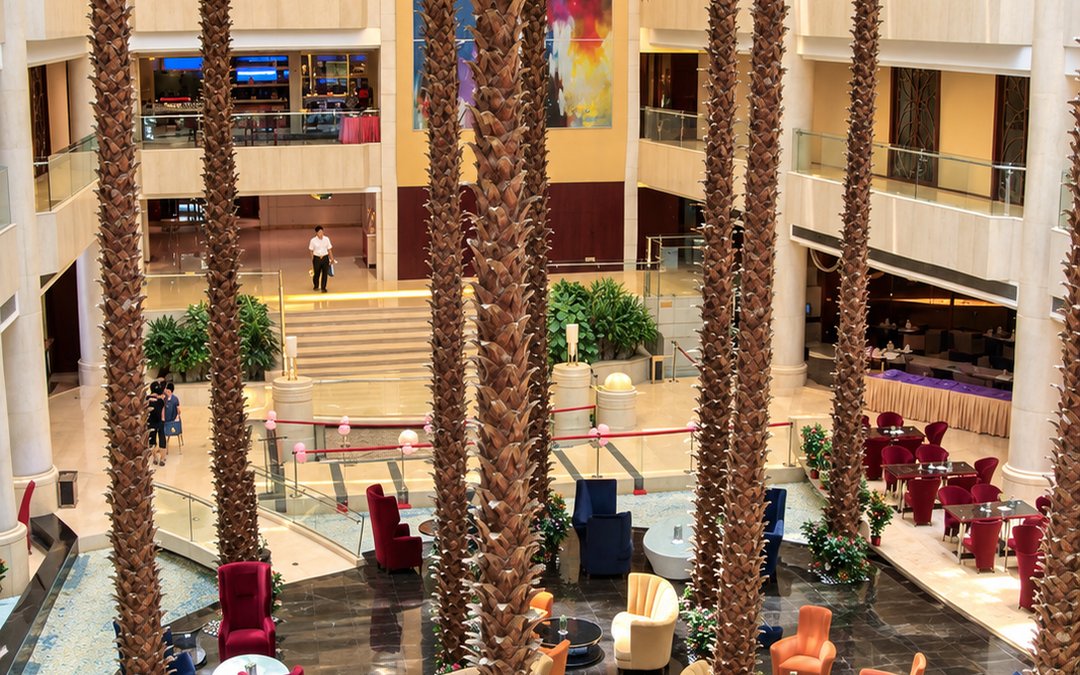

Installation. Where the canopy is dressed after the trunk is set, the tree has to go in before finishes and before the ceiling closes. The assembly order is a design deliverable, and it is worth writing into the section so that the main contractor can sequence it. Installed work across atrium, hospitality and retail settings is collected on the projects page.
5. Commercial Contractor FAQs
Q: At which design stage should large artificial trees be specified?
A: Design Development is the practical deadline for selection, because that is where the furniture, fixtures and equipment schedule is published and where procurement, permitting and bidding begin. The delivery sequence is longer than most teams assume: 25-35 days of standard production, 45-60 days above 6 m, then freight and site installation on top of both.
Q: Which MasterFormat section covers an artificial tree?
A: Interior trees are normally filed under Division 12 92 00, Interior Planters and Artificial Plants, and trees that belong to the exterior package sit under Division 32. Where a tree carries a steel frame, a base plate or anchorage, the plant section should cross-reference the structural and fire sections rather than absorbing them.
Q: What fire test does an authority having jurisdiction expect for a freestanding tree?
A: For artificial decorative vegetation the reference is NFPA 701, cited from the International Fire Code at Section 807.4. ASTM E84 Class A results describe surface burning of interior wall and ceiling finishes and answer a different question, which is why a generic letter so often fails at inspection. Where an EU project applies EN 13501, a B-s1,d0 classification can be specified instead.
Q: Does a large tree need stamped structural drawings?
A: Not every tree does. Short decorative pieces with no overturning demand are usually treated as furnishings. A tall, heavy, steel-core tree with real anchor demand can fall into the engineered-element review that a building department applies to other structural work, depending on classification, the adopted code and the authority having jurisdiction. The practical question is whether a sealed calculation can be produced for the project's own slab, wind and seismic criteria.
Q: How much floor area does the base occupy?
A: It varies with the model and the base or root design, but a large feature tree with a flared base spreads its support over a footprint wider than the trunk. The footprint needs to be on the floor plan before finishes are laid, because anchor positions are drilled once. Where the fixing surface is finished or suspended, the anchor design should be checked against that slab rather than assumed from a catalogue.
Q: Can a 9 m tree get into the building?
A: Only if the transport break points were designed in. Lift dimensions, door head heights and the route from the loading dock decide the maximum piece length, and that number has to reach the factory before the armature is built. Trees above 6 m are normally quoted with engineered joints and a crate plan so that the pieces can be moved by a normal site crew.
Conclusion: Fix the Six Items at Design Development
Every item on this checklist is cheap on a drawing and expensive on site, and the difference between the two is usually a single design review. If you are specifying large artificial trees and want the six decisions resolved in one pass, send us the plan, the ceiling section and the fixing surface. We will return a dimensioned proposal with the fire report, the base plate detail, the joint list and the loading figures, so that the package can go into the submittal without a second round.
