Executive Summary
An atrium tree package is almost never installed on the slab it was drawn against, and revision control is the mechanism that closes that gap. Three to five drawing revisions between concept and as-built is normal on a mall gallery; a stated drawing-freeze date about three weeks before production start protects the lead time; and each post-freeze change costs roughly 5–15 production days plus a site re-measurement visit on a 6 m unit.
The numbers that decide whether the programme survives are the slab level tolerance (±5 mm in a good handover, ±15 mm across a large slab), the base plate bolt pattern tolerance (±2 mm), and the shim allowance at the first splice (±20 mm). A package that leaves those to site improvisation is a package that opens late.
1. Failure Modes & Commercial Pitfalls
Approval on an unsurveyed slab. The drawing set is usually approved from the architect's layout, weeks before the floor is poured or the tenant shopfronts are set out. If the setting-out drawing is issued as "approved" rather than "approved subject to survey", the workshop starts a 6–10 m build on assumed geometry. The gap between the drawing and the finished slab on a large mall gallery is commonly 5–15 mm at the datum and considerably more at local high points, which is enough to put a base plate in the wrong place on a floor that no longer allows redrilling.
Revisions issued without version control. The most expensive failure has nothing to do with engineering. When revision B goes to the workshop on a chat thread and revision C goes to the site by email, two correct teams build two different trees. It surfaces at install, when a base plate bolt pattern does not match the module that arrives, and the remedy is not a phone call — it is a fabrication rework priced against a fixed opening date.
No freeze date. Production has a long tail: steel preparation, shell moulding and finishing, hand dressing of the canopy, crating and booking. If the drawing is allowed to move through that tail, every workshop instruction has to be re-verified after each change, and the critical path stops being manufacturing. A package without a defined freeze date has no meaningful lead time to quote against — only a range that gets revised at the first late change.
Re-measurement that was assumed, not programmed. Site measurement is described in most specifications as a contractor activity and in most programmes as a task nobody owns. On a mall gallery with hoarding, phased tenant handover and a ceiling grid going in above, the survey window is short and often needs a night booking. A survey that happens two weeks late pushes the base plate fixing, which pushes the canopy dressing, which pushes the handover — three trades queued behind one access booking.
Changes agreed verbally. A canopy diameter trimmed to clear a smoke detector, a branch removed to keep a sightline, a planter enlarged by a tenant's design team: each is small in isolation and none of them exists unless it is written down. Without a change record keyed to a revision number, the first question at handover — who pays for the second mobilisation — has no documented answer.
What a late programme costs. The opening date in a mall is fixed by the landlord's calendar, and it is usually the lease that carries the consequence. The visible cost is not the tree; it is the trading days, the hoarding left standing, and the penalty clause running while a snag list is worked through.
2. Material Science & Structural Engineering Standards
The dimensional chain, and where each tolerance sits
A tall artificial tree is a stack of tolerances, and the design decision is which interface absorbs the accumulated difference. Four links matter:
- Slab or deck level. A finished floor in a well-run handover sits within ±5 mm over the footprint of a base plate; an unfinished structural slab on a large gallery can run ±15 mm or more locally.
- Setting-out grid. Positions transferred from the drawing to site carry their own error, and on a gallery with columns and curved edges it is rarely better than ±10 mm.
- Base plate and bolt pattern. This is the tight link: ±2 mm on hole centres is achievable in the workshop and should be held, which means it cannot also be the link that absorbs site error.
- First splice above the base. This is the link that should absorb everything else. A shim allowance of ±20 mm at the first flanged splice, hidden inside the trunk section, takes up the difference without touching the anchor or the plate.
The rule that follows: hold the plate and the bolt pattern; let the splice take the error. A specification that tries to hold all four links to a workshop tolerance will be corrected on site, and site corrections on an installed base are the expensive kind.
What the survey has to capture, and in what order
The survey is not a tape measurement of the floor. On a mall atrium package it has four outputs, and each one can change a drawing:
1. Level and deviation at every tree position, recorded as a deviation figure rather than a spot level, because the base detail is set out from a design datum. 2. Slab condition and build-up — thin, un-reinforced or post-tensioned areas change the custom anchor design and may move a tree onto ballast instead of drilling. 3. Obstructions overhead — sprinkler deflectors, diffusers, return grilles, lighting track and structure, each with a clearance figure that either passes or does not. 4. Route survey — service door and lift envelope, which decides how many modules the tree arrives in and therefore how the set-out drawing is split. Service lifts around 1.6 m × 2.0 m and service doors around 0.9 m × 2.1 m are the usual constraints on a mall gallery, and a unit that does not pass them is assembled in place.
Module splits are a drawing decision, not a workshop decision
Where the tree is cut into modules is fixed by the survey, and it has to appear on the shop drawing before fabrication. Three constraints set it: the transport route, the dressed weight per module that the site lifting method can handle, and the requirement that every splice lands where the joint can be concealed inside the trunk or branch detail. A split that is decided in the workshop after the frame is welded is a split that shows.
Freeze the material schedule with the geometry

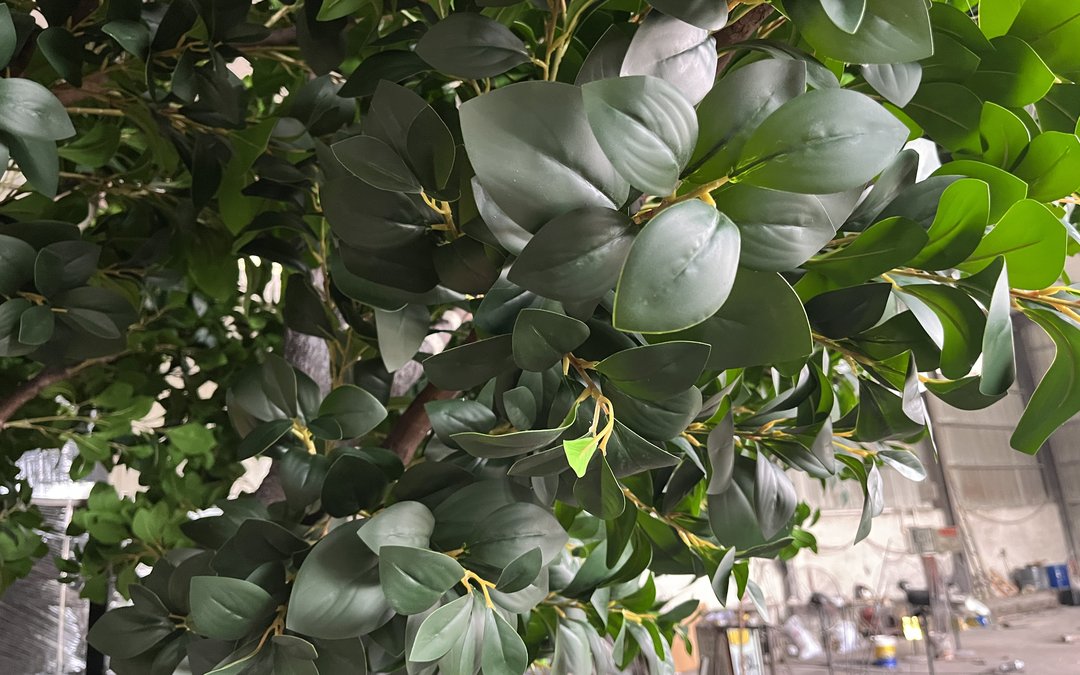

A drawing revision that changes a species, a foliage supplier or an adhesion system is a different change class from one that moves a position. Material substitutions invalidate the fire test assembly, the finish approval and usually the pigment lot that the spares were drawn from. For that reason the material schedule — foliage, trunk shell, core, coatings, fasteners and adhesives — should be frozen at the same time as the geometry, and any later substitution should be treated as a new submittal rather than a revision note.
Revision classes and what each one costs
Not all changes are equal, and treating them as equal is why lead-time conversations go badly. The classes below are the working split on a mid-size atrium package.
| Revision class | What it changes | Typical effect on lead time | Where it must be caught |
|---|---|---|---|
| Class 0 — clarification | Dimension note, no geometry change | 0–2 days, no resequencing | Drawing review |
| Class 1 — positioning | Base plate or tree position within the surveyed tolerance | 2–5 days; no fabrication impact if pre-freeze | Setting-out drawing |
| Class 2 — module split | Where the tree is cut, splice positions | 5–10 days; frame and shell work re-sequenced | Route and lift survey |
| Class 3 — geometry | Height, canopy diameter, trunk form | 10–20 days; new mould work in the worst case | Concept approval and freeze review |
| Class 4 — material or finish | Species, foliage type, coating, color lot | 15–25 days plus re-approval; fire and finish documents re-issued | Material schedule freeze |
| Class 5 — anchor method | Drill and chemical anchor versus ballast | 10–15 days plus a structural resubmission | Slab survey |
The useful discipline is not to forbid change; it is to name the class before the change is accepted, so that the effect on the programme is stated at the moment of the decision rather than discovered at the container booking.
3. Life Safety, Fire Codes & Environmental Compliance
Revision control is a compliance mechanism before it is a commercial one. Three points cover most of the exposure on a GCC atrium package.
Anchor and clearance changes are resubmissions. Any revision that touches the fixing method, the base detail or the clearance between the canopy and a sprinkler deflector leaves the approved set. Treating it as a note on the shop drawing rather than as a re-submittal is how a package reaches handover with a documentation set that no longer matches the installation.
Fire evidence belongs to a construction, not to a category. An NFPA 701 or EN 13501-1 Class B1-s1, d0 assessment covers the material build that was tested. A substitution of foliage, coating, adhesive or fastener is a change to that build, and the report has to be re-issued for the revised assembly. The material schedule freeze described above exists mainly to protect this evidence.
Civil defence review works from the submitted drawings. In the UAE, the approving authority works from the drawing set it received, so the version number on the submitted set has to match the version built. Where a change is unavoidable after approval, the revised set should go back through the same review path rather than being recorded only in a site instruction. The same principle applies to the mechanical coordination drawing: a canopy trimmed to clear a diffuser changes the reflected ceiling plan, and the operator's maintenance team needs the drawing that shows the final, as-built position.
Cleaning and maintenance documentation. The handover pack should carry the approved cleaning agents alongside the approved drawings, because solvents that were never assessed against the joint, the coating or the fire evidence are a common cause of undocumented material change in service.
4. Technical Comparison Table
The first table is the standard height and structure set for large commercial builds; the last column is the drawing item that has to be frozen for that class before production can be released.
| Tree Height (m) | Min Core Steel Ø (mm) | Leaf Density (leaves/m³) | Floor Live Load & Ballast (kg) | Freeze Item | Application | Indoor/Outdoor |
|---|---|---|---|---|---|---|
| 2–3 | Ø48 | 1,800–2,200 | 35–60 static; 4-point floor fixing | Base position only | Corporate HQ reception, indoor accent planting | Indoor |
| 4 | Ø48 | 2,000–2,400 | 60–110 static; 150 ballast where drilling is barred | Base position and planter interface | Restaurant divider planting, retail atrium | Indoor |
| 5 | Ø60 | 2,200–2,600 | 90–160 static; 240 ballast option | Base position, splice height | 5-star hotel atrium, airport VIP lounge | Indoor |
| 6 | Ø60 | 2,400–2,800 | 140–220 static; 320 ballast option | Base, splice height, module split | Mall atrium, hospitality lobby feature | Indoor |
| 7 | Ø60 | 2,400–2,800 | 180–260 static; engineered base plate | Base, module split, lifting points | Seaside resort porte-cochere under canopy | Outdoor |
| 8 | Ø76 | 2,600–3,000 | 220–340 static; ballast at 1.5× overturning moment | Base, module split, lifting points | Seaside resort poolside, city streetscape | Outdoor |
| 10 | Ø76 | 2,800–3,200 | 300–450 static; cast-in or chemical anchors | Full set plus site assembly sequence | Grand-void mall atrium, theme park entry plaza | Indoor/Outdoor |
| 12 | Ø76 | 3,000–3,200 | 400–600 static; engineered foundation per site | Full set plus temporary works and propping | Landmark plaza, theme park main promenade | Outdoor |
The second table is the programme view that a procurement team actually needs. It is a planning magnitude set, not a quoted schedule.
| Programme item | Typical magnitude | What drives it | Decision rule |
|---|---|---|---|
| Concept to approved shop drawing | 2–4 weeks, with 3–5 revision cycles | Survey availability, tenant design changes, authority comments | Do not release steel before the survey is closed |
| Drawing freeze before production | About 3 weeks on standard heights, 4–5 weeks above 8 m | Long-lead items: moulds, coatings, dressed canopy labour | Freeze the material schedule at the same time as geometry |
| Survey to base plate fixing | 3–7 days per zone | Access window, hoarding, cure time for grout or anchor resin | Book the survey before the fit-out start, not after |
| Post-freeze Class 2 change | 5–10 days | Frame and shell re-sequencing | Price it before it is accepted, not after |
| Post-freeze Class 3 change | 10–20 days, or a new mould lead time | Canopy geometry, trunk form | Route it back through freeze review |
| Post-freeze Class 4 change | 15–25 days plus re-approval | Fire and finish documentation, pigment lot | Treat as a new submittal |
| As-built drawing set and handover record | 1–2 weeks after installation | Site mark-ups, photograph record, part-marking reconciliation | Withhold final payment against the as-built set |
Read the two tables together and one conclusion is hard to avoid: the lowest-cost change is the one caught at drawing review, and the second lowest-cost is the one caught at the survey. Everything after the freeze is paid for in production days, which is the only currency that actually affects a fixed opening date.
5. Structural Anchoring & MEP Coordination
The base plate is the item to freeze earliest. Everything above it can be re-drawn at a cost; the base plate cannot be re-set once the finish floor closes over it. This is why the setting-out drawing should be released as "approved subject to survey", with the survey as a hold point, and why the base detail should carry the shim allowance at the first splice rather than a tight seat on the plate.
A change of anchor method is a design revision, not a site instruction. Where a slab turns out to be post-tensioned, thin, or protected by a tenant's waterproofing, the fixing moves from drilling to a ballast collar, and that moves the overturning calculation, the plinth detail and the drawing. On a package that mixes drilled and ballasted trees, the as-built set should record which method was used at which position — the maintenance team will need it long before anyone needs the photograph.
Overhead clashes cascade into geometry. A canopy that must clear a sprinkler deflector by the code distance, or that sits under a supply diffuser with a throw that works the foliage continuously, is a geometry change rather than a services change. Catching it at the survey keeps it inside Class 1 or Class 2; catching it at install makes it Class 3, with new branch work and a re-dressed canopy.

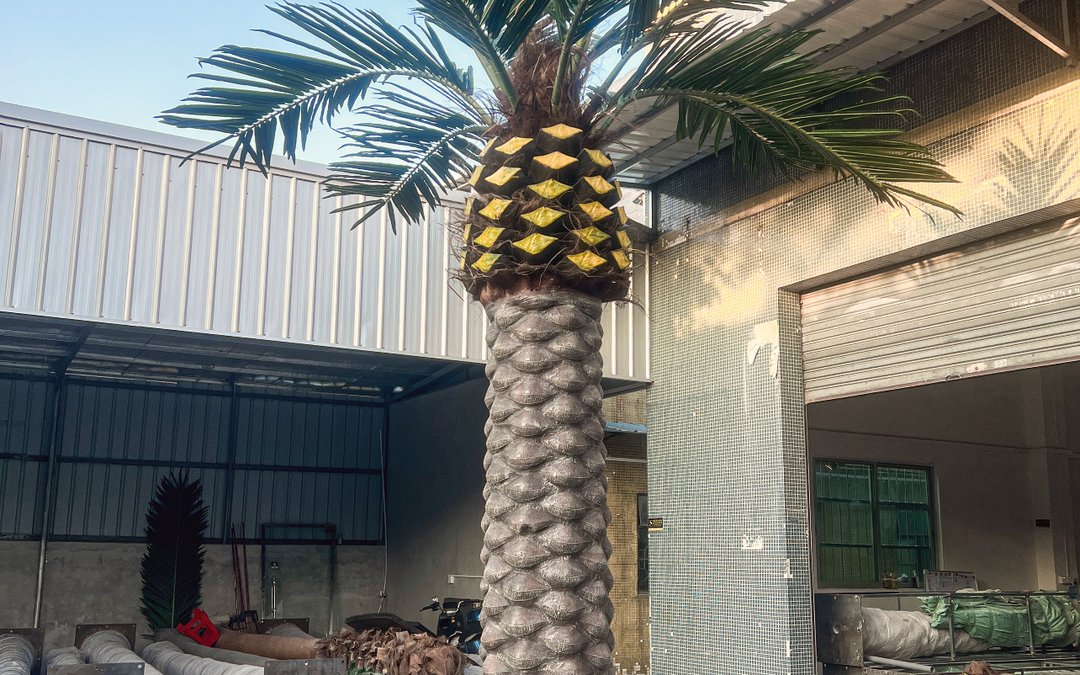

Species mix changes the revision budget. A gallery that mixes an open canopy such as an olive tree with a dense ficus and a date palm is not one drawing — it is three details, three module splits and three dressing rates. In Abu Dhabi projects the mix usually includes a palm-led entrance zone and a canopy zone; each has its own survey tolerances and its own freeze item, and treating the package as a single revision stream is how one species arrives with an unresolved detail while the others are already in fabrication.
MEP hold points that protect the programme. Four hold points keep the drawing valid: survey closed and signed; base position and fixing method agreed with the structural engineer; overhead clearance reviewed against the reflected ceiling plan and accepted by the centre's nominated contractor; and freeze confirmed with the material schedule attached. After the fourth, changes are priced in days, and the commercial atrium programme can be committed to a landlord with a date rather than a range.
6. Commercial Contractor FAQs
Q: How many drawing revisions should a mall atrium tree package expect?
A: Plan for three to five between concept and as-built on a gallery of eight to twelve trees, and budget the review time rather than the revision count. Four of those cycles are almost always the same three causes: tenant design changes late in the fit-out, an authority comment on clearance or anchoring, and a survey that closes later than the design team assumed. A package that reaches production on revision A has usually been built without a survey.
Q: When should the drawing freeze date be set, relative to production?
A: About three weeks before production start on standard heights up to about 6 m, and four to five weeks above 8 m where moulds, coatings and dressing labour are on the critical path. The freeze should cover the material schedule as well as the geometry, because a later foliage or coating substitution is a new submittal rather than a note. State the freeze date in the purchase order, not only in the programme.
Q: Who pays for a site re-measurement, and when should it happen?
A: The project account normally carries the survey, and it belongs to the main contractor's programme as a hold point rather than to the tree supplier's scope. It should be booked before the fit-out start and before ceilings and lighting go in, because those are the works that obscure both the slab condition and the overhead clearances the survey exists to record. A survey executed two weeks late costs substantially more than the survey itself.
Q: What happens if the slab level is out of tolerance at a tree position?
A: The first splice absorbs it. A shim allowance of roughly ±20 mm at the first flanged splice, concealed inside the trunk, takes up the accumulated difference without touching the anchor or re-drilling the plate. Where the deviation exceeds that, the choice is a cast plinth detailed to the measured level, or a repositioned base — both of which are drawing changes and should be issued as a revision, not resolved on site by the installation crew.
Q: Can a change be made after the container is booked?
A: It can, and it will be priced in production days rather than in freight. Changes to module splits or canopy geometry at that stage mean re-sequencing work that is already on the line, and in the worst case a re-dress of a completed canopy. On a package where the opening date is fixed, the practical answer is to identify which trees can still absorb a change and which cannot, and to protect the second group by freeze rather than by schedule pressure.
Q: How should a revision record be kept so that it survives handover?
A: One revision number per drawing, one transmittal per issue, and a site mark-up that is reconciled against the part-marking scheme at handover. The record that matters is the as-built set plus the base fixing record — method, position, torque or ballast figure — filed against the tree position. On a phased mall, that is also the only way to prove later that a unit was installed to the approved setting-out when the surrounding floor was still hoarded.
Conclusion: Freeze the Drawing Before the Steel Is Cut
Lead time on an atrium tree package is not a factory number; it is the distance between the survey closing and the drawing freezing. Everything after that is production discipline, and production discipline is comparatively easy to manage — it is the moving drawing that makes a programme unpredictable.
Send the layout with tree positions and heights, the finish floor specification, the service lift and door dimensions, and the ceiling drawing where the canopy sits close to services, and our engineering team will return a setting-out drawing marked "subject to survey", the freeze item list for each height class, the revision-class table applied to the actual package, and the as-built record format for handover. The product range lists the height classes and module splits these figures are built from, and comparable installations — a grand-void atrium package and a hotel atrium lobby feature of the same period — can be reviewed against the same drawing set. If the opening date is already fixed by the landlord, send it with the layout: the survey date and the freeze date are usually the two items that need to move first.
