Leaf Density and Canopy Material for Large Artificial Trees: How 1,800 vs 3,200 Leaves/m³ Changes Realism, Wind Load and Freight

Executive Summary

Leaf density on a commercial artificial tree is a specification with a number attached: 1,800–3,200 leaves/m³, set by the distance the canopy will be read from rather than pushed to the top of the range. Canopies sit on a Q235 hot-dip galvanised steel core of Ø48–76 mm inside a 3–5 mm fibreglass trunk shell, and interior foliage carries NFPA 701 fire-retardant performance, with EN 13501-1 Class B-s1,d0 available for EU submissions. Density drives three things at once — realism, wind load and packed volume — and only one of them is visible in a quotation photograph.

The number a buyer should ask for is not the highest one on offer. It is the density the canopy will hold at the height and viewing angle of the actual position, measured from the floor of the space rather than from the mezzanine balcony the factory photographs from.

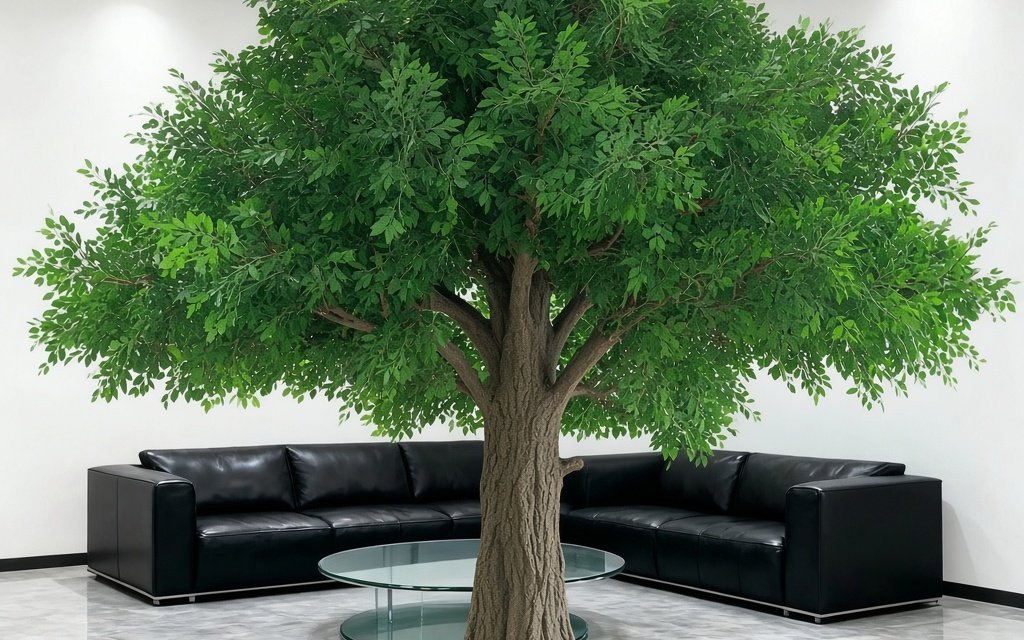

A large artificial ficus canopy over seating in a lobby, read from floor level with the moulded trunk bark visible at sitting height.

1. Failure Modes & Commercial Pitfalls

Density is where a specification quietly goes wrong, because the failure mode is invisible on the page and obvious in the room.

Flat strip foliage sold as high density. A canopy built from flat cut strips can be given a very high stated leaf count at low cost, and it photographs well. In the room it fails at two metres: the leaves have a uniform surface with visible sheen under downlights, they cast a hard-edged shadow, and they are all the same size. A visitor standing at the canopy edge — which is where people stand under a tree — reads the wall of flat green immediately. Three-dimensional moulded foliage, cast from a real leaf, holds curvature, veins and a thickness of roughly 0.3–0.5 mm, and that is what survives a close view.

Density pushed to the maximum on a tall canopy. Extra leaf mass needs extra branch arm to carry it. Where arms are not thickened to match, a canopy delivered looking full in the factory droops at the outer arms after one hot season, and the droop is permanent because the arms have yielded. The same canopy also blocks more of the sprinkler throw above it and holds more dust, so the maintenance cycle set at handover stops matching reality by the second year.

Density set too low for the viewing angle. The dominant view of an atrium tree is from underneath and from an upper floor. A canopy that reads as full from ground level can read as a sparse set of branches from the mezzanine, because the underside is where gaps show. Underside density is the number that matters for tall interior positions, and it is rarely the number quoted.

One tone of green. Real foliage is never a single colour: mature leaves are darker, new growth paler, undersides lighter. A canopy specified in one flat tone has no depth and goes flat under neutral LED lighting. Multi-tone leaf sets cost little to specify and are among the strongest realism signals in commercial work.

Silk foliage chosen for a species with substantial leaves. Polyester fabric drapes and folds, which suits ferns, blossom and trailing species. On a fig or a ficus it reads as cloth, because the leaves should hold their own shape. Drape is a material property, not a quality grade.

2. Material Science & Structural Engineering Standards

Four variables decide how a canopy performs: leaf construction, density, branch-arm structure and trunk shell. They are specified together or not at all.

Leaf construction. Injection-moulded PE is cast in a steel or aluminium mould taken from a real leaf, which is why it carries vein detail, edge curvature and species-specific thickness. Flat PVC strip is cheaper per leaf and reads correctly only at distance. Polyester fabric is a drape material. Leaf count means nothing without knowing which of the three it was counted in, so a quotation should name the construction, not just a number.

Density and how it is counted. Commercial canopies run from about 1,800 leaves/m³ at the sparse end to roughly 3,200 leaves/m³ at the top, with the count taken over the canopy envelope rather than the whole tree volume. Suppliers describe the same canopy as a tip count or as a percentage fill (80–90% is a common trade shorthand), and those three conventions are not interchangeable. The practical test is a three-distance check written into the sample approval: at 30 cm for leaf edge, veins and mould seams; at 2 m for colour variation and branch structure; from across the room for silhouette and scale. A canopy that passes all three is specified correctly; one that passes only the first was bought on a photograph.

Branch-arm structure. The arms inside the canopy are what make density possible. Arms are sized by the mass they carry, and a canopy at the top of the density range needs arms one step heavier than the same canopy at the bottom of it. Porosity matters as much as count: an open canopy lets air through and behaves like a screen, while a sealed canopy behaves like a plate and takes the full pressure on its area. On an outdoor position that difference is a wind-load input, not an aesthetic preference.

Trunk shell and lower sightlines. Under a large canopy, the trunk sits directly at seating height and takes closer scrutiny than anything else in the piece. A 3–5 mm fibreglass shell over the core, finished with the species' own bark pattern, holds up; a foam shell picks up marks and cannot be retextured locally. The trunk should taper, and the bark pattern should repeat at an irregular interval rather than at a fixed pitch — a regular repeat is one of the fastest artificial tells at close range.

Packed volume. Density is not free to ship. A 6 m crown at the top of the density range packs noticeably larger than the same crown at 2,200 leaves/m³, and on a knocked-down 8 m specimen the difference is enough to change which freight mode the package fits. Density is therefore a freight decision as much as a realism decision, and the packing sheet should state the crown volume the quoted density produces.

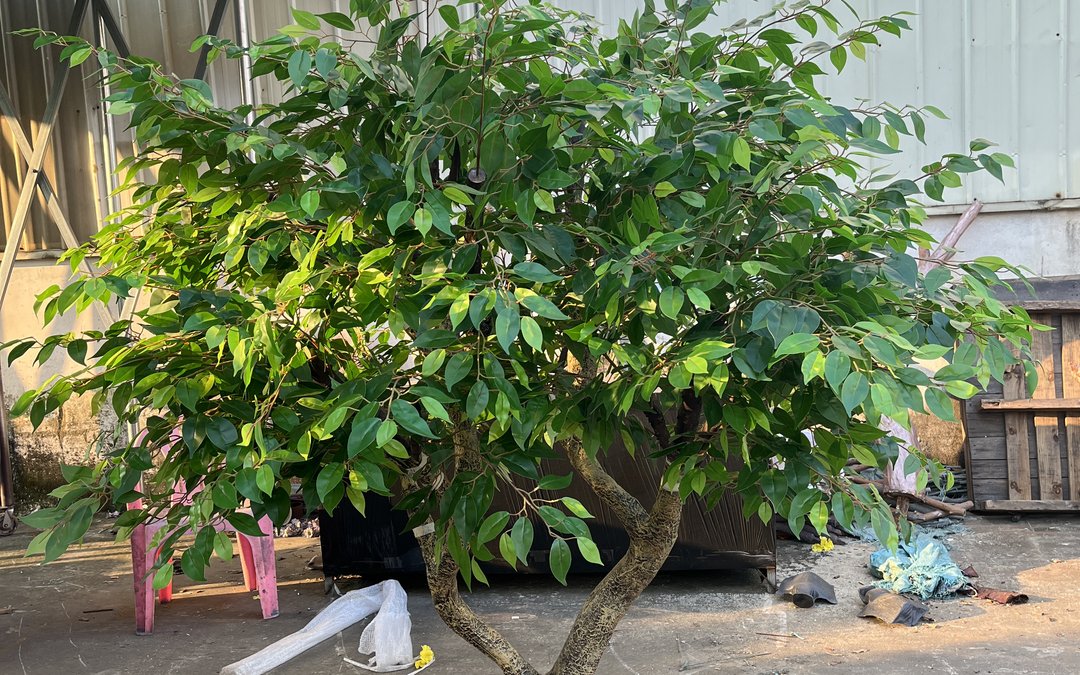

An artificial ficus with its multi-stem moulded trunk photographed in the factory yard, canopy read at close range against daylight.

3. Life Safety, Fire Codes & Environmental Compliance

Fire performance and density interact in a way that catches buyers out, because the test specimen is not the tree — it is a defined area of foliage at a defined mass.

• North America: NFPA 701 is the usual call-up, and Method 1 and Method 2 differ in the specimen weight used. A certificate issued on a light specimen does not automatically cover a canopy built at the dense end of the range, so the qualification should be issued against the construction actually supplied.
• Europe and European-standard submissions: EN 13501-1 Class B-s1,d0, quoted with the mounting used in the test. A free-standing 8 m canopy and a table-mounted arrangement do not present the same available air, and the mounting clause is where a plan reviewer will look.
• Air and dust in occupied space: low-VOC, odour-free compounds wherever air is recirculated. Density also sets the cleaning interval — a canopy at 3,000 leaves/m³ collects measurably more dust than one at 2,000 in the same space, and the difference lands on the operator's maintenance budget rather than on the project.

Two position rules follow from density rather than from height. First, a dense canopy must not sit inside the throw clearance of a sprinkler head; the canopy is an obstruction, and the head below it still needs its coverage area. Second, in a dining or retail environment a high-density canopy should be specified with a cleaning regime in writing, because the interval that keeps it looking right at 2 m is shorter than the interval most operators assume. Neither rule is a reason to reduce density — both are reasons to state it explicitly and let the position, not the catalogue, set the number.

4. Technical Comparison Table

The density range rises with height because the canopy is read from further away and from below, not because tall trees need more leaves. Two rows in the same height can legitimately take different densities: a 6 m specimen seen from a first-floor balcony at four metres' distance needs less than the same specimen whose canopy is the ceiling of a double-height room. Specify the wall the tree stands against; the density follows from that.

5. Structural Anchoring & MEP Coordination

Anchoring has to reflect the canopy actually specified, because the canopy is the part of the tree that catches load.

• Mass and overturning. A canopy at 3,000 leaves/m³ carries more leaf mass at a greater radius than one at 2,200, and the overturning moment that the base must resist rises with both. On a bolt-down detail that changes the plate size and the anchor count; on a ballasted collar it changes the required mass and footprint. This is the practical reason engineering calculations belong in the same conversation as the foliage specification rather than in a separate document issued later.
• Wind area. On a terrace or a roof, porosity is a design input. A sealed canopy presents its full projected area to the wind, while an open one passes a large share of it through; the same tree can therefore require two different fixing details depending on how the crown is built. Specifying density without specifying porosity leaves the load assumption unstated.
• Slab and substrate. Post-tensioned slabs cannot be core-drilled, which pushes terrace and mall positions towards ballasted collars. Edge distance from plate to slab edge or joint governs the detail where drilling is permitted, and a first installation should include a sample pull-out test at roughly 1.5 times the design load.

On the MEP side, three interfaces recur. Sprinkler throw must clear the canopy over its full spread, not just at the trunk. Radiant patio heaters mounted above an outdoor canopy sit a few tens of centimetres from leaves that are 0.3–0.5 mm thick, and they degrade a UV-stabilised compound far faster than direct sun does. Kitchen or retail extract with insufficient make-up air creates negative pressure that pulls airborne grease and dust into a dense canopy, where the leaf-to-leaf gaps trap it — a cleaning problem that grows monthly.

The last point connects the whole article together. The leaf compound and the leaf geometry are set at the press, where the mould and the pigment lot are fixed, and no fixing detail or MEP adjustment should force a change to either. Anchoring adapts to the canopy; the canopy should not be changed to suit the anchor.

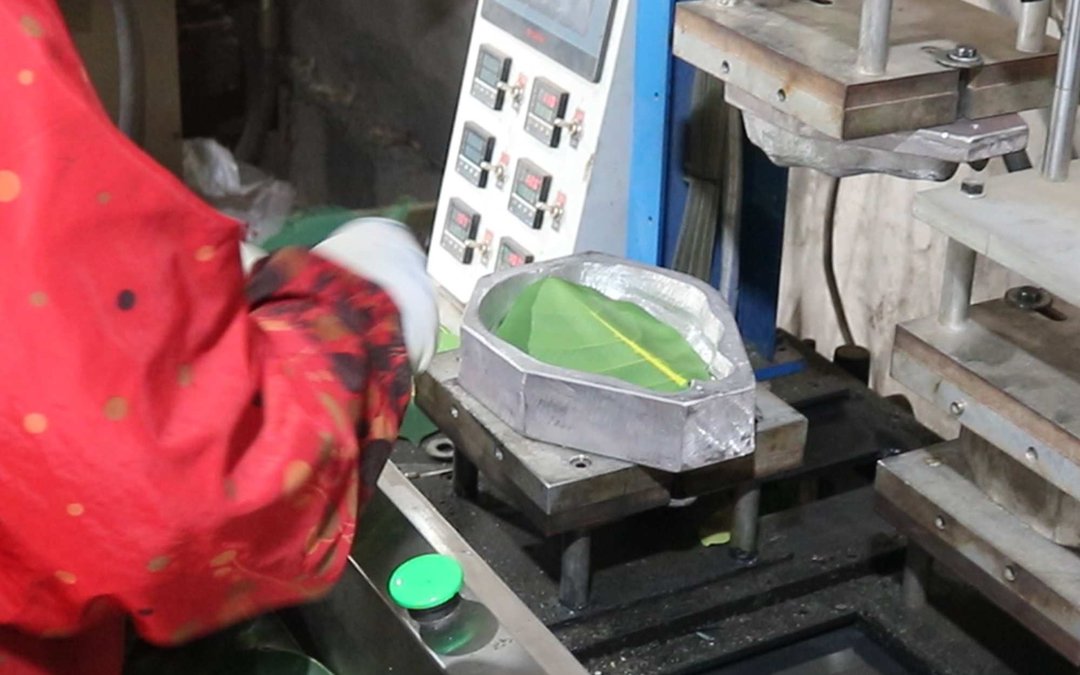

An operator loading a green PE leaf into the injection mould, with the mould temperature controllers above the press.

6. Commercial Contractor FAQs

Q: How is leaf density specified, and how should it be checked?

A: Density is specified as a range in leaves/m³ over the canopy envelope — 1,800–2,200 for a sparse species or a distant viewing position, up to 2,800–3,200 for a dense canopy seen from below. Because suppliers also quote tip counts and percentage fill, the dense-count conventions cannot be compared directly; ask each supplier which convention the number uses. The check that settles it is a three-distance review of the approved sample at 30 cm, at 2 m and from across the room, recorded against the sign-off.

Q: Which leaf construction suits a large commercial canopy — moulded PE, flat PVC or polyester?

A: Injection-moulded PE for anything with substantial leaves, because it holds curvature, vein detail and thickness of roughly 0.3–0.5 mm, and it cleans with a dry microfibre. Flat PVC strip is a distance material: it reads acceptably from across a hall and fails at two metres under downlighting. Polyester fabric belongs on drape species where folding is the correct behaviour. The three are not quality grades of one another; they are different materials for different leaf types.

Q: Does higher leaf density increase wind load on an outdoor specimen?

A: It can, but porosity matters more than count. A sealed canopy presents close to its full projected area and takes the corresponding pressure, while an open canopy passes a large share of the air through and behaves more like a screen. Two canopies at the same stated density can therefore need different fixing details. Outdoor specifications should state both the density range and the intended porosity, so the wind case is calculated against the crown that is actually supplied.

Q: How does leaf density affect container loading?

A: Through packed crown volume rather than weight. A 6 m crown at the top of the density range packs noticeably larger than the same crown at 2,200 leaves/m³, and on a knocked-down 8 m specimen the difference can change which freight mode the package fits. The quotation should state crown volume per piece at the density quoted, and the packing sheet should carry it, so the container plan is agreed before production rather than adjusted at the port.

Conclusion: Specify the Viewing Distance, Then the Density

Leaf density is not a quality dial to be turned to maximum. It is a number derived from where the canopy will be read from, what the branch arms can carry, and how much volume the freight will tolerate. A canopy specified that way passes the sample review at all three distances and costs less to ship than the same tree built to the top of the range.

Our engineering team reviews canopies against positions rather than against catalogue photographs. Send the hotel atrium or mall elevation with the tree positions marked, and we will return the density range we would build to for each one, the leaf construction we would use for the species — moulded PE for the ficus and fig family, UV-stabilised compound for the terrace, multi-tone leaf sets as standard — and the crown volume per piece that the quoted density produces. Base-plate details, setting-out drawings and finish swatches are issued with the submittal, reference installations are available through our completed projects, and the full range including the olive tree, date palm and ficus platforms can be quoted from a schedule sent on WhatsApp.
