"How to Verify an Artificial Tree Manufacturer: Process Ownership, Part-Number Traceability and First-Article Sign-Off"

Executive Summary

A commercial artificial tree between 2 m and 12 m stands on a Q235 hot-dip galvanized steel core of Ø48–76 mm inside a 3–5 mm fiberglass trunk shell, carrying 1,800–3,200 leaves/m³ of inherently flame-retardant PE foliage tested to NFPA 701 or EN 13501-1 Class B1-s1,d0. Three artefacts separate a manufacturer from an assembly shop that buys the same parts: a process ownership map, physical part marks that reconcile to the shop drawing and the packing list, and a signed first-article record. Ask for all three before a deposit leaves the account.

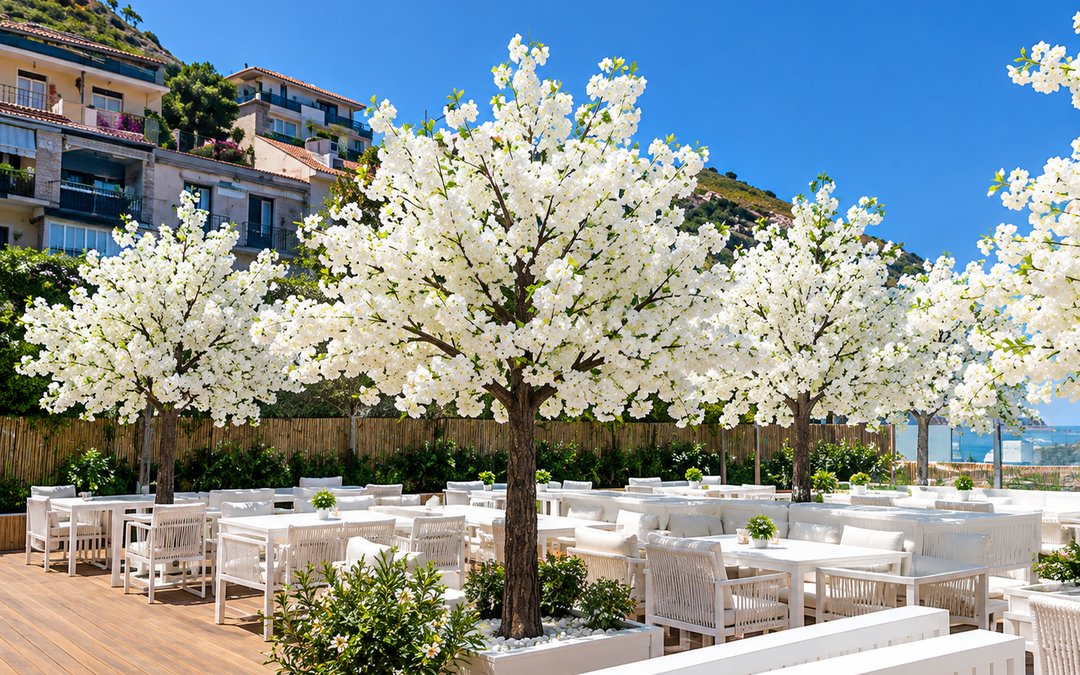

White blossom trees on a seaside restaurant terrace, planted at deck level in a hard-landscaped setting.

1. Failure Modes & Commercial Pitfalls

Verification fails in three predictable places, and each one shows up on site rather than in the quotation.

Unmarked parts. A 10 m atrium tree ships knocked down in three to five pieces. If the packing list reads "trunk, branches, canopy" without a mark that matches the shop drawing, the installation crew has no way to confirm that the branch arm numbered 7 in the drawing is the arm in crate 3. Field assembly becomes trial and error on a scissor lift, at height, on a live opening date. On a two-storey atrium the recovery cost is not the part - it is the lift hire, the out-of-hours access permit and the glass-roof protection that has to be re-instated for a second visit.

No first-article approval. The sample room unit and the production run are usually built by different hands. Without a signed reference unit, colour drifts between the sample and the batch, leaf density is set by eye, and branch angles change because the jig was re-set for another model. The physical consequence in a commercial interior is visible at guest eye level: two trees ordered for one lobby read as two different products, and the second one has to be re-covered or replaced after handover.

Undisclosed subcontracted processes. Welding, hot-dip galvanizing and leaf injection are frequently outsourced. That is normal and workable - but only when the sub-tier is known and its output is inspected against the same standard. The failure mode is a load of galvanized steelwork that arrives with no coating thickness record and no traceability back to the galvanizer, fitted into a seaside resort where the coating class should have been C5-M. Corrosion starts at the weld toes within one season, and the manufacturer, the galvanizer and the importer each point at the other two.

Internal canopy failure. Silk and fabric foliage under 24/7 architectural lighting fades and holds dust; it reads correctly for the first month and then stops being an option in a space with no maintenance access. Surface-applied flame retardants wear off at touch points and at the crown after cleaning. Both are selection errors that no amount of incoming inspection can recover, which is why material identity belongs in the verification scope and not in a separate conversation.

2. Material Science & Structural Engineering Standards

The point of a verification visit is not to admire the workshop. It is to confirm that the numbers on the drawing are the numbers being produced, and that every number has a name attached to it.

Core and wall thickness. Large trees are built on a Q235 steel core. The diameter class is set by height: Ø48–60 mm for trees up to about 6 m, Ø60–76 mm above that, with walls in the 3–4 mm range so that the section resists canopy deflection and structural creep rather than merely carrying the initial load. A caliper reading on three finished cores, taken against the shop drawing, settles this in ten minutes. If the workshop cannot produce an unpainted core for measurement, the reading is being controlled somewhere else.

Weld procedure and welder qualification. Structural joints should be made to a written procedure under AWS D1.1, with welder qualification records held for the people doing the work. Ask to see the current welder certificates and match the names against the day's work order. Visual weld inspection is adequate for most armature work; on tall trees with long cantilever arms, a dye-penetrant check on the primary joints is inexpensive insurance and should be written into the order.

Coating. Hot-dip galvanizing to ISO 1461 at a nominal 85 µm is the baseline for outdoor work; coastal projects in the Gulf need a higher class, and the certificate must name the load rather than state that the plant galvanizes. A magnetic coating gauge reading at three points per member - root, mid-span, branch junction - is the field check that matches the certificate. Trials show that coating disputes are almost always traceable to a sub-tier galvanizer whose certificate was passed on without the bath record.

Trunk shell and finish. The trunk is a fiberglass shell 3–5 mm thick, moulded from a natural trunk so that ring texture and the hard moulded cut edge are present at the base and at the branch collars. Synthetic foam trunks are lighter and cheaper and lose the argument over time: they deflect under a heavy canopy, cannot be re-tightened, and cannot be repaired in place. A close look at the branch collar - the transition where an arm enters the trunk - distinguishes a moulded shell from a wrapped or sprayed surface.

Canopy. Leaf density is specified as 1,800–3,200 leaves/m³ and can be counted on a defined sample volume during production. Injection-moulded PE leaves are typically built in two or three tonal passes for a face and underside contrast; a single flat colour on both faces is the fast check for a downgraded batch. For a Mediterranean species such as an olive tree, where canopy gaps are part of the look, density is specified per elevation rather than as a single figure, because the underside of the canopy is what a guest sees from a lobby seat.

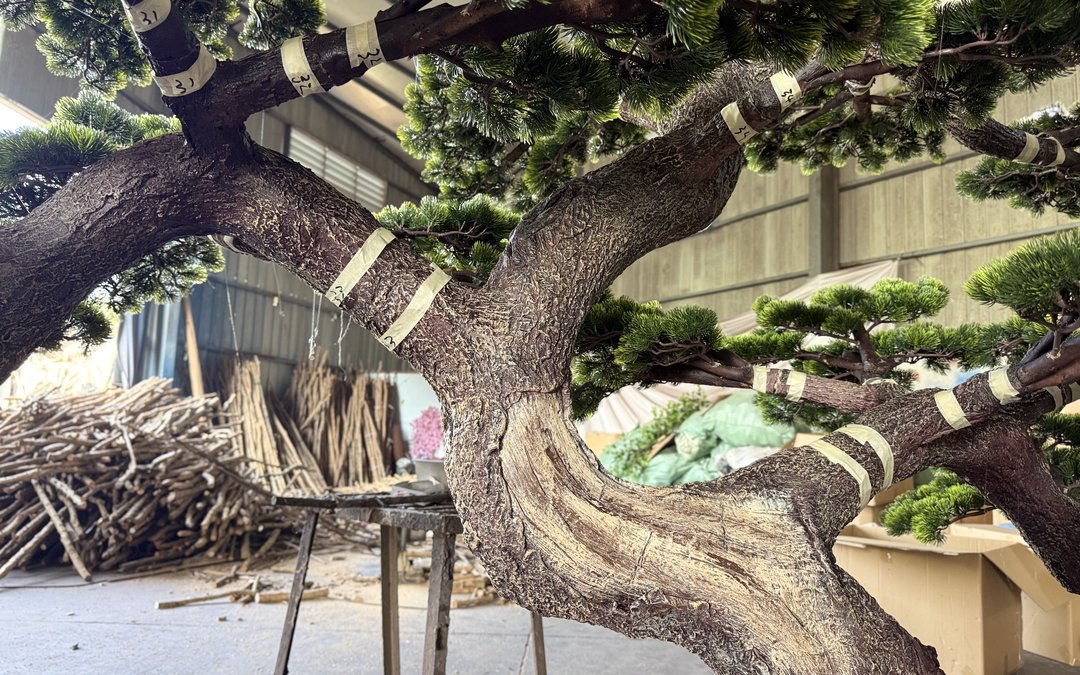

Trunk and branch detailing in the workshop, with numbered tags tied to each branch position during armature assembly.

Traceability. Those tags are the artefact that matters commercially. A workable system has three levels that must reconcile: the part mark on the shop drawing for each branch position, the physical tag tied to that arm during fabrication, and the line on the packing list that carries the same mark and the crate number. When the three agree, a missing or damaged arm is identified and re-made from the drawing without a site survey, and a short shipment is a documented claim instead of a negotiation. When they do not agree, every subsequent question costs a video call, a re-measurement and a week.

3. Life Safety, Fire Codes & Environmental Compliance

Certification is not a logo on a brochure. It is a report that describes a construction, issued by a laboratory, in the name of a legal entity - and the three have to line up with the tree being supplied.

Read the report, not the badge. Three questions settle most certificates. Who commissioned the test: the entity that will invoice the order, or a third party? What construction was tested: does the description name the polymer, the leaf build and the armature, or does it say "artificial foliage, sample as received"? Which method was applied: NFPA 701 Method 1 and Method 2 are different exposures and are not interchangeable in a specification.

Which standard belongs in the tender. North American projects specify NFPA 701 against the finished construction. European and GCC-led tenders commonly call for EN 13501-1 Class B1-s1,d0, where the s1 and d0 suffixes describe smoke production and flaming droplets and are the part that fire consultants check. Inherently flame-retardant PE foliage holds its rating after cleaning and abrasion; fabrics treated with a topical retardant do not, and the difference is only visible in the report's construction description.

Air quality in enclosed spaces. Foliage inside a sealed HVAC envelope should be accompanied by a low-VOC and low-odour declaration, and restricted-substance compliance with the applicable chemicals regulation for the destination market. This is a procurement item, not a technicality: a hotel atrium that smells of solvents on opening week generates a complaint that outlives the cost saving on the foliage.

Where certification does not transfer. A certificate held by a trading entity does not cover goods made by a different factory under a different process. If the order is placed through an intermediary, the report should be re-issued or endorsed so that the supplied construction is the tested one, and the handover dossier should hold that version. This is the single most common cause of a rejected submittal on a hotel or mall project, and it is discovered at the worst possible moment - after the trees are installed.

4. Technical Comparison Table

The rows below describe factory-standard builds at 1,800–3,200 leaves/m³ on a Q235 hot-dip galvanized core with inherently flame-retardant PE foliage. Floor load is the unfactored static weight reaching the structure, including the planter where a ballasted base is used; anchored values are lower because the load enters through a base plate. The last column is the traceability deliverable that should exist for that height class before the deposit.

Read the table as an order rather than a menu. Height and core diameter fix what the shop drawing must state; density and polymer identity fix what the fire report must describe; the load figure decides whether the structural submission is a floor loading calculation or a base-plate design. A specification that pins height and leaves the middle columns open has no baseline, and a report issued against an undefined baseline is not evidence of anything.

5. Structural Anchoring & MEP Coordination

Anchoring is where a traceability failure becomes a safety issue, because the fixing is designed from the same numbers that the verification visit is supposed to confirm.

Anchored or ballasted. Direct bolting to a slab transfers load through a base plate, and the plate, the anchor set and the concrete edge distance are all designed together. A ballasted collar planter is used where drilling is not permitted - leased retail floors, waterproofed podiums, heritage interiors - and the contained weight then carries the overturning check, typically at 600–1,800 kg depending on height and exposure. Both routes are legitimate. Mixing them is not: a collar planter that has been specified to a bolted base plate's capacity has no overturning margin.

The numbers to confirm before drilling. Anchor type and grade, edge distance and spacing to the manufacturer's published values, torque, and a pull-out test at a defined multiple of the design load on the first fixing of each type. A custom anchor set for an irregular slab, a raised plant deck or a steel-framed mezzanine should arrive with a stamped detail, not a sketch on a quotation. If the slab is post-tensioned, the tendon layout governs hole positions and the setting-out drawing must show it.

Tolerances that appear at handover. Plumb tolerance of 1:500 over the full height is the practical figure for a tree that is assembled on site: at 10 m this is 20 mm of allowable deviation, and it is met by levelling the base plate, not by bending the trunk. On long cantilever arms, confirm the lifting points are located on the core so that the shell is never used as a sling path.

Building services. In a commercial atrium, sprinkler deflectors need clear space below them, and a dense canopy placed under a head both obstructs the spray pattern and invites a comment from the fire consultant at handover; a 0.45 m clearance between the canopy envelope and the deflector is a workable planning figure. High-velocity air curtains and atrium supply grilles load the canopy continuously, and a canopy mounted two metres from a 3 m/s discharge will move. The tree's own base must also survive the cleaning regime: robotic floor scrubbers and pressure washers reach the lower trunk and the base plate, so the coating and the fixing hardware should be specified for contact cleaning rather than as concealed work.

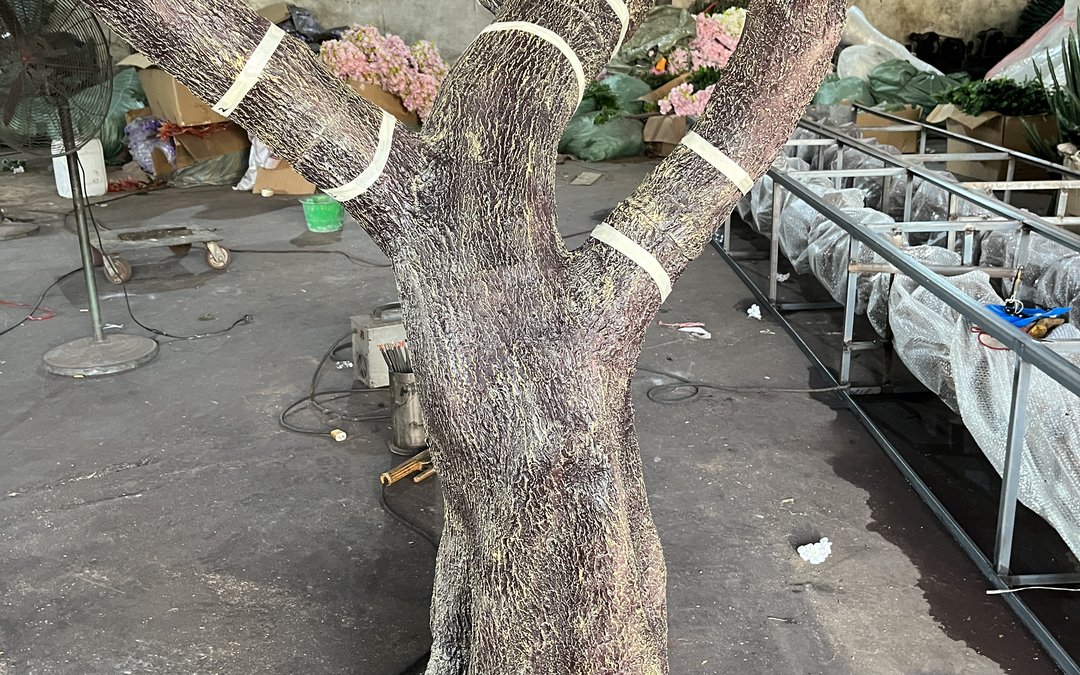

Lowest trunk module on the workshop floor awaiting dispatch, banded at the branch junctions with packed components staged behind.

Photograph before it closes. The base detail is covered by the finish floor within a day of installation. A dated photograph of the plate, the anchors and the torque marks, filed with the part number of the trunk module, is the only record that will exist when a query arrives eighteen months later - and it is the lowest-cost item on this list.

6. Commercial Contractor FAQs

Q: How do we know whether welding and galvanizing happen in the supplier's own plant?

A: Ask for the process ownership map: a one-page list of steel cutting, welding, hot-dip galvanizing, fiberglass moulding, leaf injection, assembly and packing, with each line marked in-house or subcontracted. Subcontracted lines must name the sub-tier and the certificate that will travel with the goods. A supplier that welds and galvanizes in-house will produce that map in an hour; one that buys finished armatures will produce a list with almost every line blank, which is useful information in itself.

Q: What should a first-article approval cover on a 10 m atrium tree?

A: Four measurables and one physical reference. Height and canopy diameter against the drawing, core diameter and wall thickness, leaf density counted on a defined volume, and colour against the specified reference under the project's own lighting. Then seal one assembled unit as the reference for the run, labelled with the date, the model and the colour lot. Production starts after that signature. Any change to mould, pigment or leaf supplier requires re-approval, because a colour lot change is invisible in photographs and obvious in a lobby.

Q: What part-number format should appear on a packing list?

A: The same mark that appears on the shop drawing and on the tag tied to the physical arm during fabrication. A ten-character mark that encodes model, height class, position and crate number is enough. The test is a reconciliation exercise: take three random lines from the packing list, ask for a photograph of the corresponding tagged part in the crate, and check the mark on the crate. If the exercise cannot be completed in one day, the numbering is decorative rather than operational, and a short shipment will be resolved by opinion instead of by record.

Q: How much third-party sampling is enough on the first order?

A: Stage it rather than doing it once. One visit after armature fabrication for dimensions and coating thickness, one after assembly for leaf density and colour against the approved reference, and one before shipment for packing, bracing and piece count. Sampling on later orders of the same model from the same line can reduce to a single pre-shipment visit. The cost is a small fraction of the order value and it converts a supplier's quality claim into an independently measured result.

Q: What happens to traceability across repeat orders and spare panels?

A: It has to be re-established, not assumed. Repeat orders are usually quoted from the original drawing but produced from a re-set jig, so the part marks should be carried forward unchanged and the colour lot recorded on each run. Spare foliage is the harder case: a replacement panel made eighteen months later from a different pigment lot will not match the installed trees under the same lighting, so the order should include a small spares allowance from the original lot and a named contact for future supply.

Project Engineering Support & CAD Requests

Verification is a document exercise until it meets a real slab, a real ceiling height and a real opening date. For projects already in quotation, we review the process ownership map, the part-marking scheme and the steel core specification against the entity that will produce the batch, then issue the base-plate detail, the setting-out drawing and the finish swatches for the model under consideration. Our numbered-part system ties the shop drawing, the physical tag and the packing list together, so a container can be reconciled crate by crate on arrival, and reference installations from comparable completed projects are available on request.

Send the quotation, the drawings and the entity name, and the gaps are normally visible within a day. The product range shows the standard height classes that the traceability scheme is already built around, including the large atrium models above 6 m.
