Executive Summary
Outdoor artificial palms on Gulf sites should be specified with a Ø60–76 mm Q235 hot-dip galvanized core, a 1.2–2.0 mm injection-moulded PE frond skin, 1,800–3,200 fronds/m³, IFR foliage to NFPA 701 as standard, and a finish that retains at least 70 % of its initial gloss after 1,000 Taber cycles (ASTM D4060, CS-17 wheels, 500 g). Below those numbers, airborne quartz dust — not sunlight — is what ages the tree first, and a coating renewal is not a repair option at 9 m.
1. Failure Modes & Commercial Pitfalls
On a Gulf site the tree is a filter. Airborne mineral dust settles on every frond, and because annual rainfall in much of the Arabian Peninsula is measured in tens of millimetres, nothing washes it off between cleaning visits. The appearance problem is the visible half. The durability problem is that a dust-covered frond is abraded every time the wind moves it, and the same mechanism that dulls the surface also removes the layer most specifications assume is protecting the polymer.
Abrasion sets the finish life, not photodegradation. Quartz and feldspar grains carried in a shamal wind sit at 6–7 on the Mohs scale. Injection-moulded polyethylene sits at roughly 2–3. When those grains are mobilised against a frond, they act as a loose abrasive: fine at first, then progressive as the surface roughens. Gloss goes before colour does, and gloss is the property readers actually judge from a balcony. A tree that has lost its surface finish reads as dusty even after it has been washed, because a roughened skin holds the next dust load harder than a smooth one.
Dust that no rain removes. A calcareous dust film bonds to a moulded frond and lightens it toward grey. Against a pale façade the loss of contrast is what the venue notices first, and it appears in photographs long before a colour meter would flag a ΔE change. Chlorophyll-green fronds lose chroma, so the shift is read as neglect rather than as weathering — and the complaint normally reaches the supplier as "the trees look old", which is not a warranty term anybody can measure.
Cleaning that accelerates the failure it is meant to correct. A high-pressure jet held close to a crown erodes the stabiliser-bearing skin and scuffs the moulded edge detail. Abrasive pads and solvent cleaners attack pigment and gelcoat. Rinse water carrying dissolved minerals dries to a film that then traps the next dust load. The maintenance regime belongs in the specification, not in the operations manual, because the wrong method removes in one season what the compound was formulated to last five years.
Topical UV protection on a surface that is being sanded. A UV absorber carried in a surface coating is the lowest-cost way to answer a UV question in a quotation. It is also the first thing airborne grit takes off, because the abrasive that dulls the finish removes the film before it removes the polymer. Once the film is gone the frond is unprotected and the failure is invisible until the colour shifts — at which point the remedy is a crown replacement, not a touch-up.

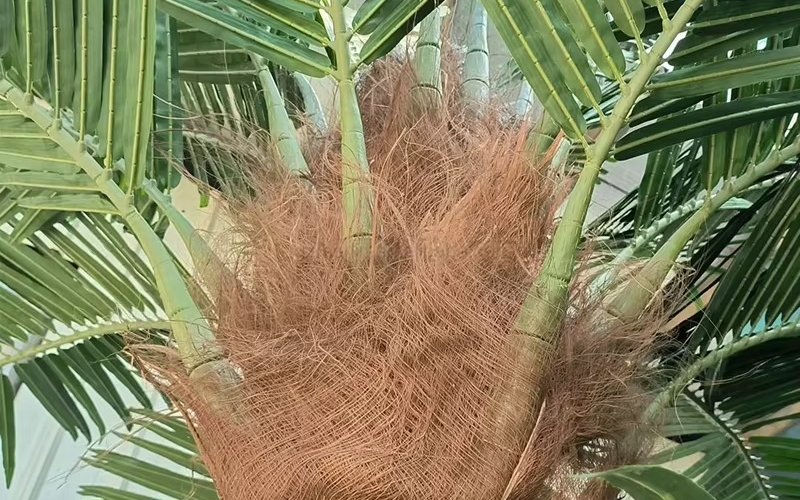

Palm crown fibre as a dust trap. The fibrous crown wrap that hides the core junction on a palm is often loose and unbacked on cheap builds. Loose fibre mats, packs dust into pockets, and holds moisture against the trunk shell after a cleaning cycle. Palm crown fibre in a commercial build has to be bonded and trimmed as a defined component with a stated density, not left as a decorative bundle.
Hardware that collects grit. Base plates, anchor bolts and levelling shims sit in the one place where dust accumulates fastest: the floor junction. Trapped grit holds moisture against the steel and creates a crevice condition that galvanizing is not designed to resist indefinitely. Bright zinc-plated fasteners in a coastal desert environment are gone in a couple of seasons, and the visible symptom is rust staining on the pavers, not a loose tree.
Test evidence that does not transfer. A flat pressed plaque is not a production frond, and an abrasion figure recorded on a plaque tells a buyer very little about a moulded leaf with a textured face. ASTM D4060 itself notes that the method is poorly reproducible and that numerical abrasion values should be restricted to a single laboratory, with ranking between formulations preferred over absolute numbers. ASTM D1435 makes the same point about location for outdoor exposure: conditions at one site do not predict another. A supplier who quotes a number without the wheel type, load, cycle count and specimen identity is quoting a result that cannot be checked.
2. Material Science & Structural Engineering Standards
Weathering performance in a dust environment is decided at the resin stage and finished at the mould, which is why two fronds that look identical in a showroom photograph can diverge within two seasons on the same forecourt.
How does a moulded frond resist surface abrasion?
Skin thickness and surface geometry carry most of the answer. A moulded PE frond with a 1.2–2.0 mm wall holds its angle and its surface detail; thin extruded fabric flattens, mats, and drags against neighbouring fronds, which multiplies the rubbing contact between leaves. Textured and slightly matte faces hide micro-scuffing that would read as damage on a high-gloss face, and multi-tone pigment moulded into the leaf keeps the frond reading green after the surface has lost its sheen, because there is a tonal structure underneath rather than a single flat colour on a reflective skin.
The stabiliser package has to be in the compound. Commercial outdoor builds run a hindered amine light stabiliser at roughly 0.3–0.8 % together with a UV absorber in the masterbatch. HALS works as a radical scavenger and protects the polymer chain itself, while the absorber converts incoming UV into heat before it reaches the pigment system. Neither can be applied afterwards with the same effect, which is why "UV treated" and "UV50+ in-resin" are not interchangeable phrases and should never be treated as one category in a bill of quantities. Pigment chemistry decides how visible a given amount of wear becomes: earth tones built on inorganic pigments hold their reading far longer than bright organic greens, and darker architectural tones show surface scuffing less than pale ones.
Abrasion evidence is worth specifying as a ranking exercise rather than a single pass mark. A workable requirement set reads:
- Abrasion: ASTM D4060 Taber Abraser, CS-17 wheels, 500 g load, 1,000 cycles, reported as wear index in mg per 1,000 cycles. ISO 9352 gives the equivalent plastics method where a European lab is used.
- Gloss: measured to ASTM D523, with a minimum retention of 70 % of the reference specimen after the abrasion cycle.
- Colour: ΔE to ASTM D2244 and a grey-scale rating to ISO 105-A02 after the agreed UV exposure, on a production-moulded frond in the specified colour.
- Specimen identity: production frond or crown section from the actual production line, not a flat plaque, with the formulation revision stated.
- Salt spray: ISO 9227 or ASTM B117 on the base plate, bolts and any exposed steel, for coastal sites.
The structural frame is what makes the foliage specification meaningful. A galvanized core of Ø48–76 mm sits behind this class of tree, Q235 steel with a 2.5–3.2 mm wall, welded to AWS D1.1 and hot-dip galvanized to ISO 1461, where the minimum average coating thickness on steel over 6 mm is 85 µm. Coastal and rooftop locations fall into ISO 12944 corrosivity category C5-M, where unprotected carbon steel corrodes faster than 50 µm per year — the reason the core, the base plate and the fixing hardware are specified together rather than as separate line items. Height drives the diameter: a 4 m courtyard specimen sits at the Ø48–60 mm end, and a 9 m date palm at Ø76 mm.
The trunk shell carries its own abrasion case. Centrifugally cast fiberglass reproduces bark and ring texture and needs a UV-stabilised gelcoat to hold gloss through cleaning cycles; synthetic foam trunks chalk, discolour and crush locally where the core passes through them. On palms, the crown fibre detail is the weak point: bonded and trimmed fibre survives a wash cycle, while a loose bundle sheds, traps dust, and reads as shaggy within two seasons.
3. Life Safety, Fire Codes & Environmental Compliance
Dust and abrasion look like an appearance issue until they touch the fire file. NFPA 701 is the North American baseline for flame spread on textiles and films — Method 1 for small-scale screening, Method 2 for large assemblies — and EN 13501-1 Class B-s1,d0 is what EU-tendered work and most GCC hospitality packages request. Inherently fire retardant (IFR) builds carry the additive in the resin, so the rating travels with the material for the life of the part. Topical flame retardant is a coating, and it depends on a film that UV exposure, cleaning and airborne abrasion are all working to remove.
Does surface soiling change a fire review?
It can change how an authority reads an element. A dust-loaded crown is a different surface fuel load from a clean one, and on an exposed entrance canopy, a porte-cochère or an open mall entrance the reviewer is looking at the installation as it will stand in service, not as it left the factory. Specifying IFR in-resin foliage, and stating the cleaning interval in the operations documentation, keeps the approved condition and the in-service condition aligned. Where the same formulation is used for a weathered application, confirm that the fire report and the stabiliser package belong to one formulation revision, because a mid-project compound change invalidates both documents.
Environmental compliance follows the same logic under 50 °C heat. For enclosed hotel atrium and interior installations, a recirculating HVAC system moves whatever the polymer off-gasses, so a REACH-conformant PE with no added plasticiser is the normal specification, and the material declaration should name the polymer and the additive families rather than assert that a product is safe. Outdoors the heat works differently on the same chemistry: plasticiser migration, gloss loss and chalking are surface and durability issues rather than air-quality issues, and PVC formulations rated only "moderate" for outdoor exposure are the ones that show it first.
Cleaning adds a site obligation that is easy to miss at tender stage. Wash water from an elevated planting position runs onto paving, into a pool deck surround, or down a façade. Where a project has a run-off or irrigation-reuse policy, the cleaning method and the products used have to be declared before handover, and where a commercial atrium planter is fitted with a drainage outlet, the outlet silts up with the same dust unless the maintenance scope includes flushing it.
4. Technical Comparison Table
The columns below combine the structural data a structural engineer needs with the friction and cleaning data procurement should attach to each line item. The abrasion and gloss figures assume an exposed installation; a sheltered arcade can be specified to a longer cleaning interval, but not to a lower gloss retention limit, because the wear mechanism is the same.
| Tree Height (m) | Min Core Steel Ø (mm) | Leaf Density (fronds/m³) | Floor Live Load & Ballast (kg) | Abrasion & Gloss Evidence to Demand | Application | Indoor/Outdoor |
|---|---|---|---|---|---|---|
| Date Palm 4–9 | 60–76 | 1,800–3,200 | 150–300 | D4060 CS-17 1,000 cycles, gloss ≥70 %, B117 720 h | seaside resort courtyard / public realm planting | Outdoor (C5-M) |
| King Palm 4–8 | 60–76 | 1,800–3,200 | 180–320 | D4060 CS-17 1,000 cycles, gloss ≥70 %, G154 2,000 h | hotel porte-cochère / airport VIP lounge | Indoor / Outdoor |
| Coconut Palm 3–7 | 48–60 | 1,800–3,200 | 140–280 | D4060 CS-17 1,000 cycles, gloss ≥70 %, B117 480 h | seaside resort pool deck / beach club terrace | Outdoor (UV50+) |
| Washingtonia Fan Palm 4–8 | 60–76 | 1,800–3,200 | 160–300 | D4060 CS-17 1,000 cycles, gloss ≥70 %, G154 2,000 h | city streetscape median / hotel drop-off island | Outdoor (coastal, high dust) |
| Mediterranean Olive 2–6 | 48–60 | 1,800–3,200 | 100–220 | D4060 on production leaf, G154 1,500 h, ΔE ≤ 3 | rooftop terrace pergola / shaded courtyard dining | Outdoor (sheltered) / Indoor |
| Banyan 4–10 | 60–76 | 1,800–3,200 | 250–450 | indoor case: low-VOC declaration, cleaning cycle | corporate HQ reception / hotel lobby lounge | Indoor |
Read the last two columns first. An indoor atrium case is governed by cleaning access, seismic restraint and air quality, so the abrasion column carries less weight and the money belongs in the core and the anchor. Move the same species onto a west-facing forecourt or a pool deck and the abrasion and gloss column becomes the governing purchase criterion. A sheltered arcade with 60 % shading behaves nothing like an exposed forecourt at 48 °C, and the same 4 m olive tree can legitimately carry two different foliage builds on one project. The error to avoid is a single line item labelled "UV treated" covering both.
Cleaning intervals are a separate schedule and should be issued with the specification rather than agreed after handover.
| Exposure Zone | Dust & Abrasion Risk | Cleaning Interval | Rinse Water | Inspect Each Visit |
|---|---|---|---|---|
| Exposed forecourt or plaza, inland | High — mobilised sand, no rain wash | 4–8 weeks in the dusty season | ≤ 200 mg/L TDS, pH-neutral surfactant | frond gloss, crown fibre packing, base plate grit |
| Coastal promenade or pool deck | High — salt film plus dust | 6–10 weeks | ≤ 200 mg/L TDS, fresh water rinse | fastener condition, planter drainage, salt staining |
| Street median or traffic island | High — road dirt and exhaust film | 6–10 weeks | ≤ 200 mg/L TDS | soiling depth on lower fronds, anchor shroud |
| Sheltered arcade or colonnade | Medium — dust settles, wind low | 3–6 months | ≤ 200 mg/L TDS | frond angle, dust on upper crown |
| Rooftop terrace, high wind | Medium — rain does some washing | 3–6 months | ≤ 200 mg/L TDS | base plate, ballast mass, membrane edge |
| Enclosed atrium or lobby | Low — HVAC fines only | 6–12 months | soft cloth, dry method preferred | HVAC grille soiling, foliage re-dressing |
5. Structural Anchoring & MEP Coordination
The base is where a desert specification fails first, and grit is the reason. Hot-dip galvanizing to ISO 1461 or A4 stainless fasteners are the baseline for anything within salt-spray reach, and the detail matters more in a dust environment because a base plate sitting on an unsealed floor traps a permanent abrasive layer under its own footprint. A non-shrink grout bed or a closed-cell pad under the plate keeps grit out of the interface; a plate bolted directly onto a dusty slab does not.
Thermal movement needs to be designed in rather than discovered. Exposed steel in Gulf conditions is normally detailed for a 25 °C differential, so the base plate needs slotted holes or expansion washers so the plate can move without tearing at the bolt line or preloading the anchors as the day warms. On a rooftop terrace the load path continues through the slab: the spreader plate sits above the waterproofing membrane on a protected upstand, the anchor uplift is resolved against the roof framing rather than the screed, and watertightness is as important as bolt capacity. Project-specific engineering calculations belong at this stage, not at installation.
Where drilling is prohibited — a warranted deck, a post-tensioned slab, a finished stone floor — the alternative is a ballasted collar planter, and dust changes how that assembly behaves. Wind-blown fines work down through the ballast and block the planter's drainage path, so a planter that drained in commissioning can hold water after two dusty seasons, and standing water against a galvanized base plate is a corrosion case rather than an appearance case. A removable inspection hatch, or a ballast specified as washed aggregate in a lined shell, keeps the drainage path serviceable. Water-filled ballast loses mass to evaporation and needs refilling; foam ballast degrades under UV and loses density at 50 °C; sand or gravel holds its mass and must be counted as a permanent floor load.

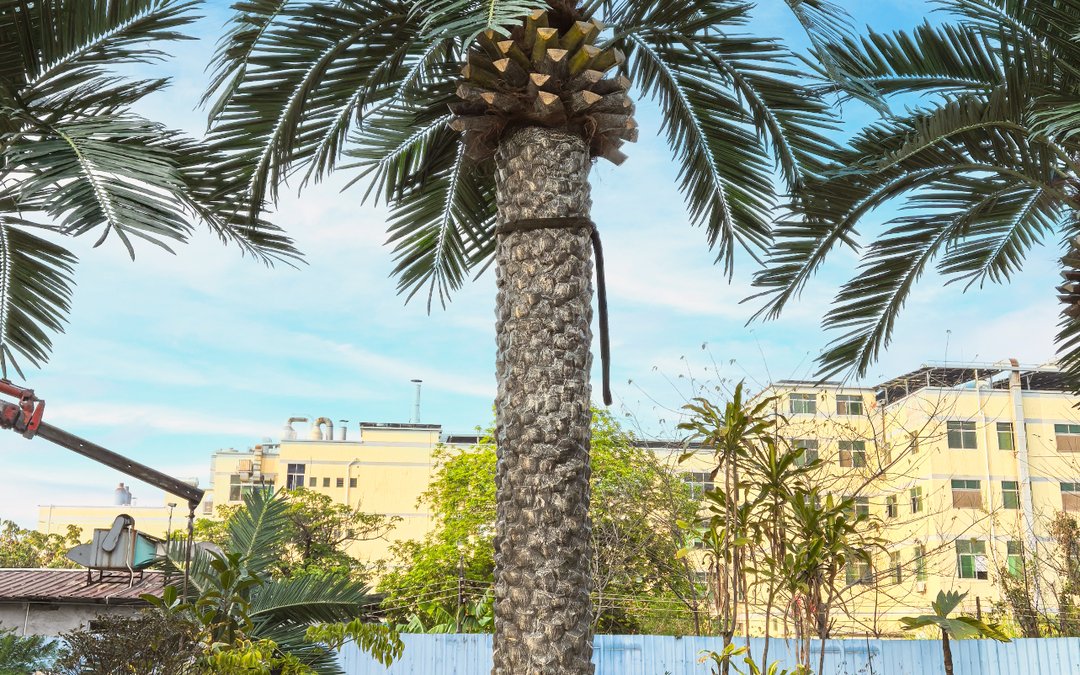

The base plate is normally drilled and trial-fitted at the factory so that the anchor template can be issued with the shop drawings, which is what allows the site team to set cast-in or chemical anchors before the tree arrives. Cleaning access then drives the last set of decisions: an 8 m palm crown is a mobile elevating work platform job, so the site needs a route and a hard-standing that will take the machine, plus a water point within reach. Entrance air curtains impose a repeated 2–5 m/s load on anything standing in the door line, which in a dust environment also means dust is being driven into the crown continuously, and sprinkler throw clearance fixes the crown height in a covered atrium before the tree order is placed. Handover timing is worth one line in the programme as well — commissioning a forecourt planting at the start of the dust season means the first cleaning visit lands within weeks of practical completion, not months.
6. Commercial Contractor FAQs
Q: How often do outdoor artificial palms need cleaning in a desert climate, and what method is safe?
A: Budget 4–8 weeks for an exposed forecourt or plaza during the dusty season, 6–10 weeks on a coastal promenade or pool deck, 3–6 months for a sheltered arcade and 6–12 months for an enclosed atrium, then adjust after the first year using the actual soiling rate. Use a pH-neutral surfactant, a soft brush or low-pressure rinse, and water below roughly 200 mg/L total dissolved solids. Avoid high-pressure jets held close to the crown, abrasive pads and solvent cleaners: they remove the stabiliser-bearing surface layer, which is the part doing the weathering work.
Q: Does airborne dust actually cause fading, or is the grey look only cosmetic?
A: Both effects are real and they arrive in sequence. The cosmetic layer is a calcareous film that a correct wash removes. Underneath it, mobilised quartz grains act as a loose abrasive against a much softer polymer, and the roughened surface that results retains the next dust load harder, holds more heat and exposes fresh polymer to UV. Colour change follows gloss loss. That is why a gloss retention limit and an abrasion test are worth more in a purchase order than a colour claim alone.
Q: What abrasion test and limit should be written into the purchase order?
A: ASTM D4060 with CS-17 wheels at 500 g for 1,000 cycles, reported as a wear index, plus gloss retention measured to ASTM D523 at a minimum of 70 % of the reference specimen. Two conditions make the result meaningful: the specimen must be a production-moulded frond in the specified colour rather than a flat plaque, and the comparison must be run between the candidate formulations in one laboratory, because ASTM D4060 notes that numerical abrasion values are poorly reproducible between laboratories. Ask for the ranking, not a single certificate.
Q: Can a UV add-on rescue an indoor-built palm for an outdoor terrace, and what else changes?
A: The foliage grade is the deciding factor, not the label. A UV add-on applied to an indoor build gives a protection window measured in months on an exposed site. For permanent outdoor service the frond should be moulded from a UV-stabilised compound with the stabiliser in the resin, the core should be hot-dip galvanized to ISO 1461 with A4 stainless or equivalent fixing hardware for a coastal location, and the anchor detail should be reissued against site wind load rather than reused from an indoor base. Where all three cannot be met, the honest answer is a shorter design life and a cleaning-and-replacement budget, not a longer warranty sentence.
Conclusion: Put the Abrasion and Cleaning Numbers in the Specification Before You Order
Dust is the weathering agent a desert project is least likely to have specified against, and it is the one that decides what the installation looks like in year three. Trees that still read as green on a Gulf forecourt are the ones where the finish was bought as a measurable property — wear index, gloss retention, pigment family — and where the cleaning method and interval were written into the handover pack rather than left to a facilities contractor. Our engineering team issues abrasion and gloss data against a named formulation and colour, together with the anchor calculation, the anchor template and the finish samples, so a specifier and a QHSE reviewer are reading one submittal. Send the site location, the exposure direction and the species list, and we will return the specification sheet with the weathering and fixing evidence mapped to each tree position. The full range is listed in the product catalogue, and delivered projects show how the same species is built for an exposed forecourt and for a sheltered arcade.
