Container Loading Verification for Large Artificial Trees: Stowage Plans, the SOLAS VGM and CBM Reconciliation Before the Seal Goes On

Executive Summary

A 40HQ has internal dimensions of 12.032 × 2.352 × 2.698 m, a theoretical 76 m³ and a realistic usable volume of 57–68 m³ once loading access and irregular shapes are accounted for. Artificial tree cargo is volume-limited rather than weight-limited, so the container is decided by crown volume, not by the 26.5–28.6 t payload. Three documents settle the money: the stowage plan, the SOLAS verified gross mass declaration the shipper must sign, and a CBM reconciliation that holds the packing list to the quotation within ±5%.

The loading record is what turns a freight invoice into something checkable. Without it, every cubic metre of dead space in the container is paid for twice — once in freight, and again in the replacement container that gets booked later.

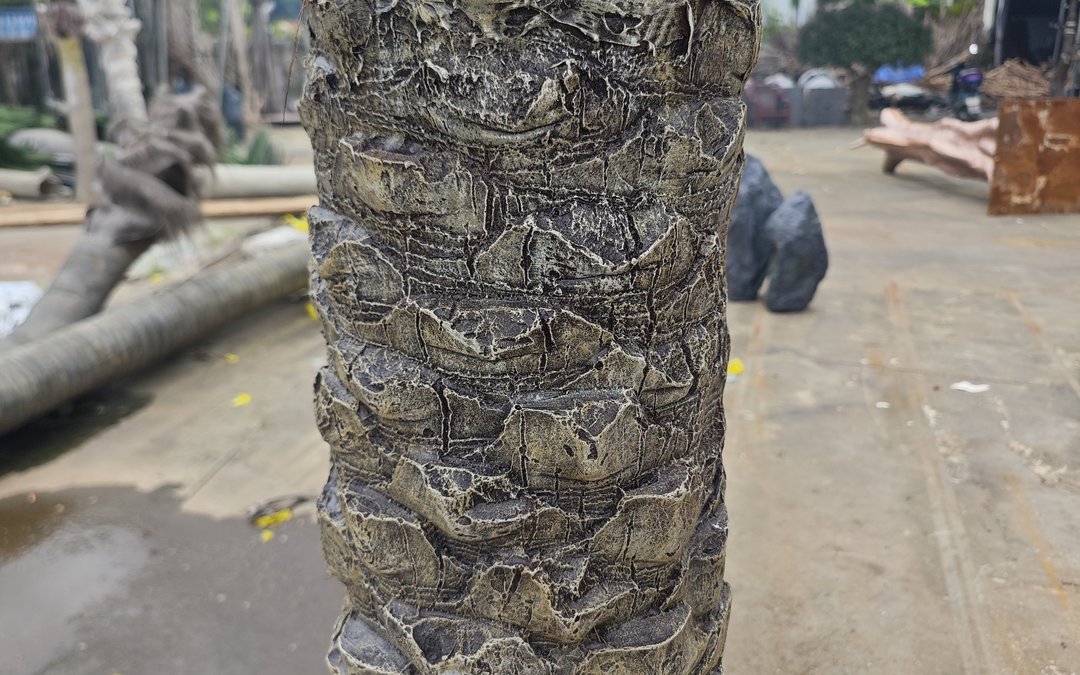

A finished date palm trunk shell staged on the yard before crating, with further trunks still in transit wrap along the fence line behind. Staging discipline at this point decides how much of the 40HQ ends up being trunk and how much is air.

1. Failure Modes & Commercial Pitfalls

Freight on large artificial trees is not lost at sea. It is lost in the four weeks before the container is booked, in decisions that feel like production details and turn into invoice lines.

The first is a load that has no plan as a document. A quotation almost always states a container count — one 40HQ for this order — and that number is usually derived from a per-piece volume table rather than from an actual stowage arrangement. The factory then loads what fits, which produces a mixed result: the trees go in, the planters go in, and the remaining volume is closed out with whatever is left standing in the bay. Measured across a mixed order, the difference between a planned load and an opportunistic one routinely reaches 10–15% of usable volume, and on a two-container project that 10–15% is the reason a second container gets booked.

The second is treating the load as a volume problem when it can be a weight problem. Foliage and fibreglass are light; ballast collars, cast planters and concrete bases are not. The moment a project specifies contained-weight fixing rather than base-plate anchoring, the consignment stops being purely volumetric and starts running into payload limits around the same time it runs into the door aperture. The complication is that the binding limit is often neither the ocean payload nor the internal volume but the road leg at destination: a container rated for 28 t can still be capped well below that by axle-load rules between the port and the site, and that cap is set by local regulation rather than by the shipping line.

The third is the verified gross mass declaration treated as paperwork the forwarder will handle. Under SOLAS regulation VI/2, in force since 1 July 2016, the shipper — the party named on the bill of lading or sea waybill — is responsible for providing the verified gross mass of a packed container, and a packed container without a VGM must not be loaded onto the vessel. The mass can be verified by weighing the packed container on calibrated and certified equipment, or by adding the tare mass to the weighed mass of every cargo item, pallet, dunnage and securing element. Declared and actual mass are expected to agree within roughly 5%, and the declaration has to reach the terminal and the vessel in time to be used in the stowage plan. A document raised after the cut-off does not delay a crane; it misses a sailing.

The fourth is cargo that fits inside the container and still does not go through the doors. The door aperture on a 40HQ is about 2,340 mm wide by 2,577 mm high against an internal height of 2,698 mm, so any assembled crown or loaded cradle dimensioned against internal height can fail at the doorway. This is a design consequence rather than a loading-crew error: once a crown is built to a fixed outer envelope, the aperture is the constraint, and the answer is a knock-down or partially assembled build rather than a different loading technique.

The fifth is a freight invoice that nobody reconciles. Ocean freight is quoted per container, so it is easy to accept that the number is simply the number — but the CBM figure in the quotation is what set the container count, and if the loaded volume diverges from it, the buyer has paid for air. Loading photographs, a door-end photograph recording the seal and container number, and a packing list that identifies each piece are what make that divergence visible early enough to act on, and they are also the only evidence available if a shortage or damage claim is filed later.

2. Material Science & Structural Engineering Standards

Material science on a freight article means the four product decisions that determine container volume. Each is a specification line, and each one moves the CBM number before a single tree is loaded.

The core sets the minimum packed diameter but rarely sets the volume. Commercial builds above 3 m use a Q235 hot-dip galvanized steel core at Ø48–76 mm; a 4–6 m interior olive tree sits at the lower end of that range and a 6–9 m date palm at the upper end, which changes cradle width by a few tens of millimetres and moves the load plan only marginally. What the core does decide is whether the build can be split at all: a machined, numbered joint on a Ø76 mm column lets a tall tree ship as two or three straight pieces on a timber cradle instead of as one 9 m assembly, and that single decision is worth more container volume than every packing improvement combined.

The trunk shell decides how much of the volume can be nested. A centrifugally cast fibreglass shell of 3–5 mm wall takes its mould from a real trunk, carries ring texture and a hard moulded edge at the branch collars, and — critically for freight — tolerates being braced and strapped against a cradle without deforming. A synthetic foam shell is lighter and cheaper to texture, and it removes two options at once: foam crushes under sustained strap load, so it cannot be packed under tension, and it cannot carry reliable bolt-together joints, so it cannot be knocked down. Both effects push volume back into the container, which is why the shell decision is a freight line even though it is quoted as a material one.

The crown is where the volume actually lives. A crown specified at 1,800–3,200 leaves/m³ is a compressible assembly when it is designed to be compressed and an uncompressible one when it is built as a display piece. Flat-packing foliage and shipping crowns separately from trunks is the standard export arrangement for precisely this reason — but it only works if the crown has a re-shapeable internal armature and the foliage is pre-marked for re-fitting on site. A crown permanently fixed to its arms saves a day of factory labour and costs several cubic metres at the port.

Piece identification is the fourth decision and the one most often skipped. Every separable element — trunk, crown, each branch arm, planter, base plate — needs a durable reference that appears both on the packing list and on the piece itself. Banded numbering on the trunk and branch arms, of the kind used on these builds, is what makes it possible to state at destination that a container held twelve pieces and not eleven, and to rebuild a split trunk in the correct sequence. When a load is checked at the door, the packing list is the document being reconciled, and a list without physical references cannot be reconciled at all.

At the container level the yields are unglamorous and worth stating plainly, because they are what the load plan has to be built from rather than discovered: around 14 five-metre olive trees per 40HQ including planters; around 9 six-metre king palms with crowns packed separately; around 8 six-metre date palms; around 18 four-metre coconut palms; around 6 five-metre canopy ficus; around 4 eight-metre banyan trees in knocked-down form; around 3 ten-metre atrium ficus; around 7 four-metre restaurant ficus; around 20 three-metre blossom trees; around 10 four-metre maples. Those figures assume the packing steps in this section are actually applied.

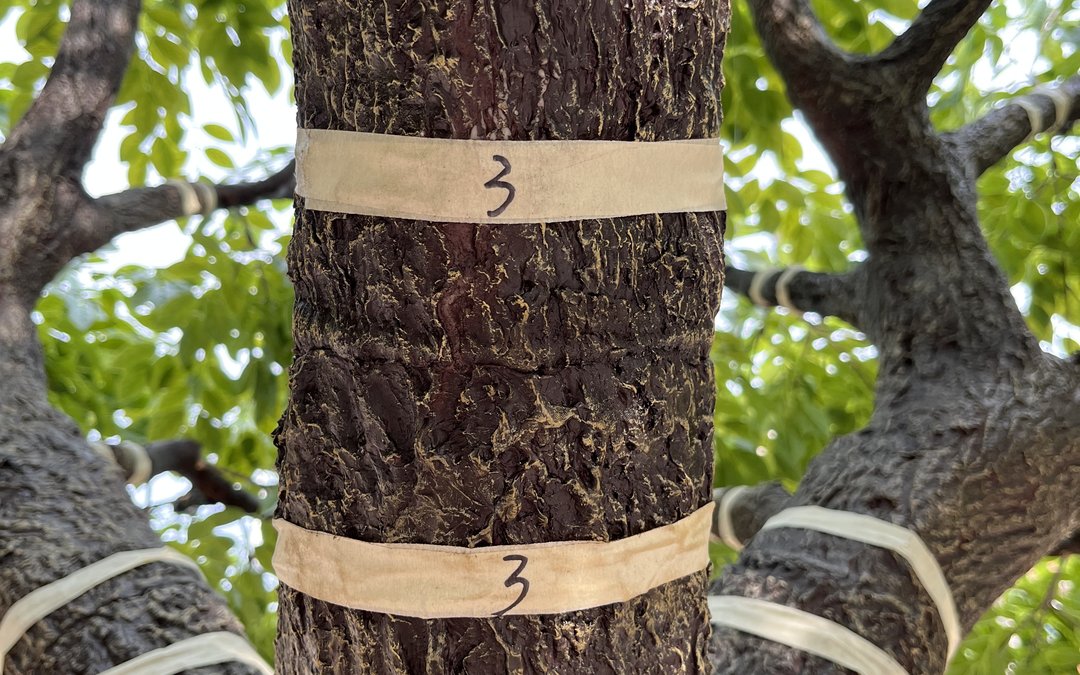

Trunk and branch arms carrying hand-numbered banding during build-up. These references are what let a knocked-down tree be rebuilt in sequence on site — and what let a packing list be reconciled against the load at the container door.

3. Life Safety, Fire Codes & Environmental Compliance

A container carries three compliance threads, and two of them can stop a load at the terminal rather than at the destination. All three are loading-day activities with a four-week lead-in.

The first is the verified gross mass declaration described in section 1. It is a safety regulation rather than a commercial one — incorrectly declared weights feed straight into vessel stowage decisions — and its practical consequence is procedural: the declaration has to be raised by the party named as shipper, signed by someone authorised to sign it, and transmitted in a format and by a cut-off time that the terminal and the line each set independently. Where a forwarder or road haulier submits pre-advice on the shipper's behalf, the shipper still needs a documented process authorising that submission, and records supporting the figure are normally retained for a year.

The second is wood packaging. Timber cradles, pallets and dunnage are subject to ISPM 15, which requires wood packaging material to be treated — heat treatment is the usual measure — and marked with the IPPC stamp identifying the treatment provider and the measure applied. Artificial trees travel on timber more often than most cargo does: long specimens are braced on cradles, crowns sit on pallets, and planters are nested against dunnage, so a project can accumulate a meaningful quantity of regulated wood without anyone thinking of it as wood packaging. An unmarked cradle is a hold at destination, and re-treating a braced tree at the port is neither cheap nor gentle.

The third is the material documentation, which has to travel with the goods rather than follow them. A copy of the fire test report naming the shipped construction, the material declaration naming polymer and stabiliser system, and the shop drawing set carrying core diameter and wall thickness belong in the container documentation pack, because a conformity record matched against the customs declaration at destination is matched against the consignment — not against a project folder that has not been sent yet. On Saudi routes the importer additionally holds the platform-issued conformity record and its per-consignment clearance; on UAE projects the material approvals sit inside the project submission. None of that works if the underlying reports are still sitting in an email thread.

Two coordination items sit alongside those. Interior installations typically need no salt-spray or UV record, so a load mixing indoor and outdoor builds should carry the outdoor test evidence for the outdoor pieces and nothing more — a thin file is normal, an empty one is not. And odour and indoor-air declarations for sealed HVAC environments belong with the interior pieces, because they describe a property verified on site in an enclosed atrium rather than at the factory gate.

Read that table as a loading-day checklist rather than a customs file. Four of the five rows describe things that exist at the factory, which is where they should be collected — not reconstructed from a project folder after the container has sailed.

4. Technical Comparison Table

Container choice sets the ceiling on everything else. The figures below cover the dry-container options normally available on Middle East and European trade lanes, with realistic usable volumes at 85–90% of internal capacity.

Use the table to fix the count before the order is placed, not after the loading plan is written. The decision rule is worth saying out loud: the container that fits is the one where the cargo runs out of volume at roughly the same time it runs out of weight. A tree order almost always runs out of volume first, which is why the 40HQ is the default here and why the difference between a 40GP and a 40HQ — roughly 30 cm of internal height and 8–10 m³ of usable capacity — matters more on this cargo than the freight differential between them. Two further checks belong on the same page as the count. Door aperture, because a crown dimensioned against internal height can fail at the doorway, and the destination road leg, because axle-load rules can cap a container well below its rated payload once it leaves the terminal.

5. Structural Anchoring & MEP Coordination

The fixing method is a freight decision before it is a structural one, and the two options behave completely differently inside a container. A concrete base plate transfers the wind moment into the slab or a cast plinth, and it ships as a light steel assembly with a bolt pattern: the dense part of the system, the concrete, is placed locally, so the container carries structure rather than mass. A ballast collar planter holds the tree by contained weight, and that contained weight has to travel, because the entire point of the design is that it works without penetration. Where a project specifies ballast because a waterproofing warranty forbids drilling, the consequence is that the dense material crosses an ocean — and the load plan has to absorb it.

That single choice can change the container count, which is why it belongs in the quotation rather than in the installation package. Where the mounting decision is still open, both options are worth modelling: base-plate anchoring usually reduces shipped weight and moves work to site, while ballast reduces site work and adds shipped mass. The trade only reads correctly once the road leg at destination is included, because a container that is legal on the ocean can be over the axle limit on the final 40 km.

Securing inside the container follows the same logic as site anchoring: the tree has to be unable to move under a lateral load, and the cradle and lashings are what provide that. Long specimens are braced on timber cradles rather than laid loose, crowns are packed separately from trunks so the load can be built in layers instead of around one tall object, planters are nested to recover volume, and the door end of the container is left clear enough that the last pieces out are the ones the site needs first. Securing practice follows the cargo securing provisions that apply to the trade, and the standard to hold is that a mid-voyage roll cannot let any element shift.

Verification is the final coordination step at the factory, and it is where a buyer's leverage is greatest because it happens before the seal. The set worth requiring is short: a stowage plan showing piece marks and stack heights; loading photographs taken as the container fills; a door-end photograph recording the container number and the seal; the signed VGM declaration; and a packing list whose references match the banded marks on the goods. Set against the cost of a second container or a shortage claim, that record is the lowest-cost control on the project: it is produced by pointing a phone at an open container, and it is the only thing that turns a freight invoice into a document that can be checked. On orders split across mixed-height builds, the same record is what allows a replacement piece to be matched to the original consignment and the original crown height.

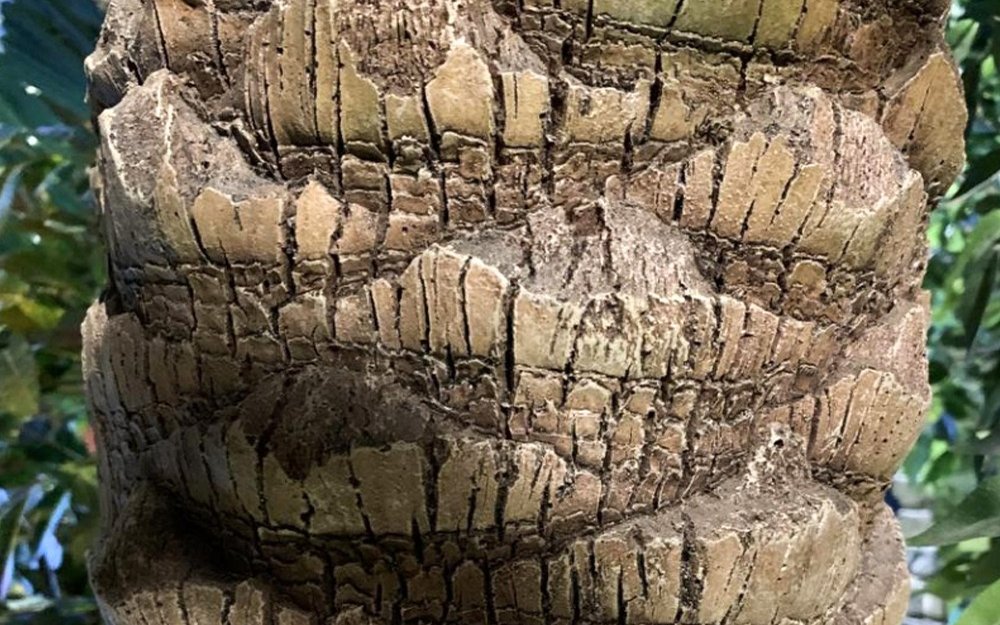

Moulded bark on a date palm trunk shell in close-up: a hard moulded edge and a repeatable section, which is what allows shells to be braced under strap tension and packed crown-separate without deforming in transit.

6. Commercial Contractor FAQs

Q: How much of a 40HQ can a large artificial tree order actually use?

A: Between 57 and 68 m³ on a 76 m³ container, so plan against roughly 85–90% of internal capacity rather than the theoretical figure. The gap is loading access and irregular shapes rather than wasted space, and it widens with mixed-height orders because tall units set a layer height that shorter units cannot fill. A load plan built from per-piece volumes and the yields above — around 14 five-metre olive trees, 8 six-metre date palms, or 4 eight-metre banyan trees in knocked-down form per 40HQ — lands inside that band. A plan built on the assumption that 76 m³ is available will not.

Q: Who is responsible for the verified gross mass, and what happens without it?

A: The shipper named on the bill of lading or sea waybill is responsible, and a packed container without a verified gross mass must not be loaded onto the vessel. The mass can be established by weighing the packed container on calibrated, certified equipment, or by adding the container's tare mass to the weighed mass of all cargo, pallets, dunnage and securing material using an approved method. Declared and actual mass are expected to agree within roughly 5%. The declaration must be signed by an authorised person and transmitted before the terminal's cut-off, which makes it a scheduling item rather than a formality.

Q: What should the loading photograph set contain?

A: Five things: a stowage plan showing piece marks and stack heights; photographs taken progressively as the container fills, so the arrangement can be reconstructed afterwards; a door-end photograph recording the container number and the seal; the signed VGM declaration; and a packing list whose references match the marks on the goods. The door-end image carries the most commercial weight, because it fixes container identity to the load and becomes the reference point for any later shortage or damage claim. Request the set before the seal is applied, not after the vessel sails.

Q: How is quoted CBM reconciled against what was actually loaded?

A: By holding the packing list to the quotation and treating any divergence beyond about 5% as a question to be answered before the next container is booked. The reconciliation uses the load plan volume, the packed piece count and the photograph set, and it distinguishes between unplanned dead space — a crown packed as an assembled unit, planters left un-nested, pallets used where flat packing would have worked — and a miscalculation in the original volume table. Both are worth knowing; the first is worth fixing, because it repeats on the next order.

Q: Does knock-down packing always reduce freight?

A: No. It reduces freight where a tree is tall enough that a single assembled piece would set the layer height for the whole load — typically above 6 m — and it can cost freight on a short build, where the joint hardware and extra crating occupy more volume than the height saved. The decision point is whether splitting the specimen allows a second layer to be loaded. Above that height, a machined and numbered joint on the Ø76 mm core lets a 9 m tree ship as straight pieces on a cradle, usually worth several cubic metres per container; below it, the arithmetic often does not justify the reassembly labour.

Q: What typically goes wrong between the quotation and the container?

A: The specification moves. Ballast replaces base plates, a height is added to a crown, an assembled crown replaces a flat-packed one, or spares are added — and each of those changes the volume while the container count stays where it was quoted. The other common divergence is staging: trees completed earlier in the production run get loaded first because they are ready, not because the plan says so. Both are controlled by the same instrument: a load plan agreed before packing starts, and a packing list reconciled against it at the door.

Conclusion: Verify the Load Before the Seal Goes On

Container volume on a large tree order is decided by four product choices — whether the core is jointed, whether the crown ships flat, whether planters are nested, and whether the fixing method puts mass in the container or leaves it on site — and then confirmed by a document set that takes an hour to produce at the factory. At Pure Faux Flora we build to a Q235 hot-dip galvanized core with IFR PE foliage, quote a piece-by-piece CBM packing sheet with every order, and hold the load plan, the loading photographs and the verified gross mass record together so a container can be reconciled before the seal is applied. Send us the tree list, the intended fixing method and the destination port, and we will return a volume-based container recommendation with the loading assumptions shown — see the full product catalogue for the 15 commercial tree builds, or browse delivered projects for consignments on comparable Gulf and European routes.
